Product Overview

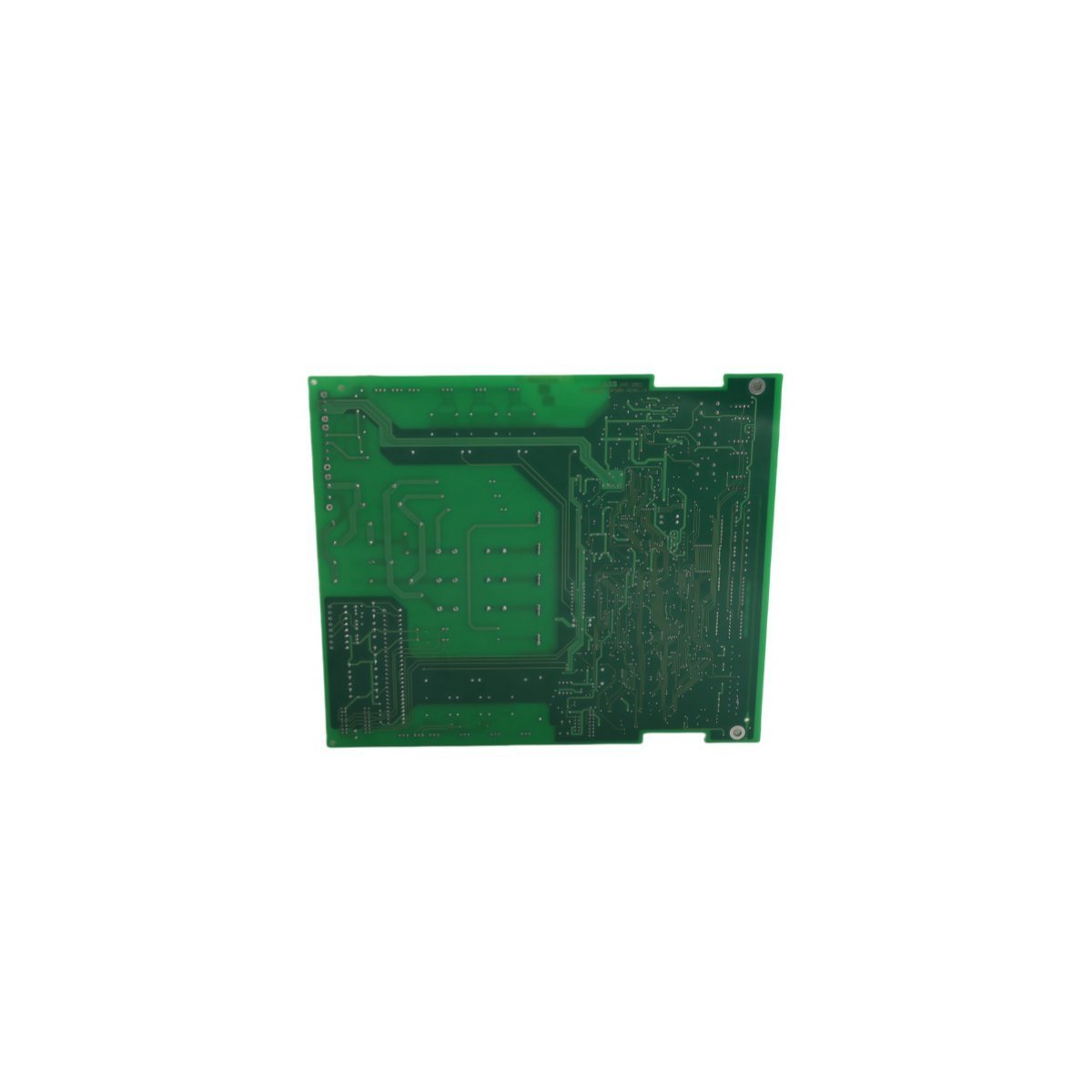

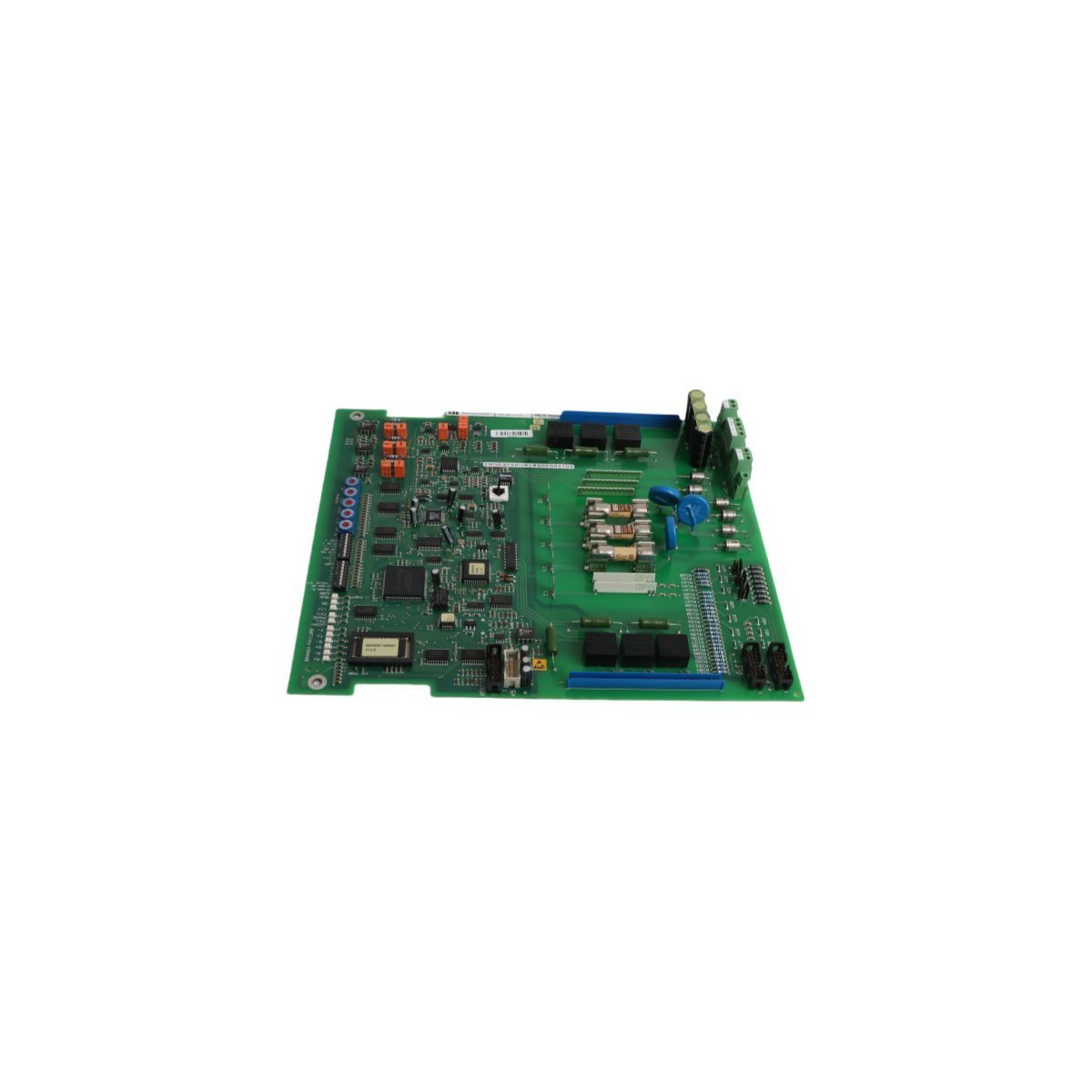

The ABB 3BHE006422R0001, designated as the UNS2861C-P,V1, is a high-precision circuit board engineered for the UNITROL series of excitation and drive control systems. This module serves as an advanced interface and signal processing card, facilitating the critical exchange of data between the main control processor and the power electronic stages. Designed for high-availability environments, the UNS2861C-P,V1 provides the essential synchronization and feedback loops required to maintain generator voltage stability. Its high-integrity Swedish construction ensures that sensitive control logic remains isolated from the high-voltage noise typically found in industrial power conversion cubicles, making it an indispensable component for mission-critical automation infrastructure.

Hardware Parameters and Technical Metrics

• Module Designation Excitation System Interface Board

• Model Identifier UNS2861C-P,V1

• Order Reference 3BHE006422R0001

• System Compatibility UNITROL 5000 / 6000 Series

• Ingress Protection IP20 (Dust resistant for cabinet mounting)

• Diagnostics Integrated real-time monitoring and fault detection

• Networking Compatible with system-wide Ethernet router architectures

• Unit Mass 0.52kg

• Physical Dimensions 29cm x 25.2cm x 3.5cm

• Manufacturing Origin Sweden

• Tariff Classification (HS) 8537101190

Industrial Deployment and Site Applications

The UNS2861C-P,V1 is predominantly utilized in the power generation and heavy drive sectors, where it acts as a gate unit interface or a high-speed signal extension card. In large-scale hydroelectric or thermal power facilities, this board monitors the field excitation variables, ensuring that synchronous generators respond instantaneously to grid load changes. Its 0.52kg modular design allows for rapid field replacement, significantly reducing Mean Time to Repair (MTTR) during scheduled maintenance or emergency outages. Built to endure the thermal cycling of continuous industrial operation, the 3BHE006422R0001 provides the reliability needed for energy-efficient motor control and large-scale utility grid stabilization, protecting the long-term health of the plant's primary rotating assets.

FAQ

Q: What is the primary role of the UNS2861C-P,V1 in a UNITROL excitation system?

A: The UNS2861C-P,V1 functions as a specialized communication and interface board, bridging the gap between low-voltage control signals and the high-power thyristor firing circuits within the excitation cabinet.

Q: Is the UNS2861C-P,V1 3BHE006422R0001 compatible with legacy UNITROL models?

A: This specific revision (V1) is engineered for modern UNITROL architectures. You should check your current system's hardware manual to ensure the card's firmware and physical connector layout are compatible with your specific rack version.

Q: How does the IP20 rating impact the installation of this circuit board?

A: The IP20 rating indicates that the board is protected against solid objects up to 12mm (like fingers) but is not waterproof. It must be installed within a NEMA or IP-rated industrial enclosure to protect it from moisture and conductive dust.

Q: Are there any specific cooling requirements for this module?

A: While the board is designed for energy efficiency, it relies on the internal convection or forced-air cooling of the main system cabinet. Maintaining clear airflow across the board surface is essential for long-term component reliability.

Q: Can I use the on-board diagnostic tools to troubleshoot field-side faults?

A: Yes. The UNS2861C-P,V1 provides feedback to the DCS, allowing operators to see if a communication loss or signal deviation originates from the board itself or from external field wiring.
