Product Overview

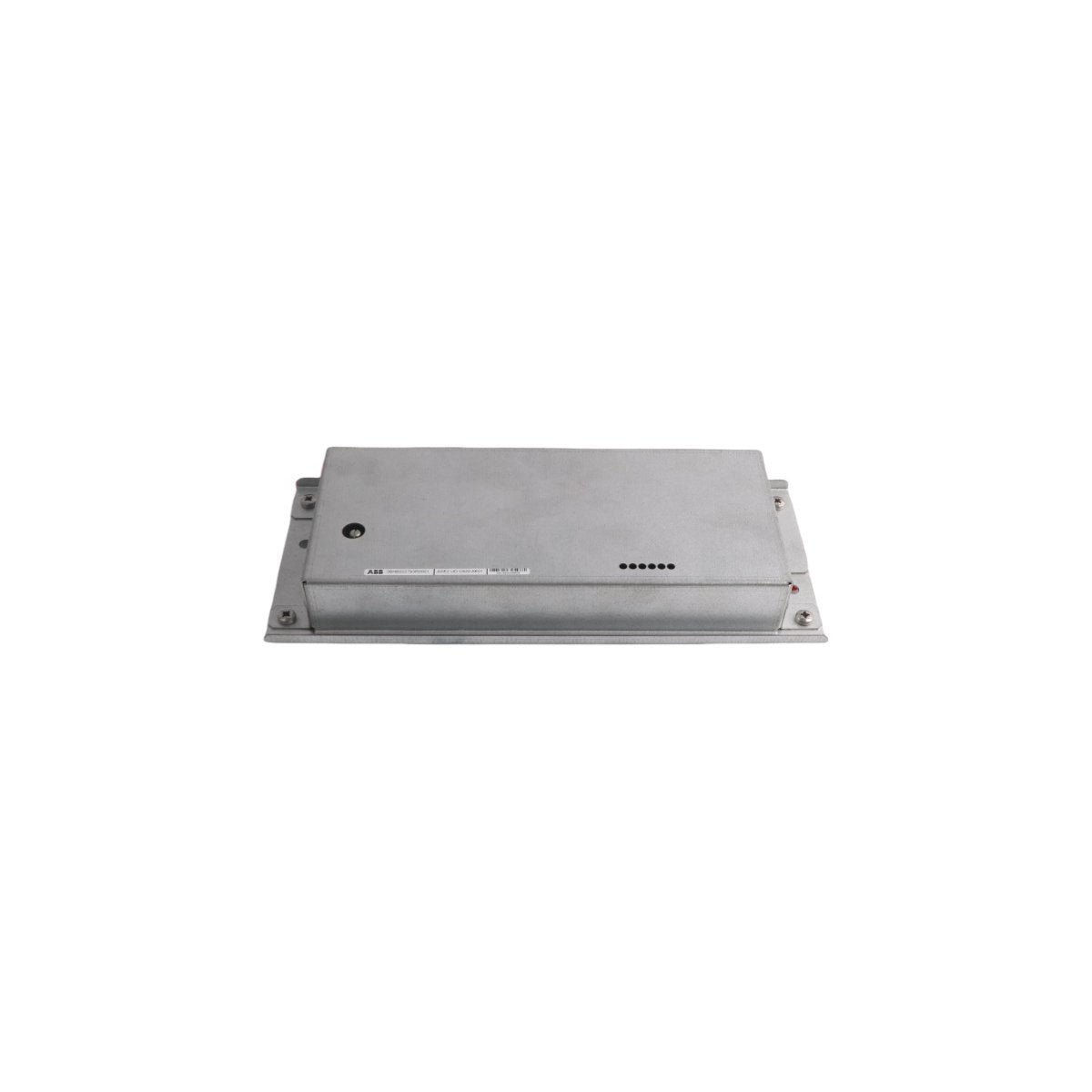

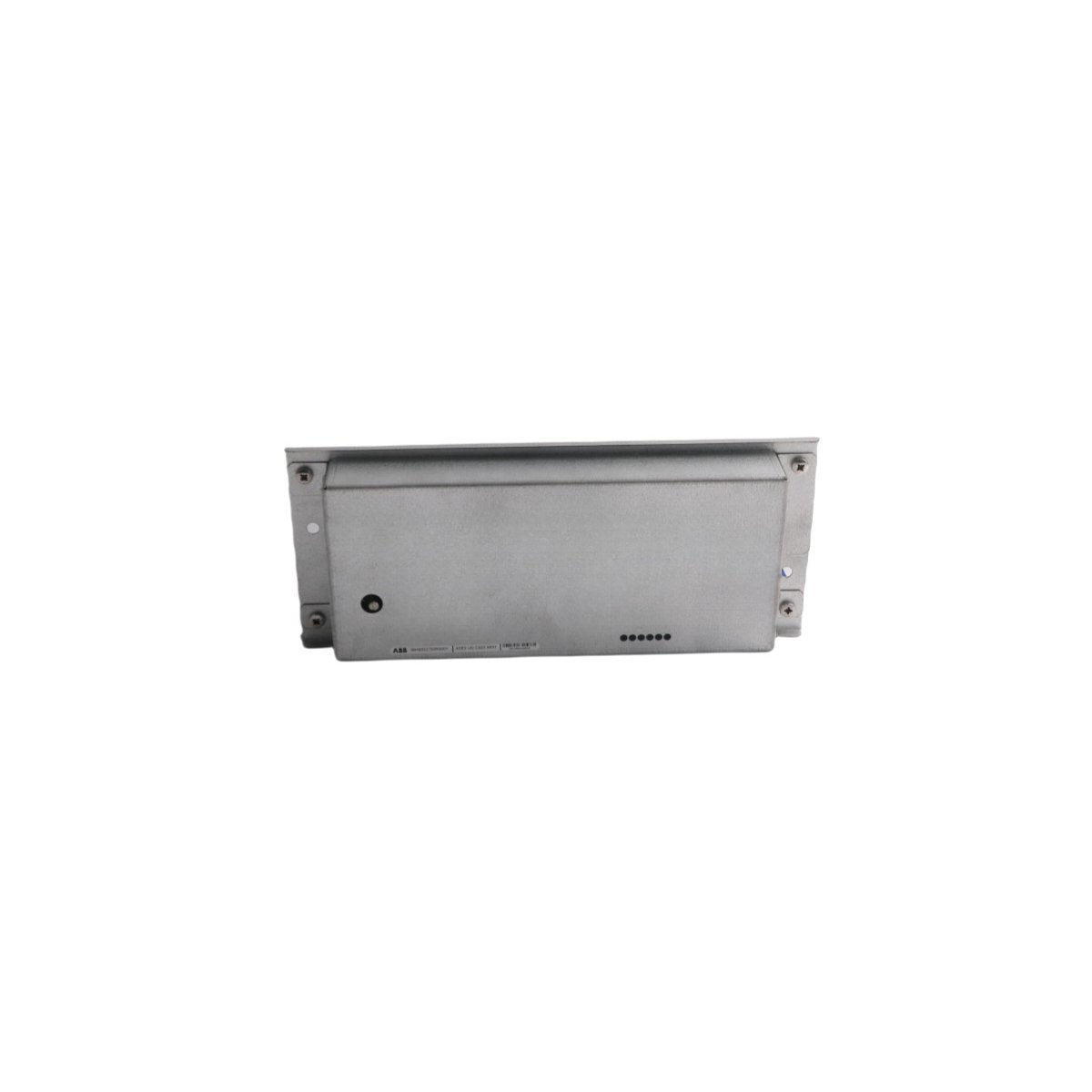

The ABB 3BHB022793R0001, belonging to the specialized ASE2 UD C920 AE01 hardware series, is a high-performance digital control and communication interface specifically engineered for UNITROL excitation systems. This module serves as a critical processing node that facilitates the high-speed exchange of control signals and diagnostic data within a synchronous generator's excitation circuit. By leveraging advanced digital signal processing, the ASE2 UD C920 AE01 ensures that voltage regulation and field current management are executed with microsecond precision. Its robust architecture is designed to integrate seamlessly into Distributed Control Systems (DCS), acting as a bridge between the central plant logic and the power electronics of the excitation suite.

Core Technical Parameters and Hardware Logic

The 3BHB022793R0001 is built for high-density industrial environments, featuring reinforced circuitry to mitigate the effects of electromagnetic interference common in power generation halls.

• Order Code: 3BHB022793R0001

• Model Identifier: ASE2 UD C920 AE01

• System Family: UNITROL Excitation Series

• Input Configuration: 16 High-Speed Digital Input Channels

• Processing Capability: Real-time digital control and signal conditioning

• Global Compliance: Certified for CE, UL, and FCC standards

• Physical Mass: 0.96 kg

• Module Dimensions: 30 x 12.6 x 4.5 cm

• Manufacturing Origin: Sweden

• Communication Support: Ethernet-based routing and internal bus interfacing

Industrial Utilization and Field Applications

This digital control module is a staple in high-stakes energy production and heavy industrial sectors where the stability of synchronous machinery is vital to the power grid.

• Power Plant Excitation: Acts as the primary communication link for UNITROL 6000 systems, managing the excitation of large-scale synchronous generators in nuclear, thermal, and hydro plants.

• Voltage Regulation (AVR): Supports Automatic Voltage Regulation functions by processing real-time feedback from 16 discrete input channels to maintain grid compliance.

• Industrial Synchronous Motors: Utilized in heavy manufacturing plants (e.g., steel mills or large mining compressors) to control the excitation of massive motor drives.

• Grid Stability Management: Provides the fast-acting logic required for Power System Stabilizer (PSS) functions, helping to dampen oscillations in large interconnected electrical networks.

• Diagnostic Monitoring: Facilitates remote troubleshooting by routing detailed internal module states to the DCS via its high-speed communication interfaces.
