Product Overview

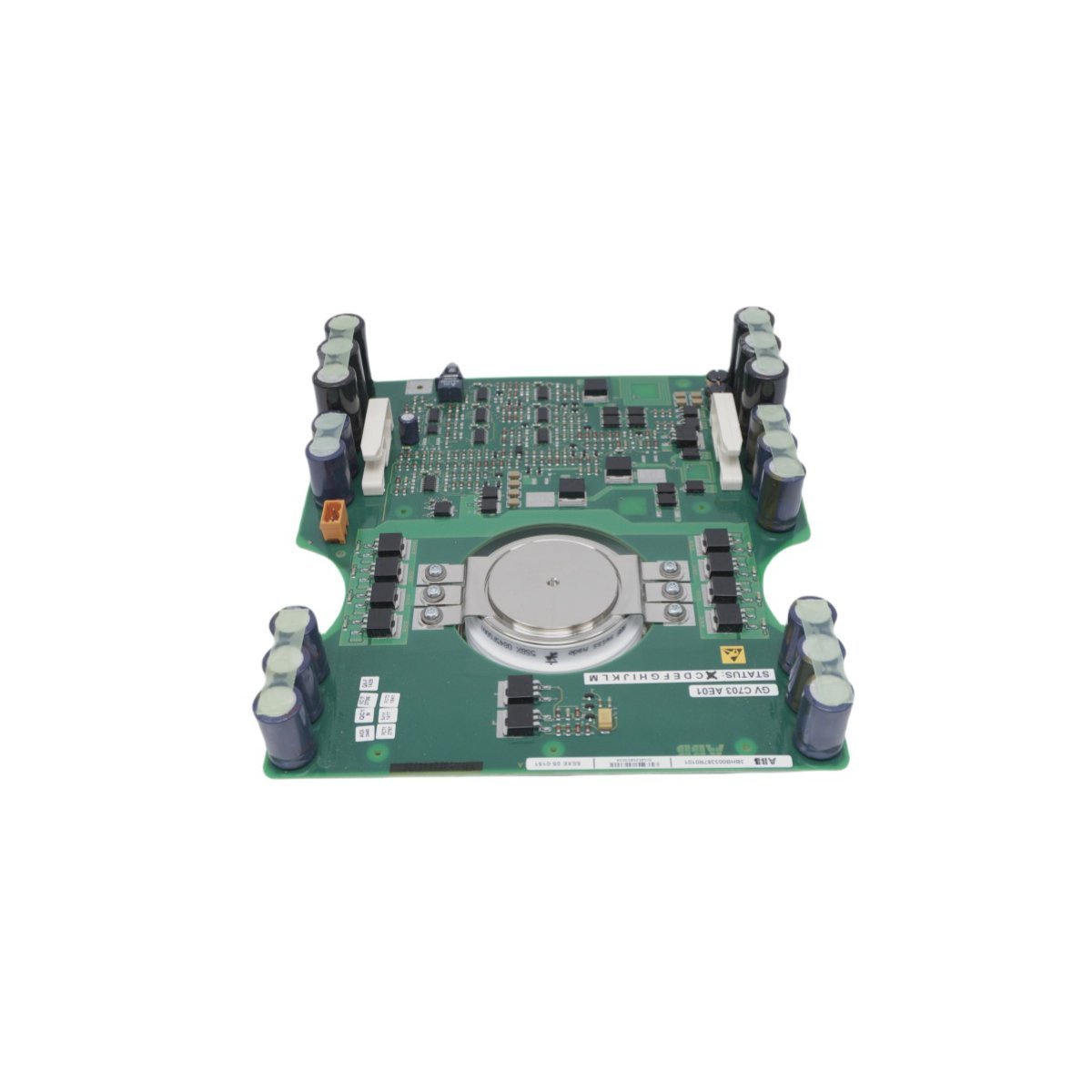

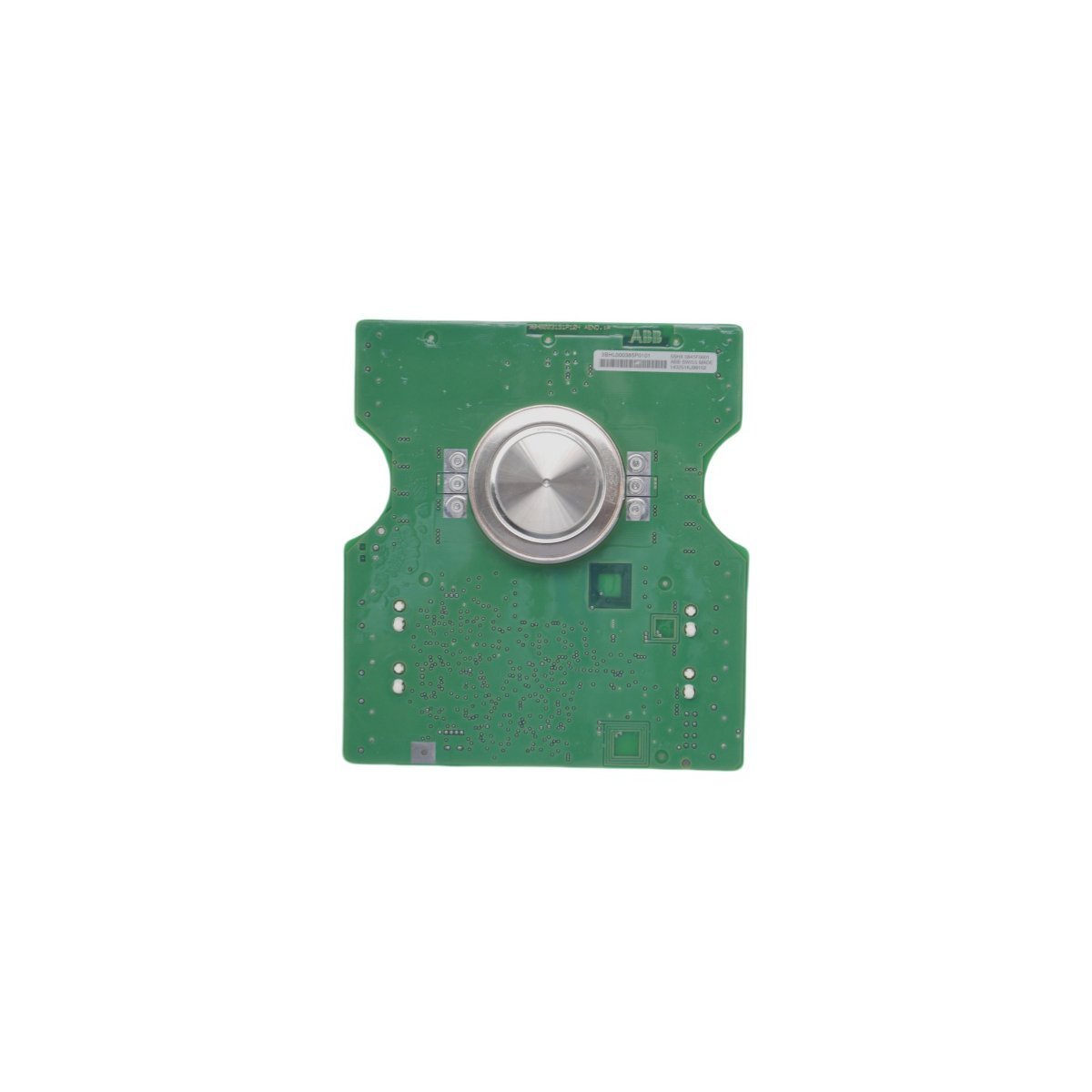

The ABB 5SXE05-0153 (3BHB011317R0001) is a high-capacity Integrated Gate-Commutated Thyristor (IGCT) module engineered for high-voltage power conversion and large-scale industrial drive systems. As a critical component in the Advant OCS/800xA ecosystem, this module combines the high-current density of a thyristor with the fast switching capabilities of an IGBT. It is specifically designed to handle extreme electrical loads, providing low conduction losses and high reliability in medium-voltage applications. With a robust 6.5kV rating, the 5SXE05-0153 serves as the primary switching element in heavy-duty inverters, ensuring efficient power flow and precise motor control in the most demanding industrial environments.

Technical Specifications and Hardware Parameters

The 3BHB003386R0101 is built to sustain massive current surges and rapid thermal cycling, maintaining structural and electrical integrity under high-stress conditions.

• Model Identification 5SXE05-0153

• Order Number 3BHB003386R0101

• Module Type Integrated Gate-Commutated Thyristor (IGCT)

• Voltage Class 6.5 kV AC/DC

• Continuous Anode Current 5,150 A RMS

• Peak Surge Current 45 kA (10ms pulse duration)

• Turn-off Time Faster than 4.5 μs

• Gate Drive Range -18V to +22V (with ±200A capacity)

• Operating/Storage Temperature -40°C to +100°C

• Weight 1.58 kg

• Dimensions 29 x 34.5 x 6 cm

• Origin Sweden

Industrial Applications and Operational Use Cases

The high power density and rapid switching of the 5SXE05-0153 make it an essential component for heavy industry and utility-scale power management.

• Medium Voltage Drives (MVD) Utilized in the power stacks of ACS800 and ACS6000 drives to control high-power motors in mining, water pumping, and material handling.

• Static Var Compensators (SVC) Employed in grid-stabilization systems to manage reactive power, ensuring voltage stability in utility networks.

• Marine Propulsion Systems Acts as the core switching module for large-scale electric propulsion in commercial vessels and cruise ships, where power reliability is mission-critical.

• Renewable Energy Conversion Integrated into wind turbine inverters and large-scale solar arrays to convert DC energy into high-quality grid-synchronized AC power.

•
