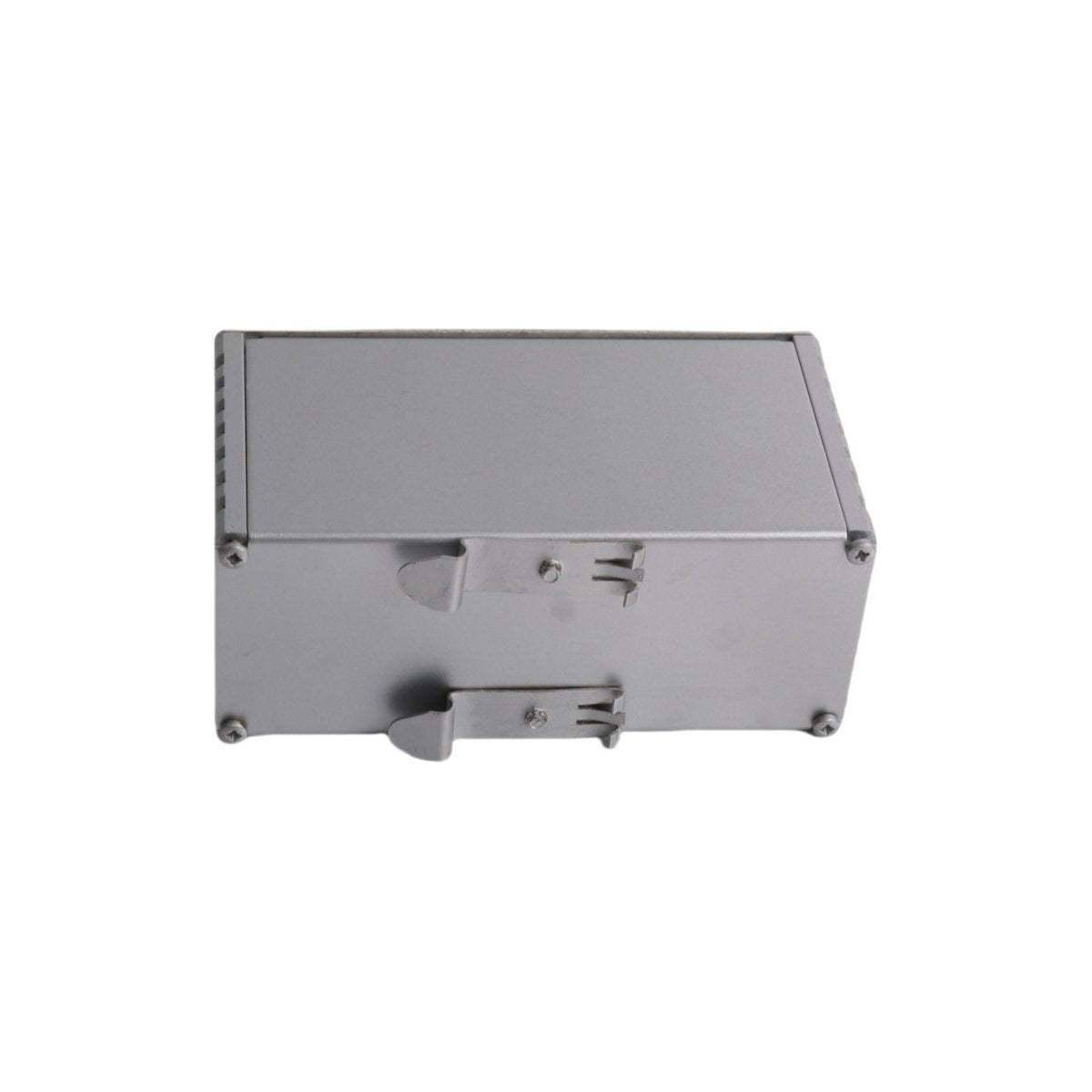

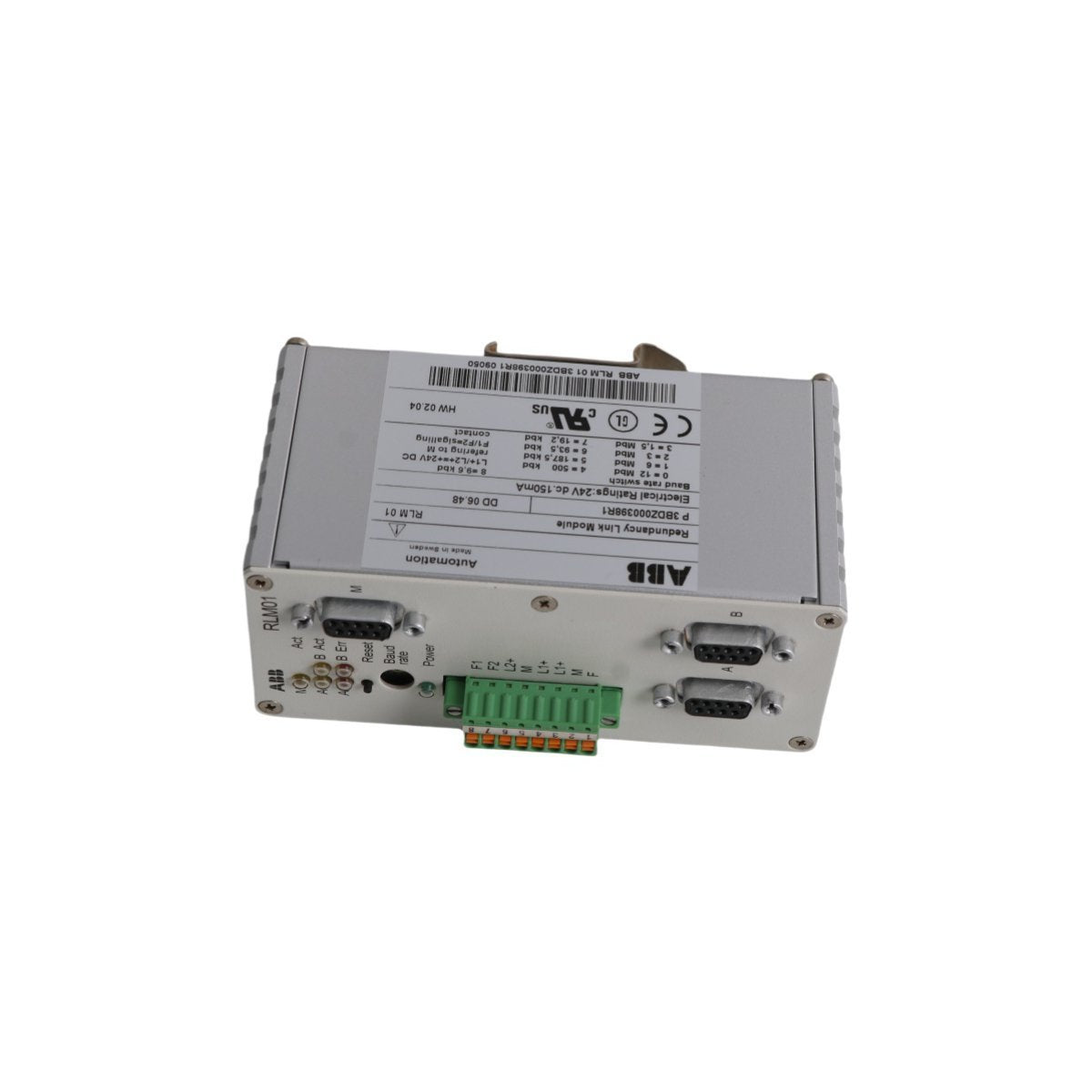

3BDZ000398R1 ABB PROFIBUS Redundancy Link Module RLM01
-
Dimensions: 5.5 × 9.5 × 13.2 cm
-
Country of origin: Sweden
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
RLM01 with order number 3BDZ000398R1 is an ABB PROFIBUS redundancy link module for Advant OCS / 800xA control systems. It is used to maintain communications availability in PROFIBUS RS-485 networks by supervising multiple bus paths and switching the active channel when a fault condition is detected. The module also performs signal regeneration, helping preserve waveform integrity and communication margin on extended or electrically noisy segments.
Designed for continuous service in industrial cabinets, this redundancy link module supports diagnostic visibility via front indicators and alarm signaling, enabling faster troubleshooting in critical control networks.
Network & Hardware Characteristics
| Item | Specification |
|---|---|
| Model | RLM01 |
| Order Number | 3BDZ000398R1 |
| Module Type | PROFIBUS Redundancy Link Module |
| Product Range | Advant OCS / 800xA |
| Physical Layer | RS-485 |
| Data Rates | 9.6 kbit/s to 12 Mbit/s |
| Interfaces | 3 × RS-485 ports (typical use A / B / M) |
| Function | Redundant line supervision, automatic path changeover, signal regeneration |
| Diagnostics | Front-panel LED status indication, alarm output (dry contact) |
| Supply | 24 VDC (single or redundant feed supported) |
| Condition | Brand New |
| Availability | In Stock |
| Origin | Sweden |
| Weight | 0.32 kg |
| Dimensions | 5.5 × 9.5 × 13.2 cm |
| HS Code | 8537101190 |
| MOQ | 1 |
Additional engineering notes
-
Automatic channel selection based on telegram validity to reduce communication interruptions
-
Repeater behavior improves signal amplitude/shape to stabilize bus performance
-
Alarm contact can be wired to DCS diagnostics, annunciators, or maintenance monitoring systems
Industrial Applications
-
PROFIBUS networks requiring redundant cabling paths for high-availability control systems
-
Process industries where communication loss can cause trips, production loss, or safety risk
-
Marine/offshore and heavy industrial installations using ruggedized fieldbus infrastructure
-
Revamps and lifecycle support for Advant OCS / 800xA systems with PROFIBUS field devices
