Product Overview

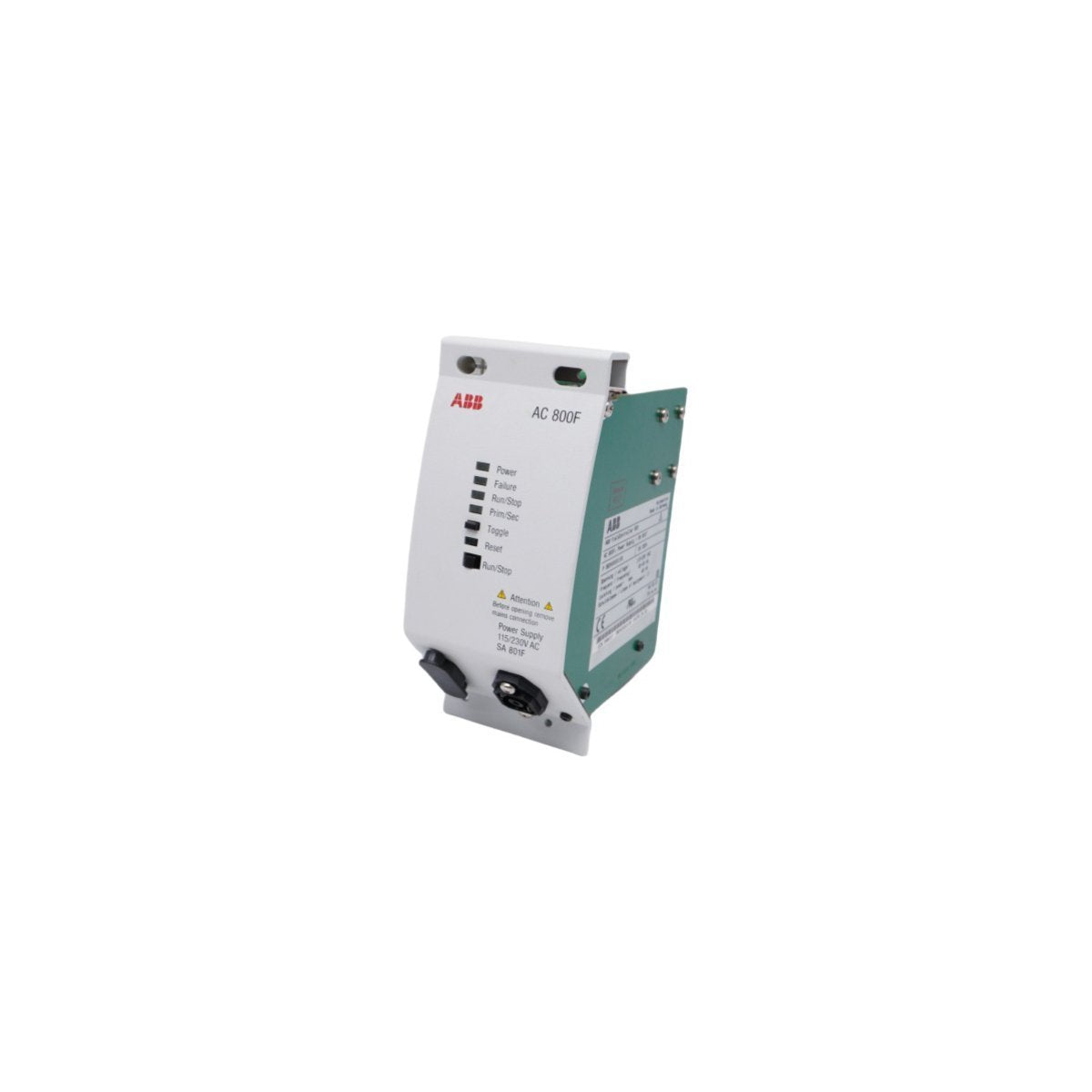

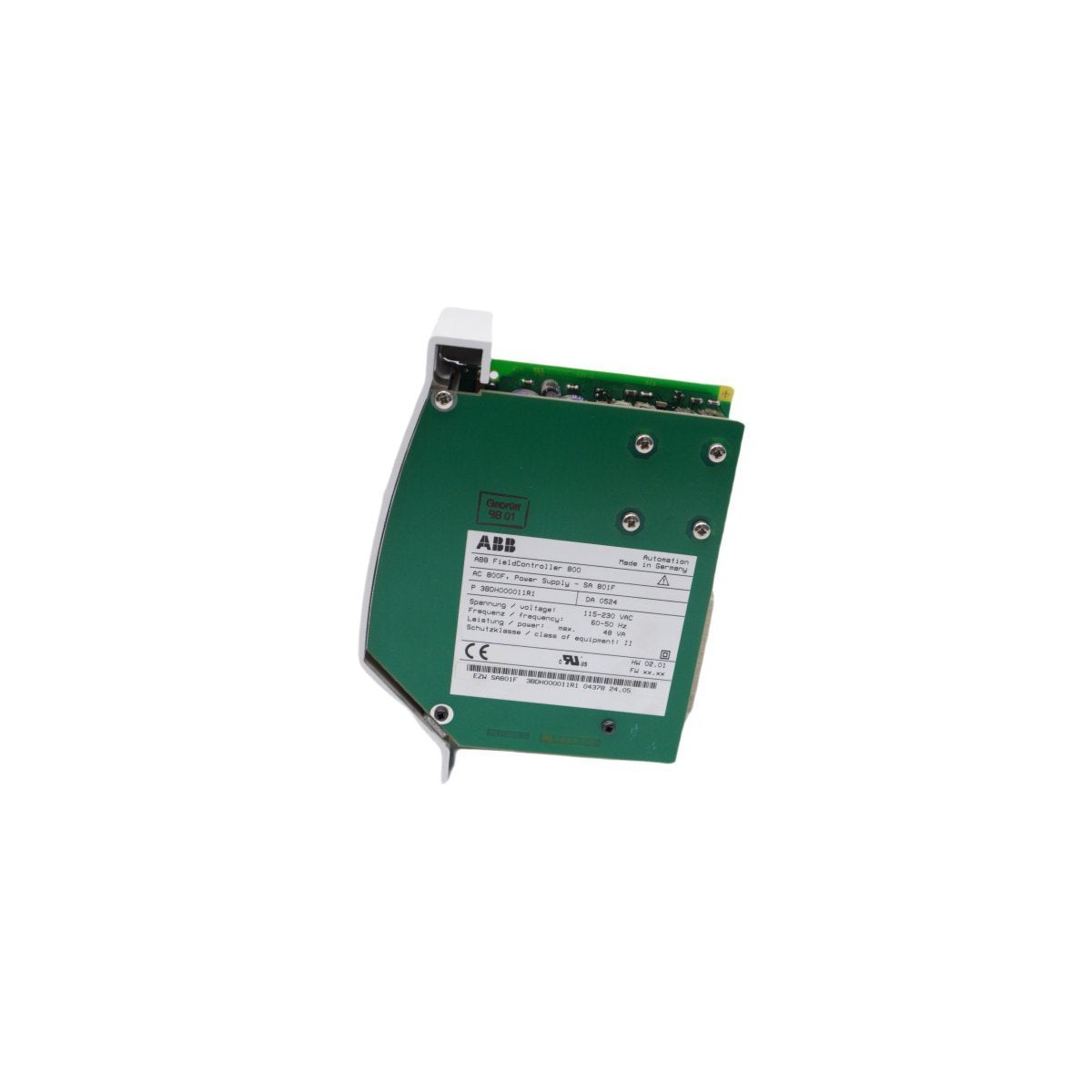

The ABB SA801F, identified by order number 3BDH000011R1, is a high-reliability power supply unit specifically engineered for the AC 800F Freelance Distributed Control System (DCS). This module serves as the primary energy source for controller racks and associated I/O modules, converting standard 115/230 VAC mains into the stabilized DC voltage required for sensitive industrial electronics. Designed for continuous duty in mission-critical environments, the SA801F prioritizes power quality and regulation, ensuring that fluctuations in the primary grid do not compromise the integrity of the automation logic or signal processing.

Critical Engineering Specs

• Model Identification: SA801F

• Catalog Number: 3BDH000011R1

• Input Voltage Range: Switchable 115 VAC or 230 VAC

• Product Line: Freelance AC 800F Control System

• Safety Protocols: Integrated branch circuit protection and UL compliance

• Physical Footprint: 6.5 x 12.5 x 15.5 cm

• Unit Mass: 0.46 kg

• Country of Origin: Sweden

• Environmental Rating: Industrial-grade thermal and vibration resilience

Industrial Applications and Integration

The SA801F is a fundamental component for maintaining uptime in automated facilities where power consistency is a prerequisite for safety.

• Freelance DCS Racks: Providing dedicated power to AC 800F field controllers and communication interfaces.

• Process Manufacturing: Powering automation nodes in chemical and pharmaceutical plants where voltage stability prevents batch loss.

• Stand-alone Control Panels: Utilizing NEMA 1 enclosure compatibility for decentralized installations outside of central server rooms.

• Energy Management: Serving as a reliable power source for monitoring systems in utility substations and renewable energy sites.

Hardware Protection and System Reliability

Constructed to meet rigorous UL standards, the 3BDH000011R1 features integrated protective circuitry to shield the internal DCS components from overcurrent and short-circuit events. Its compact design allows for high-density mounting within standard control cabinets, optimizing rail space without sacrificing cooling efficiency. The module’s switchable input capability provides global versatility, allowing it to be deployed across different regional power standards. With a focus on longevity, the SA801F utilizes high-grade capacitors and heat-dissipating housing materials to extend the mean time between failures (MTBF), making it a trusted choice for engineers looking to stabilize their control system infrastructure.
