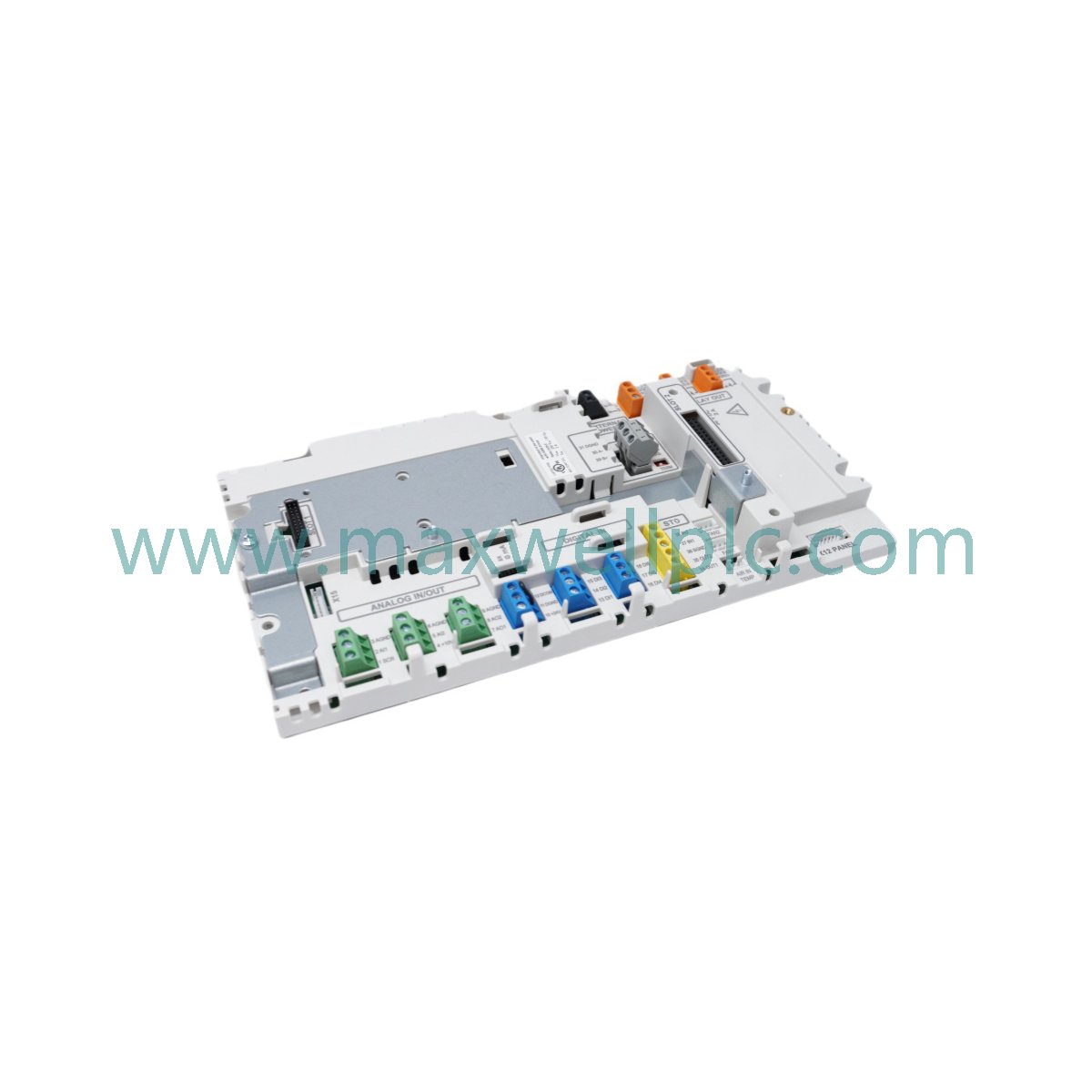

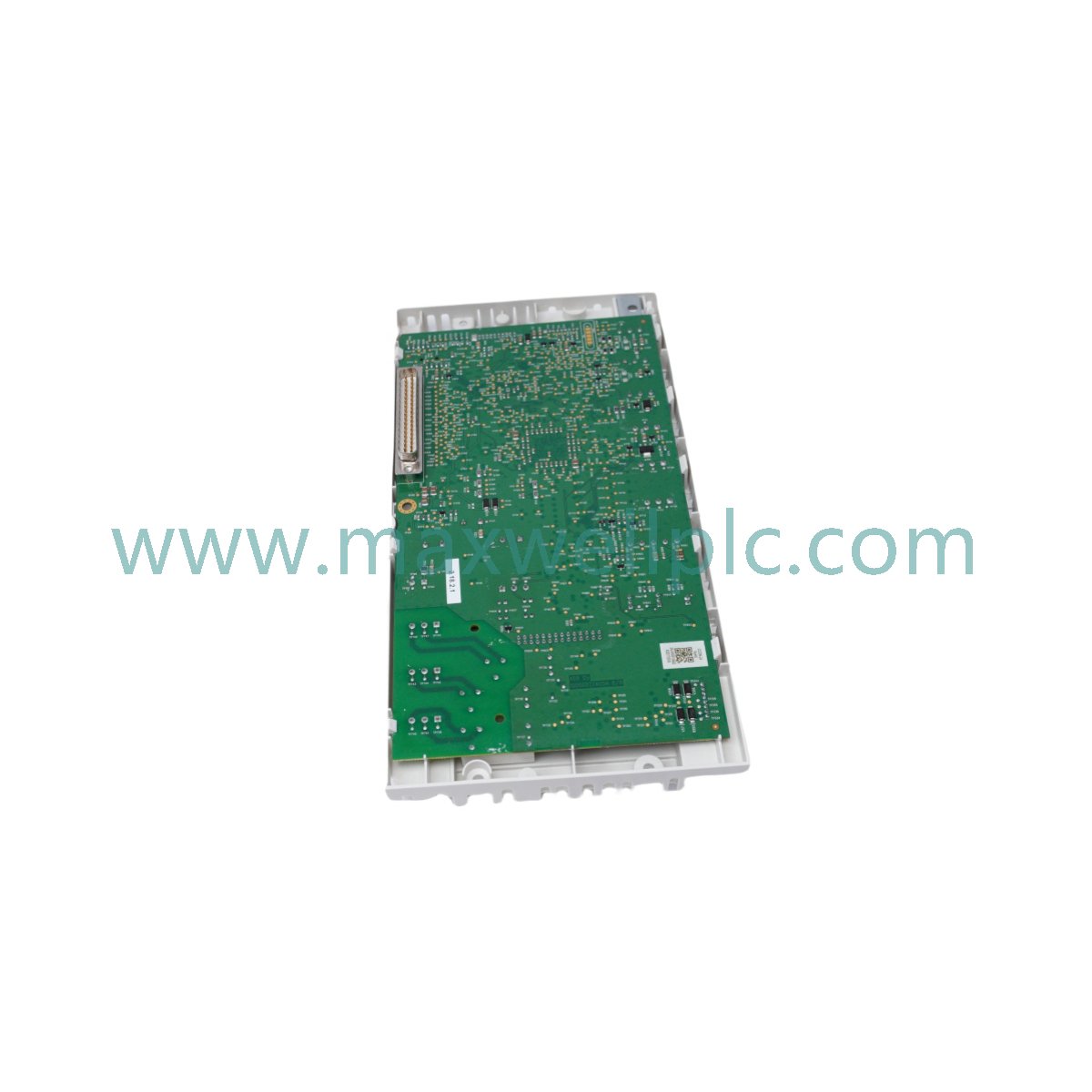

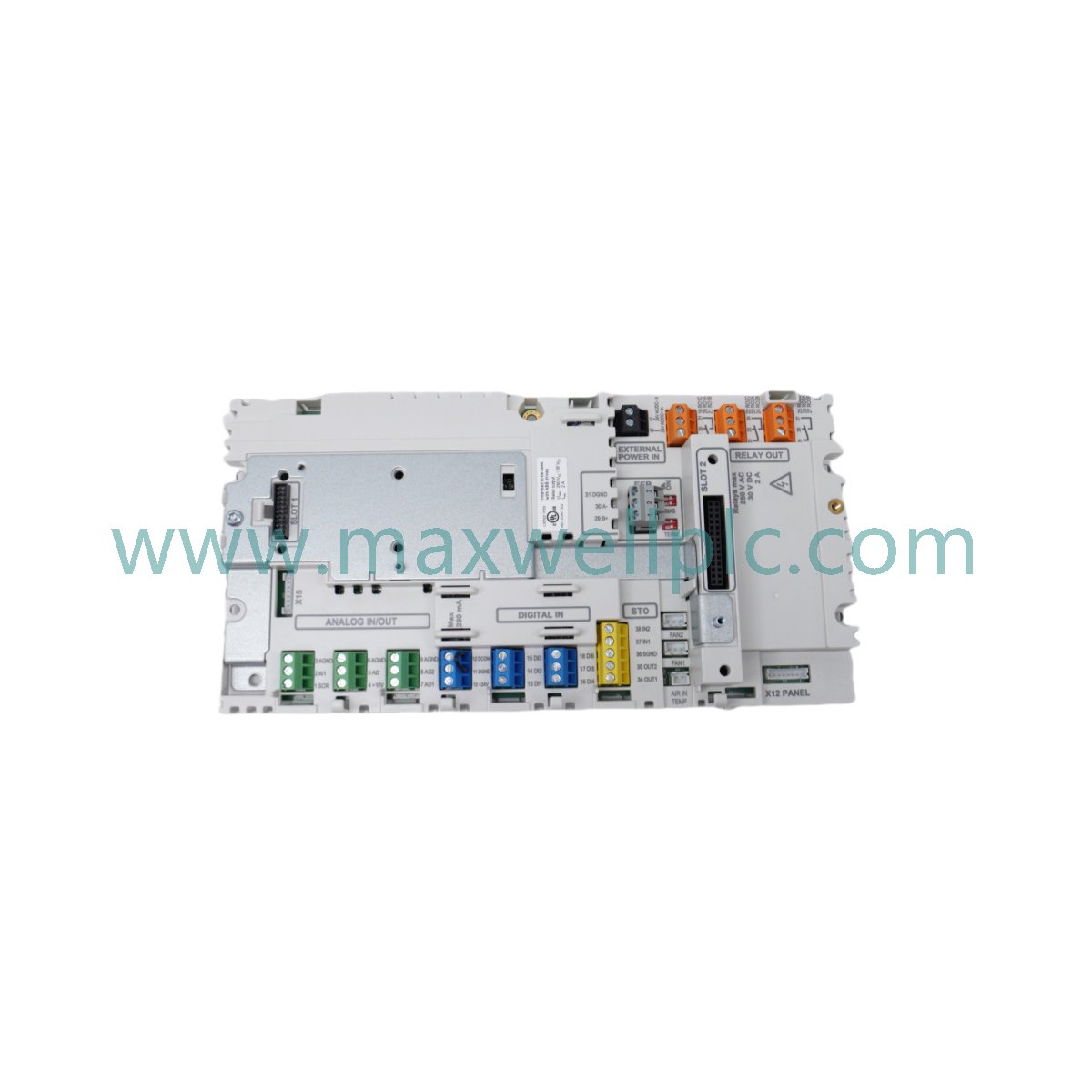

Configured for centralized logic coordination in DCS environments, the ABB CCU-24-H 3AXD50000018771 (CCU-24-H Control Unit) provides direct physical execution of control tasks and Ethernet-based routing. This hardware component manages signal processing and data exchange protocols to maintain operational synchronization within ABB automation platforms.

Model Identification

The CCU-24-H (3AXD50000018771) serves as a specialized control interface designed for space-constrained cabinet architectures. It functions as a gateway for deterministic network communication, enabling integration between distributed drives and supervisory control systems.

Hardware Specifications

Parameter Specification
Model CCU-24-H 3AXD50000018771
Brand ABB
Origin Sweden
Weight 0.16 kg
Shipping Dimensions 8.5 x 7.5 x 7.5 cm
Operating Temp -20 deg C to 60 deg C
Power Consumption 5 W
Supply Voltage 24 V DC +/- 10 %

ABB Industrial Control & Drive Communication

The CCU-24-H module utilizes deterministic backplane bus communication velocity to interface with drive control logic. It features firmware flash compatibility, allowing for system-wide logic updates and protocol optimization. The controller architecture is designed for I/O density scaling, providing the necessary processing power to execute complex interlocking and sequencing logic while maintaining high-speed communication integrity over Ethernet-based network topologies.

Ordering info

  • CCU-24-H 3AXD50000018771 control unit.

  • Standard technical interface and configuration documentation.

  • ESD-compliant protective packaging.

Field Installation Guidelines

Mounting

  • Install the control unit in a clean, ventilated control panel to ensure optimal thermal performance within the specified temperature range.

  • Verify proper seating on the DIN rail or backplane interface to ensure secure electrical contact and mechanical stability.

Wiring

  • Utilize shielded Ethernet cabling to maintain signal integrity and minimize electromagnetic interference in high-noise industrial environments.

  • Ensure the 24 V DC power supply is properly fused to protect the unit against over-current conditions.

Frequently Asked Questions

  • Q: Is the CCU-24-H hot-swappable?

    A: No. Power must be removed from the control unit and the communication bus before installation or removal to prevent potential damage to the internal logic circuitry.

  • Q: What is the primary communication protocol?

    A: The unit utilizes Ethernet routing for control data exchange, supporting standardized protocols required for ABB DCS and drive integration.

  • Q: Can this unit operate in sub-zero temperatures?

    A: Yes, it is rated for operation down to -20 deg C, making it suitable for unheated industrial enclosures.

  • Q: How is the module configured?

    A: Configuration is performed via the master ABB engineering software interface connected through the network gateway.

  • Q: What indicates a module failure?

    A: Faults are reported through the master controller diagnostic register, with visual status indicators on the unit front panel providing local diagnostic feedback.

  • Q: Is a terminator required for the Ethernet link?

    A: Standard Ethernet cabling does not require external termination; however, ensure all connections meet industry standards for cable length and shielding.

  • Q: Does the module require manual firmware updates?

    A: Firmware updates are managed through the master controller’s software suite; no manual hardware programming is necessary.

  • Q: Can this unit be used as a standalone controller?

    A: It is designed as an integrated component within the ABB DCS/drive ecosystem and functions in coordination with the master control logic.
