Product Overview

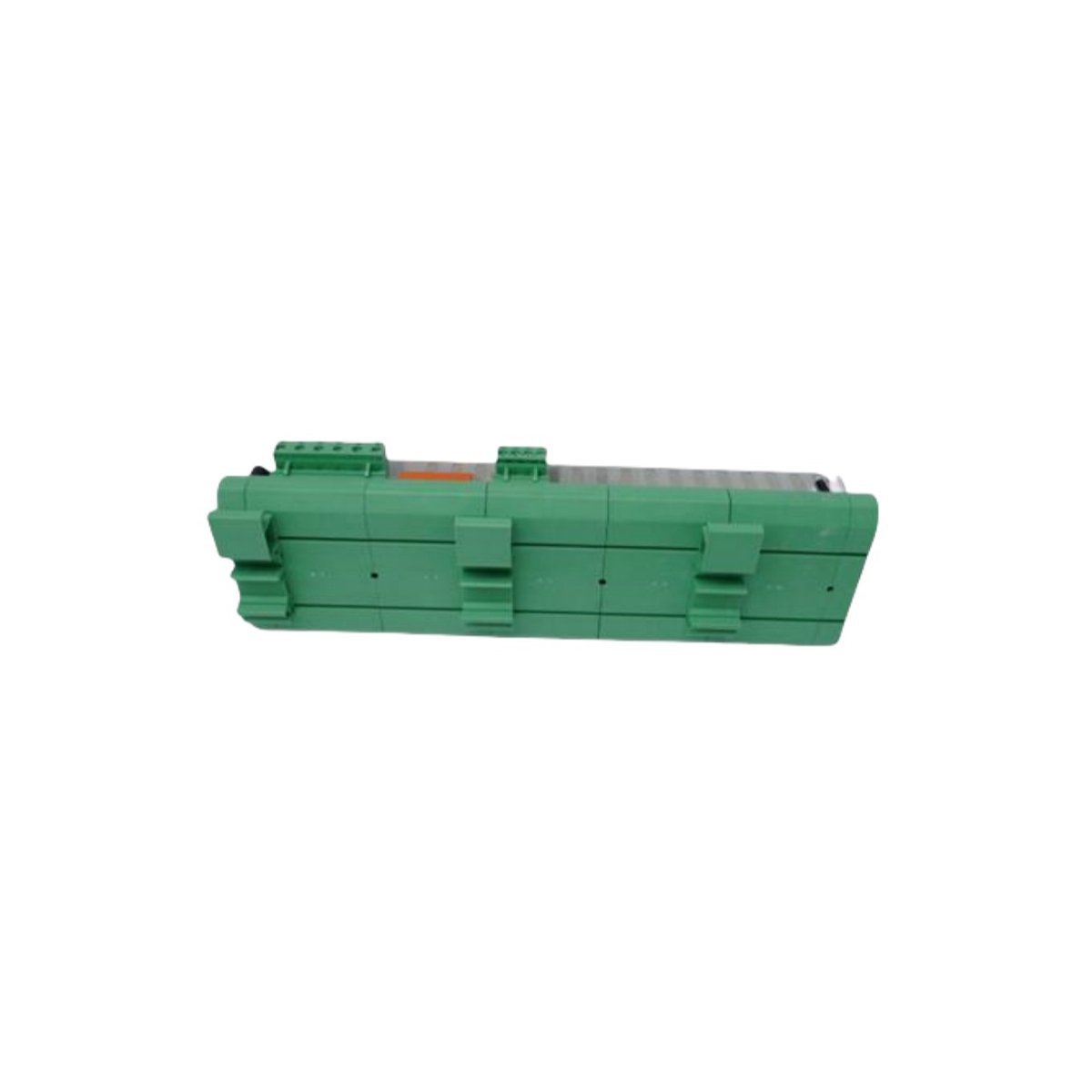

The ABB BSFC-01C, designated by part number 3AXD50000006072, is a high-precision charging control module engineered for sophisticated industrial power conversion and energy storage systems. This board serves as the intelligent core for regulating high-voltage DC charging cycles, ensuring a seamless transition between AC power sources and DC storage or load requirements. Developed with Swedish engineering standards, the BSFC-01C excels in managing high-current energy transfers with a focus on thermal stability and conversion efficiency. Its architecture is optimized for heavy-duty industrial environments where precise voltage regulation and rugged component durability are required to maintain 24/7 power availability.

Hardware Parameters and Technical Specifications

The 3AXD50000006072 is designed to handle wide-ranging electrical inputs while maintaining tight tolerance control over DC outputs.

• Model Number BSFC-01C

• Part Number 3AXD50000006072

• Primary Function Industrial Charging and Voltage Regulation

• Input Voltage 380V to 480V AC (3-Phase)

• Input Frequency 50/60 Hz (±5% tolerance)

• Output Voltage Range 12V to 600V DC

• Charging Current Range 10A to 100A

• Conversion Efficiency >92% at nominal load

• Measurement Precision ±0.5% (Voltage), ±1% (Current)

• Environmental Tolerance Operating: -10°C to +50°C; Storage: -20°C to +80°C

• Humidity Resistance 5% to 95% non-condensing

• Unit Mass 1.4 kg

• Physical Dimensions 4 x 26 x 27.2 cm

Industrial Applications and Operational Use Cases

The BSFC-01C charging board is a versatile solution for sectors requiring stable DC power delivery and advanced battery management.

• Industrial Battery Storage Systems Controlling the charging profiles for large-scale lead-acid or lithium-ion battery banks used in backup power applications.

• Renewable Energy Integration Managing the DC bus voltage in solar or wind power conversion systems, ensuring efficient energy harvesting and storage.

• Manufacturing Power Supplies Serving as the primary control board for high-capacity industrial DC power units used in electroplating or chemical processing.

• Critical UPS Infrastructure Providing the regulated charging logic for Uninterruptible Power Supplies in data centers and utility substations.

• Electric Vehicle (EV) Support Integrated into industrial-grade charging stations for factory floor AGVs (Automated Guided Vehicles) and heavy electric transport machinery.
