Product Overview

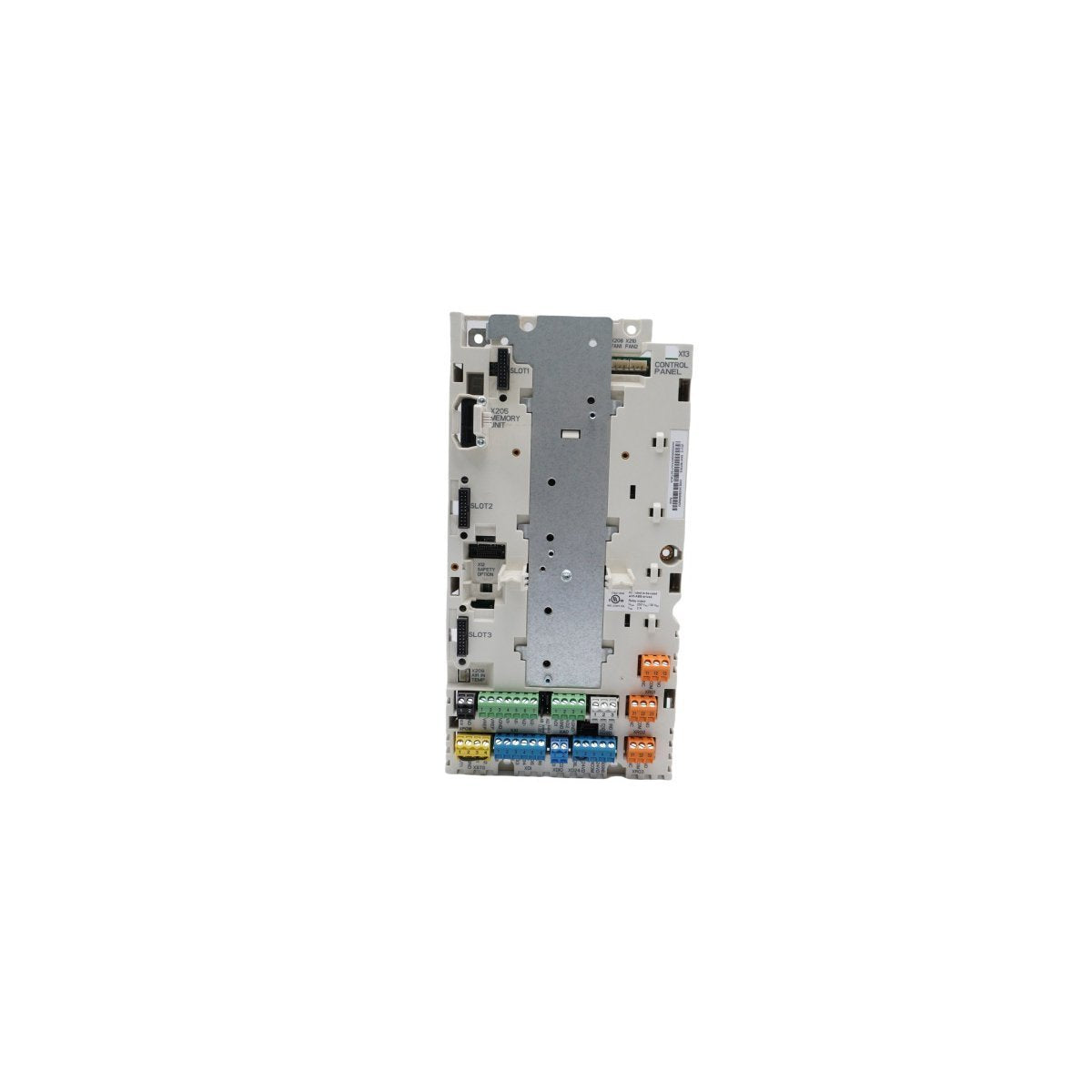

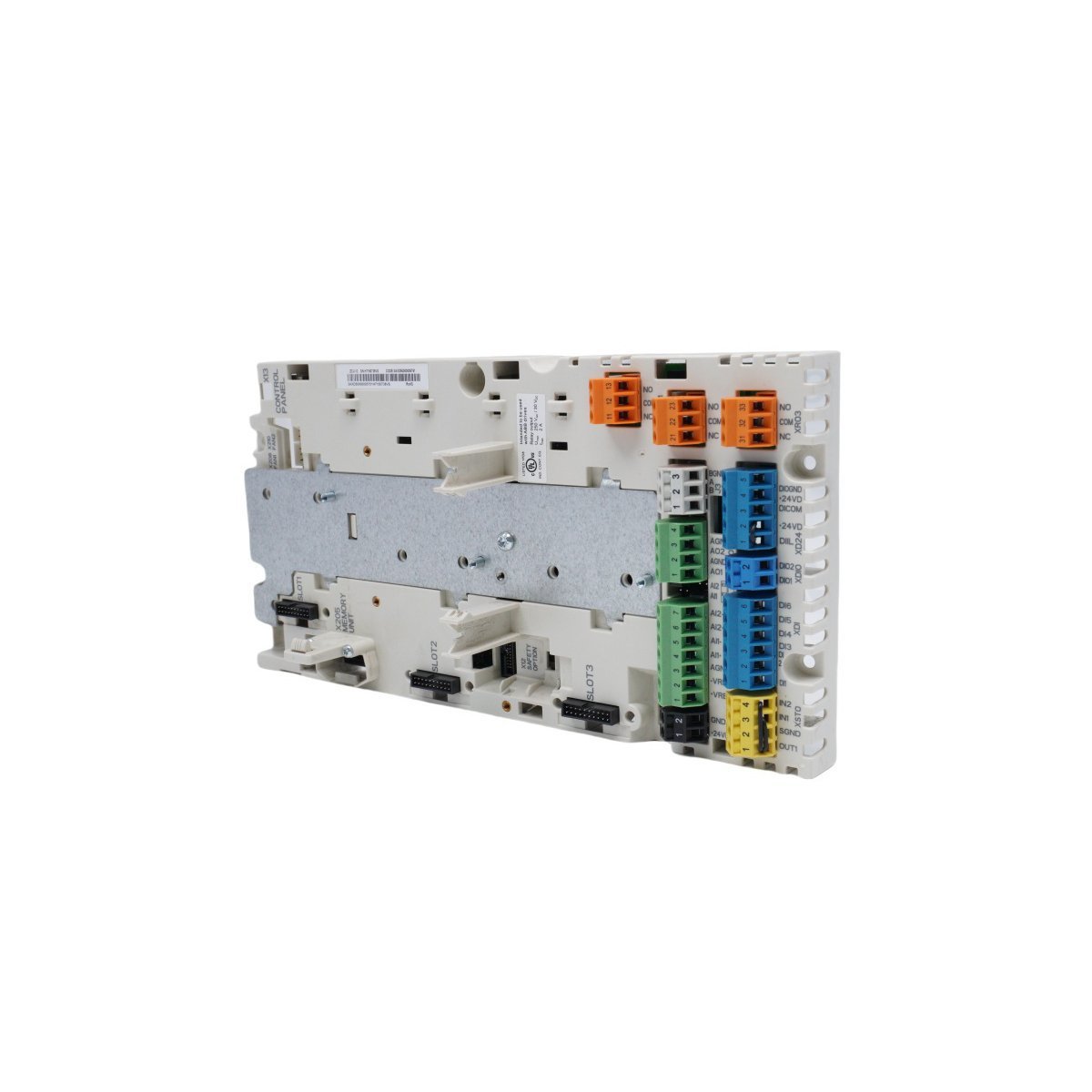

The ZCU-12, cataloged under order reference 3AXD50000005751, is the primary processing module for ABB's ACS880-11 regenerative industrial drives. This control unit functions as the "brain" of the drive system, executing the high-level logic required to manage diverse motor technologies including permanent magnet, AC induction, and synchronous reluctance (SynRM) motors. By precisely modulating speed and torque, the ZCU-12 enables maximum energy recovery and operational efficiency. Designed for integration into Distributed Control Systems (DCS), this module provides the computational power to handle rapid load fluctuations while maintaining strict protective protocols to safeguard the drive's power hardware.

Essential Hardware Parameters

• Model Identification | ZCU-12

• Global Order Code | 3AXD50000005751

• Compatibility Range | ACS880-11 Regenerative Drive Series

• Physical Mass | 0.58 kg

• Standard Dimensions | 27.2 x 8.5 x 13.9 cm

• Motor Control Support | Induction, Permanent Magnet, and SynRM

• Protection Logic | Real-time monitoring of current, thermal limits, and fault states

• Connectivity | Integrated interface for control terminal blocks and expansion slots

• Origin | Sweden (ABB SE)

Industrial Processing Scenarios

The ZCU-12 is optimized for heavy-duty environments that require regenerative energy management and precise motion profiles:

• Centrifugal Equipment: Managing the decelleration of high-inertia decanters and centrifuges to recover energy back to the grid.

• Complex Conveyor Networks: Synchronizing multiple motor speeds in logistics and mining to prevent material spillage and mechanical wear.

• Lifting and Hoisting: Providing the responsive torque control necessary for cranes and elevators, ensuring smooth transitions and load stability.

• Chemical Mixing and Pumping: Regulating variable flow rates in water treatment or chemical processing to maintain pressure consistency.

• Legacy Infrastructure Maintenance: Serving as a vital replacement part for maintaining the operational life of established ACS880-11 drive installations.
