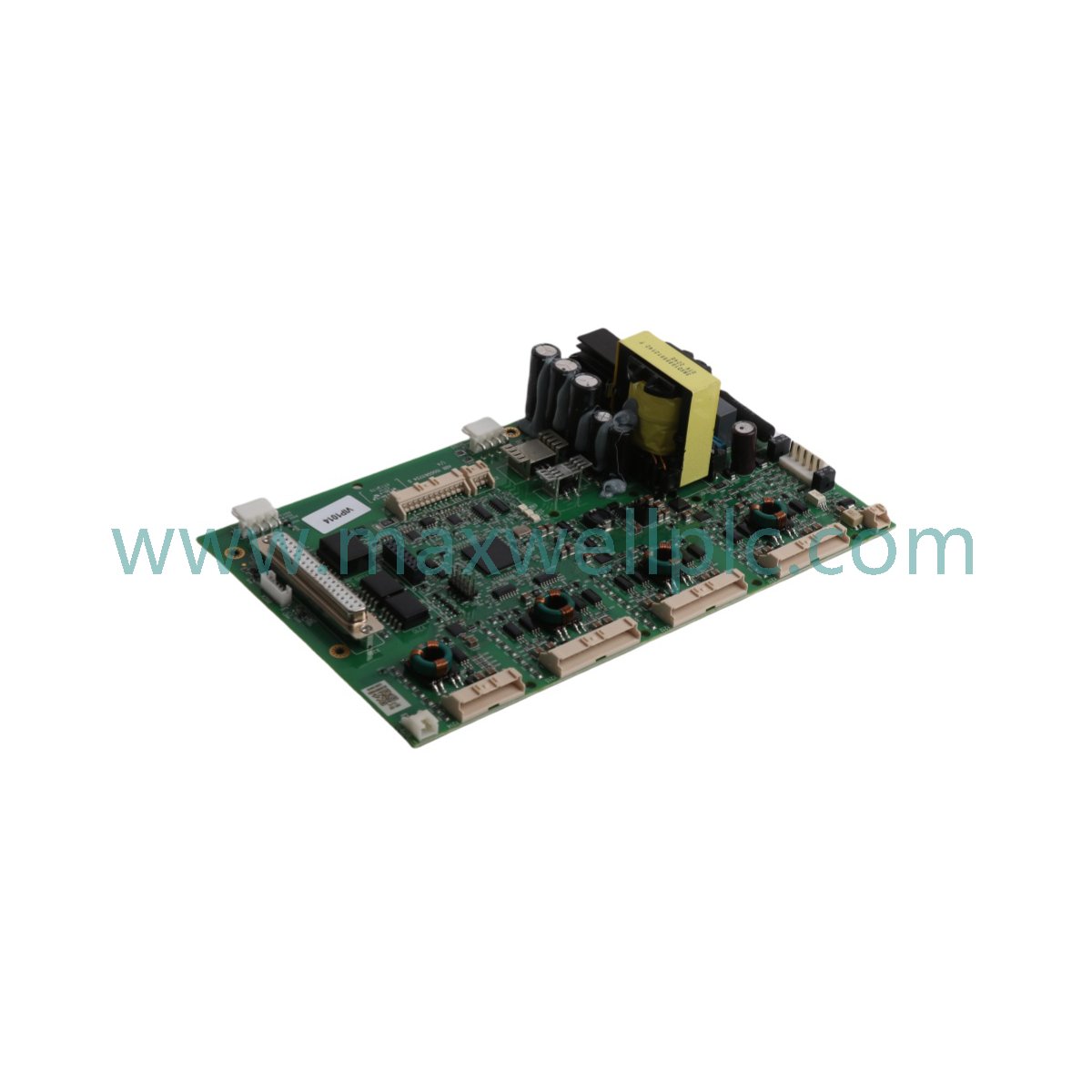

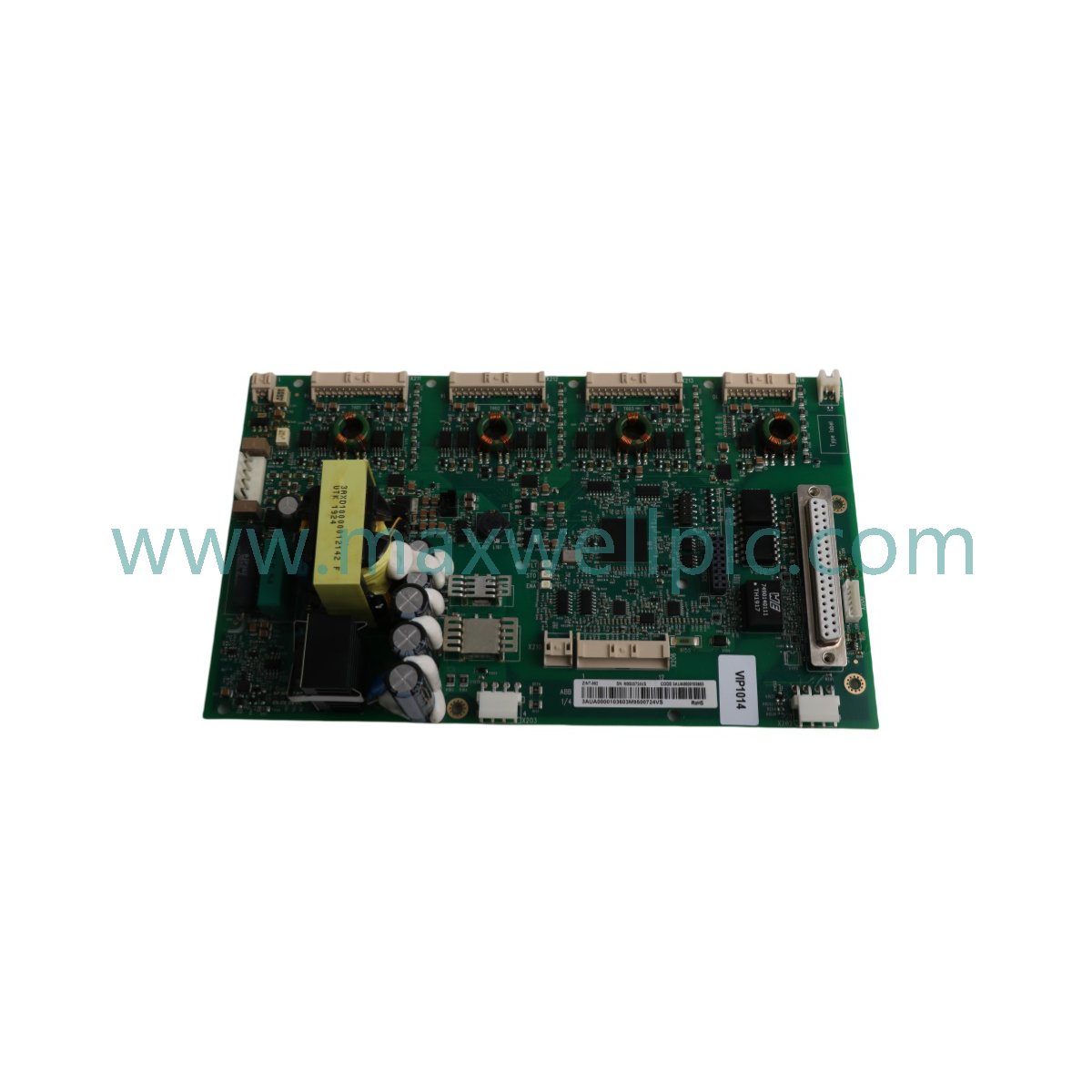

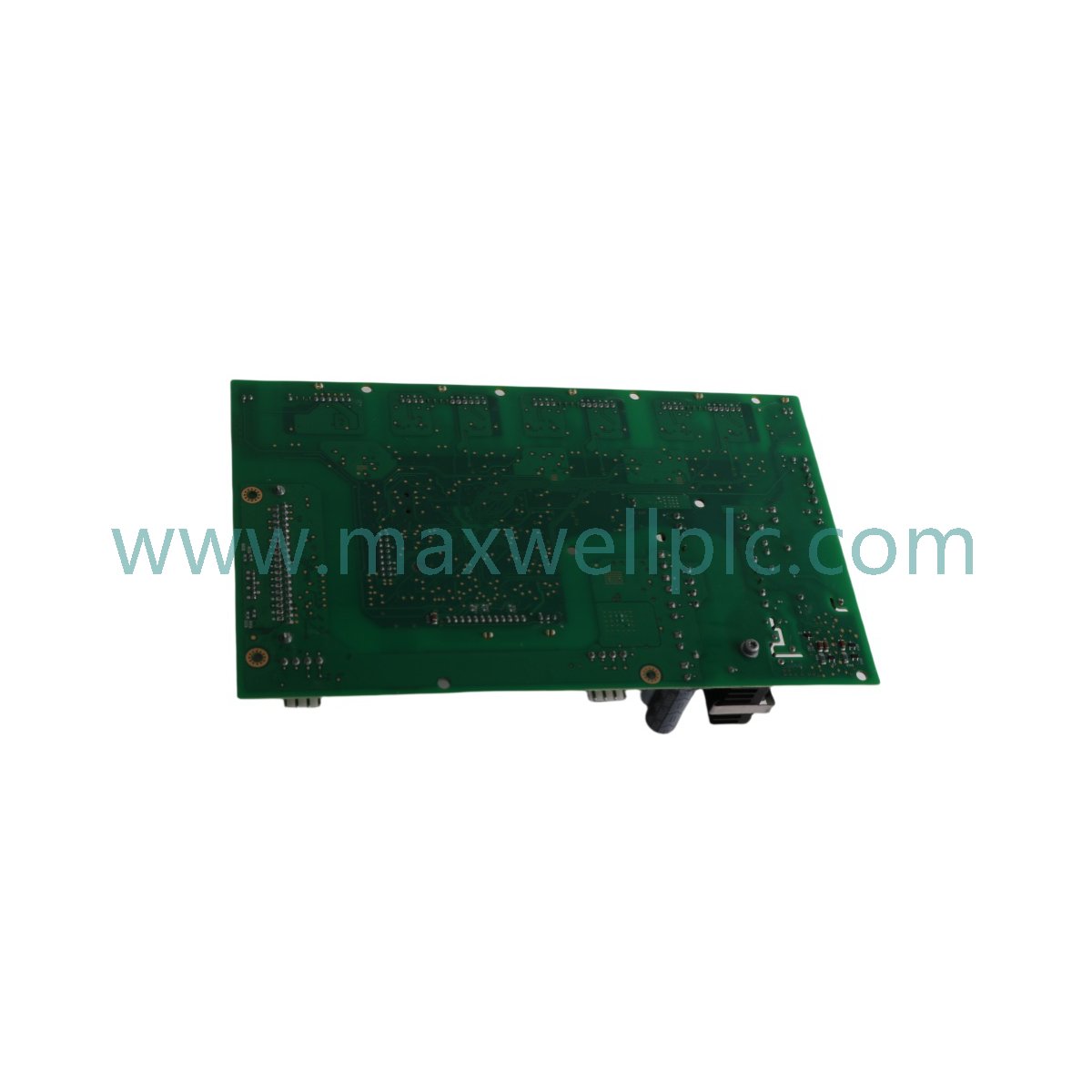

Configured for power conversion and stage interface management in frequency converter platforms, the ABB ZINT-592 3AUA0000103603 (ZINT-592 Inverter Power Board) provides direct electrical execution for energy distribution from input stages to inverter bridges.

Model Identification

• Model: ZINT-592

• Part Number: 3AUA0000103603

• Module Type: Inverter Power Board / Interface PCB

Hardware Specifications

Control & Drive Performance

The ZINT-592 architecture supports deterministic backplane bus communication velocity, enabling real-time feedback loops between the power stage and the drive control unit. The high-speed switching capabilities facilitate fine-tuned motor torque and velocity control, while firmware flash compatibility ensures that the interface remains synchronized with the latest drive operational profiles. I/O density scaling is achieved through the integrated interface, allowing for precise waveform generation across high-speed motor applications.

Ordering Information

• One (1) ZINT-592 Inverter Power Board.

• Electrostatic discharge (ESD) protective packaging.

• Technical installation and safety documentation.

Field Installation Guidelines

• Mounting: Install within the designated ABB drive frame; ensure all mounting screws are torqued to specified levels to maintain electrical contact with the power bus.

• Grounding: Ensure the PCB chassis ground is connected to the cabinet frame to mitigate electromagnetic interference during high-power switching sequences.

• Inspection: Verify that no debris or contaminants are present on the PCB surface prior to commissioning, particularly in high-humidity environments (up to 95% non-condensing).

• Clearance: Adhere to manufacturer-defined electrical clearance and creepage distances when routing auxiliary signal wiring away from the high-voltage power paths.

Frequently Asked Questions

• Is the ZINT-592 hot-swappable? No, the drive must be powered down and fully discharged before attempting to remove or install the power board.

• Does the board support 690 V AC inputs? Yes, the ZINT-592 is rated for input voltages ranging from 230 V AC to 690 V AC.

• How do I verify the power board status? Diagnostic status can be monitored through the drive's control unit; refer to the drive error logs for specific feedback codes.

• Is the board sensitive to high-frequency operation? The board is designed for operation up to 300 Hz, making it suitable for high-speed dynamic motor applications.

• What is the significance of the 98% efficiency? High efficiency minimizes internal thermal dissipation, reducing the cooling load on the electrical enclosure.

• Can it be used in high-humidity environments? Yes, it is rated for operation in non-condensing humidity up to 95%, provided the environment remains within the -10 deg C to +55 deg C range.

• Does it require specific firmware? The board operates in conjunction with the drive control unit; ensure the controller firmware supports the ZINT-592 hardware revision.

• How are signal waveforms managed? The board utilizes high-speed switching to generate precise waveforms, which reduces $dv/dt$ stress on motor windings.
