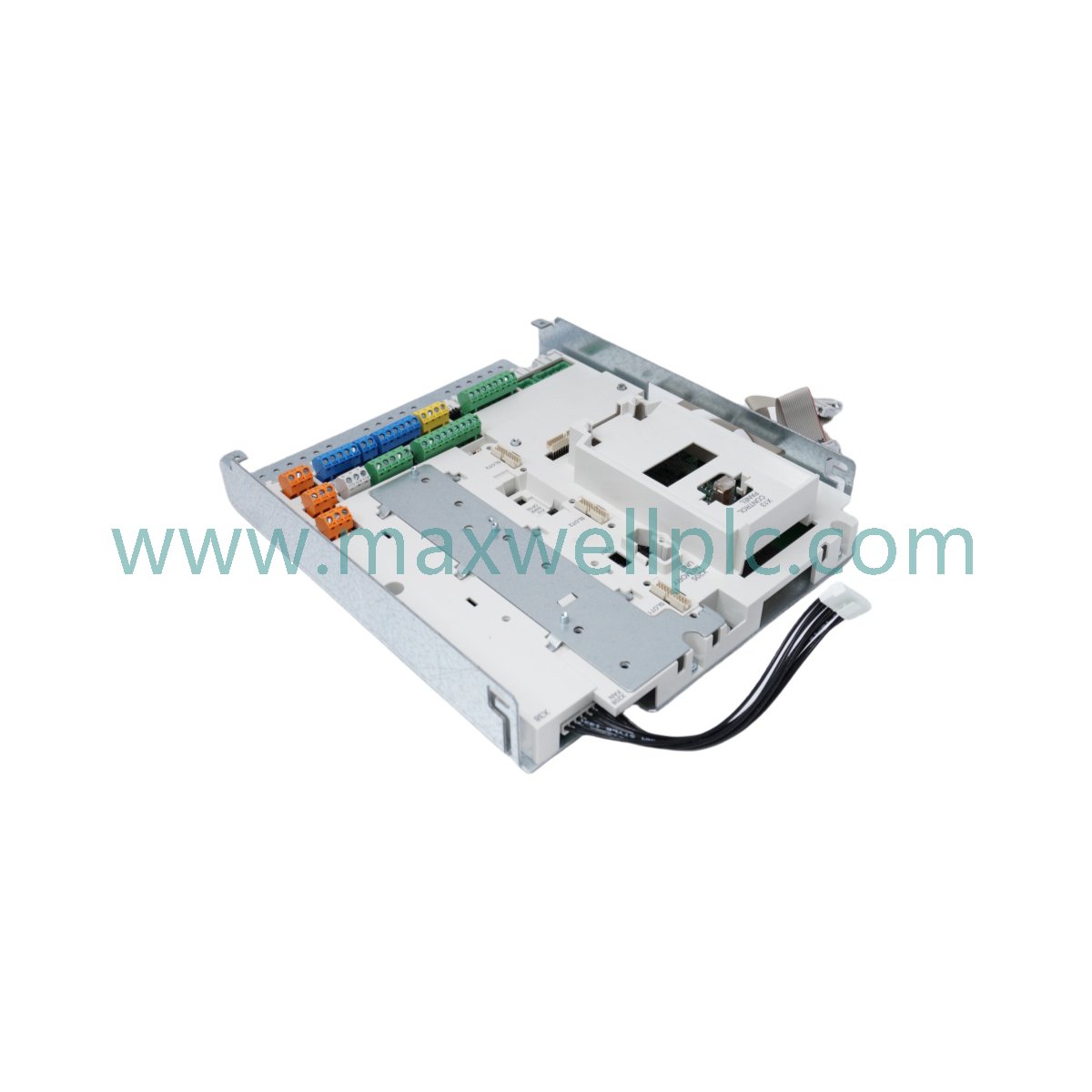

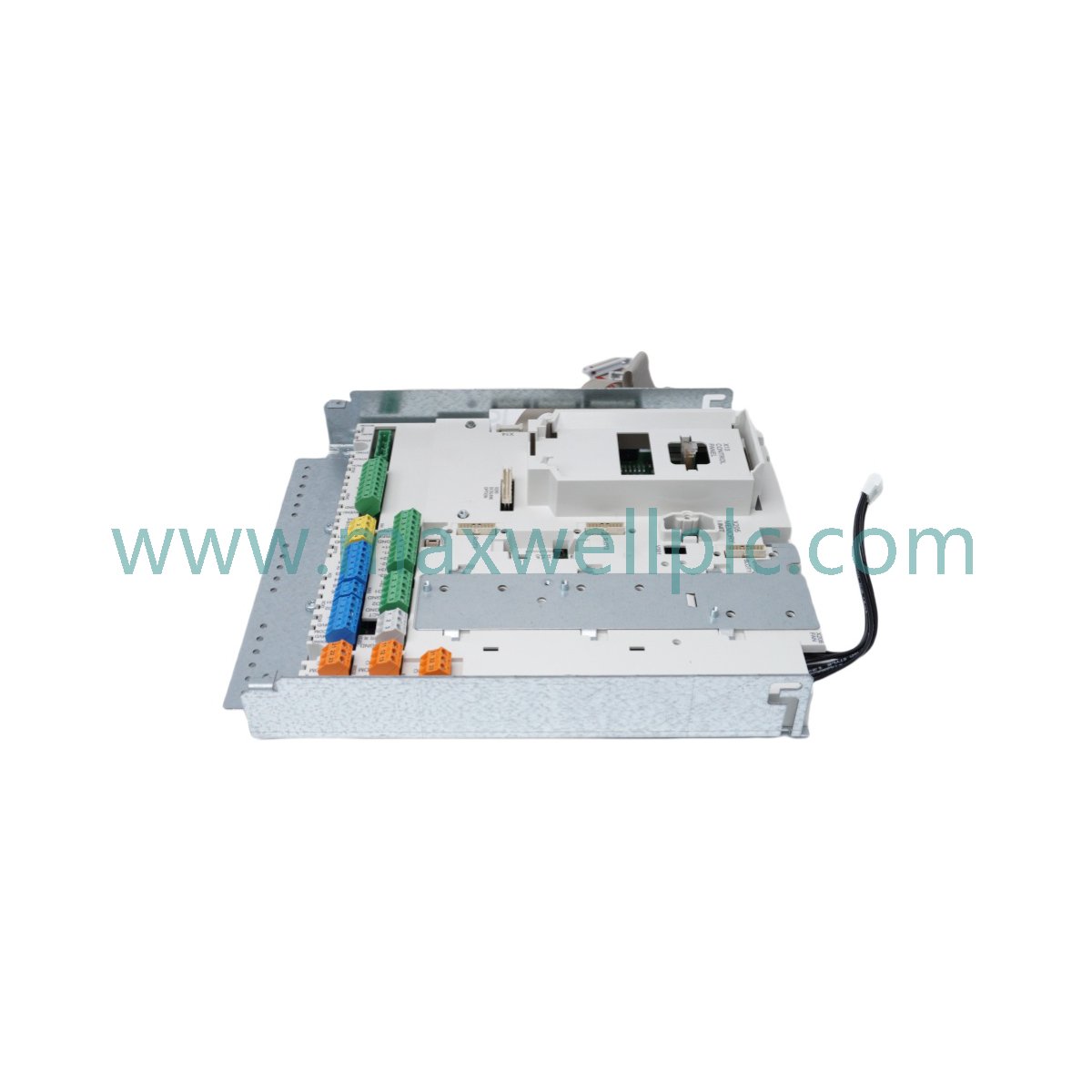

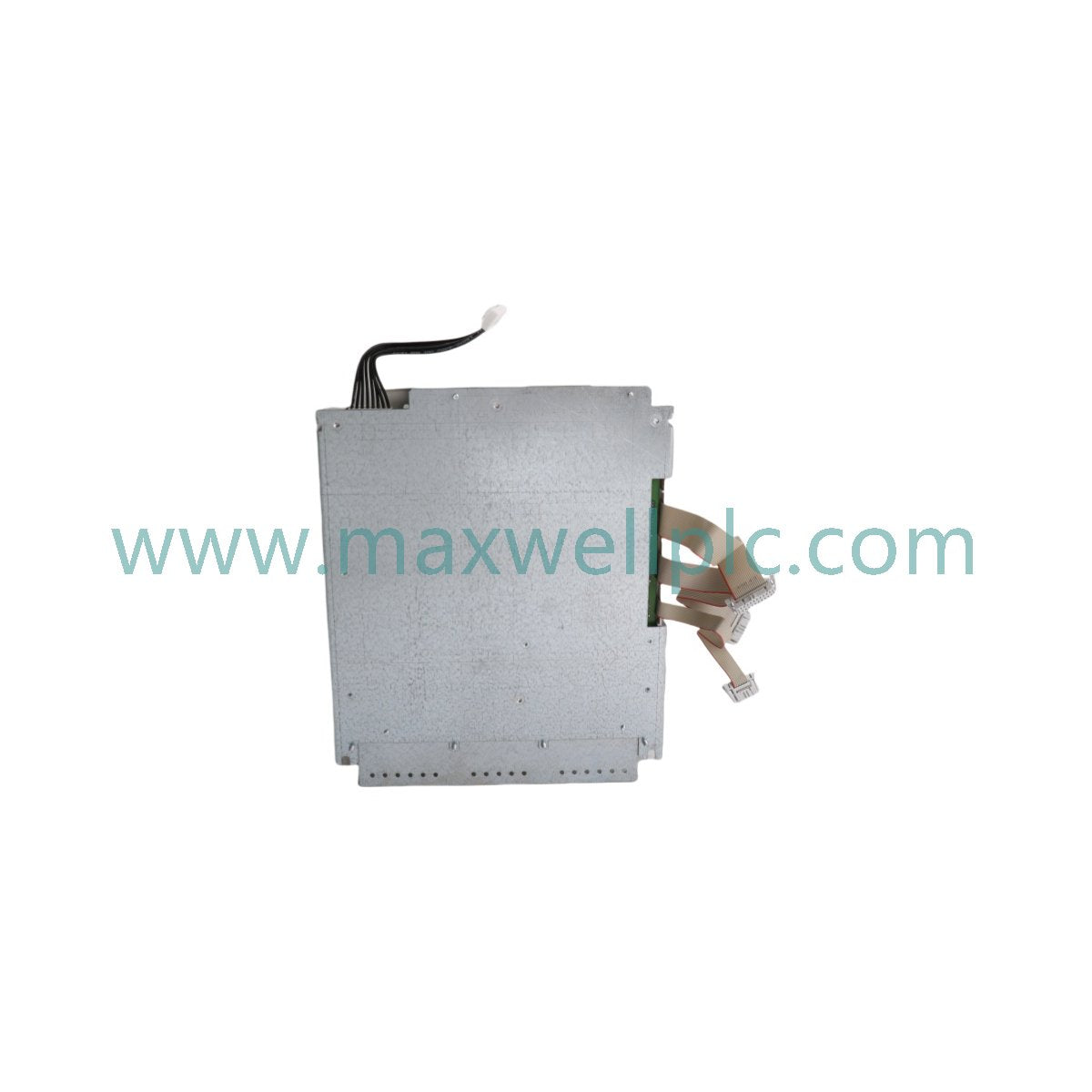

Configured for high-speed motor control and system supervision in DCS800 drive environments, the ABB SDCS-CON-H01 3ADT320000R1501 (SDCS-CON-H01 3ADT320000R1501 Control Circuit Board) provides direct physical execution of drive logic and signal processing. This hardware component functions as the primary controller, managing real-time torque and speed regulation through an integrated microprocessor-based architecture.

Model Identification

The SDCS-CON-H01 3ADT320000R1501 represents the centralized processing unit for ABB DCS800 series drives. This board facilitates the complex coordination of power electronic switches and external process feedback signals.

Hardware Specifications

ABB Industrial Control & Drive Communication

The SDCS-CON-H01 integrates sophisticated backplane bus communication velocity, ensuring I/O update consistency required for high-bandwidth torque regulation. Its architecture supports firmware flash compatibility, enabling system-wide updates and diagnostic enhancements without requiring physical I/O density re-scaling. The board manages data flow through isolated communication channels, maintaining deterministic performance even when integrated into complex multi-drive network topologies common in large-scale industrial processing.

Ordering info

• SDCS-CON-H01 3ADT320000R1501 control board module.

• Installation documentation and interface pinout mapping.

• ESD-compliant protective shipping packaging.

Field Installation Guidelines

Mounting

• Secure the control board within the drive cabinet, ensuring the interface connector aligns with the main control backplane.

• Ensure all chassis fasteners are tightened to maintain a low-impedance connection to the drive common ground.

Wiring

• Connect RS-232/RS-485 communication cables, utilizing shielded media to prevent electromagnetic interference from power leads.

• Verify power supply rail voltages (+5 VDC and +12 VDC) before final board seating to prevent damage to internal logic circuits.

Frequently Asked Questions

• Q: Is the board hot-swappable?

  A: No, disconnect all drive power and verify that capacitors have discharged before installing or removing the control circuit board.

• Q: Does the board require special configuration after replacement?

  A: Yes, specific drive parameters and application settings must be downloaded to the board from the DCS800 configuration software after installation.

• Q: How does the board handle signal noise from the motor?

  A: The board utilizes high-impedance input buffering and galvanic isolation to reject common-mode noise and protect the central microprocessor.

• Q: What indicates a communication fault on the board?

  A: Communication faults are logged in the DCS800 diagnostic registers; front-panel status LEDs indicate general health or fatal logic errors.

• Q: Can the RS-485 interface operate at different baud rates?

  A: Yes, the communication interface is software-configurable to match the baud rates and parity required by the host automation network.

• Q: Does the board contain internal batteries?

  A: No, memory retention for parameters is handled by non-volatile flash storage on the board.

• Q: How is the storage temperature limit managed?

  A: Store the board in a climate-controlled, dry environment between -20 deg C and 70 deg C, preferably in the original anti-static bag.

• Q: Are all drive variants compatible with this board?

  A: The board is specific to the DCS800 architecture; verify the hardware revision level in your drive system documentation before deployment.
