Product Overview

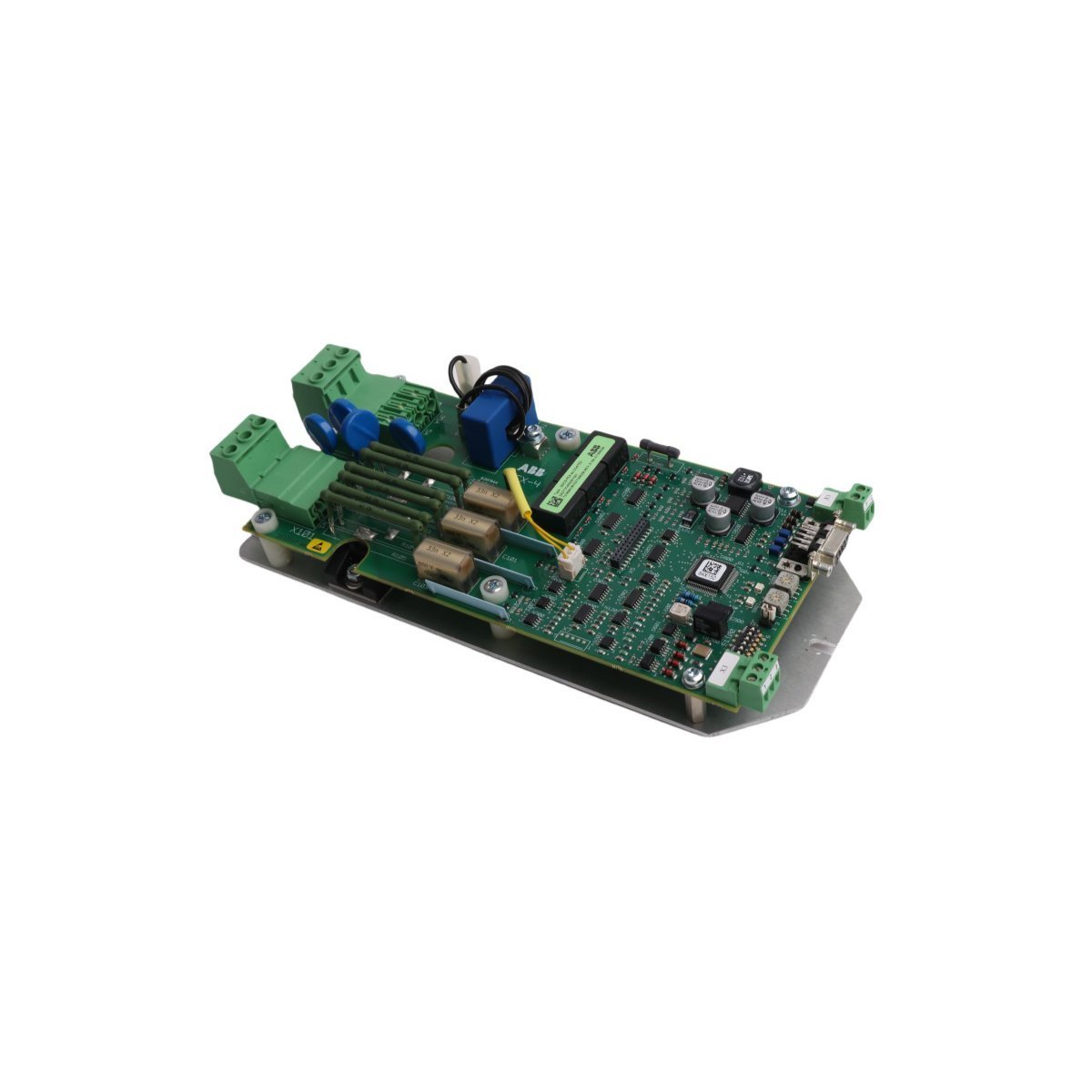

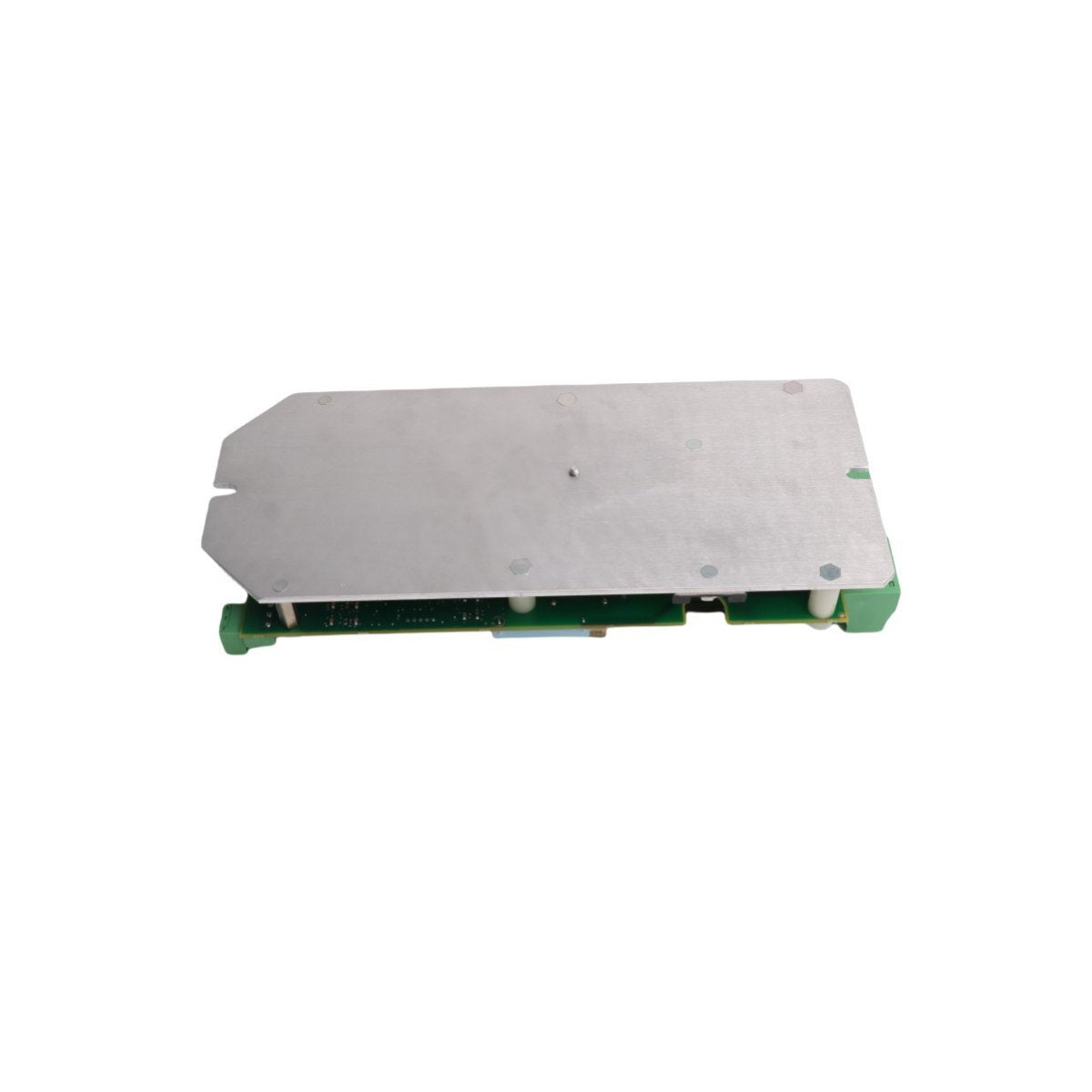

The ABB 3ADT314500R1501 SDCS-FEX-4a is a high-precision field excitation module designed for the DCS800 and DCS500B DC drive series. This thyristor-controlled unit serves as the electrical heart of motor field management, regulating the excitation current to maintain constant torque and speed stability. Engineered for seamless integration within Advant OCS and 800xA control architectures, this excitation plate provides a sophisticated 4-quadrant operational capability. This allows for superior motor control in both driving and regenerative braking modes, making it a critical component for high-performance DC motor applications where rapid response and electrical reliability are paramount.

Internal Architecture and Operating Constants

• Model Number SDCS-FEX-4a

• Order Designation 3ADT314500R1501

• Control Type Thyristor-controlled field exciter

• Operating Voltage 24V DC nominal (Range 20-30V DC)

• Output Voltage Range 0 to 250V DC

• Current Rating 20A to 50A capacity

• Power Delivery 5kW to 10kW continuous output

• Signal Compatibility 0-10V DC / 4-20mA reference inputs

• Physical Mass 0.35 kg

• Dimensions 33.7 x 11.7 x 8.5 cm

• Origin Sweden

Strategic Industrial Implementations

This excitation plate is an essential component for heavy-duty DC drive systems found in demanding process sectors. In steel and aluminum rolling mills, the 3ADT314500R1501 ensures precise tension control, while in mining operations, it manages the high-torque requirements of hoist and conveyor motors. Because it supports 4-quadrant operation, it is particularly effective in crane and elevator applications where energy must be managed during descent. The module's robust electrical isolation and optimized thermal profile allow for reliable performance in harsh environments, including pulp and paper manufacturing and large-scale pumping stations, directly supporting the longevity of the connected DC motor.

Technical Support Q&A

Q: What specific drive systems are compatible with the SDCS-FEX-4a plate?A: This module is primarily designed for ABB DCS800 and DCS500B DC drives, often working alongside CDP 312 control panels.

Q: Can this unit handle both motoring and generating modes?A: Yes, it features 4-quadrant control capability, which allows for smooth torque transitions in both operational directions.

Q: What type of input signals does the excitation board accept?A: It is highly versatile, accepting standard industrial reference signals including 0-10V DC and 4-20mA.

Q: Is the 3ADT314500R1501 suitable for high-vibration mining environments?A: Absolutely. It is built to industrial B2B standards with robust housing and secure terminal connections specifically for heavy-duty infrastructure.

Q: Does this module require specialized cooling?A: The board is designed with a high-efficiency heat dissipation layout, though it should be installed in a standard ventilated cabinet to ensure long-term stability.
