Product Overview

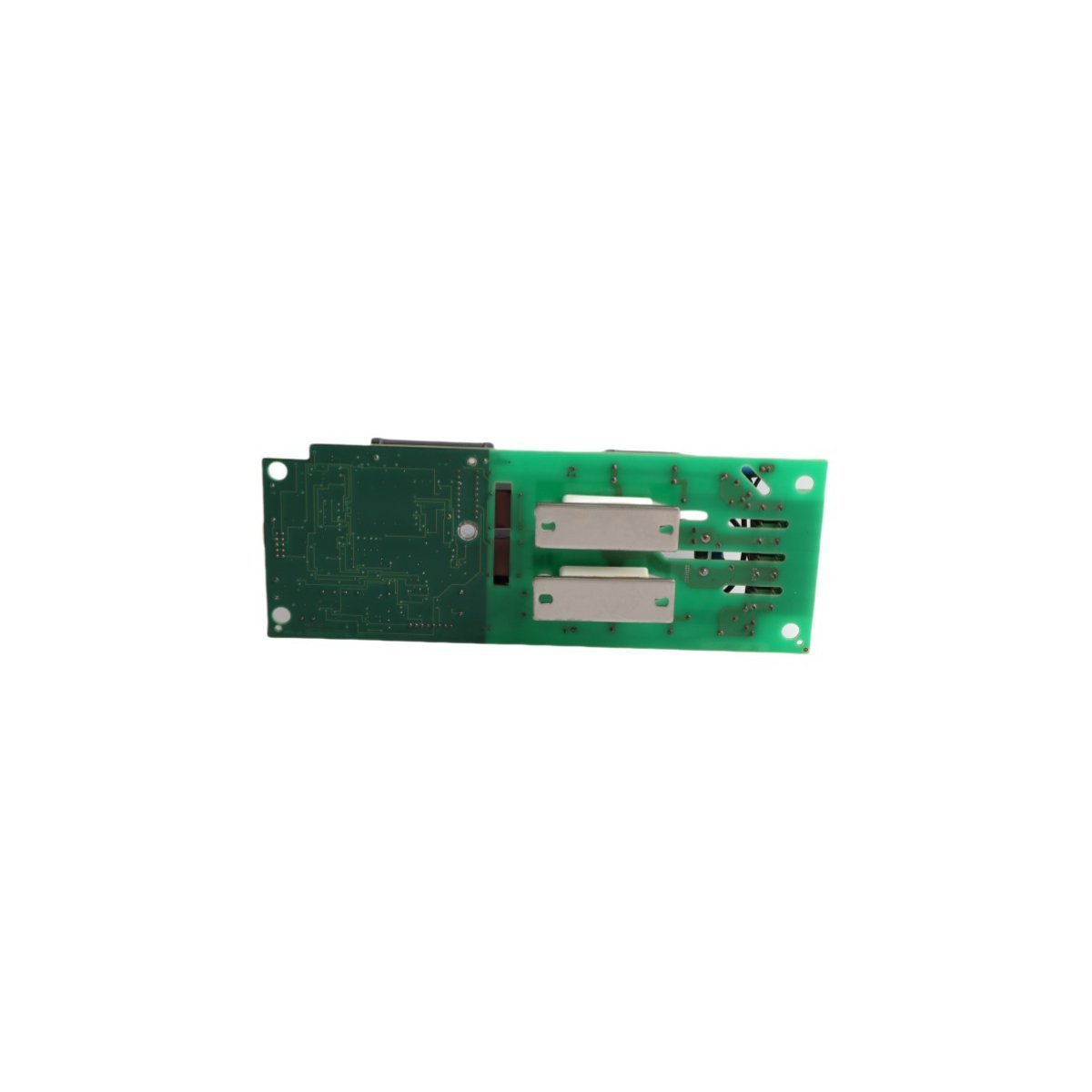

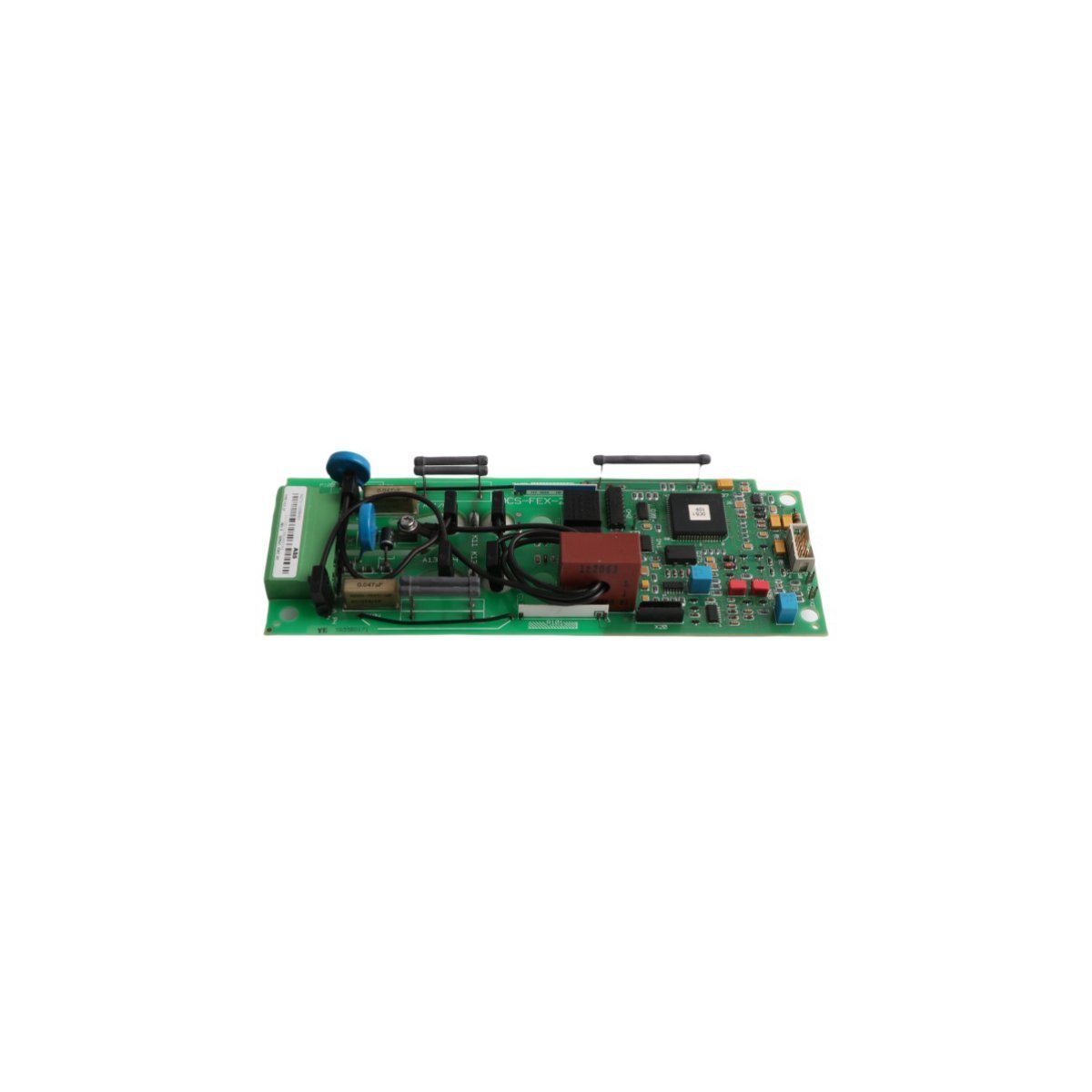

The SDCS-FEX-2A, identified by part number 3ADT311500R1, is a specialized power supply and field excitation board engineered for the ABB DCS500 drive series. This module serves as the primary interface for managing the DC field current of motors, ensuring stable magnetic flux and precise torque control. By integrating power conversion circuitry with high-speed monitoring logic, the SDCS-FEX-2A provides a regulated DC output derived from the AC supply. It is an essential component for maintaining the operational integrity of large-scale DC drive systems, acting as the critical link between the digital controller and the physical motor field windings.

Hardware Infrastructure and Power Parameters

Constructed for high-duty cycles, the SDCS-FEX-2A features ruggedized power electronics designed to withstand the thermal and electrical stresses common in industrial power conversion.

• Part Identifier: 3ADT311500R1

• Model Designation: SDCS-FEX-2A

• Drive Compatibility: DCS500 Series DC Drives

• Function: Field Excitation / Auxiliary Power Supply

• Input Frequency: 50/60 Hz

• Module Mass: 0.32 kg

• Chassis Dimensions: 24 x 9 x 6 cm

• Thermal Tolerance: Rated for operation between -20°C and +55°C

• Diagnostic Indicators: Integrated status monitoring via the main drive control bus

• Manufacturing Standard: Swedish industrial engineering

• HS Classification: 8537101190

Industrial Utilization and Field Utility

The reliability of the SDCS-FEX-2A is vital for industries that rely on high-torque DC motor applications where field loss can lead to catastrophic mechanical failure.

• DC Motor Field Regulation: Provides the necessary excitation current to maintain constant torque or field-weakening operations in heavy-duty motors.

• Metals and Mining: Drives large conveyor systems and rolling mills where precise speed regulation under varying loads is mandatory.

• Pulp and Paper Industry: Manages the field excitation for sectional drives in paper machines, ensuring synchronized motion across multiple rollers.

• Crane and Hoist Systems: Facilitates the high starting torque required for heavy lifting by ensuring optimal field strength during initial acceleration.

• Legacy System Maintenance: Serves as a critical replacement part for maintaining the productivity of established DCS500 drive installations without requiring a full system migration.
