Product Overview

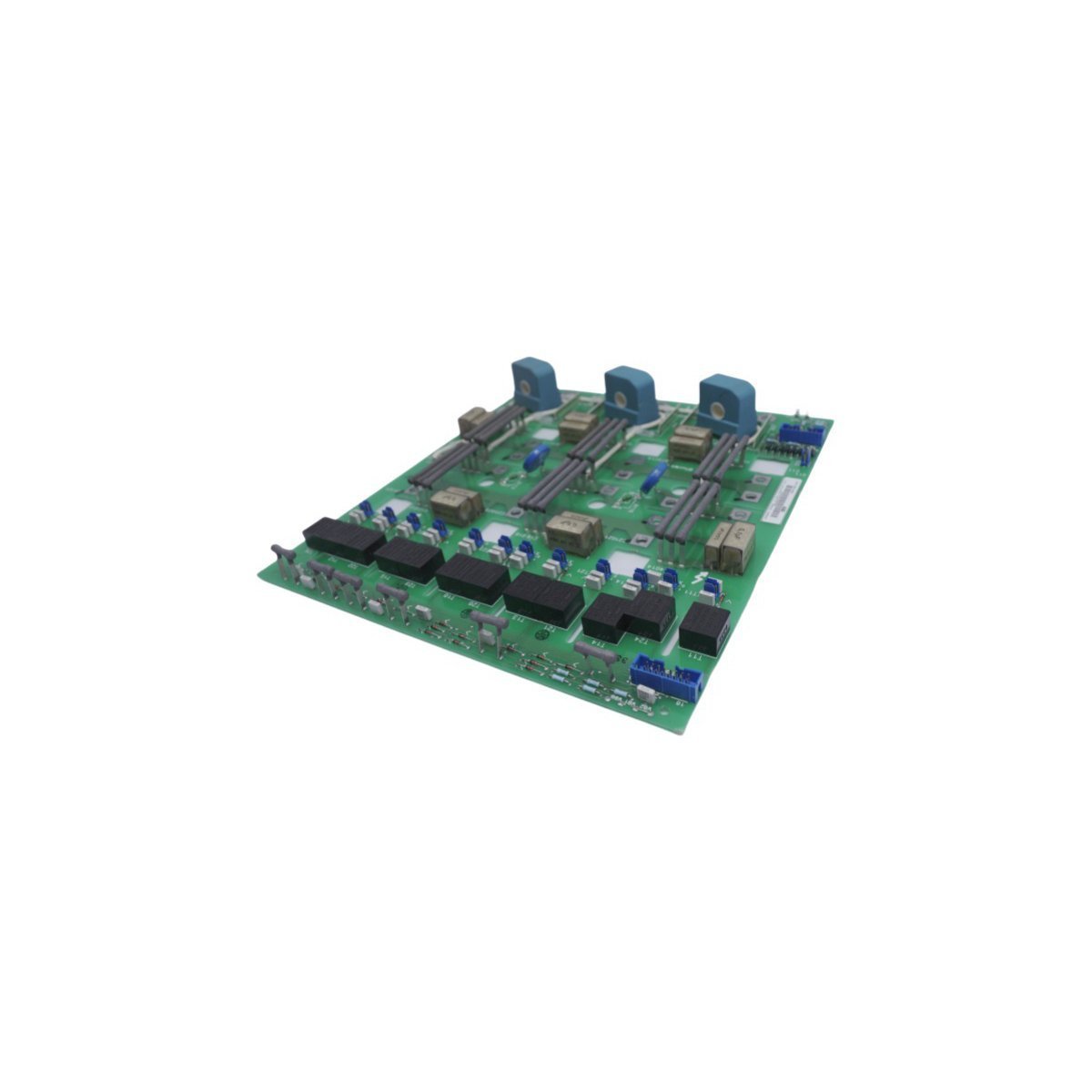

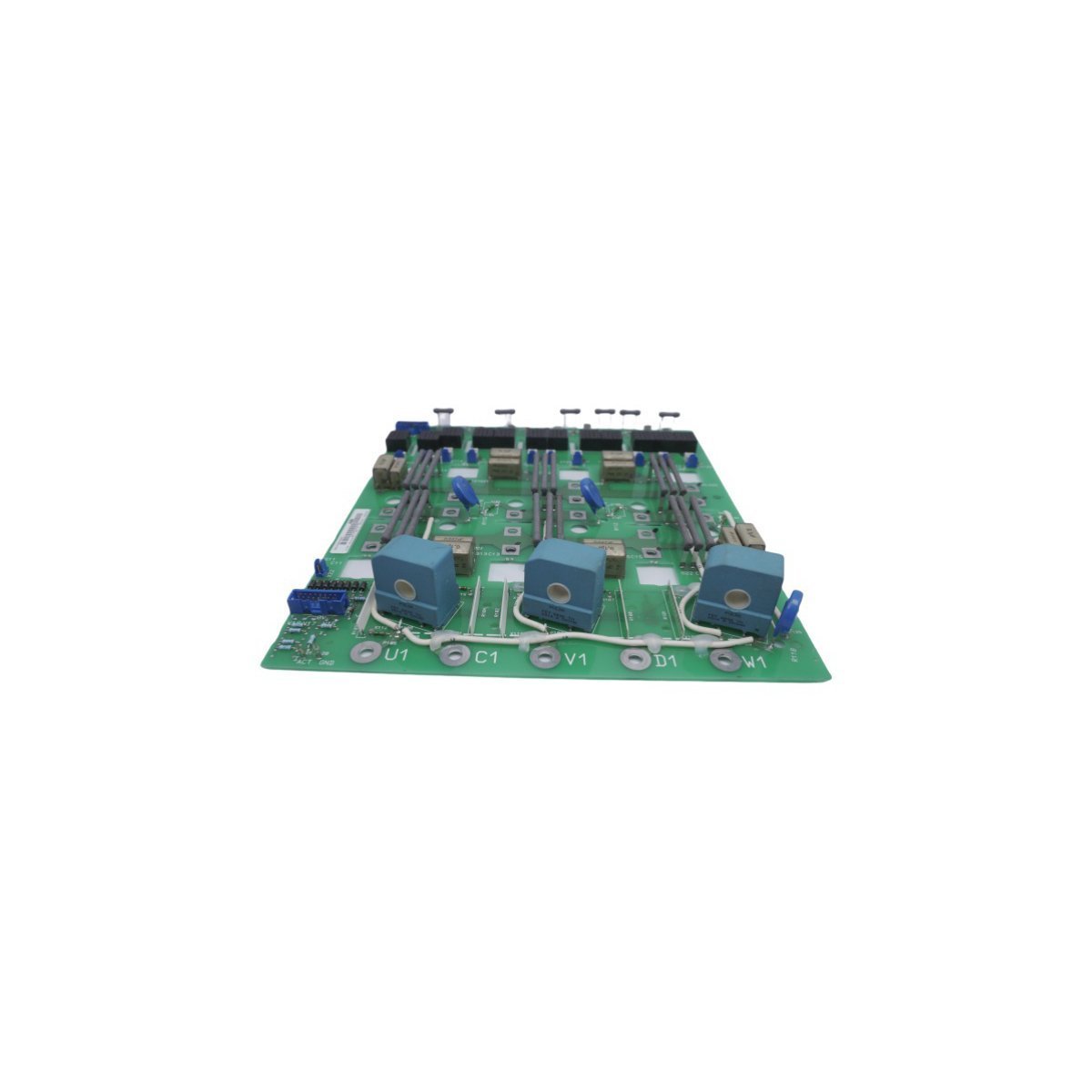

The ABB SDCS-PIN-11, identified by the order code 3ADT306100R1, is a vital power interface board engineered specifically for the DCS600 series of industrial DC drives. This module acts as the critical bridge between the high-power thyristor bridge and the drive's control electronics. Its primary function is to handle signal scaling, pulse transformer interfacing, and voltage measurement, ensuring that the control logic can safely and accurately regulate the power flow. Designed for high-performance industrial environments, the SDCS-PIN-11 facilitates rapid data feedback loops, allowing for precise torque and speed control in demanding motor applications.

Technical Hardware Profiles

• Part Identification: 3ADT306100R1

• Model Number: SDCS-PIN-11

• Equipment Class: Power Interface Board / Gate Driver Interface

• Product Compatibility: ABB DCS600 Drive Systems

• Physical Mass: 0.66 kg

• Component Dimensions: 28.1 x 25.4 x 4 cm

• Communication Integration: Compatible with Ethernet-based DCS architectures

• Manufacturing Standards: High-integrity Swedish production

• Operational Status: Active lifecycle support

• Tariff Classification: HS Code 8537101190

Industrial Deployment Contexts

The SDCS-PIN-11 is a specialized component essential for heavy-duty sectors where DC motor control is central to the production process.

• Steel and Metal Mills: Coordinating the power stages of large DC motors in rolling and processing lines where high transient loads are frequent.

• Mining and Extractive Industries: Supporting the drive electronics for mine hoists and large-scale conveyor systems that require robust fault tolerance.

• Pulp and Paper Production: Interfacing with sectional drive systems to maintain precise tension and speed across long manufacturing webs.

• Retrofitting and Maintenance: Serving as a direct replacement part to restore the integrity of existing DCS600 drive cabinets without requiring extensive system redesign.

Integrity and Thermal Management

The 3ADT306100R1 is constructed using high-grade industrial laminates and components capable of withstanding the significant electromagnetic interference (EMI) found within power converter housings. Its layout is optimized for natural convection cooling, ensuring that the gate-driving circuits remain within safe thermal limits even during continuous full-load operation. The board features high-dielectric strength isolation to protect the sensitive low-voltage control circuits from high-voltage spikes on the power side. By streamlining signal pathways, the SDCS-PIN-11 minimizes latency in the firing pulse transmission, which is fundamental to achieving the high dynamic performance characteristic of the ABB DCS600 series.
