Product Overview

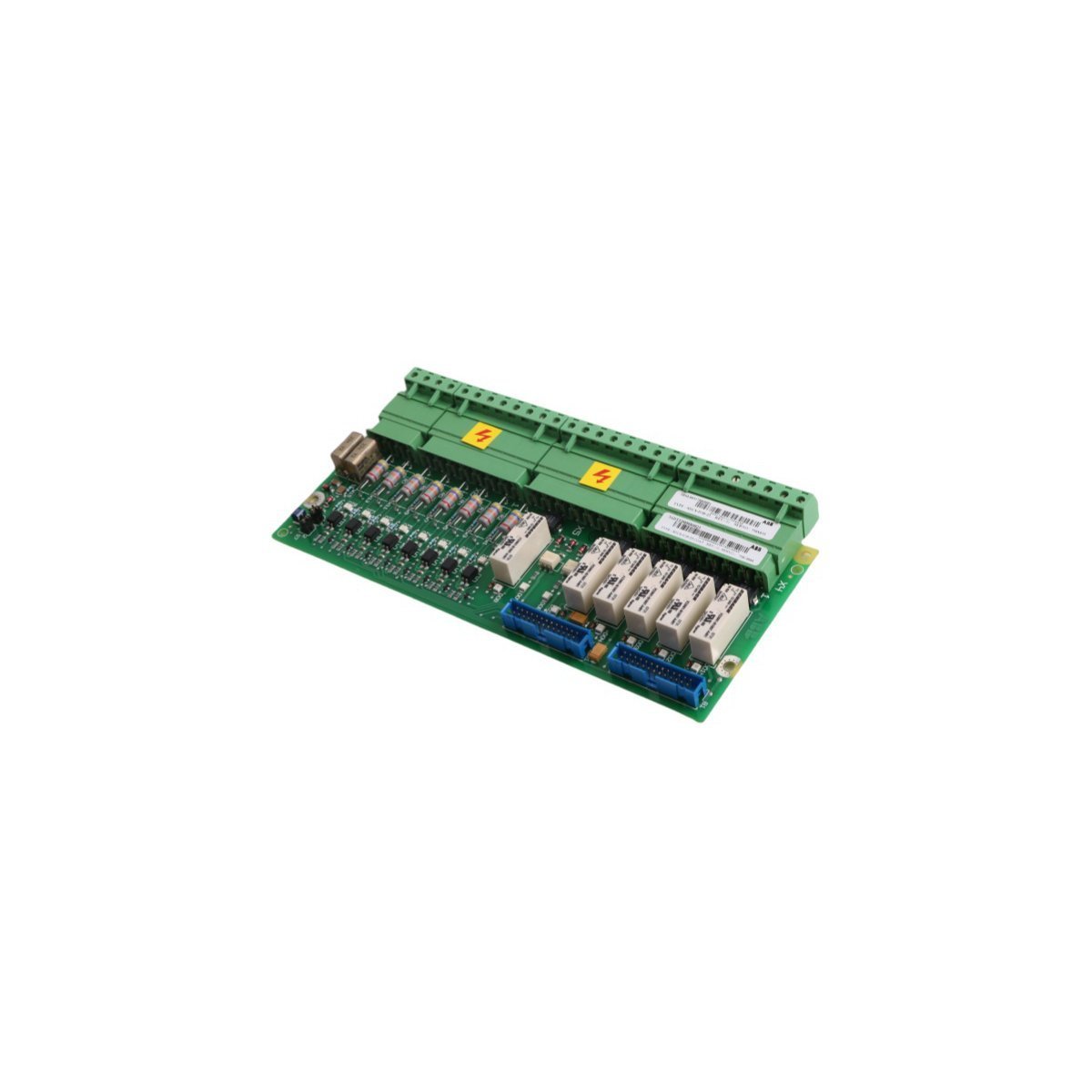

The ABB SDCS-IOB-23 COAT, cataloged under order reference 3ADT220090R0023, is a specialized digital I/O interface board engineered specifically for the DCS800 industrial drive series. This module serves as a critical galvanic isolation layer between the high-voltage field signals and the sensitive drive control logic. Featuring a protective conformal coating (COAT), this variant is purposely built for deployment in atmospheres containing corrosive gases, high humidity, or conductive dust. By managing 230 Vac digital signals, the SDCS-IOB-23 facilitates precise state monitoring and command execution for complex motor control systems and Distributed Control System (DCS) architectures. Its primary function is to ensure that binary status information is transmitted with zero interference, protecting the drive's processor from electrical transients common in heavy industrial environments.

Technical Configuration and Board Architecture

• Part Identification: SDCS-IOB-23 COAT

• Engineering Code: 3ADT220090R0023

• Net Board Weight: 0.34 kg

• Physical Proportions: 23.3 x 11.2 x 2 cm

• Voltage Support: 230 Vac digital channels

• Circuit Protection: Conformal coating for harsh environment resistance

• Series Line: DCS800 Drive Systems

• Manufacturing Origin: Sweden

• System Role: Digital Input/Output Expansion

• Tariff Code (HS): 8537101190

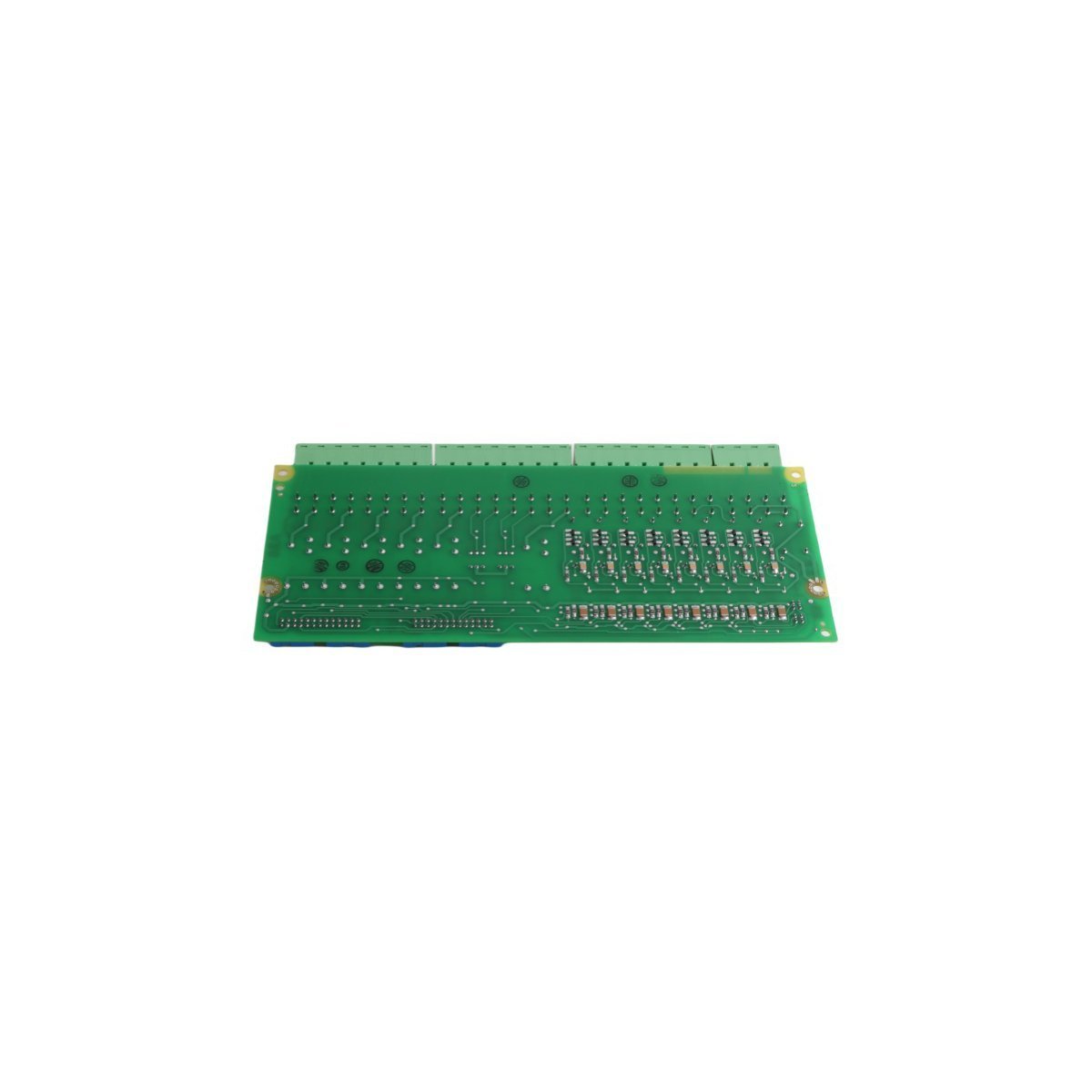

The 3ADT220090R0023 is designed with a slim 2 cm profile for efficient mounting within drive cabinets. The board features high-grade optical isolators for each channel, providing a robust barrier against common-mode noise. Unlike standard I/O cards, the "COAT" designation signifies that the PCB has undergone a specialized treatment process, making it resilient against the chemical stressors often found in pulp and paper mills or chemical processing plants.

Industrial Utilization and Deployment Scenarios

The SDCS-IOB-23 COAT is a fundamental building block for power conversion and automated motion control. Typical application environments include:

• Metals and Mining Operations: Managing logic signals for large DC drives in rolling mills or conveyor systems where vibration and dust are prevalent.

• Chemical Processing Plants: Coordinating valve states and motor interlocks in corrosive atmospheres where standard non-coated boards would degrade.

• Energy Management Systems: Serving as a digital interface for high-voltage switching signals within a synchronized DCS800 power management network.

• General Manufacturing Lines: Functioning as a high-reliability link between field-level sensors and the centralized PLC or DCS supervisory controller.

FAQ

Q: What is the primary benefit of the "COAT" version of the SDCS-IOB-23?

A: The conformal coating provides an extra layer of chemical and moisture protection. It is essential for ensuring the longevity of the board in environments where pollutants or humidity could otherwise cause short circuits or corrosion on the PCB traces.

Q: Can this board be used with drive series other than the DCS800?

A: This module is specifically optimized for the internal architecture and communication protocols of the ABB DCS800 series. Compatibility with other systems should be verified via the technical manual or a qualified automation engineer.

Q: What voltage levels do the digital input/output channels support?

A: The SDCS-IOB-23 is specifically configured to interface with 230 Vac signals, making it suitable for direct connection to standard industrial mains-level logic without the need for interposing relays.

Q: How does this board improve system safety?

A: By providing high-level galvanic isolation between the field wiring and the drive’s control unit, it prevents voltage surges or spikes from reaching the core processor, effectively safeguarding the most expensive parts of your control system.

Q: Is the 3ADT220090R0023 compatible with Ethernet-based monitoring?

A: While it is a digital I/O board, it communicates with the DCS800 controller, which can then relay data to an Ethernet router or industrial network for remote diagnostics and centralized monitoring.
