Product Overview

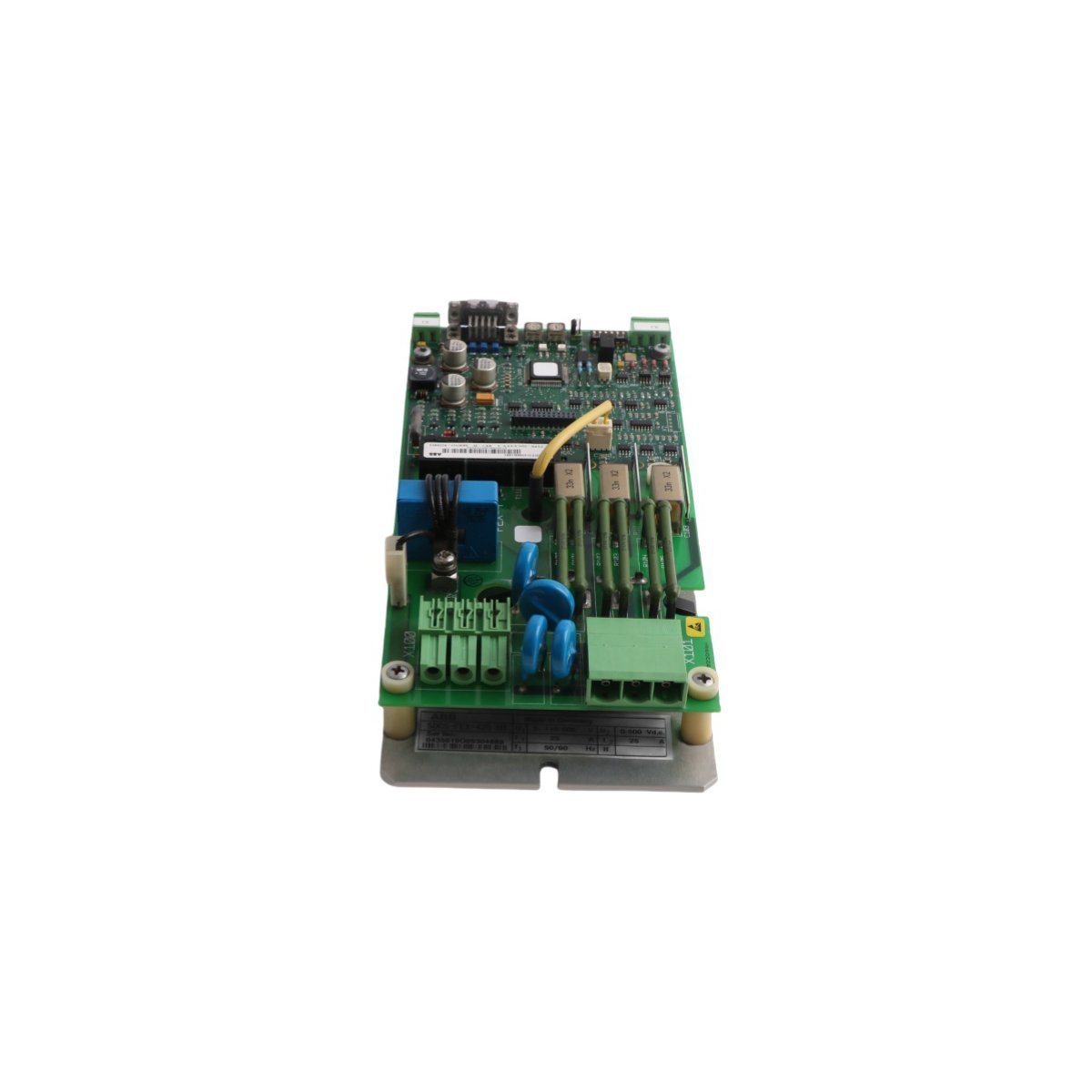

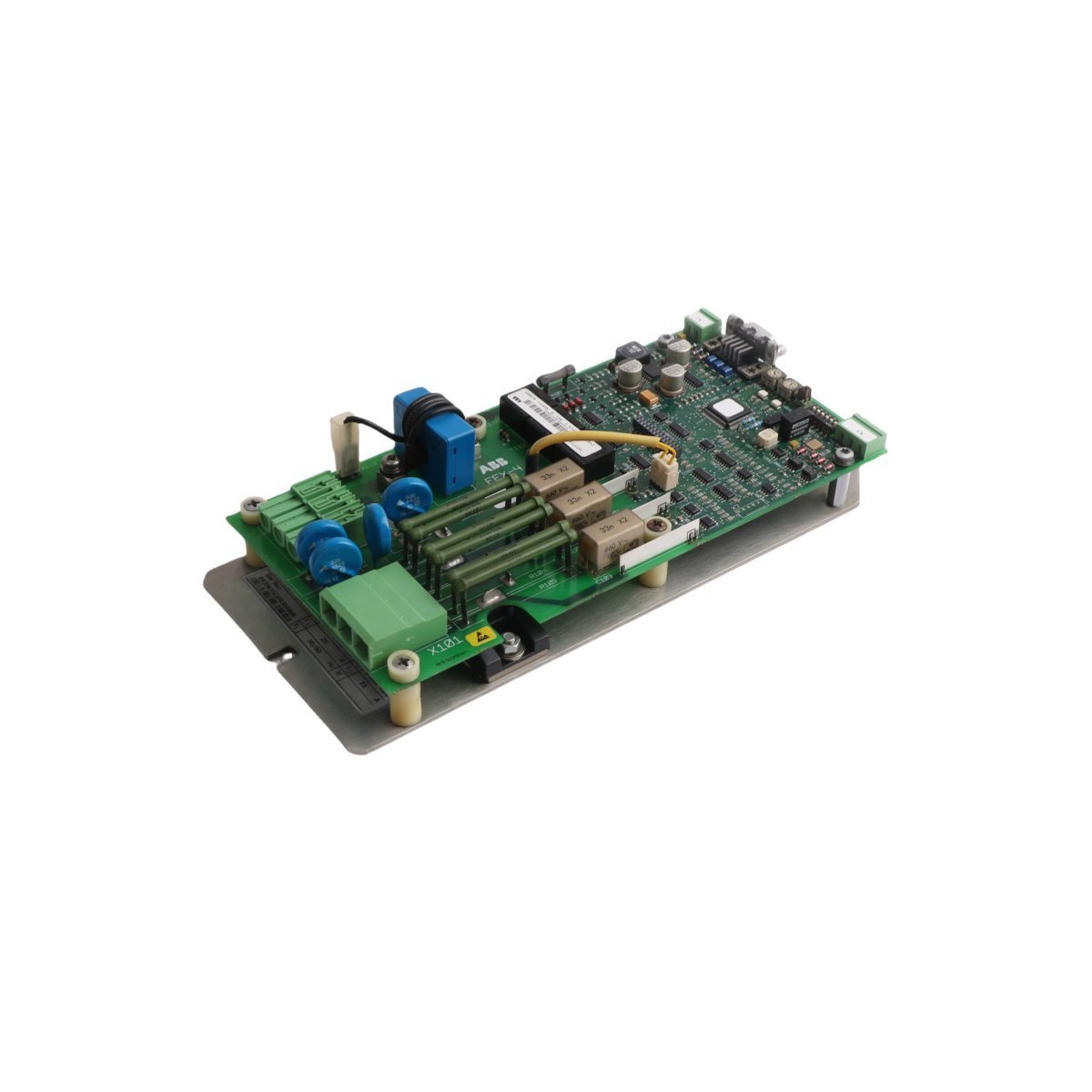

The SDCS-FEX-425-INT, identified by the order number 3ADT209022R0001, is a precision-engineered internal field exciter board developed by ABB for high-demand industrial DC drive applications. This module functions as a critical power electronics interface, regulating the excitation current for DC motors to ensure consistent torque and speed control. Designed to integrate directly into the drive’s control architecture, the SDCS-FEX-425-INT provides the necessary voltage and current modulation required for field-weakening and constant torque operations. By utilizing advanced isolation technology and high-accuracy signal processing, this board maintains system stability even in electrically noisy industrial environments, acting as a bridge between the digital control logic and the high-power DC field circuit.

Hardware Parameters and Technical Specifications

The 3ADT209022R0001 is built with high-grade components to provide reliable power delivery and deterministic control in harsh automation settings.

• Manufacturer ABB

• Model Designation SDCS-FEX-425-INT

• Part Number 3ADT209022R0001

• Product Type Internal Field Exciter Board

• Logic Supply Voltage 24 VDC (Consumption 10–20 W)

• Output Voltage Range 0 to 250 VDC

• Output Current Range 0 to 25 A (Rated for continuous industrial duty)

• Measurement Accuracy ±0.5% of full scale for precise current regulation

• Isolation Rating 2500 VAC Input-to-Output safety isolation

• Analog Interface Supports 4–20 mA and 0–10 V input signals

• Environmental Range -20°C to +70°C Operating; -40°C to +85°C Storage

• Physical Profile 27 cm x 11.5 cm x 6 cm

• Unit Weight 0.66 kg

• Humidity Tolerance 5% to 95% (non-condensing)

Industrial Applications and Operational Use Cases

This field exciter module is essential for industries that rely on large-scale DC motor control for process-critical machinery.

• Metal Processing and Steel Mills Managing the excitation for main stand drives and coilers where rapid field current changes are required for tension control.

• Mining and Extraction Powering the field circuits of large hoist motors and conveyors that demand high reliability and precise torque management at low speeds.

• Pulp and Paper Industry Ensuring consistent motor performance in paper machines where synchronized speed control across multiple sections is vital for product quality.

• Power Generation Serving as an excitation control node in specialized turbine and generator applications that require localized DC field regulation.

• Material Handling and Lifting Providing the necessary current for heavy-duty crane motors to ensure safe and predictable lifting operations through the safe torque-off (STO) and braking cycles.

The 3ADT209022R0001 SDCS-FEX-425-INT is recognized globally for its durability and ease of integration into existing ABB DCS and drive platforms, making it a standard choice for engineers seeking to minimize downtime and optimize motor performance.
