Product Overview

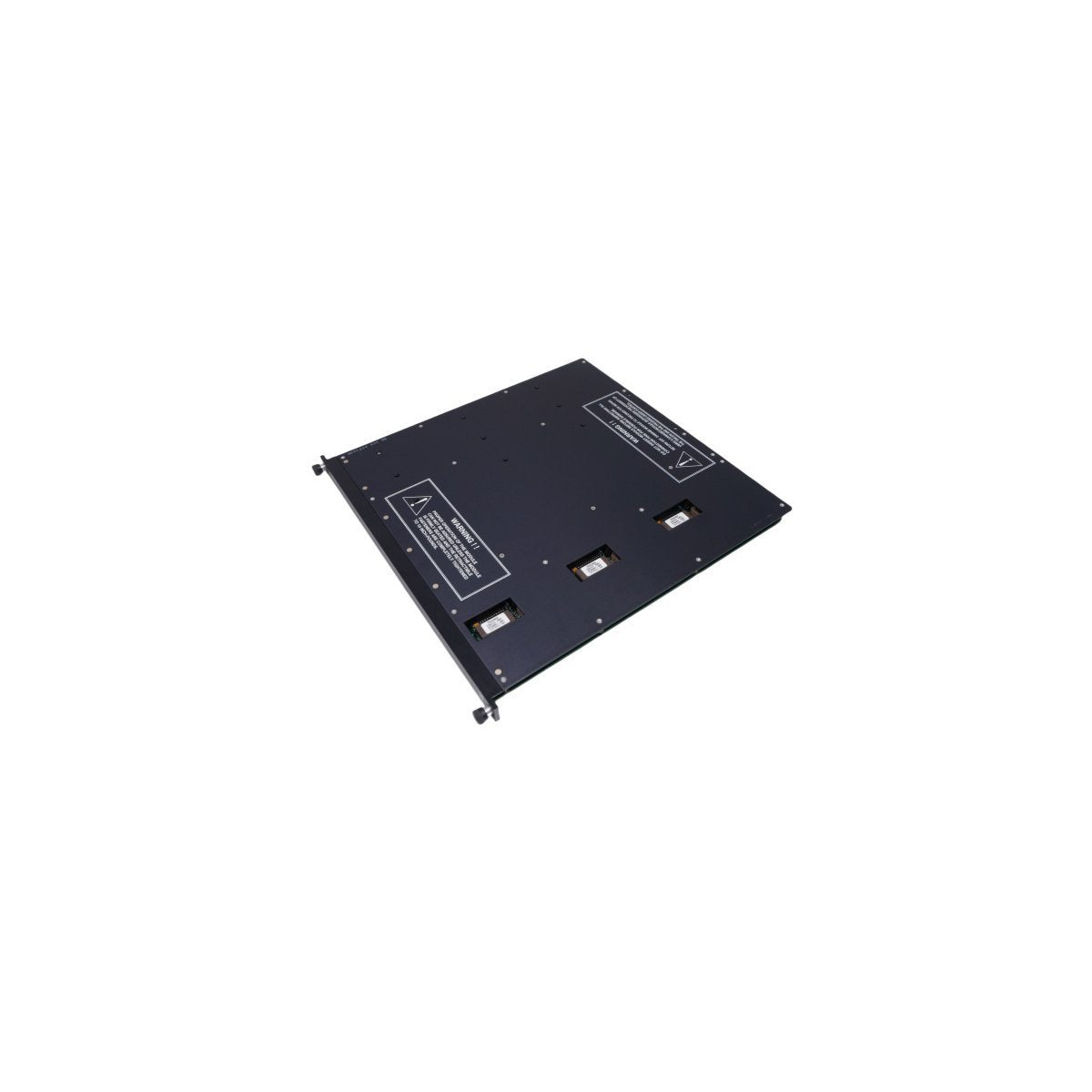

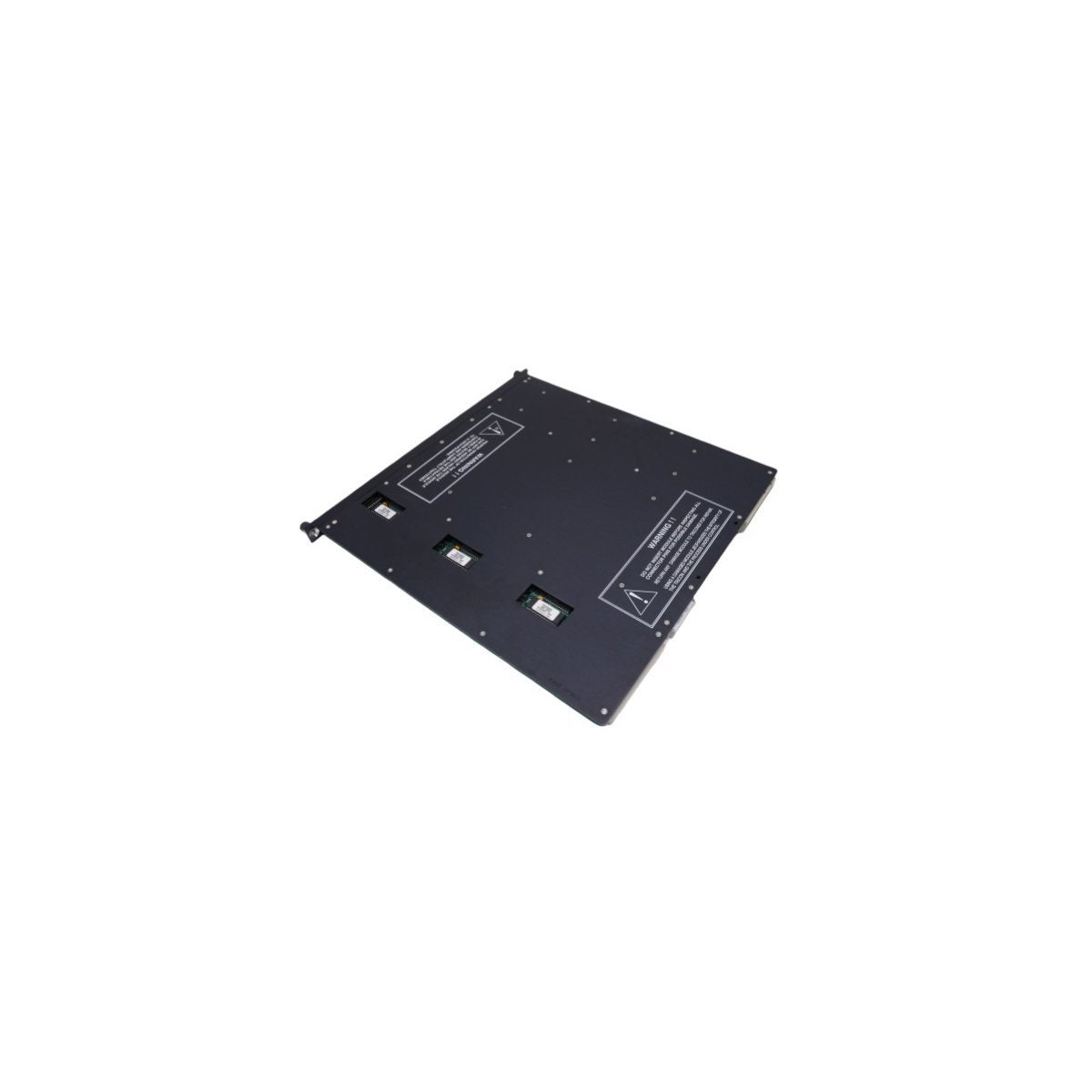

The Triconex 3708E is a high-integrity Analog Input (AI) module specifically engineered for temperature sensing applications within Triple Modular Redundant (TMR) safety systems. This module is optimized for processing low-level signals from various thermocouple types, converting thermal data into precise digital values for the safety controller. Designed to maintain Safety Integrity Level 3 (SIL 3) compliance, the 3703E utilizes triplicated internal processing paths to ensure that temperature-critical interlocks and monitoring loops remain active even in the event of a hardware fault. Its robust electrical isolation and advanced signal conditioning make it an essential component for high-hazard environments where thermal stability and accurate fault detection are non-negotiable.

Hardware Performance and Signal Processing Profile

The 3708E architecture is defined by its superior noise rejection capabilities and deterministic data acquisition in electrically dense environments.

• Triplicated Signal Logic: Employs TMR architecture with hardware-based voting to eliminate single points of failure in the temperature monitoring chain.

• Input Density: Supports 16 isolated differential thermocouple input channels.

• Cold Junction Compensation: Features integrated high-precision sensors to ensure accuracy across a wide range of ambient operating temperatures.

• Electrical Hardening: Robust protection against EMI, RFI, and high-voltage transients common in industrial motor control centers.

• Galvanic Isolation: Provides 1500V individual channel-to-channel and field-to-logic isolation to prevent ground loop interference.

• Diagnostic Coverage: Continuous self-testing for sensor burnout, open circuits, and out-of-range signal deviations.

Strategic Industrial Safety Applications

The 3708E module is a primary choice for facilities where temperature excursions pose immediate risks to equipment integrity and personnel safety.

Refinery Furnace and Boiler ManagementIn petrochemical heaters, the 3708E monitors tube-skin temperatures and exhaust gases. The module's high-speed conversion and TMR reliability ensure that the Burner Management System (BMS) can execute a safe shutdown instantly if a "hot spot" or flame-out condition is detected.

Turbine Exhaust Temperature (TET) MonitoringFor large-scale power generation units, the 3708E tracks the exhaust temperature profiles of gas turbines. This data is critical for protecting the turbine blades from thermal stress, requiring the high-accuracy and fault-tolerant processing that the 3708E provides.

Cryogenic and LNG Storage SafetyIn liquefied natural gas facilities, the 3708E is utilized to monitor temperature gradients in storage tanks and regasification units. The module's ability to operate reliably in extreme cold environments (via isolated sensing) prevents hazardous leaks caused by material contraction or pressure spikes.

Chemical Reactor Thermal ProtectionThe 3708E is a foundational element in protecting exothermic chemical reactions. It provides the high-fidelity feedback needed for emergency cooling systems, ensuring that runaway reactions are caught by the safety logic at the earliest possible stage.
