Product Overview

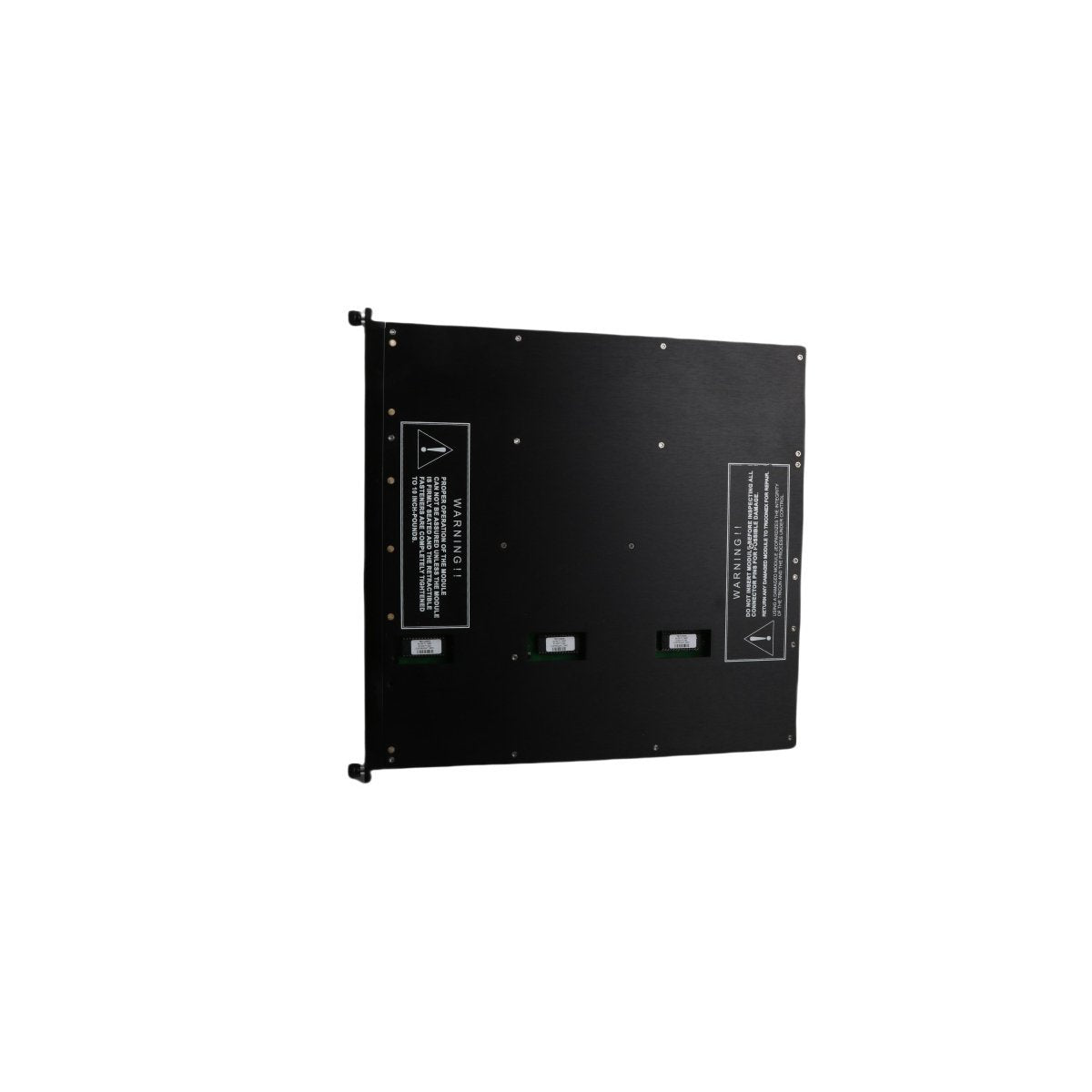

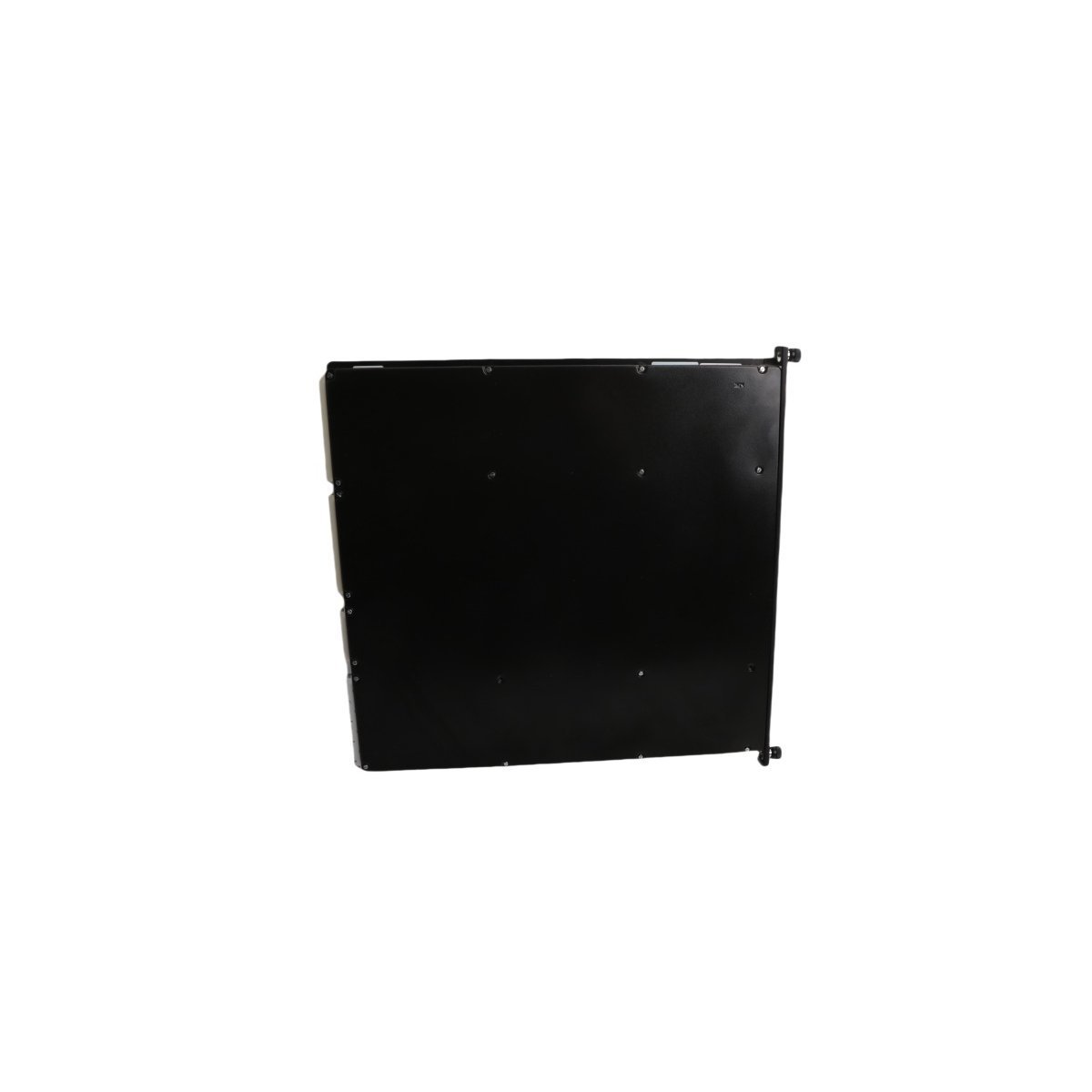

The Triconex 3706A is a high-integrity Thermocouple Analog Input Module specifically engineered for the Tricon Triple Modular Redundant (TMR) safety platform. This module serves as a specialized thermal interface, designed to acquire and digitize low-millivolt signals from various thermocouple types with laboratory-grade precision. By utilizing three independent sensing paths and a hardware-based voting mechanism, the 3706A ensures that critical temperature data remains available and accurate even in the event of a single component failure. It is an indispensable component for Safety Instrumented Systems (SIS) in the energy, petrochemical, and refining sectors, where precise thermal monitoring is the primary defense against hazardous process excursions.

Technical Performance and Measurement Specifications

The 3706A architecture is optimized for high-resolution thermal data acquisition and immunity to industrial electromagnetic interference:

• Thermocouple Compatibility: Supports a broad spectrum of industry-standard sensors, including Type J, K, T, and E thermocouples, with integrated cold-junction compensation.

• TMR Fault Tolerance: Processes every temperature point through three isolated channels to provide SIL3-compliant signal reliability and 99.99% system availability.

• Signal Conditioning: Features advanced galvanic isolation and noise filtering to preserve signal integrity in high-voltage or electrically noisy environments.

• Cold Junction Compensation (CJC): Employs high-precision internal sensors to automatically compensate for ambient temperature variations at the termination panel.

• Online Diagnostics: Performs continuous self-tests on the microprocessor and input circuitry, identifying open-circuit thermocouples or sensor drift without process interruption.

• Chassis Architecture: A robust 2.5 kg industrial module designed for large-format Tricon racks, measuring 49 x 45.3 x 6.8 cm.

• Data Refresh Rate: Provides deterministic update intervals, ensuring that the main processors receive real-time thermal dynamics for rapid safety logic execution.

Industrial Thermal Oversight and Utility

The 3706A Thermocouple Module is deployed in environments where thermal management is critical to asset protection and personnel safety:
