Product Overview

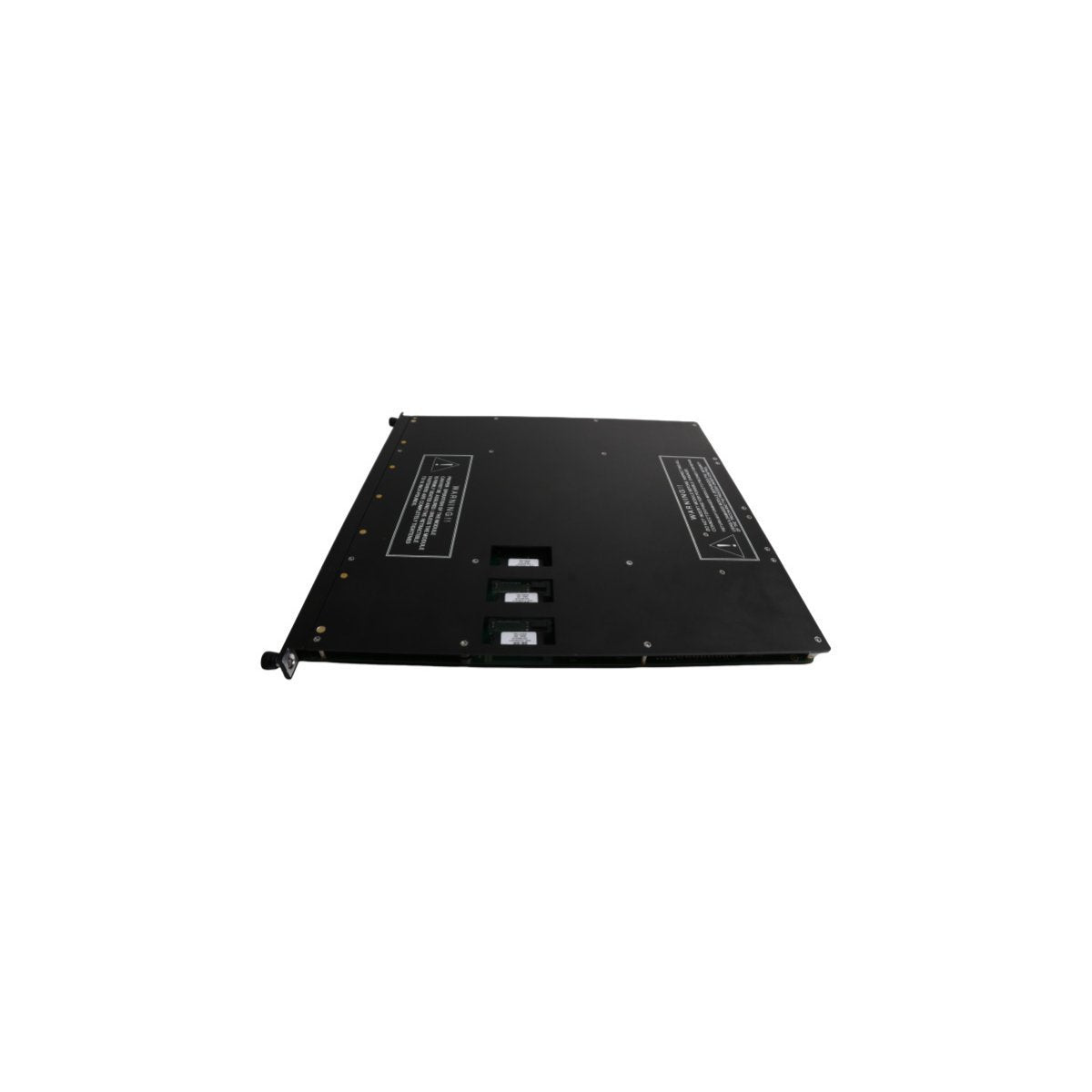

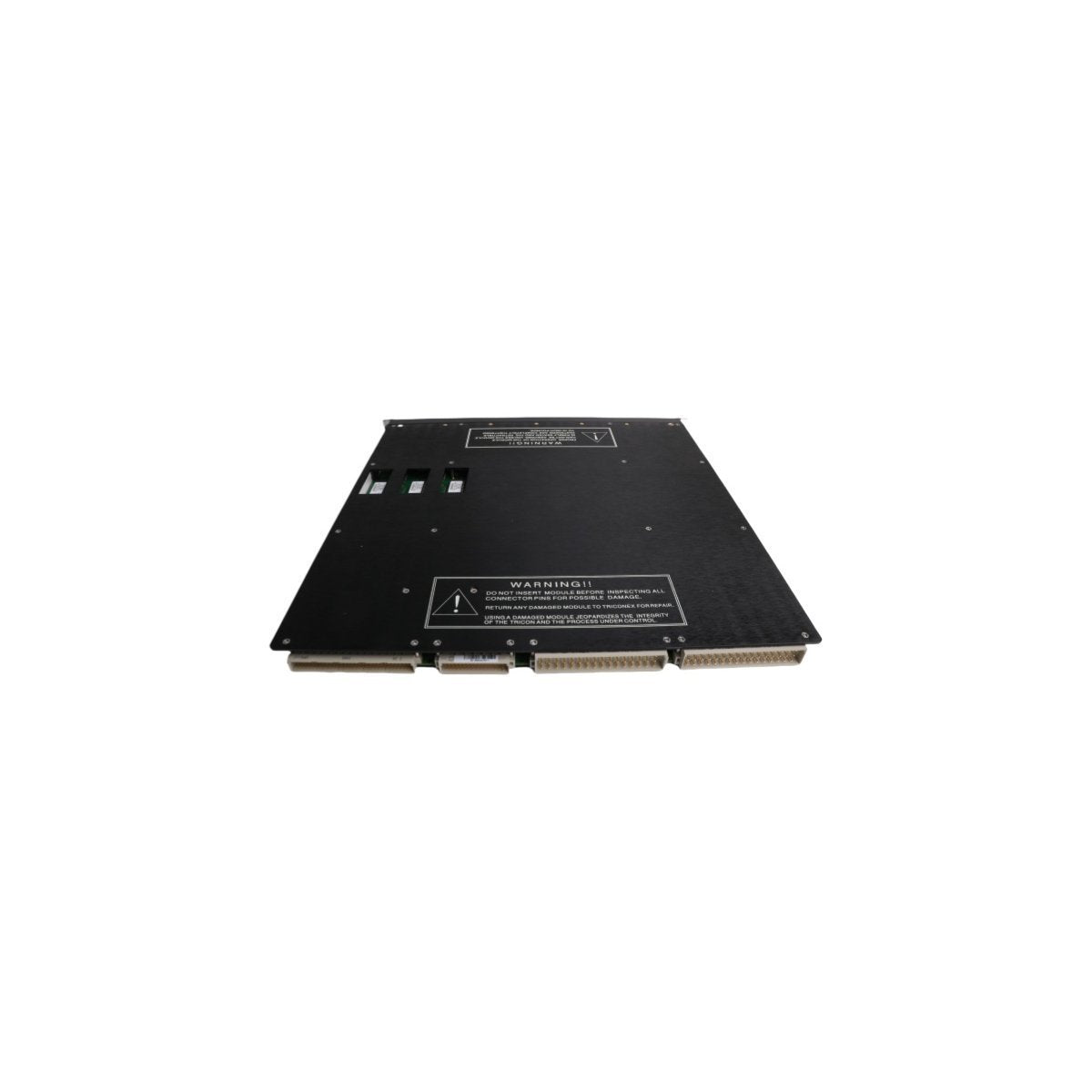

The Triconex 3703E is a high-reliability Analog Input (AI) module designed for the Triple Modular Redundant (TMR) architecture of the Tricon safety system. This module serves as a critical interface for translating continuous field signals into actionable digital data for the safety controller. Specifically engineered for voltage-based sensing, the 3703E provides a high level of galvanic isolation and fault tolerance, ensuring that even if one internal circuit path fails, the system continues to monitor process variables with absolute precision. It is an essential component for Safety Instrumented Systems (SIS) where high-speed data acquisition and SIL 3 safety integrity are non-negotiable requirements for industrial protection.

Technical Hardware Profiles and Input Parameters

The 3703E is built to deliver deterministic performance while maintaining a significantly low power footprint and high signal density.

• Input Channels: 16 isolated points (differential) supporting diverse voltage ranges.

• Signal Support: Standard DC voltage inputs including -10 V to +10 V and 0-5 VDC configurations.

• Data Acquisition Rate: High-speed 500 Hz sampling frequency for rapid process response.

• Fault Tolerance: TMR (Triple Modular Redundant) logic with internal 2-out-of-three voting.

• Power Efficiency: Ultra-low consumption of less than 2.5 Watts during full operation.

• Environmental Tolerance: Rated for operation in volatile climates ranging from -40°C to +70°C with up to 95% non-condensing humidity.

Strategic Industrial Safety Applications

The 3703E module is a foundational element in process industries where precise analog feedback determines the activation of safety interlocks.

Critical Pressure and Temperature MonitoringIn chemical reactors and pressurized pipelines, the 3703E monitors high-accuracy voltage signals from pressure transducers. Its fast 500 Hz sampling ensures that any sudden pressure spikes are detected and processed by the safety logic instantly, preventing mechanical vessel failure.

High-Integrity Level SensingIn the oil and gas sector, this module tracks liquid levels in storage tanks and separators. The high-precision circuitry of the 3703E prevents signal drift, ensuring that high-level trips are executed with 100% reliability to avoid tank overfills and environmental hazards.

Turbine Speed and Vibration ProtectionUsed within power generation facilities, the 3703E processes voltage inputs from speed sensors and vibration probes. The module's ruggedized design allows it to operate close to the rotating machinery, providing the clean, isolated signal path necessary for turbine overspeed protection.

Refinery Flow Control LoopsIntegrated into complex furnace and distillation logic, the 3703E tracks flow meter voltages. Its TMR architecture guarantees that a single component failure within the module will not result in a false plant trip, thereby maximizing production uptime while maintaining a rigorous safety posture.
