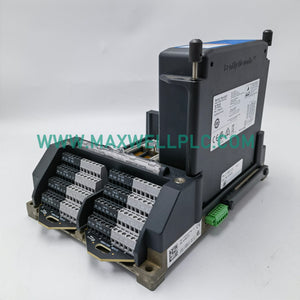

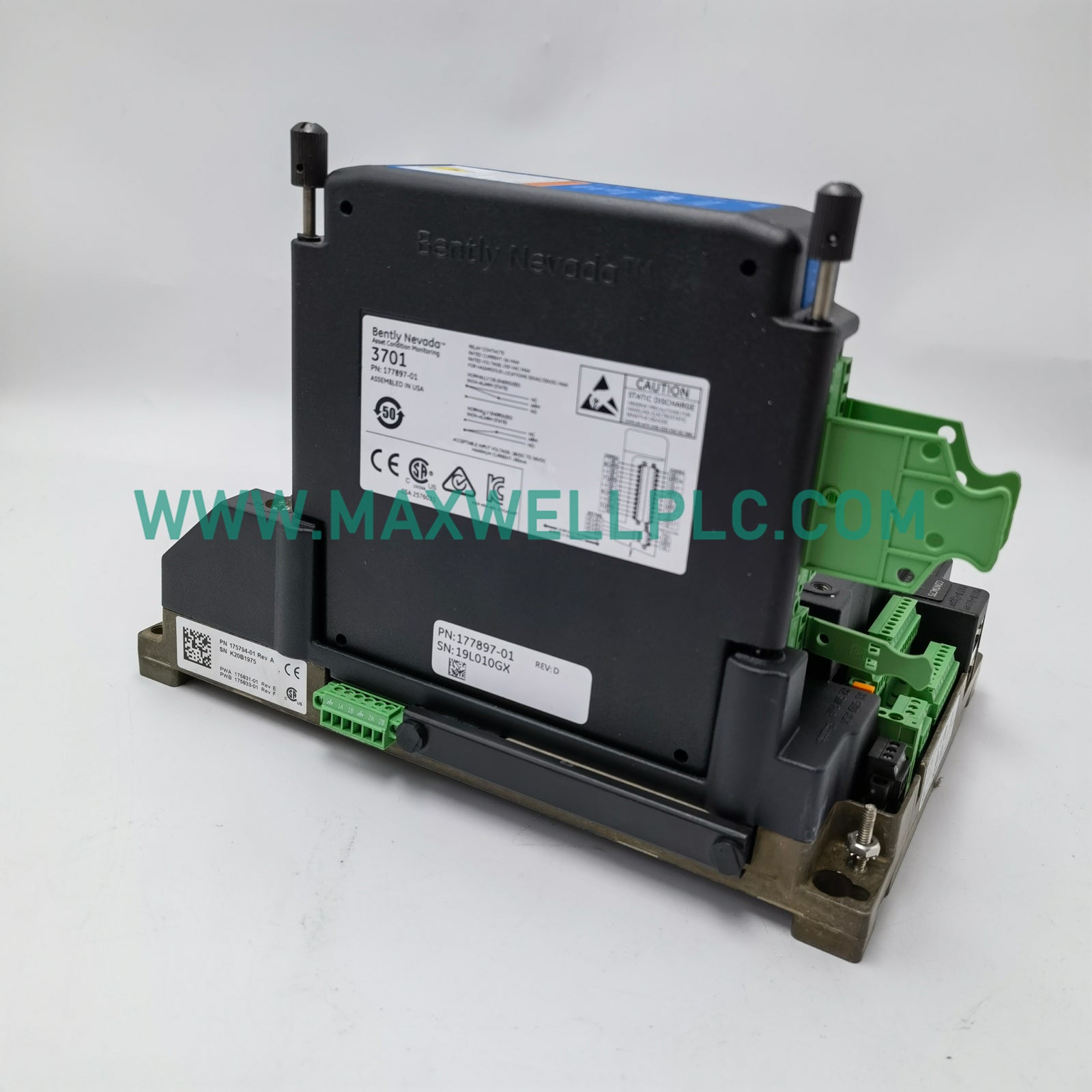

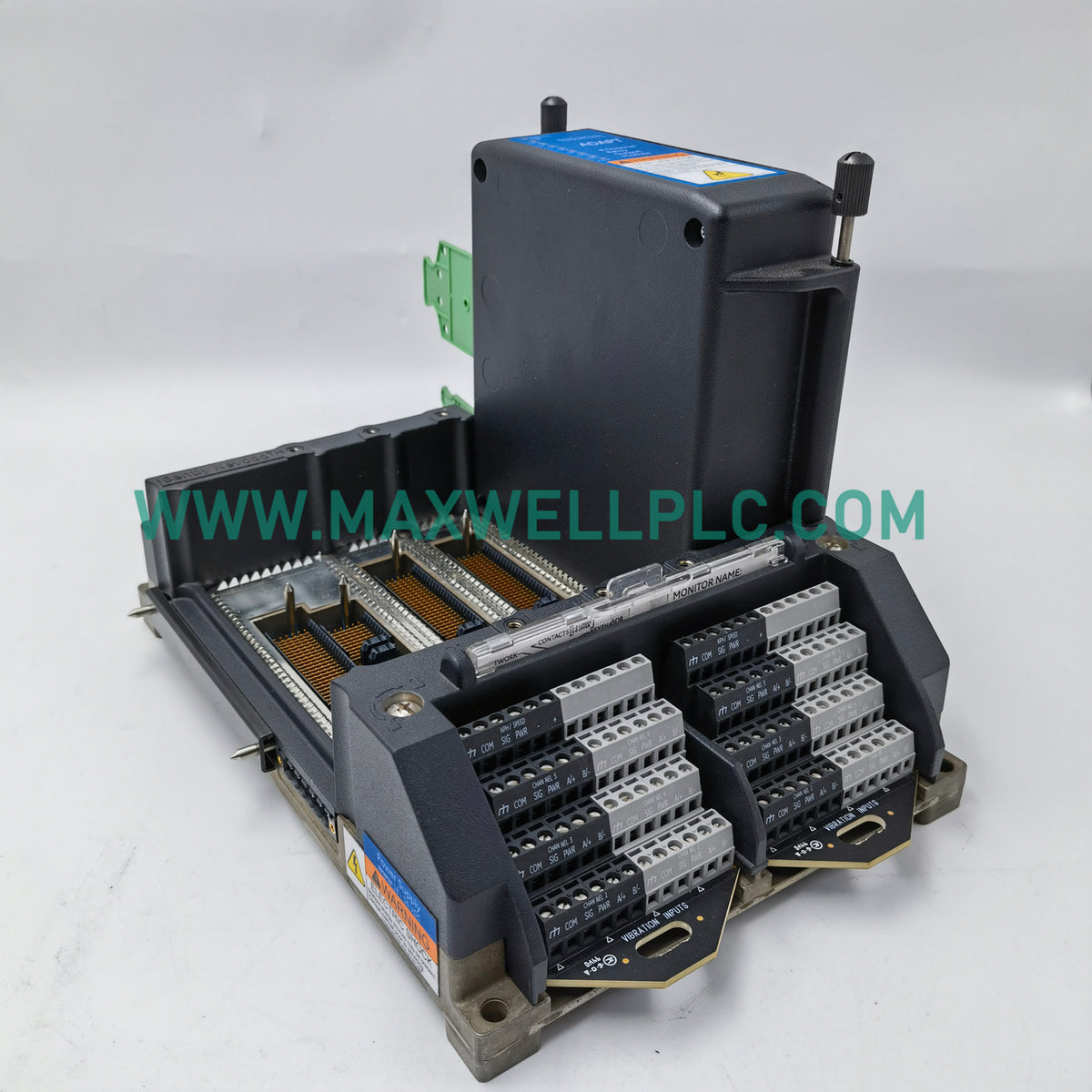

Configured for high-speed signal processing in rotating machinery, the Bently Nevada 3701/44 175794-01 (3701/44 175794-01 ADAPT Aeroderivative Monitor) provides direct physical signal acquisition for displacement, velocity, and acceleration monitoring.

Hardware Specifications

Mechanical Monitoring and Transducer Dynamics

The 3701/44 ADAPT monitor provides dedicated processing for machine vibration data, including displacement (0-500 um pk-pk), velocity (0-20 mm/s RMS), and acceleration (0-50 g pk). Accurate monitoring requires precise eddy-current probe scaling and periodic gap voltage validation against -10 VDC targets. The monitor utilizes integrated signal conditioning to support complex rotor dynamics analysis. By employing high-speed sampling (100 kHz) and advanced filtering, the system ensures effective cross-talk suppression and maintains signal fidelity across its 30 kHz frequency response bandwidth, allowing for transient event detection and machinery diagnostic evaluation.

Ordering Info

• 1 x 3701/44 175794-01 ADAPT Monitor unit
• 1 x Mounting and diagnostic interface set

Field Installation Guidelines

• Thermal Management: Ensure the installation environment allows for convection cooling within the -40 to +85 deg C temperature range to maintain internal component longevity.
• Signal Shielding: Use high-quality shielded coaxial cables for all transducer inputs; terminate shields at the designated rack ground point to minimize ground loop interference.
• DIN-Rail Integration: The unit is optimized for 35 mm DIN-rail mounting; ensure retention clips are fully engaged to withstand industrial vibration levels.
• Input Configuration: Verify the transducer input type (displacement, velocity, or acceleration) in the ADAPT configuration software before applying sensor excitation power.

Frequently Asked Questions

• What is the primary advantage of the 100 kHz sampling rate?

  The high sampling rate enables the capture of high-frequency vibration components and transient phenomena, which are necessary for detailed aero-engine diagnostic analysis.

• Can the unit handle multiple input types simultaneously?

  Yes, the monitor is configured to process a variety of inputs; however, ensure each channel is mapped to the correct sensor sensitivity and range in the configuration interface.

• How does the monitor handle cross-talk between high-density channels?

  Internal isolation and high-frequency filtering are implemented to suppress cross-talk, ensuring that individual channel integrity is maintained during parallel operation.

• Is the monitor suitable for outdoor cabinet installations?

  The operating temperature range of -40 to +85 deg C covers most industrial outdoor requirements, but the unit must be housed in an IP-rated enclosure to prevent moisture ingress.

• Can I perform a firmware update while the machine is running?

  Firmware updates may interrupt monitoring; follow established site procedures to bypass alarms or switch to a redundant system before initiating update sequences.

• Why is gap voltage validation important for this monitor?

  Gap voltage defines the operating point of the proximity probe; validating -10 VDC targets ensures the signal remains within the linear range of the displacement measurement.

• What is the impact of an invalid configuration on the sampling rate?

  An invalid setup may trigger an error state; always verify that the configured sampling rate is compatible with the sensor type and required frequency bandwidth.

• Does this monitor provide digital output data?

  The ADAPT monitor provides both processed analog values and digital communication capabilities for integration with external host systems or data historians.
