Product Overview

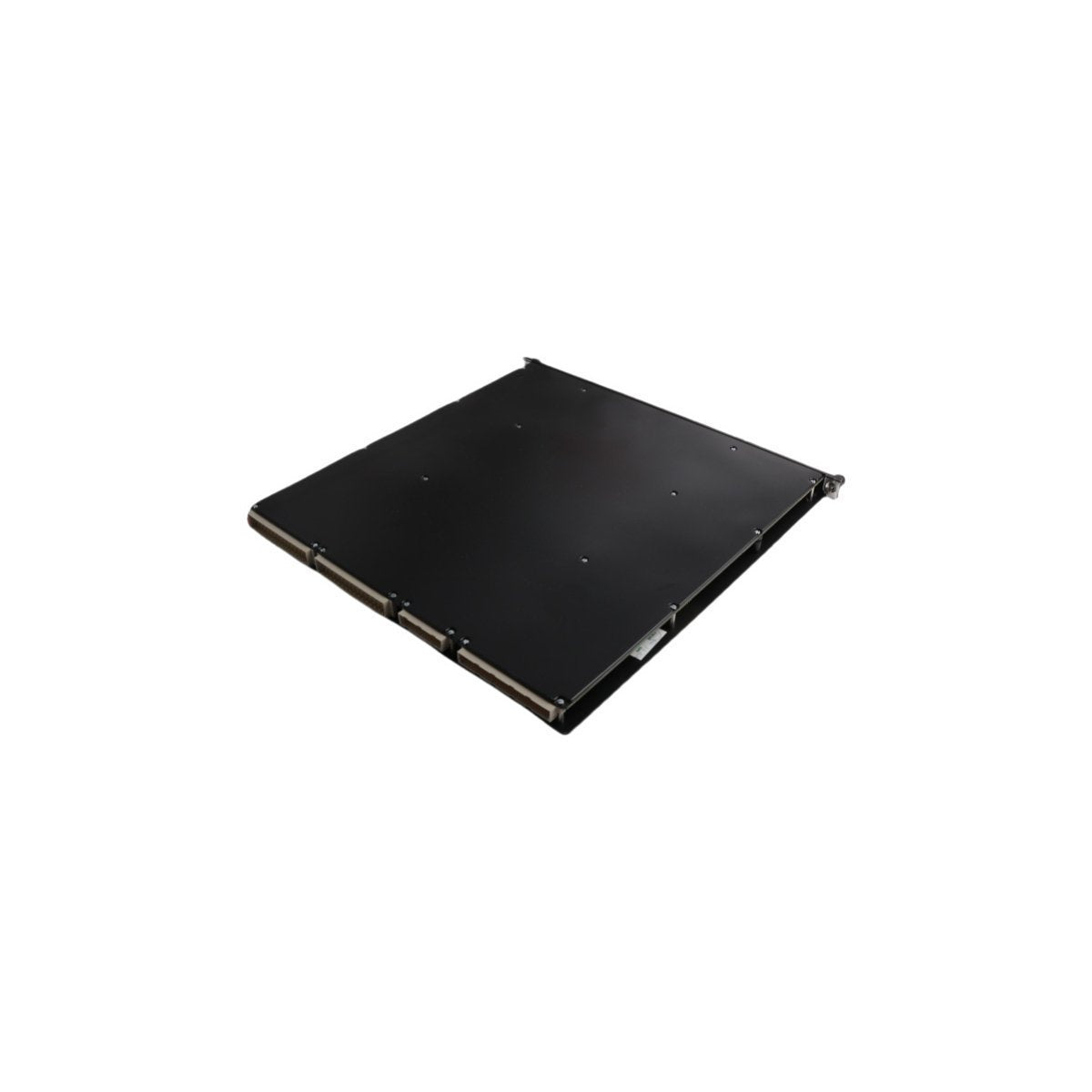

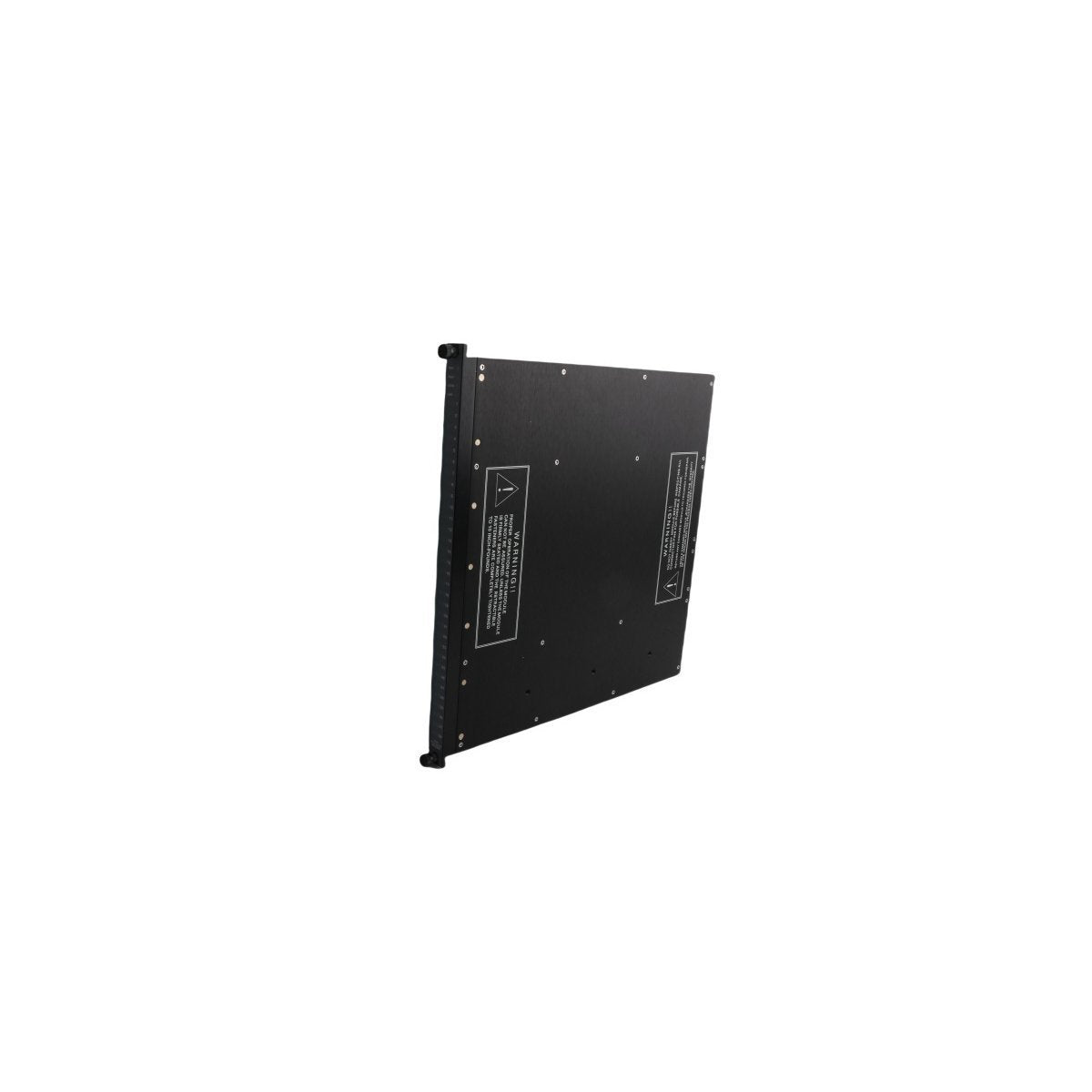

The Triconex 3625N is a high-availability Digital Output Module designed for the Triple Modular Redundant (TMR) safety architecture. This module provides the critical interface between the safety controller's logic and 24VDC field-side actuators, such as solenoids, relays, and indicators. Engineered to meet the rigorous demands of Safety Instrumented Systems (SIS), the 3625N ensures that safety-critical output commands are executed with absolute certainty. By utilizing three independent output circuits that are voted at the hardware level, the module eliminates single points of failure, making it a cornerstone for industrial facilities requiring SIL3-level process protection and high operational uptime.

Hardware Architecture and Performance Metrics

The 3625N is architected with advanced semiconductor technology to provide rapid switching and deep diagnostic capabilities:

• Control Logic: Features an integrated high-speed microprocessor for deterministic signal execution and real-time output verification.

• Redundancy Model: Full TMR (Triple Modular Redundant) internal circuitry with hardware-based voting to ensure failsafe performance.

• Output Rating: Specifically optimized for 24VDC discrete loads with integrated short-circuit and over-current protection.

• Response Dynamics: Optimized for high-speed switching to minimize safety loop latency in emergency scenarios.

• Power Resilience: Designed with dual-redundant power paths to maintain module stability during external power fluctuations or supply transients.

• Diagnostic Depth: Continuous background self-testing identifies field wiring issues and internal hardware health without interrupting the process.

• Physical Profile: Lightweight 2.04kg chassis with a slim 2.2cm faceplate, designed for high-density integration in standard Tricon racks (40.5 x 40cm frame).

Industrial Implementation and Safety Context

The 3625N is a trusted component in high-consequence industries where the cost of failure is extreme:
