Product Overview

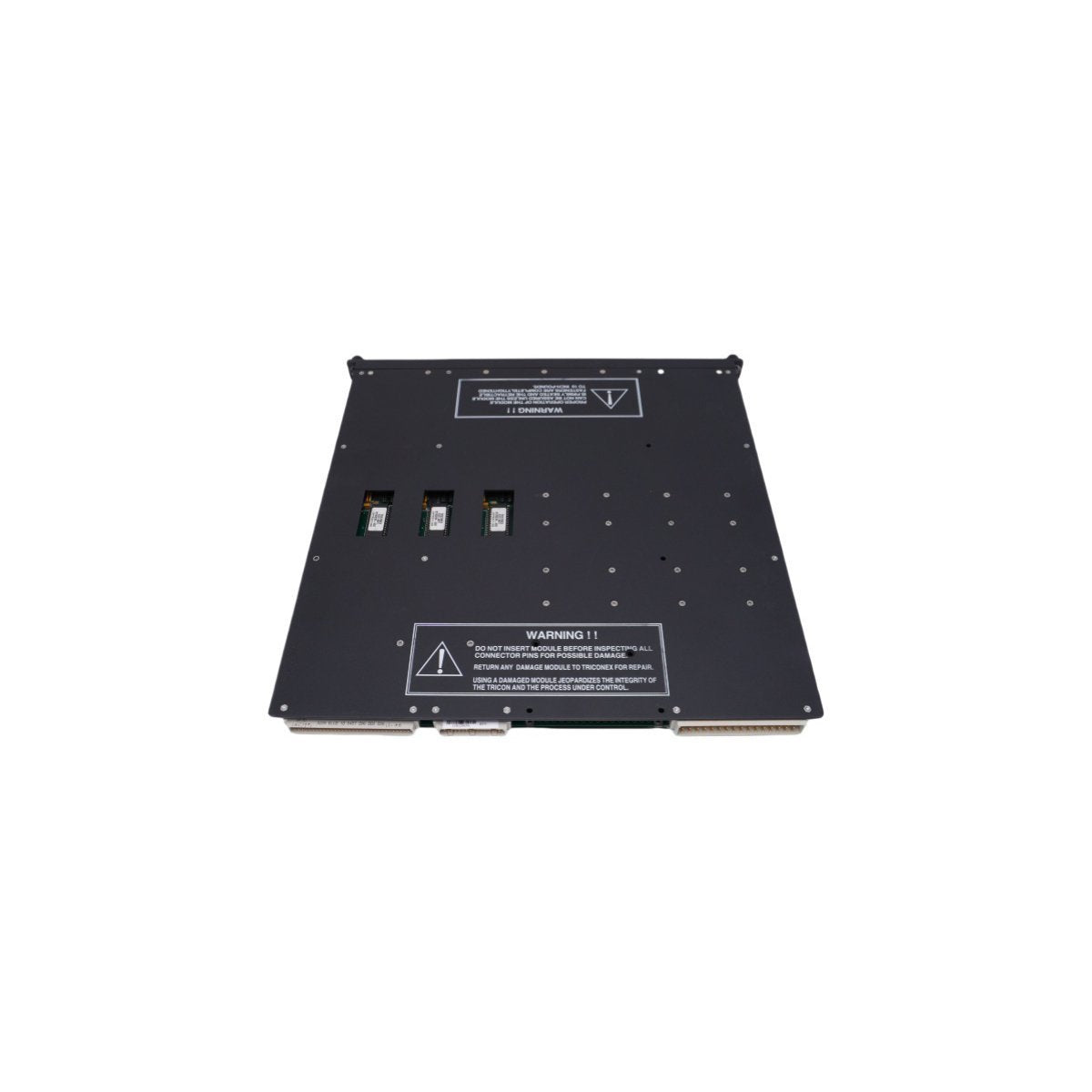

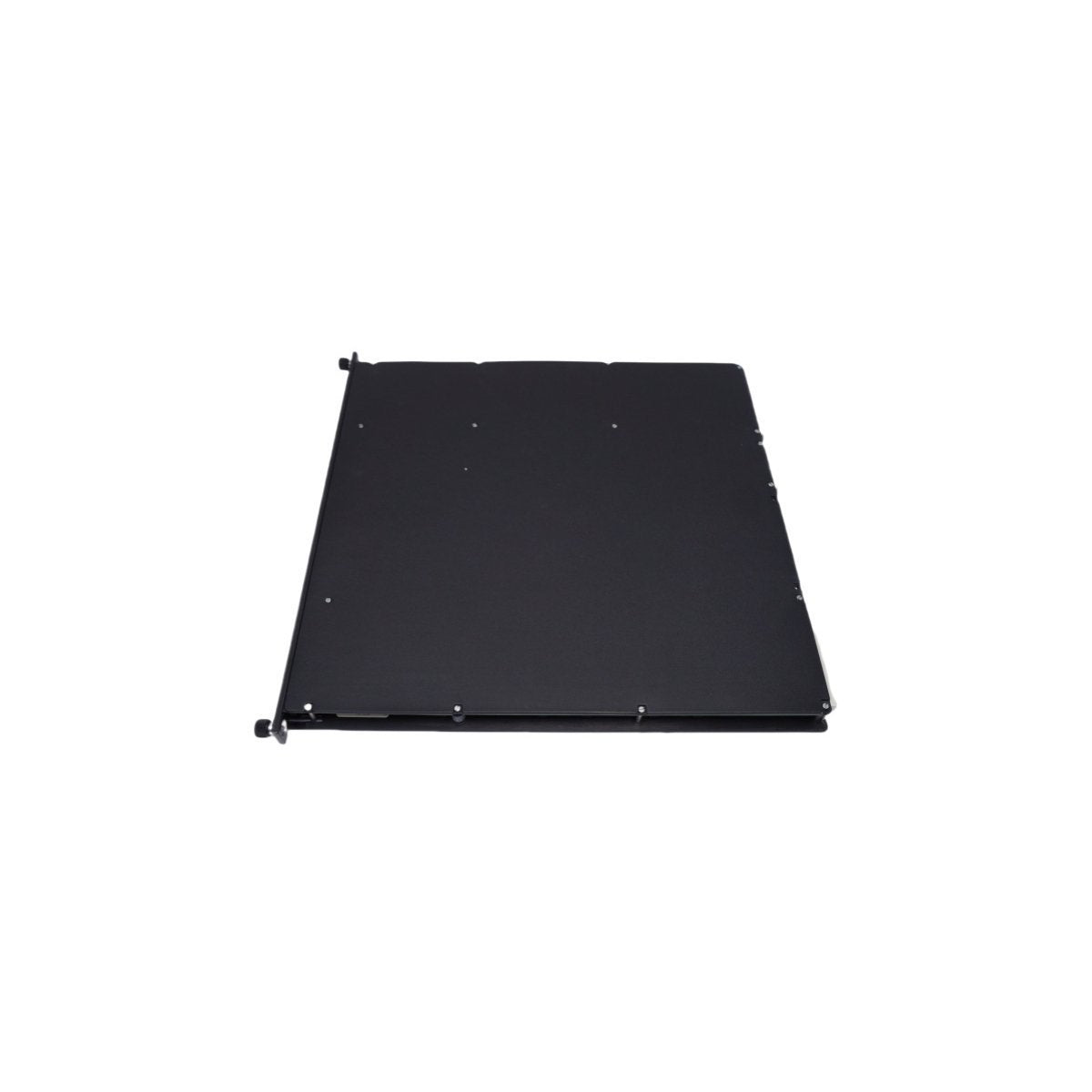

The Triconex 3604E is a high-availability Digital Output (DO) module engineered for the Triple Modular Redundant (TMR) safety architecture. This module provides 16 non-commoned, isolated output points designed to interface with critical final control elements in a Safety Instrumented System (SIS). By executing a 2-out-of-three (2oo3) voting process across triplicated internal circuits, the 3604E ensures that command execution remains flawless even in the event of an internal hardware failure. This specific 24 VDC variant is a cornerstone for high-integrity automation, providing the deterministic control necessary for hazardous processes where unintended actuation or failure to trip is not an option.

System Specifications and Hardware Architecture

The 3604E utilizes a sophisticated triplicated processing path to manage field-side devices with millisecond precision and total galvanic isolation.

• Output Channels: 16 independent, isolated points

• Operating Voltage: 24 VDC nominal

• Redundancy Logic: Triple Modular Redundancy (TMR)

• Current Rating: Typically 2A per point (with a maximum aggregate module load)

• Isolation: 1,500 VDC (field-to-logic)

• Self-Diagnostics: Continuous microprocessor health checks and output circuit loopback monitoring

Strategic Deployments and Process Roles

This module is a fundamental component for Safety Instrumented Functions (SIF) across heavy industrial sectors requiring fault-tolerant actuation.

Emergency Shutdown (ESD) OperationsIn petrochemical refineries, the 3604E is responsible for controlling critical isolation valves. Its TMR architecture prevents "nuisance trips" that cause production loss while guaranteeing a fail-safe response during a genuine hazard.

Fire and Gas (F&G) MitigationThe module is frequently applied to trigger suppression systems and audible alarms. The 24 VDC 16-point configuration allows for high-density wiring of solenoids and beacons within fire-safety cabinets.

Burner Management Systems (BMS)In utility power generation, the 3604E manages fuel supply and pilot ignitor solenoids. The module's robust diagnostic suite identifies load failures or open circuits without interrupting the active control sequence.

High-Integrity Pressure Protection (HIPPS)Utilized in upstream oil and gas pipelines, the 3604E provides the high-force output signals required to actuate rapid-close safety valves, protecting downstream equipment from catastrophic over-pressurization.
