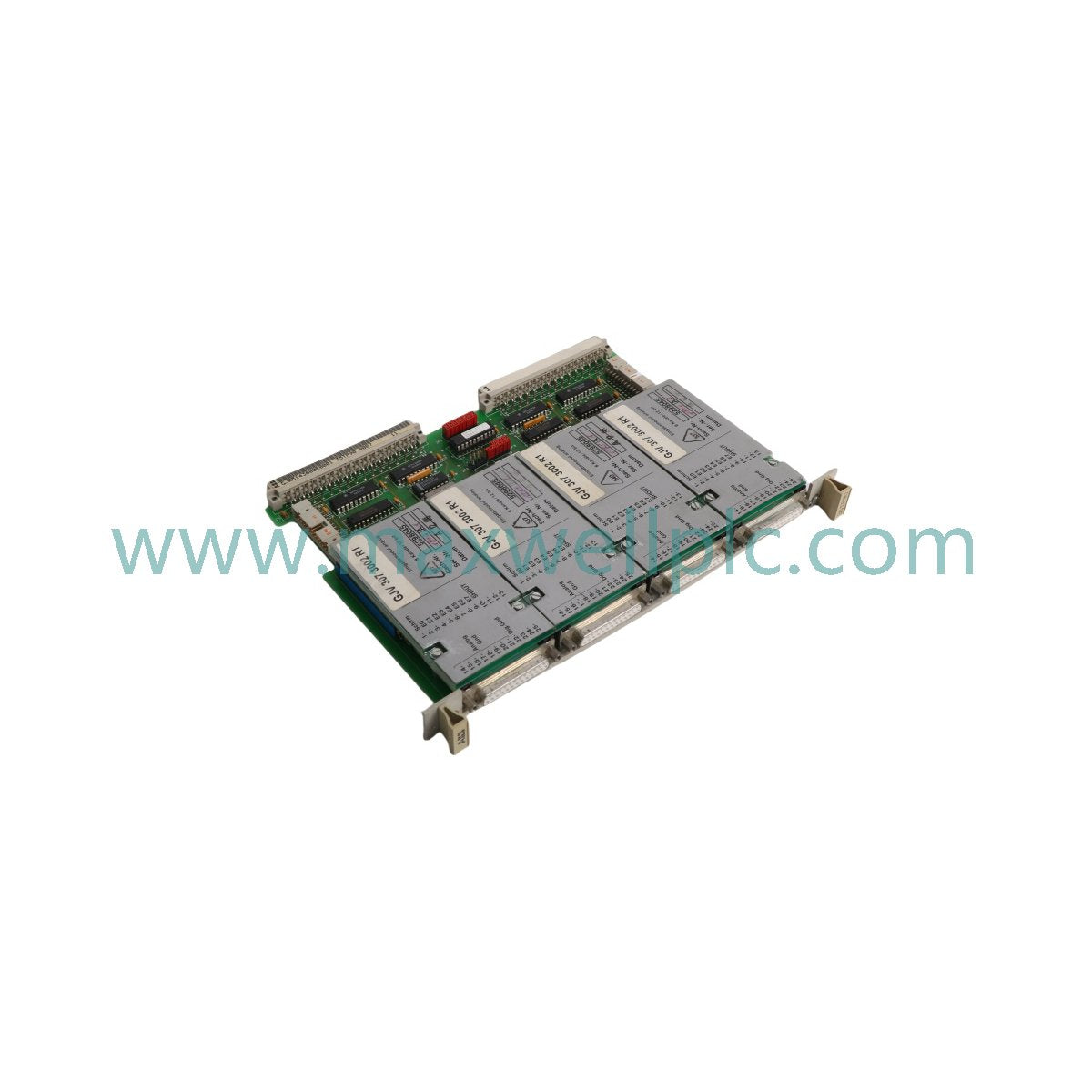

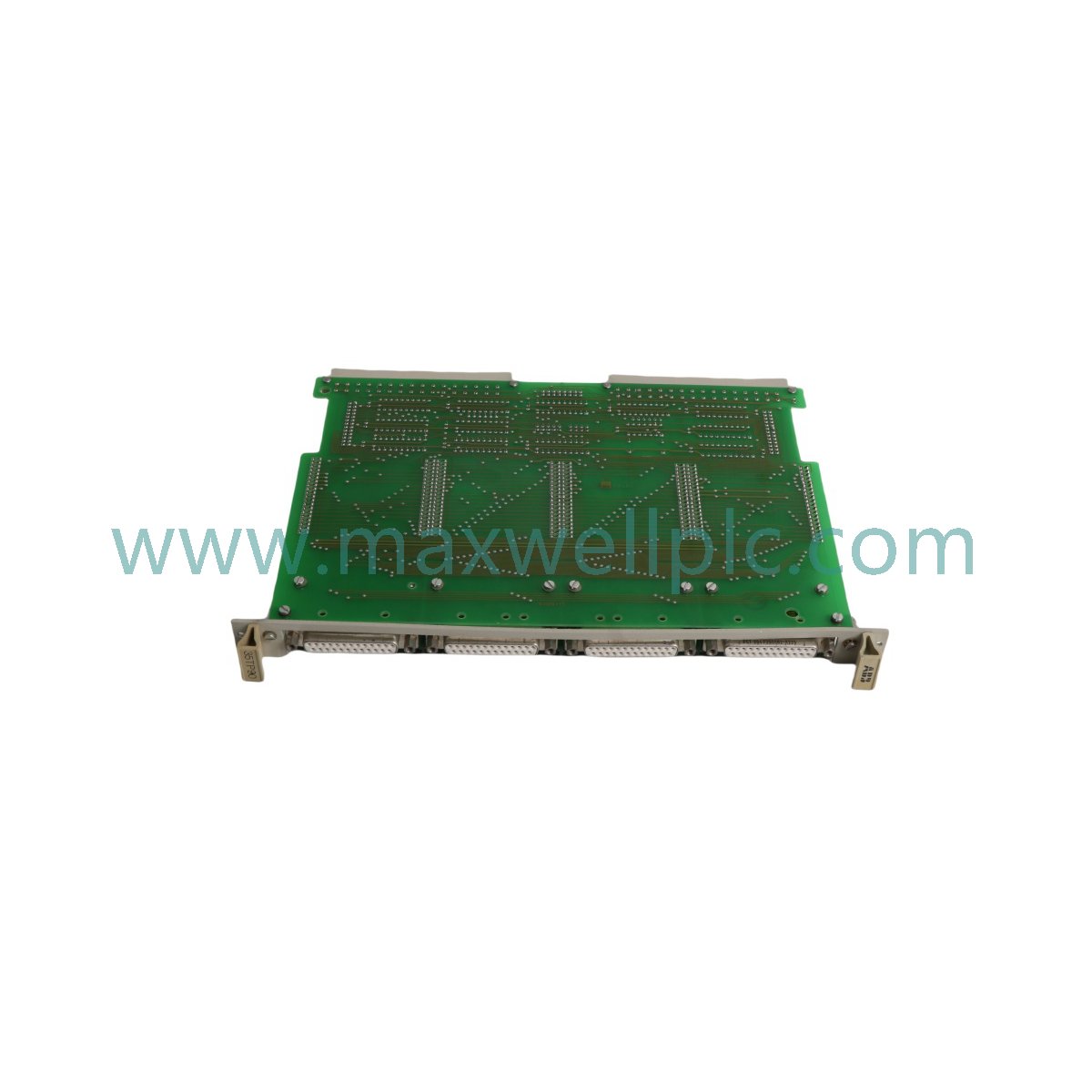

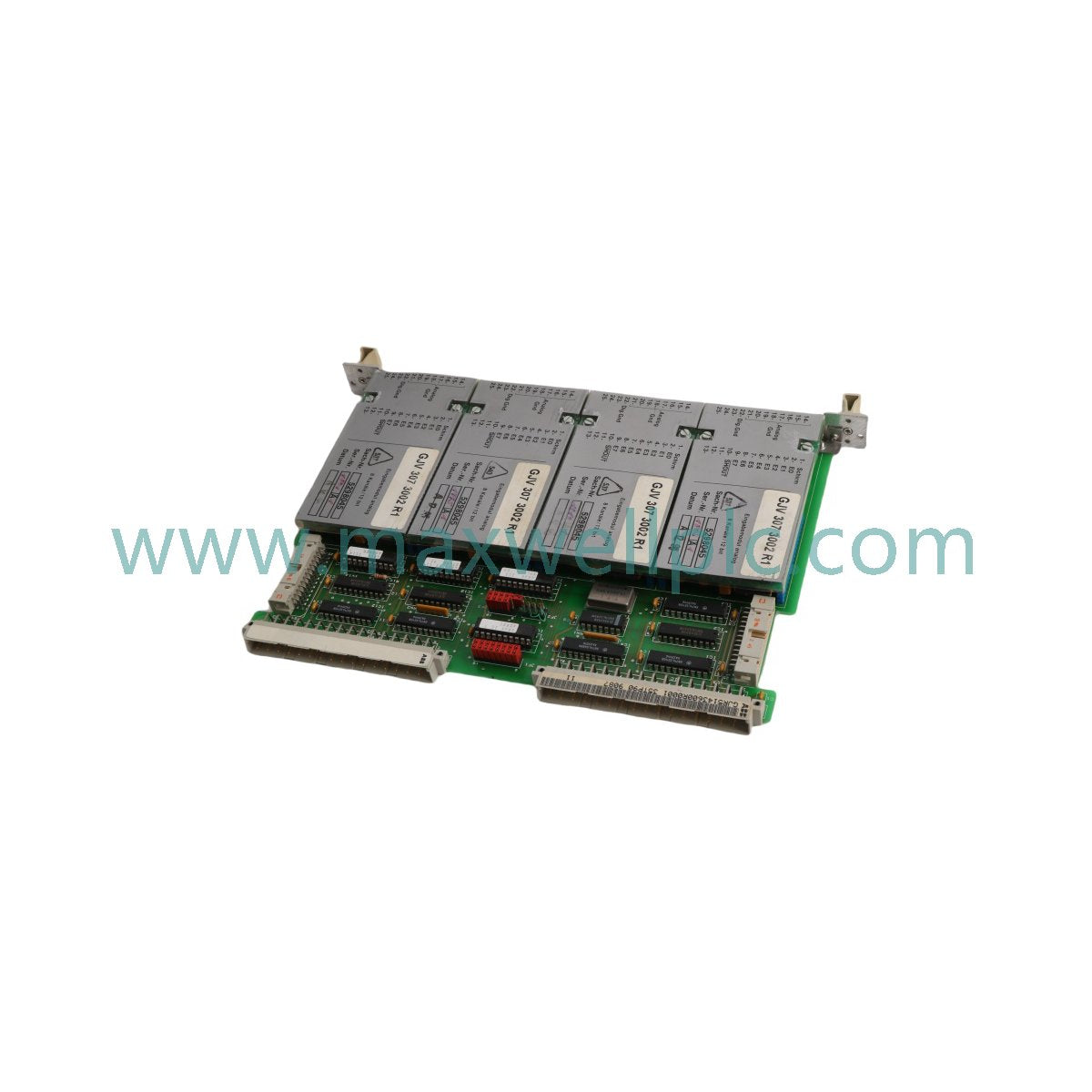

The ABB GJR5143600R0001, also cataloged as the 35TP90 Carrier Module, operates as a dedicated hardware component for signal distribution and modular interconnectivity within Procontic T300 DCS platforms.

Model Identification

• Model: 35TP90

• Part Number: GJR5143600R0001

• Product Type: Carrier Module

• Series: Procontic T300

Hardware Specifications

Industrial Control & Processing

The 35TP90 carrier board supports deterministic backplane bus communication velocity, ensuring synchronized data exchange across the Procontic T300 architecture. The module design allows for effective I/O density scaling, providing the necessary signal pathways for high-speed sensor and actuator integration. Firmware flash compatibility is supported, enabling system-level updates for communication protocols or diagnostic logic. The carrier layout is optimized to mitigate electromagnetic interference, maintaining signal integrity in dense control cabinet environments.

Ordering Info

• One (1) 35TP90 Carrier Module.

• Interface hardware for Procontic T300 mounting.

• Documentation regarding backplane interconnection.

Field Installation Guidelines

• Module Seating: Align the carrier module with the rack backplane guides and press firmly to ensure all connector pins are properly seated.

• Bus Termination: Confirm that the backplane bus termination is correctly configured if the carrier module is placed at the end of a communication segment.

• Shielding: Ensure the carrier chassis is grounded to the control cabinet earth terminal to provide a reference for signal shielding.

• Cable Management: Secure all signal cabling using cable trays to prevent mechanical strain on the module connectors.

Frequently Asked Questions

• Is the 35TP90 hot-swappable? Module replacement requires specific DCS rack status; consult the system manual for hot-swap feasibility under current operational conditions.

• How are faults reported? The carrier module forwards signal status to the central processor; consult the system diagnostic log via the engineering station for fault identification.

• Does the board require external power? The carrier board typically draws logic power from the backplane; verify power supply capacity before adding additional modules.

• Can it be used in redundant systems? Compatibility with redundant rack configurations depends on the specific Procontic T300 controller revision.

• What maintenance is recommended? Periodically inspect the backplane connectors for oxidation and ensure the board remains free of dust to maintain cooling efficiency.

• Is it sensitive to ESD? Yes, treat the carrier board as an ESD-sensitive device; use a grounded wrist strap during installation or handling.

• Can it support mixed I/O types? The carrier provides the signal pathways; ensure the mounted modules are compatible with the bus signaling standards.

• Is the board field-repairable? No, the module is a sealed assembly; damage to components or traces necessitates replacement of the entire unit.
