Product Overview

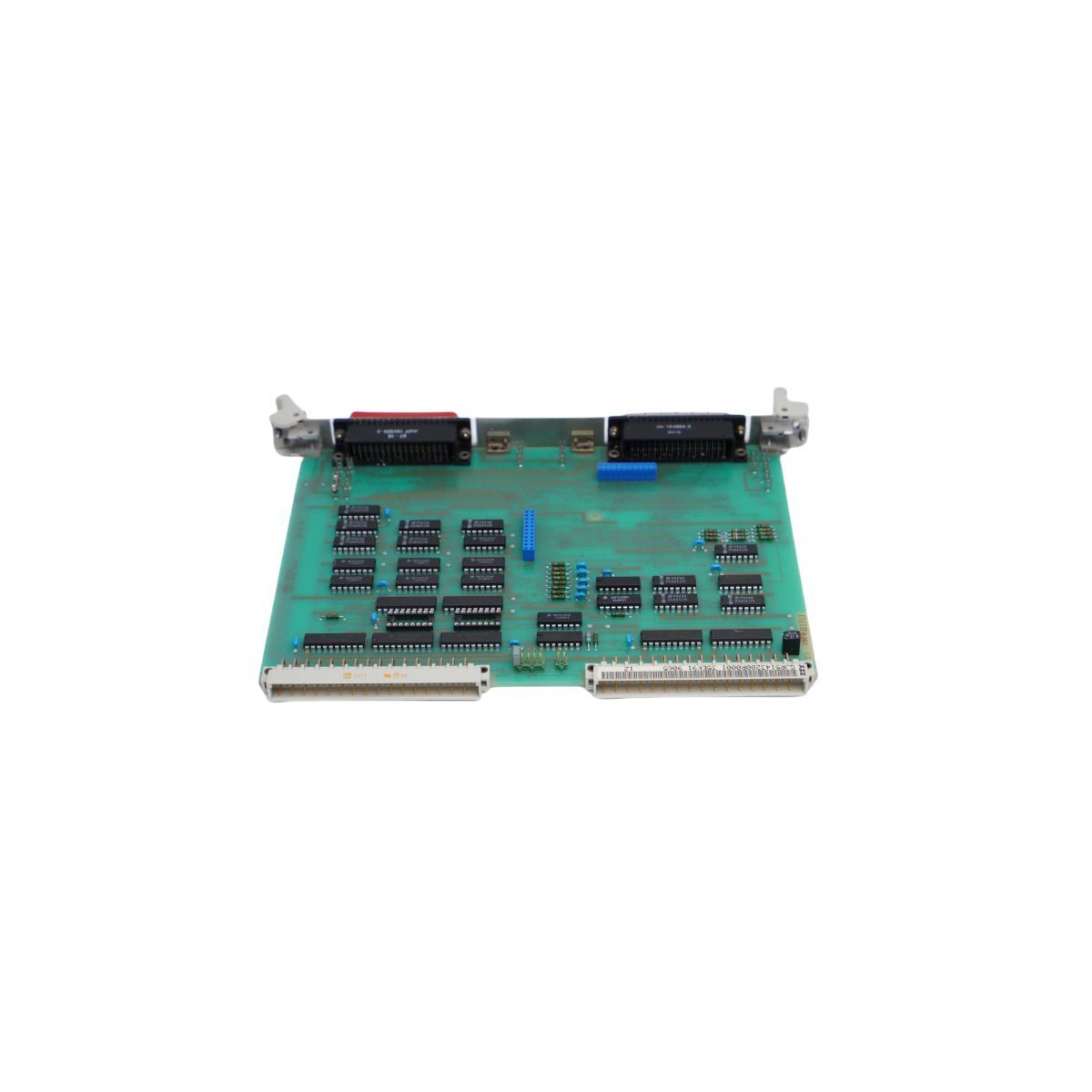

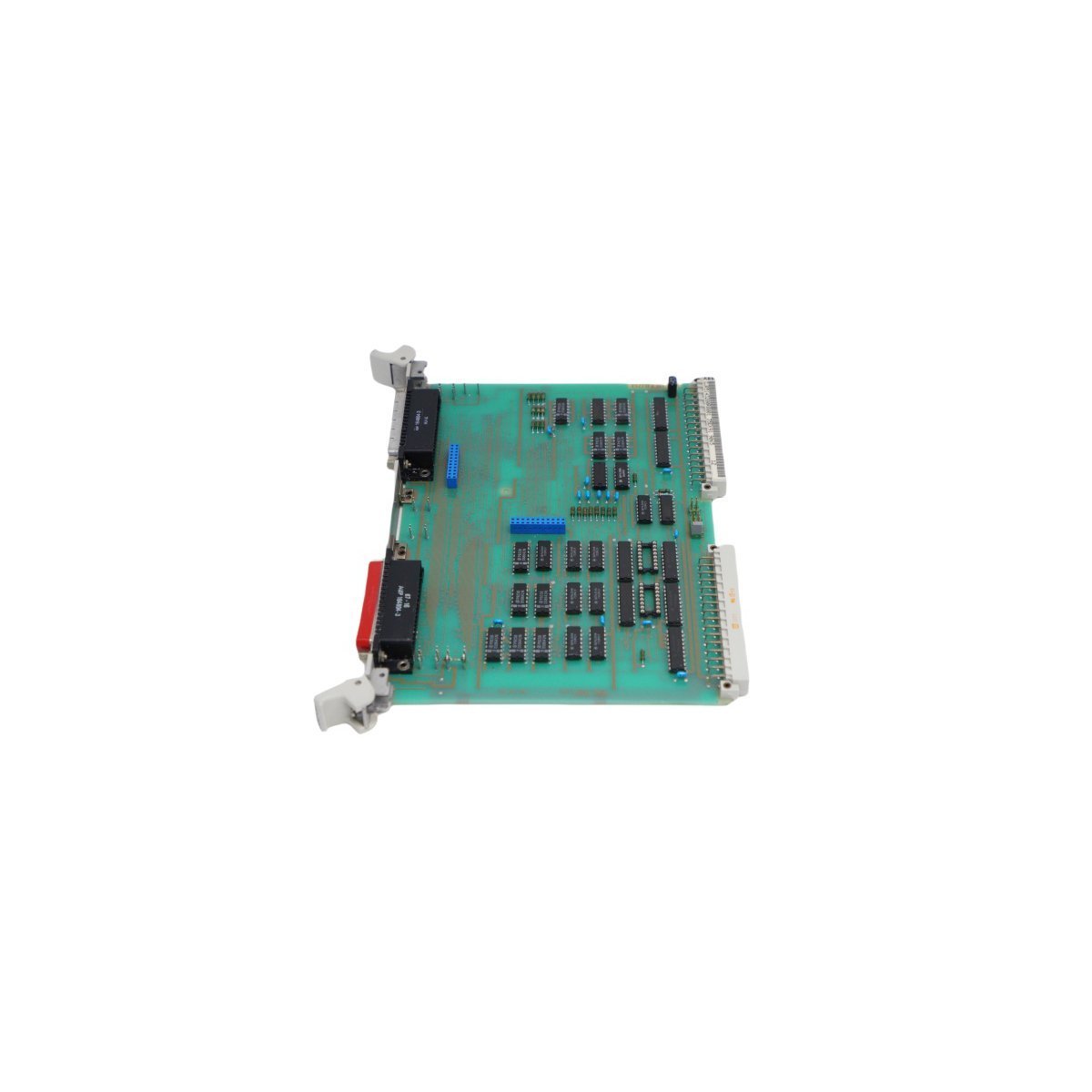

The ABB 35EK91, identified by part number GJR5143200R0001, is a high-performance bus coupler unit engineered for the Procontic T300 series and related Distributed Control Systems (DCS). This module serves as a critical communication bridge, enabling the deterministic exchange of data between local I/O stations and higher-level control networks. Designed to facilitate seamless interoperability, the 35EK91 ensures that decentralized peripherals can communicate with central processing units with minimal latency and high signal integrity.

The unit is optimized for modern industrial requirements, offering a versatile interface that supports both Ethernet and RS-485 physical layers. This dual-connectivity approach allows for flexible integration into both legacy serial environments and contemporary high-speed Ethernet infrastructures. Its architecture is specifically tuned to maximize network responsiveness, providing the rapid processing speeds necessary for complex manufacturing and process automation tasks.

Network Scalability and Environmental Resilience

The GJR5143200R0001 is designed with scalability as a priority, supporting up to 32 nodes on a single network segment. This capability allows industrial facility managers to expand their automation footprint without necessitating a complete overhaul of the existing communication backbone. Furthermore, the 35EK91 incorporates advanced power management circuitry that maintains low energy consumption while delivering a robust data throughput rate.

Built to withstand the rigors of heavy industrial deployment, this Swedish-made module features a wide operating temperature range and high resistance to electromagnetic interference. Its slim, compact form factor (26.1 cm in height) is designed for efficient rail mounting in crowded control cabinets, ensuring optimal use of workspace without sacrificing technical performance. The durable construction reflects ABB’s commitment to long-term reliability in mission-critical applications.

Technical Specifications

• Model Number: 35EK91

• Order Number: GJR5143200R0001

• Module Type: Bus Coupler / Communication Unit

• Product Series: Procontic T300 / DCS

• Network Nodes: Supports up to 32 nodes

• Communication Interfaces: Ethernet and RS-485

• Protocol Support: Optimized for Profinet and Modbus

• Physical Weight: 0.28 kg

• Dimensions: 2.0 x 19.5 x 26.1 cm

• Operating Origin: Sweden

• HS Code: 8537101190

• Mounting Configuration: Rack or Rail integrated

Core Industrial Applications

• Distributed Automation: Linking remote I/O racks to a central Procontic T300 controller.

• Network Bridging: Facilitating data conversion between Ethernet-based supervisory systems and RS-485 field segments.

• Process Scaling: Expanding existing DCS networks in manufacturing plants, energy facilities, and water treatment centers.

• OEM System Integration: Providing a reliable communication gateway for localized machine control within a larger plant network.
