Product Overview

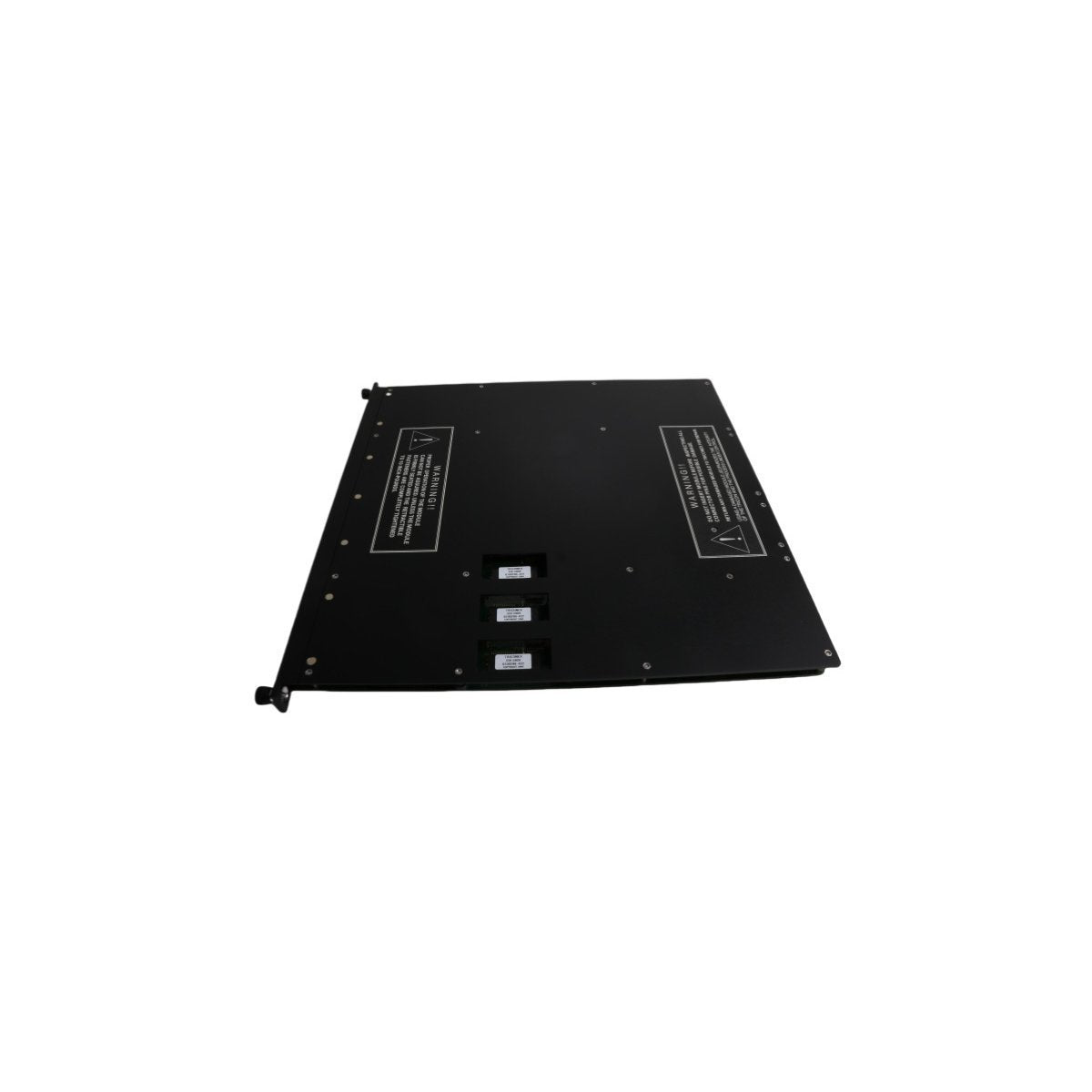

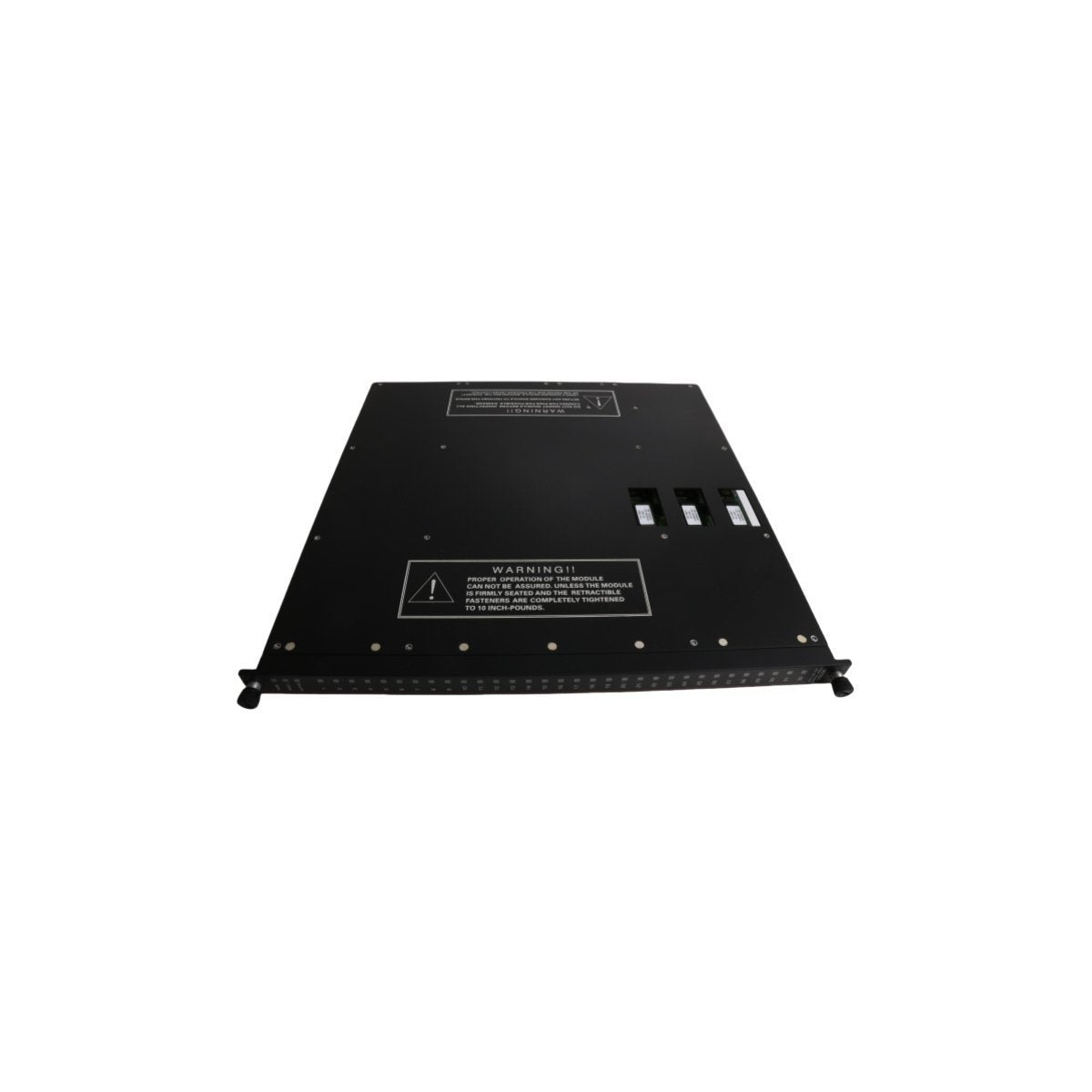

The 3503E is a high-density Digital Input (DI) card designed for the Triconex Triple Modular Redundancy (TMR) architecture. This module provides 32 isolated input points, serving as the sensory interface for the Tricon controller by monitoring discrete signals from field devices such as limit switches, pushbuttons, and relay contacts. By utilizing a TMR voting mechanism, the 3503E ensures that a single point of failure within the module does not compromise the safety integrity of the system. This level of fault tolerance makes it an essential component for safety-critical applications requiring SIL 3 certification.

Distinctive Hardware Specifications and Metrics

The 3503E module is engineered for high-availability performance within the Tricon platform, featuring specialized circuitry for continuous self-diagnostics.

• Input Channels: 32 points, Triple Modular Redundant (TMR)

• Voltage Rating: 24 VDC nominal

• Operating Range: 20 to 36 VDC

• Input Delay: 4 ms (typical) for ON/OFF transitions

• Point Isolation: 1,500 VDC (chassis to points)

• Diagnostic Coverage: Comprehensive self-testing for stuck-at conditions and internal circuit health

Critical Industrial Implementations

The 3503E is deployed in environments where process interruption or safety failures carry significant risk.

Emergency Shutdown (ESD) SystemsThe module monitors critical field sensors to trigger immediate shutdown sequences in oil and gas production facilities when parameters exceed safe operating limits.

Fire and Gas (F&G) DetectionIn chemical processing plants, the 3503E processes signals from flame and smoke detectors, ensuring that safety alarms and suppression systems activate with TMR-validated precision.

Boiler Management Systems (BMS)The unit tracks burner status and fuel valve positions in high-pressure power generation environments, preventing hazardous accumulations by ensuring all interlocks are satisfied.

Turbine ProtectionProviding high-speed digital feedback to control processors, the module helps manage overspeed protection and auxiliary system monitoring for large-scale rotating equipment.
