Product Overview

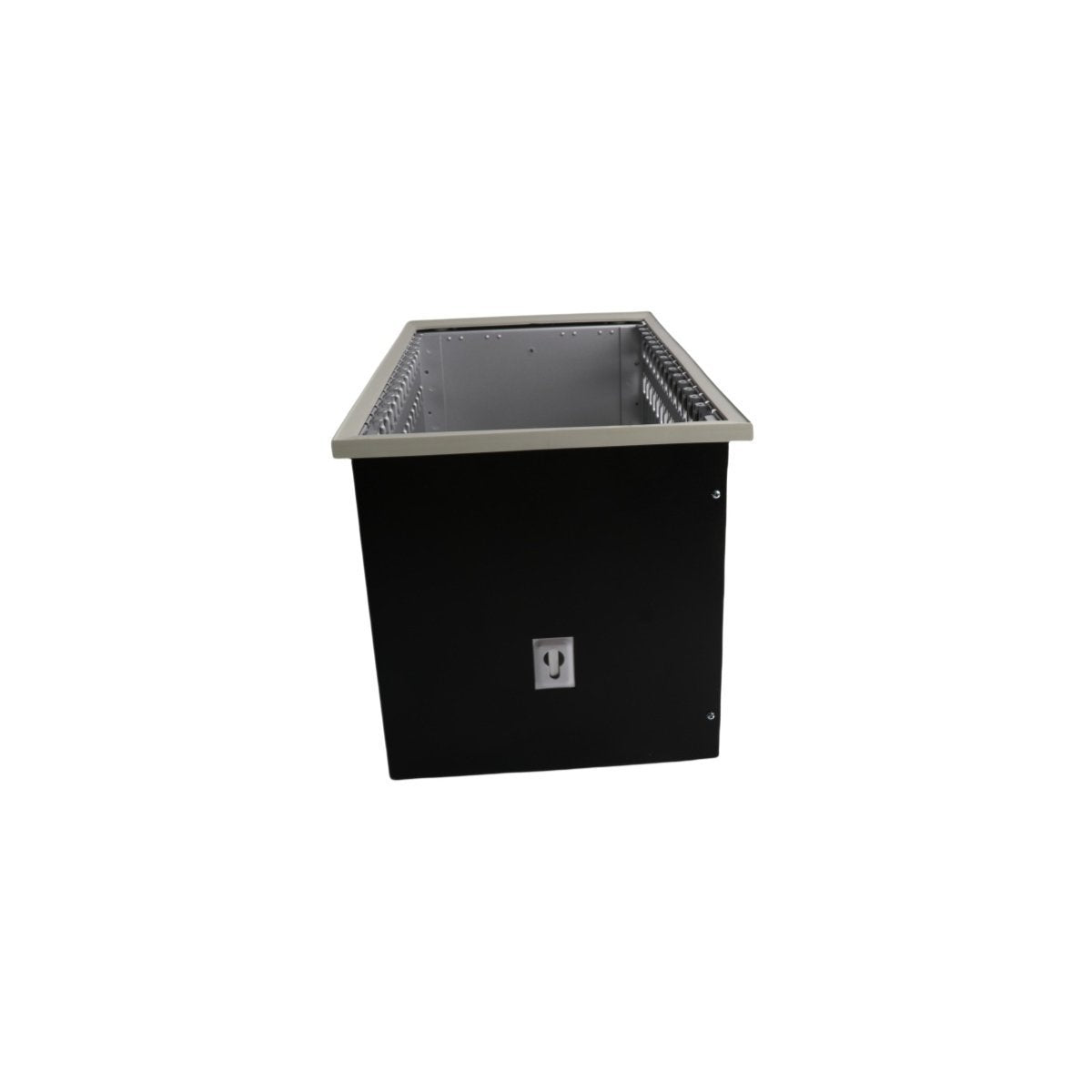

The 3500/05-02-04-01-00-00 serves as the central structural integrity component for the Bently Nevada 3500 Series Machinery Protection System. This full-size rack provides the physical housing and electrical backplane necessary for various monitoring modules to communicate and operate in a unified environment. Engineered for high-reliability industrial applications, this chassis facilitates the distribution of power and the routing of signals between monitoring cards, power supplies, and the Rack Interface Module (RIM). Its modular architecture ensures that complex machinery protection strings can be consolidated into a single, organized, and robust hardware framework.

Mechanical Framework and Technical Specifications

• Slot Capacity: 14 universal module slots plus dedicated positions for power supplies and the Rack Interface Module.

• Chassis Type: 19-inch EIA standard full-size rack.

• Mounting Configuration: 01-02 designator specifies Rack Mount with Internal Terminations.

• Physical Dimensions: 48.26 cm Width x 26.59 cm Height x 34.92 cm Depth (19.0" x 10.47" x 13.75").

• System Weight: Approximately 4.5 kg (9.9 lbs) when unpopulated.

• Compliance: CE Certified for European markets.

• Wiring Architecture: Internal termination support for streamlined cable management within the enclosure.

• Power Distribution: Integrated high-speed backplane for inter-module data exchange and power delivery.

Industrial Deployment Scenarios

This system rack is the industry standard for securing high-value rotating assets in power generation, oil and gas, and petrochemical facilities. It is primarily utilized to house vibration, position, and speed monitoring modules for steam turbines, gas turbines, and large centrifugal compressors. By utilizing the 14-slot capacity, plant engineers can deploy comprehensive protection suites that include redundant power supplies and specialized transient data interfaces. The rack's design allows for hot-swapping modules, making it ideal for continuous process environments where system uptime is critical for safety and production.

FAQ

Q: Does the 3500/05-02-04-01-00-00 include the internal power supply units?

A: No, the 3500/05 is the bare chassis and backplane. Power supply modules and monitoring cards must be ordered separately based on your specific system requirements.

Q: Can I install this rack into a standard IT server cabinet?

A: Yes, as long as the cabinet follows the 19-inch EIA rail standard and has sufficient depth to accommodate the 34.92 cm chassis and rear-facing I/O modules.

Q: Where should the Power Supply and Rack Interface Module be placed?

A: To ensure proper system initialization and power distribution, these modules must always occupy the far-left positions in the rack.

Q: What is the benefit of the Internal Termination (02) option?

A: Internal termination allows for a cleaner installation within a cabinet where field wiring is connected directly to the I/O modules at the rear of the rack, eliminating the need for external terminal blocks.

Q: Is this rack suitable for hazardous area installations?

A: While the 3500 system is designed for industrial use, you must verify the specific agency approvals for the modules you intend to install within this chassis to meet local site requirements.
