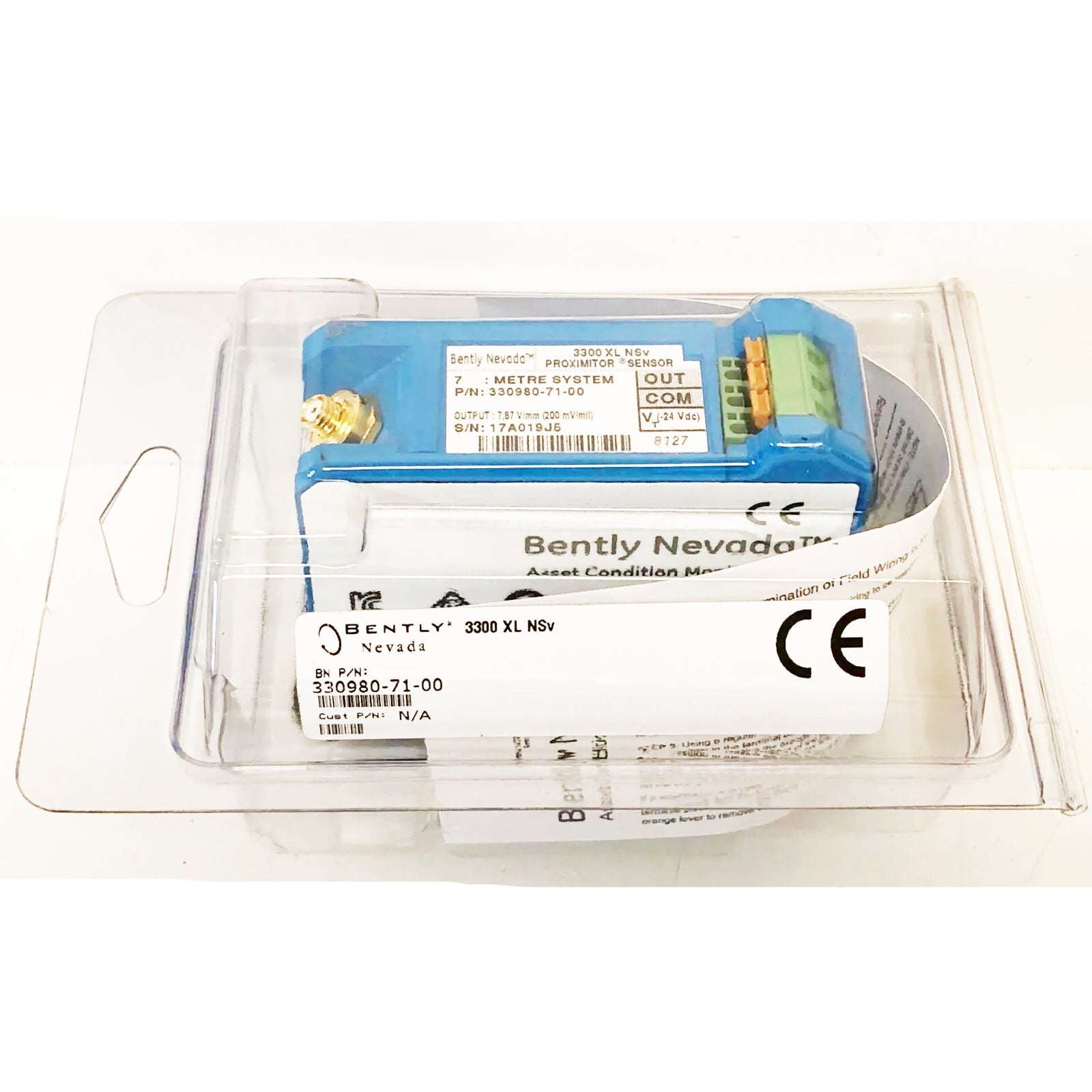

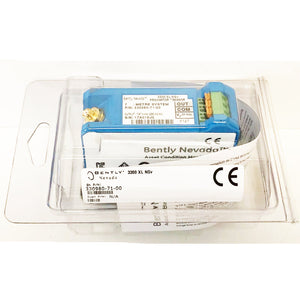

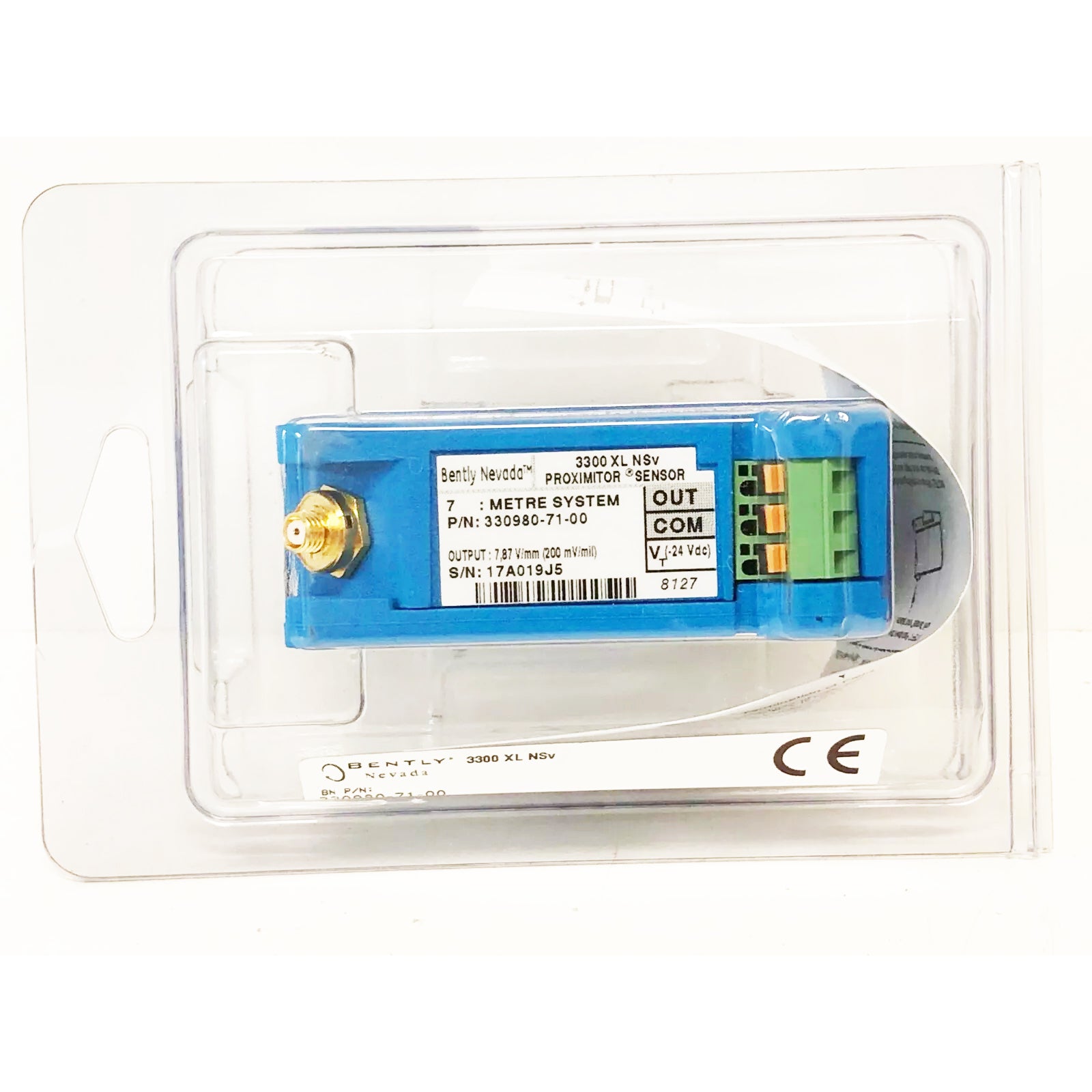

The Bently Nevada 330980-71-00, also cataloged as the 330980 Proximitor Sensor, operates as a dedicated hardware component for processing proximity transducer signals within Turbine Supervisory Instrumentation (TSI) networks. The device supplies RF excitation to an associated eddy-current probe loop and conditions the modulated return signal into a linear analog output proportional to mechanical shaft alignment.

Suffix Nomenclature Allocation

• Base Model (330980): 3300 XL NSv Proximitor Sensor.

• System Length Option (71): 7.0 meters (23.0 feet) system length, DIN rail mount configuration.

• Agency Approval Option (00): Not required.

Hardware Parameter Matrix

Eddy-Current Signal Scaling and Cross-Talk Suppression

The 3300 XL NSv Proximitor Sensor utilizes optimized eddy-current probe scaling specifically tuned to track tight target geometries and small-diameter rotor dynamics components. To ensure reliable data acquisition, field engineers must execute gap voltage validation, targeting a -10 VDC center-line output under stationary nominal shaft positions. The tight electrical tolerances managed within the internal oscillator loop maintain high cross-talk suppression, preventing inductive interference when multiple sensors monitor adjacent physical tracks on high-speed machine shafts.

Technical Engineering FAQ

Q: What happens to the Proximitor loop if a 5.0 meter cable combination is connected instead of the specified 7.0 meter assembly?

A: Connecting a 5.0 meter physical probe/cable assembly to this 7.0 meter calibrated sensor alters the total loop inductance and capacitance. This electrical mismatch de-calibrates the eddy-current probe scaling, causing severe measurement linearity drift and inaccurate gap output values.

Q: Can the signal wire terminal blocks be disconnected while the main monitor rack is energized?

A: Detaching the terminal block under power will not damage the solid-state circuitry inside the aluminum case. However, it completely breaks the current loop, causing the continuous machine monitoring monitor to record a transducer fault (NOT OK state) and bypassing active machinery protection logic on that channel.

Q: What is the technical purpose of the gold-plated brass material on the coaxial connectors?

A: Gold-plated brass minimizes contact resistance and prevents oxidation layer formation under high-temperature industrial conditions. This structural metallurgy maintains low signal attenuation across the high-frequency RF interface linking the extension cable to the internal sensor oscillator.

Field Layout and Grounding Directives

• DIN Rail Installation: Securely snap the hardware housing onto standard 35 mm DIN rails inside an environmentally sealed terminal enclosure to block external dirt and water ingress.

• Grounding Isolation: Ensure the Proximitor casing is grounded through its mounting base, while the coaxial ClickLoc outer rings are fully isolated. Use the factory terminal strip for dedicated signal shields, grounding exclusively at the control room monitor rack to eliminate parallel ground loop currents.

• Mechanical Clearance: Allow a minimum clearance of 50.8 mm (2.0 inches) of open space around the aluminum housing to avoid inductive coupling with adjacent ferrous materials which might distort the inner RF driver.

• Terminal Torquing: Tighten the terminal block screws to a maximum value of 0.56 N-m (5 in-lb) to maintain solid wiring contact without fracturing the internal circuit trace joints.

Structural Kit Components

• Standard Inclusions: One 330980-71-00 sensor unit with integrated DIN mounting base and factory-installed gold-plated brass coaxial connector ports.

• Required Peripherals: External NSv proximity probes, matched extension cables, and field wiring cables must be ordered as separate individual components.

Procurement Dispatch Specifications

• Fulfillment Lead Time: Delivery time: 2-7 days when payment finish, shipping globally via DHL, FEDEX, or UPS.

• Industrial Boxing: Delivered enclosed in specialized anti-static industrial packaging featuring custom die-cut protective padding to defend the A380 aluminum housing and gold-plated terminals from physical shock and static discharge.
