Product Overview

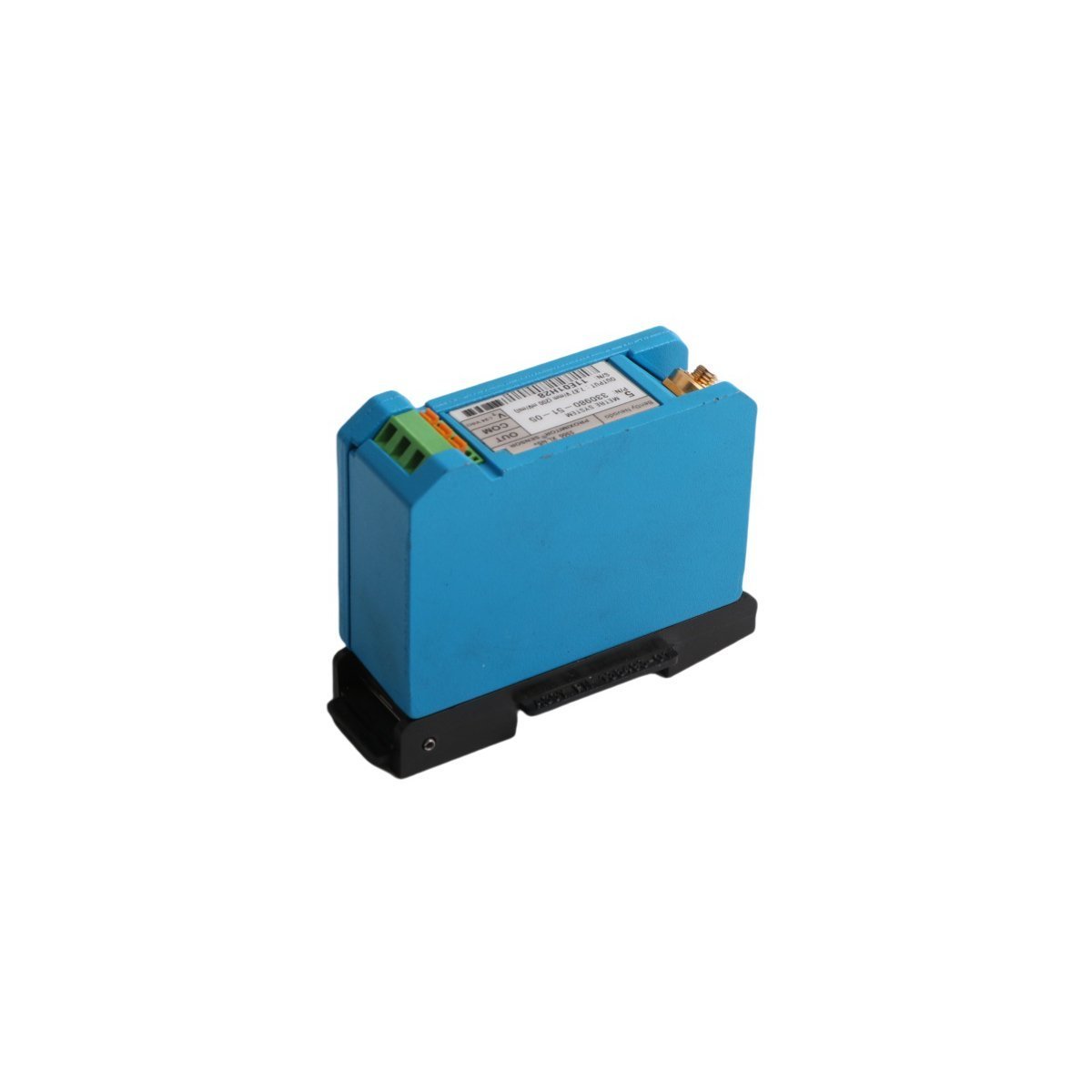

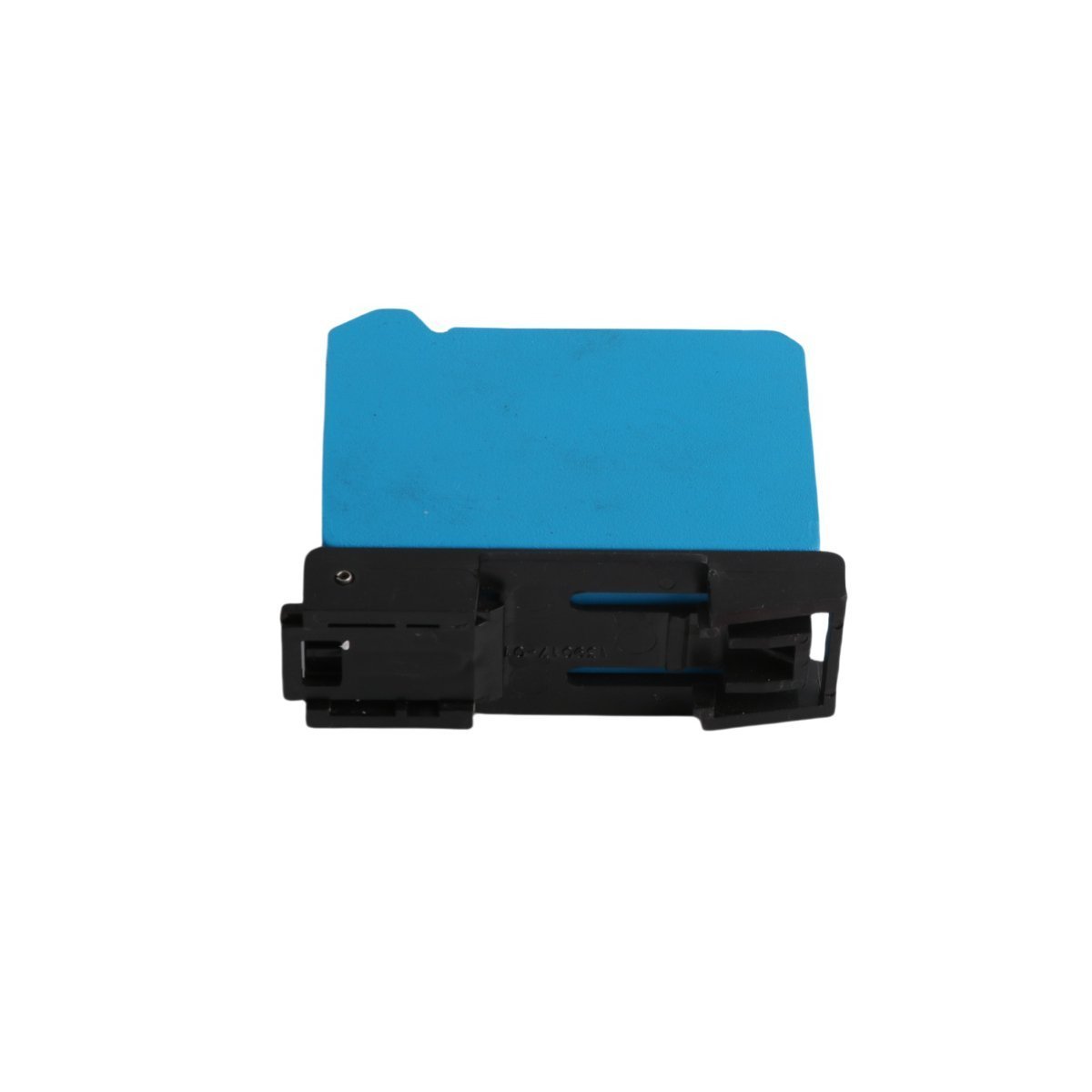

The 330980-51-05 is a high-precision 3300 NSv Proximitor Sensor, a critical signal-conditioning component of the Bently Nevada 3300 Narrow Side View (NSv) Transducer System. This device is specifically engineered for industrial machinery where standard proximity probes cannot be installed due to extreme spatial constraints, such as small shaft diameters or tight counterbore clearances. By generating a Radio Frequency (RF) signal to the probe and processing the returned impedance, the Proximitor provides a linear voltage output proportional to the distance between the probe tip and the observed target. This makes it an essential tool for monitoring radial vibration and axial position in high-speed centrifugal compressors and compact refrigeration units.

Technical Performance and Calibration

Designed for accuracy in complex environments, the 330980-51-05 features the following technical specifications:

• System Length: Configured for a 5.0-meter total system length (51 option), ensuring calibrated precision when paired with compatible 5m probes and extension cables.

• Scale Factor: Delivers a standard Average Scale Factor (ASF) of 7.87 V/mm (200 mV/mil), providing high-resolution sensitivity for early fault detection.

• Linear Range: Offers a 1.5 mm (60 mil) linear operating range, exceeding the capabilities of many legacy 3000-series systems.

• Output Signal: Provides a -4 to -20 V DC proportional output, seamlessly integrating with Bently Nevada 3500 Monitoring Systems or generic PLCs.

• Hazardous Area Approvals: The -05 suffix indicates multi-agency certifications including ATEX, IECEx, and CSA, permitting installation in explosive atmospheres.

Advanced Engineering and Integration

The 3300 NSv system is engineered to solve specific machinery monitoring challenges:

• Restricted Space Optimization: The sensor is uniquely tuned to ignore "side-view" magnetic interference, allowing for accurate measurements on shafts smaller than 51 mm (2 inches) or targets smaller than 15 mm (0.6 inches).

• Enhanced RFI/EMI Immunity: Built with advanced shielding to meet European CE standards, the Proximitor maintains signal integrity without the need for specialized shielded conduit, even in electrically noisy plant environments.

• Mounting Versatility: The slim-profile housing supports high-density installation in compact control cabinets via standard DIN rail or bulkhead mounting plates.

• Secure Field Wiring: Equipped with SpringLoc terminal strips, the unit ensures vibration-resistant electrical connections and simplifies installation through tool-free wiring.

Industrial Applications

As a core element of Turbine Supervisory Instrumentation (TSI), the 330980-51-05 is critical for:

• Rotating Asset Health: Real-time monitoring of radial shaft motion in fluid-film bearings to detect rotor imbalance or misalignment.

• Axial Position Monitoring: Tracking thrust position to prevent catastrophic contact between rotating and stationary machine parts.

• Phase Reference Signals: Generating clean Keyphasor pulses for advanced machinery diagnostics and speed measurements.

• System Upgrades: Serving as a modern, high-performance replacement for older 3300 RAM, 3000-series, and 7000-series transducer systems.
