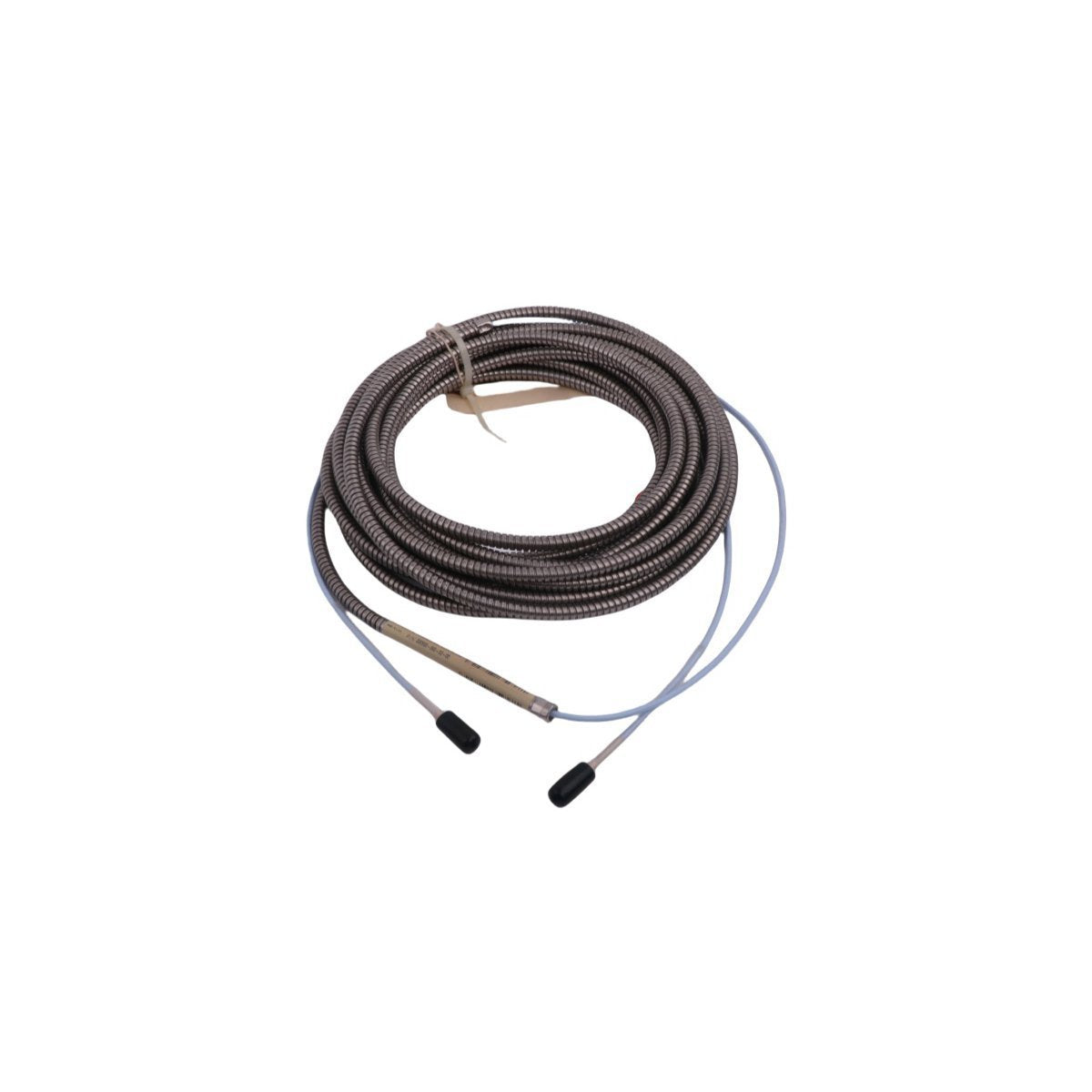

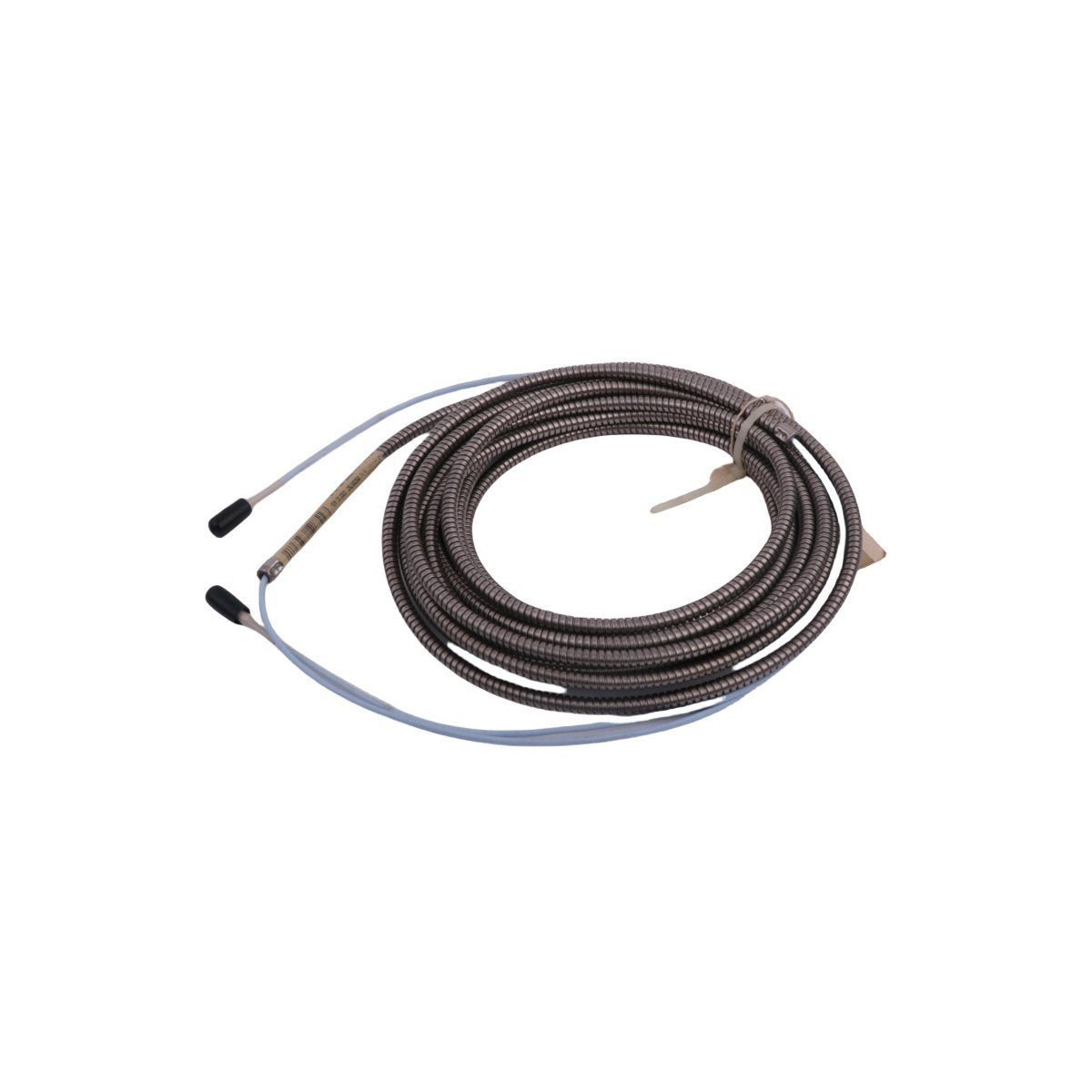

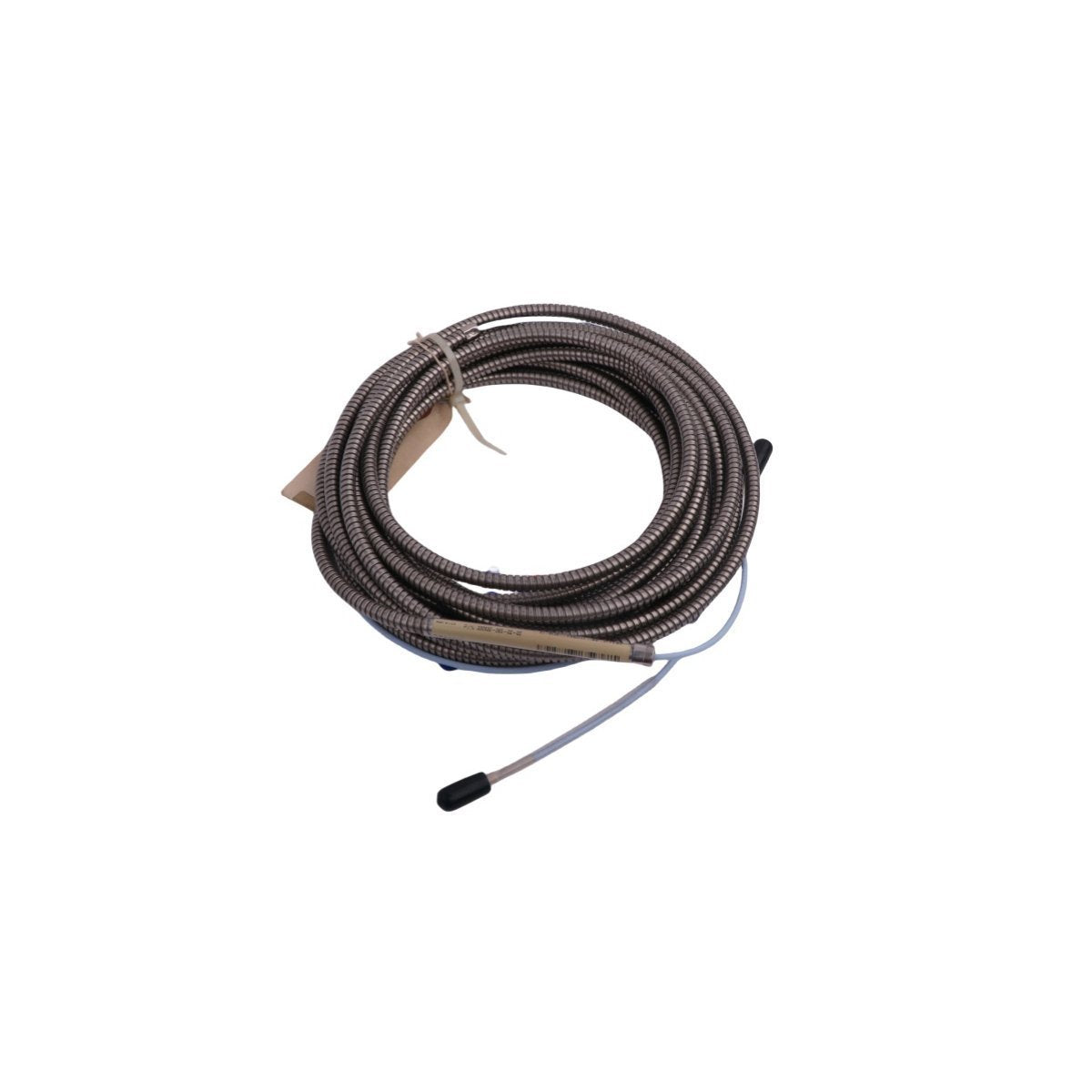

The Bently Nevada 330930-065-02-00, also cataloged as the 330930-065-02-00 Extension Cable, operates as a dedicated hardware component for signal transmission between 3300 NSv proximity probes and Proximitor sensors within vibration monitoring platforms.

Model Identification and Suffix Configuration

The 330930 extension cable series is defined by specific physical and electrical configuration parameters to ensure signal integrity across the transducer loop. The -065 suffix denotes a total system length of 6.5 meters, while the -02 designation specifies the standard connector interface with protective jacket requirements for the 3300 NSv (Near-field) system.

Electrical and Physical Parameters

Proximity Transducer Signal Integrity

The 3300 NSv system requires strict adherence to coaxial impedance matching. The extension cable facilitates the transfer of the RF signal from the Proximitor sensor to the probe tip without significant attenuation or capacitive loading. Variations in cable length directly impact the Proximitor’s output scaling; therefore, the total system length must be matched to the calibration of the Proximitor sensor. Proper installation includes monitoring the DC gap voltage, which should ideally reside within the -10 VDC range for linear shaft displacement measurements. To prevent signal noise, the cable run must be shielded and routed away from high-current AC paths.

Package Contents

• 330930-065-02-00 Extension Cable assembly

• Protective connector caps (pre-installed)

• Technical identification tag

• Note: No additional signal conditioning modules are included in this package

Field Installation Protocols

• Ensure the minimum bend radius is maintained at 25 mm to prevent coaxial dielectric deformation.

• Verify connector cleanliness using an isopropyl alcohol wipe before mating with the probe or Proximitor interface.

• Use a torque wrench calibrated to 0.56 Nm for connector coupling to avoid terminal damage.

• Secure the cable run using stainless steel cable ties spaced at 30 cm intervals to mitigate mechanical fatigue from machine vibration.

• Route cables through grounded metallic conduit where environmental exposure to oil or chemical debris is present.

Logistical Handling

• Delivery time: 3-5 days when payment finish.

• Distribution via DHL/FEDEX/UPS.

• Components are sealed in anti-static industrial packaging to prevent ESD events and mechanical abrasion during transit.

Frequently Asked Questions

• What causes unstable gap voltage?

  Unstable gap voltage is often caused by intermittent connections at the coaxial terminals, damage to the cable shielding, or external electromagnetic interference (EMI) coupling into the signal path.

• How is probe health tested?

  Probe health is verified by measuring the DC gap voltage at the Proximitor output and performing an insulation resistance test between the center conductor and the shield.

• Can the cable operate in hazardous environments?

  The cable is rated for high temperatures, but compliance with site-specific Intrinsic Safety (Ex i) standards depends on the Proximitor barrier configuration.

• What extension cables are compatible?

  Only 3300 NSv series extension cables matching the system calibration length are compatible; mixing legacy 3300 XL cables will result in measurement errors.

• What is the expected service life?

  Service life is dependent on mechanical vibration amplitude and temperature cycling; regular inspection for insulation brittleness is recommended after 5 years of operation.
