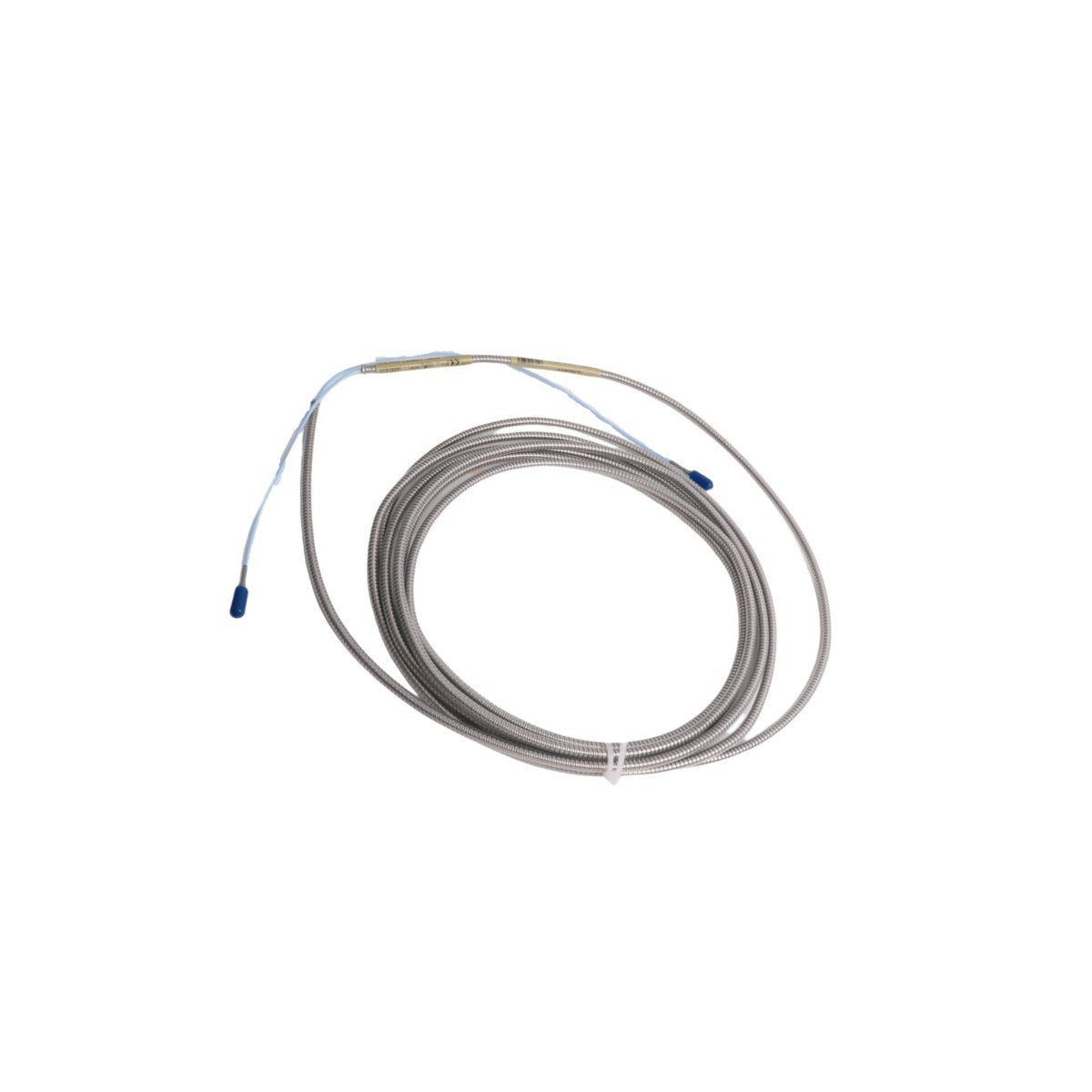

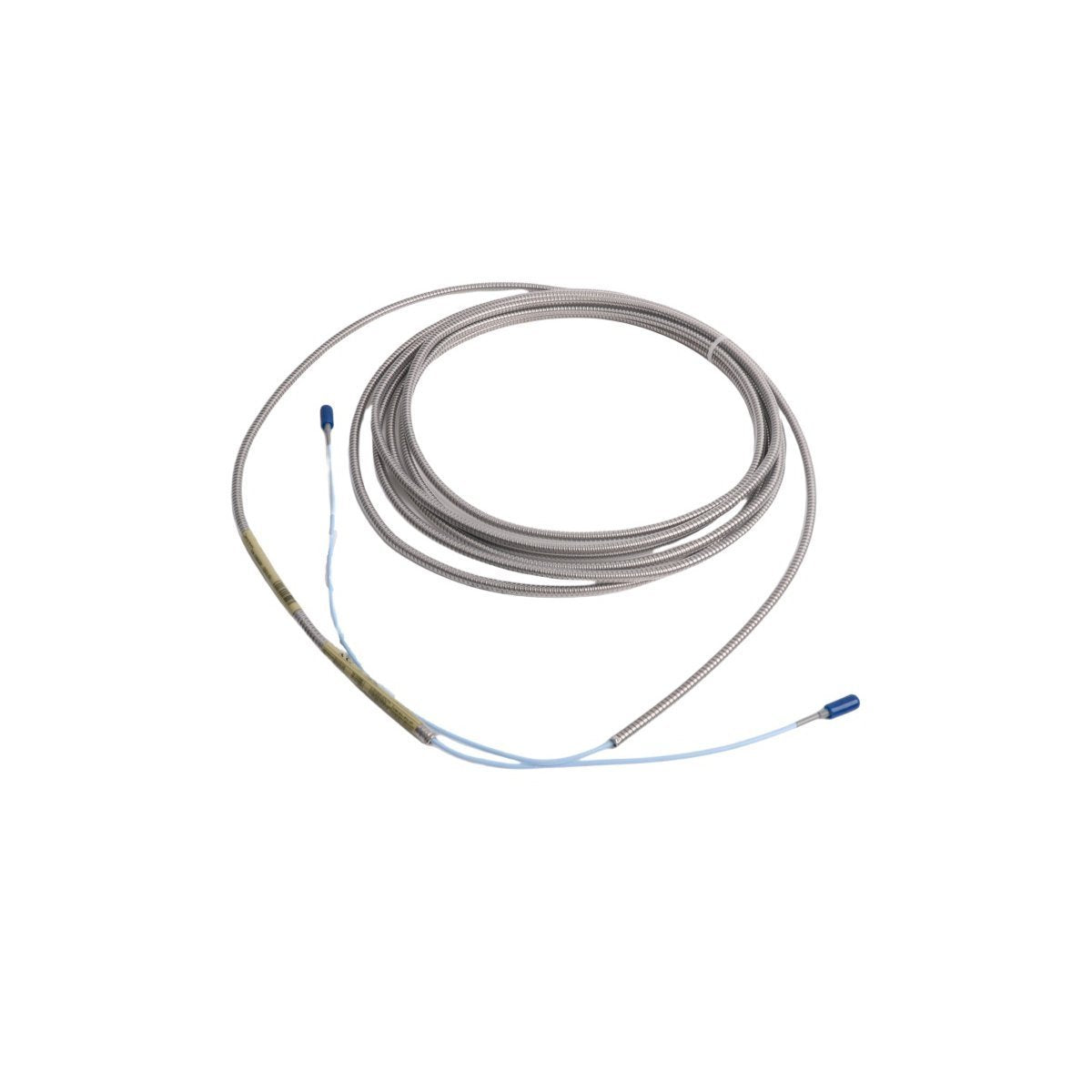

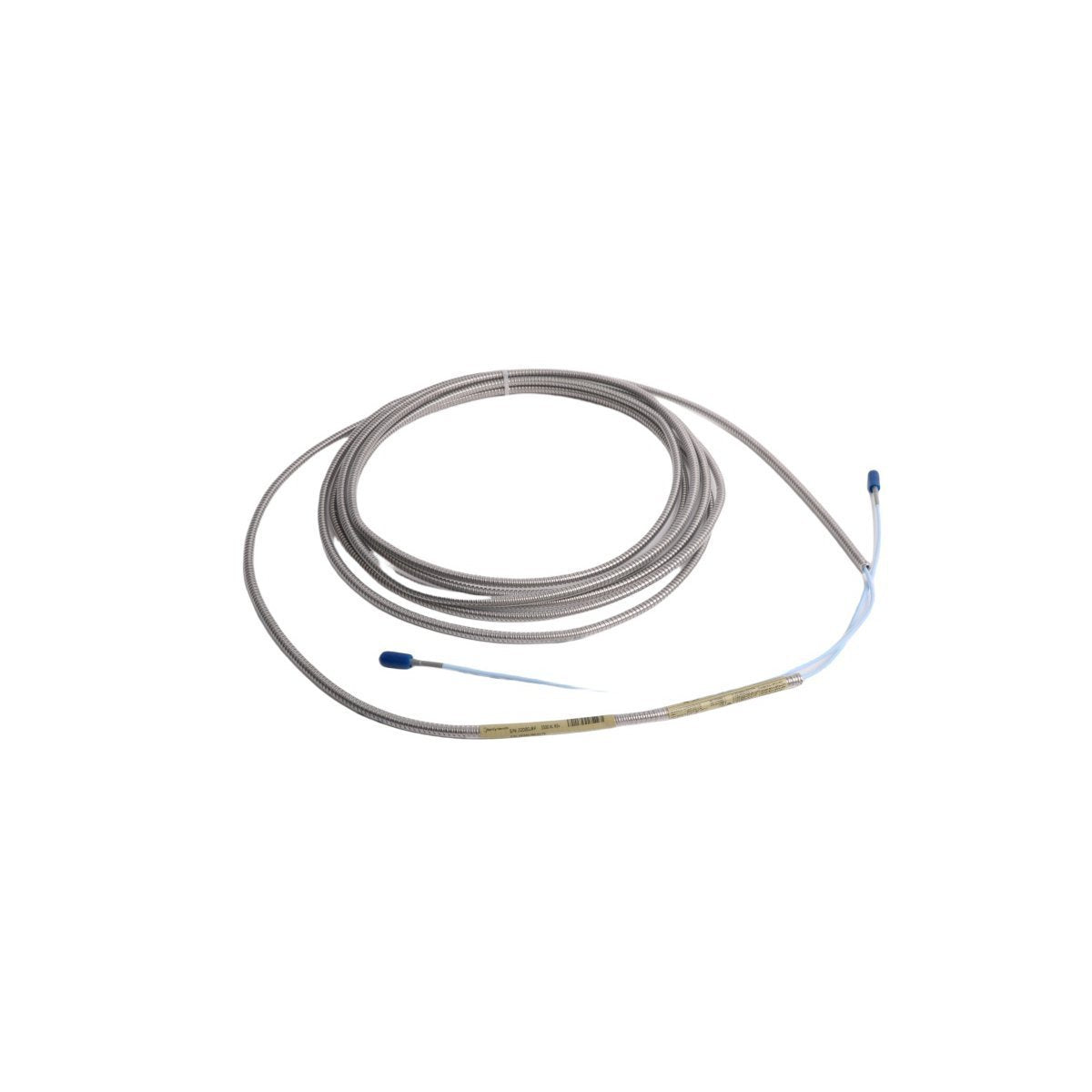

The Bently Nevada 330930-060-01-00, also cataloged as the 330930-060-01-00 Extension Cable, operates as a dedicated hardware component for signal transmission between proximity probes and oscillators within 3300 NSv transducer systems.

Model Configuration Matrix

• Model: 330930-060-01-00

• Series: 3300 NSv

• Configuration: Suffixes define total cable length, armor protection, and connector termination requirements.

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 NSv system requires precise eddy-current probe scaling to convert high-frequency displacement signals into linearized voltage outputs. This extension cable maintains the characteristic impedance necessary for radio-frequency transmission between the probe and the oscillator. During installation, gap voltage validation against -10 VDC targets at the oscillator output ensures the probe system remains within its defined linear range. Cross-talk suppression is supported by the cable's shielding properties, which protect the low-level signal from electromagnetic interference, thereby maintaining the integrity of rotor dynamics data in high-density sensor arrays.

Ordering Info

• One (1) 330930-060-01-00 Extension Cable

• Connector protector cap

• Installation documentation

Field Installation Guidelines

• Cable Routing: Install the cable through grounded metallic conduit to prevent signal noise; avoid tight bends that exceed the manufacturer's specified minimum bend radius.

• Connector Integrity: Verify that coaxial connectors are hand-tightened and free of contaminants to maintain low-impedance electrical contact.

• Shielding: Ensure the cable shield is continuous and bonded at the appropriate ground point to mitigate electromagnetic interference.

• Strain Relief: Use appropriate cable ties or strain relief hardware to prevent mechanical tension on the connector points.

• Verification: Perform a loop continuity test to ensure there are no shorts or open circuits before finalizing the installation.

Frequently Asked Questions

• Q: Is this cable compatible with 3300 XL standard systems?

  A: No, the 3300 NSv series extension cables are specifically engineered for the 3300 NSv near-field transducer system and are not interchangeable with standard 3300 XL 8 mm or 11 mm cables.

• Q: Can I shorten or splice this cable in the field?

  A: No, the extension cable length is a calibrated part of the transducer system resonance; any modification will invalidate the factory-specified scale factor and measurement accuracy.

• Q: What is the purpose of the armor option?

  A: The optional cable armor provides mechanical protection against sharp debris, chemical exposure, and physical wear in demanding industrial equipment skids.

• Q: Does the cable require specific grounding?

  A: The cable shield should be grounded in accordance with the 3300 NSv installation manual to ensure effective noise rejection and system stability.

• Q: How do I identify if the cable is damaged?

  A: Inspect the outer jacket for physical wear and use a multimeter to check for continuity or shorts to ground; an erratic gap voltage signal often indicates a damaged cable.

• Q: Can the connectors be replaced?

  A: Connectors are factory-molded or swaged; they are not intended for field replacement or repair.

• Q: What is the role of the extension cable in the loop?

  A: It serves as the transmission path for the radio-frequency excitation signal from the oscillator to the probe and the returned displacement signal to the oscillator.

• Q: How should connectors be protected during installation?

  A: Utilize the supplied connector protector caps until the final connection is made to prevent dirt, moisture, or grease from entering the signal path.
