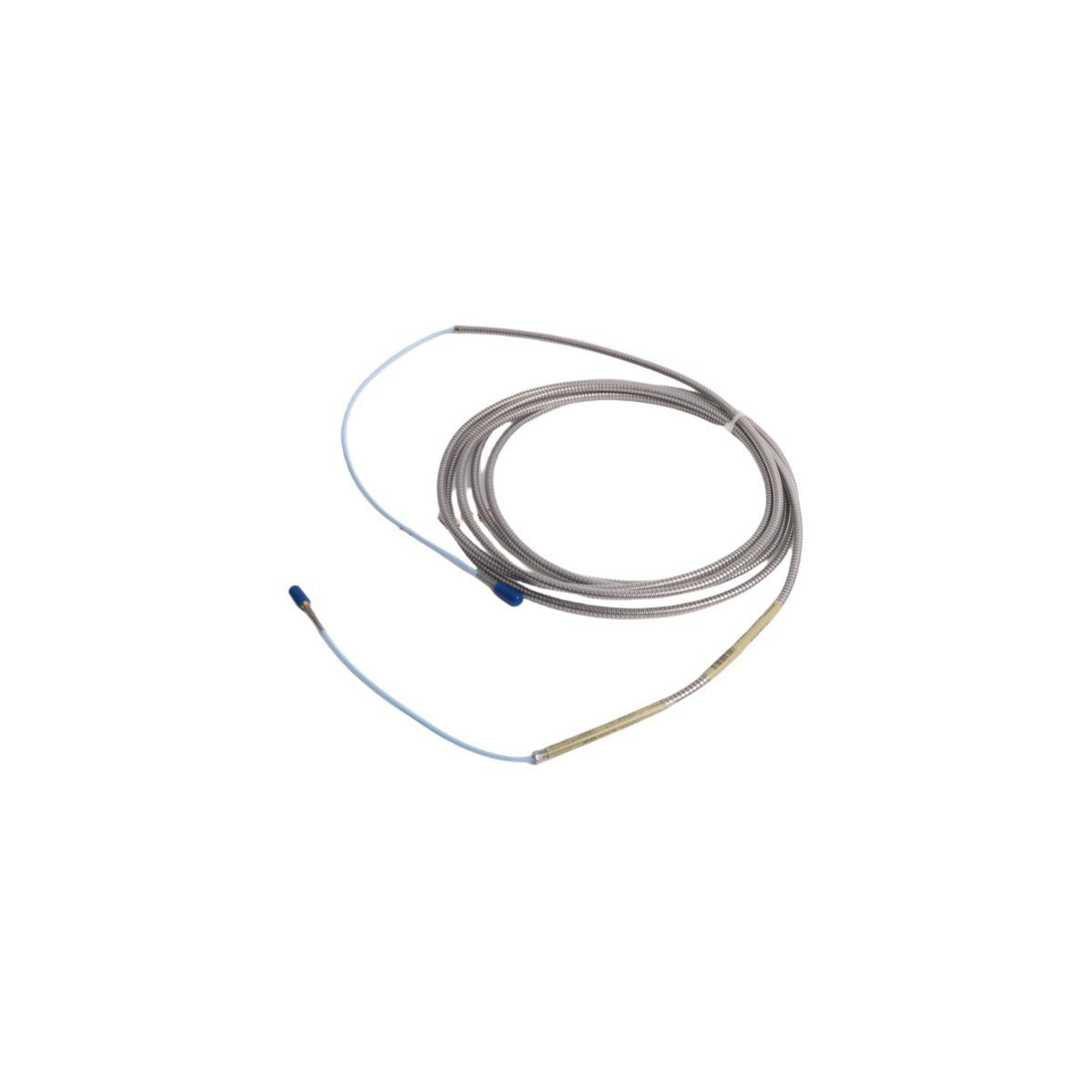

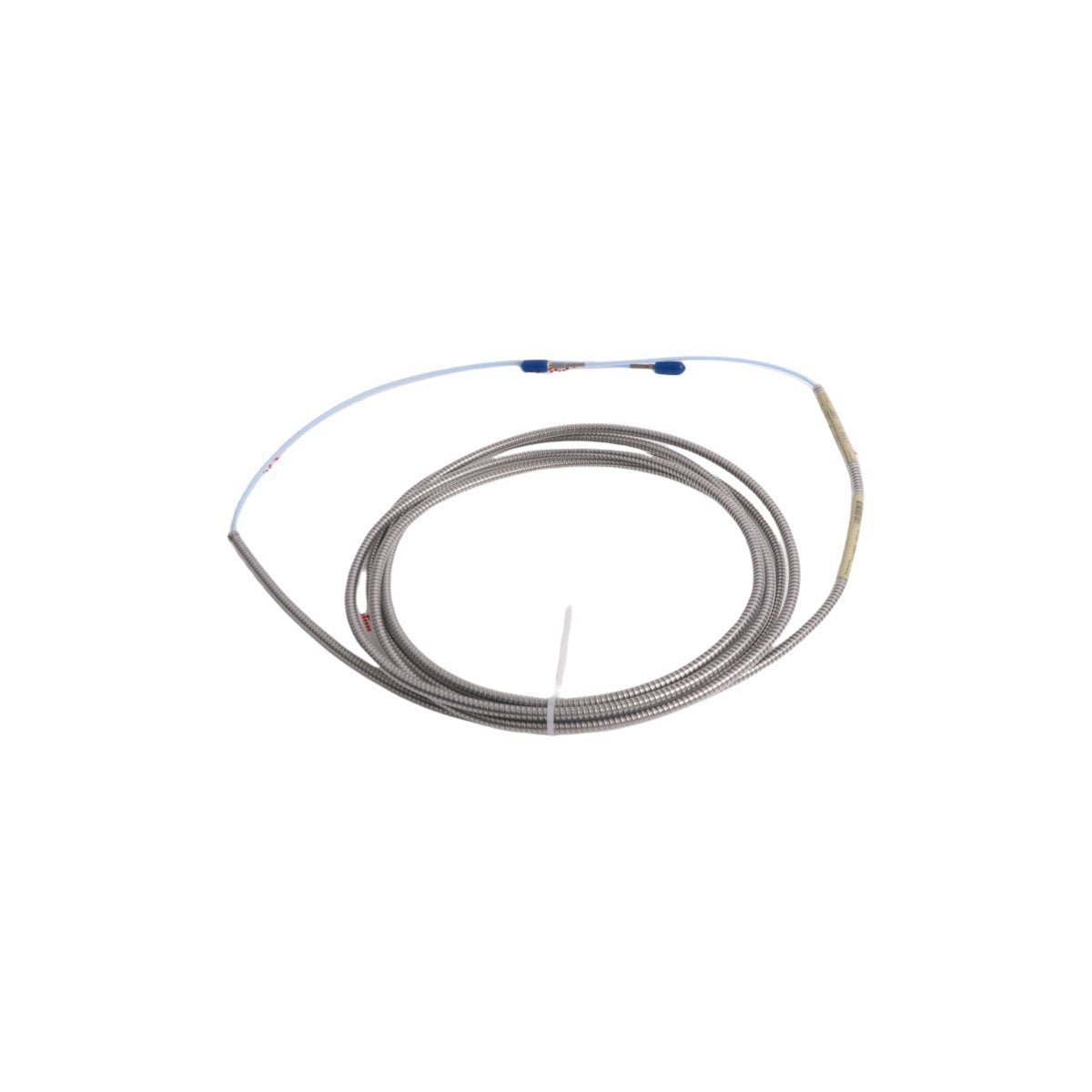

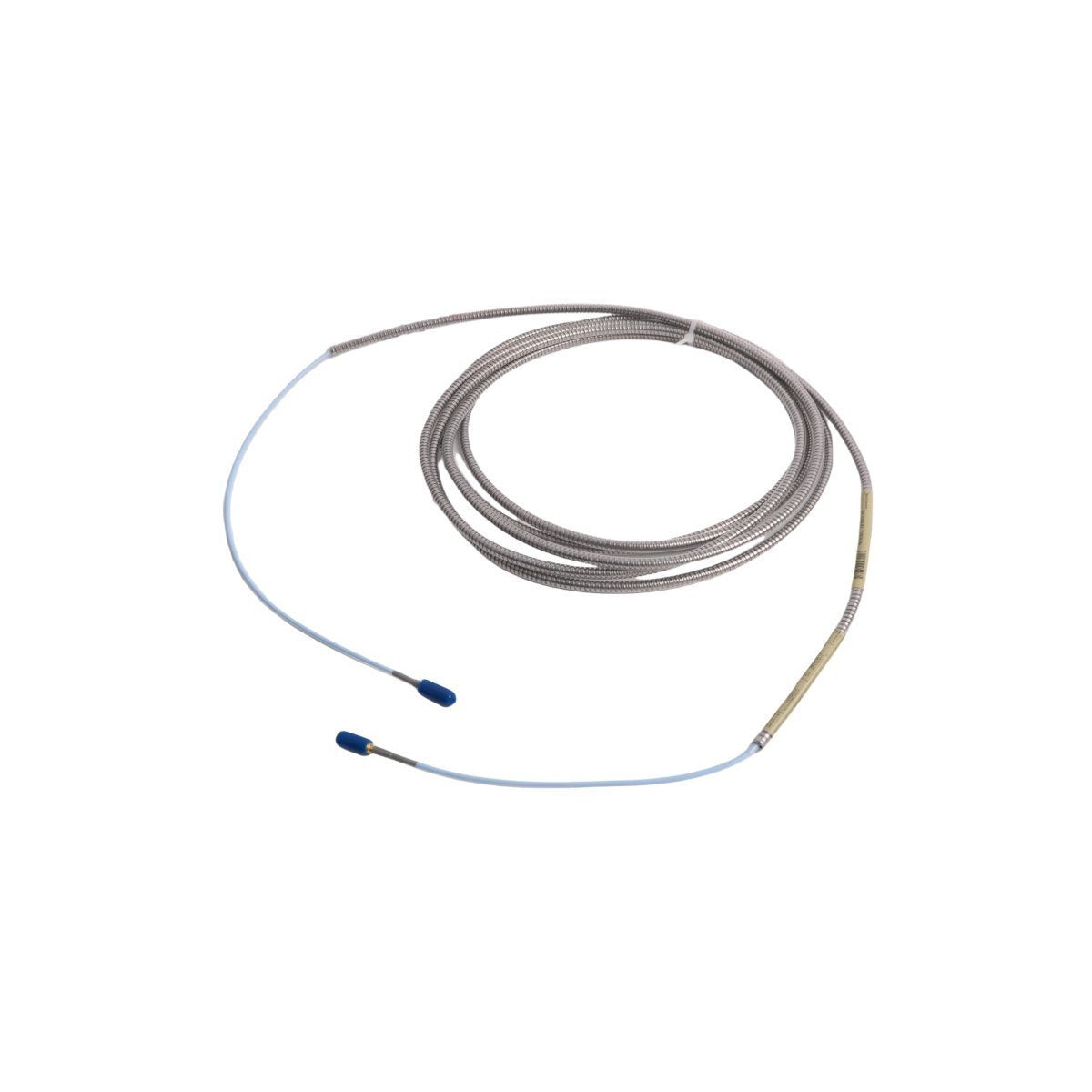

The Bently Nevada 330930-045-04-05, also cataloged as the 330930 Extension Cable, operates as a dedicated hardware component for signal transmission between proximity probes and Proximitor sensors within 3300 NSv monitoring platforms. This cable maintains the electrical path for high-frequency radio signals required to capture non-contacting vibration and position data.

Configuration Analysis

• 330930: 3300 NSv Extension Cable

• 045: Cable Length (4.5 meters)

• 04: Connector Type (Miniature ClickLoc)

• 05: Agency Approval (Multiple approvals)

Hardware Specifications

Signal Integrity & Rotor Dynamics

The 3300 NSv system requires precise eddy-current probe scaling to ensure accurate measurement in constrained mechanical geometries. This extension cable is integral to the tuned resonant circuit. To ensure data accuracy, the gap voltage validation must confirm a -10 VDC target at the sensor output during normal machine operation. Cross-talk suppression is achieved by maintaining cable shielding integrity and proper routing away from electromagnetic interference sources, which preserves the fidelity of the vibration signals during rotor dynamics analysis.

Ordering Information

• 1 x 330930-045-04-05 Extension Cable

• 2 x Pre-installed connector protectors

• Technical instruction sheet

Field Installation Guidelines

• Cable Radius: Adhere to a minimum bend radius of 38 mm to prevent structural damage to the coaxial core.

• Conduit Management: Use grounded metallic conduit to suppress radio frequency interference and mechanical stress on the cable jacket.

• Connector Engagement: Ensure ClickLoc mechanisms are fully seated until a tactile click is felt, then slide the protector into the locked position.

• Environmental Protection: Apply connector protectors to all coupling points to prevent moisture ingress in high-humidity or oily environments.

• Grounding: Isolate the signal path from machine chassis ground to prevent ground loops that introduce signal noise.

Technical Inquiry Index

• Q: Can this cable be shortened?

  A: No. Shortening the cable alters the system impedance and resonant frequency, which introduces measurement errors. Use only factory-defined lengths.

• Q: How to check for cable continuity?

  A: Measure resistance from center pin to center pin (should be near 0 ohm) and check for isolation between the center conductor and the outer shield.

• Q: Are these cables compatible with non-NSv systems?

  A: No. 3300 NSv cables are tuned for specific NSv probe electronics and are not compatible with standard 3300 XL or other series.

• Q: What is the purpose of the 75 ohm impedance?

  A: It matches the characteristic impedance of the 3300 NSv probe and Proximitor to minimize signal reflections in the high-frequency radio link.

• Q: How does cable length impact the Proximitor output?

  A: The system is calibrated for a specific total length. Changing the length will result in phase shift and signal amplitude attenuation.

• Q: Can this cable withstand chemical exposure?

  A: The FEP jacket is resistant to most common industrial lubricants, hydraulic fluids, and synthetic oils used in turbine and compressor applications.

• Q: What if the ClickLoc connector is damaged?

  A: The connector is not field-repairable. If the connector or cable is compromised, the entire extension cable assembly must be replaced.

• Q: Why is the gap voltage critical?

  A: Maintaining the -10 VDC target ensures the sensor output remains within the linear range of the monitor, preventing signal clipping during high-vibration events.
