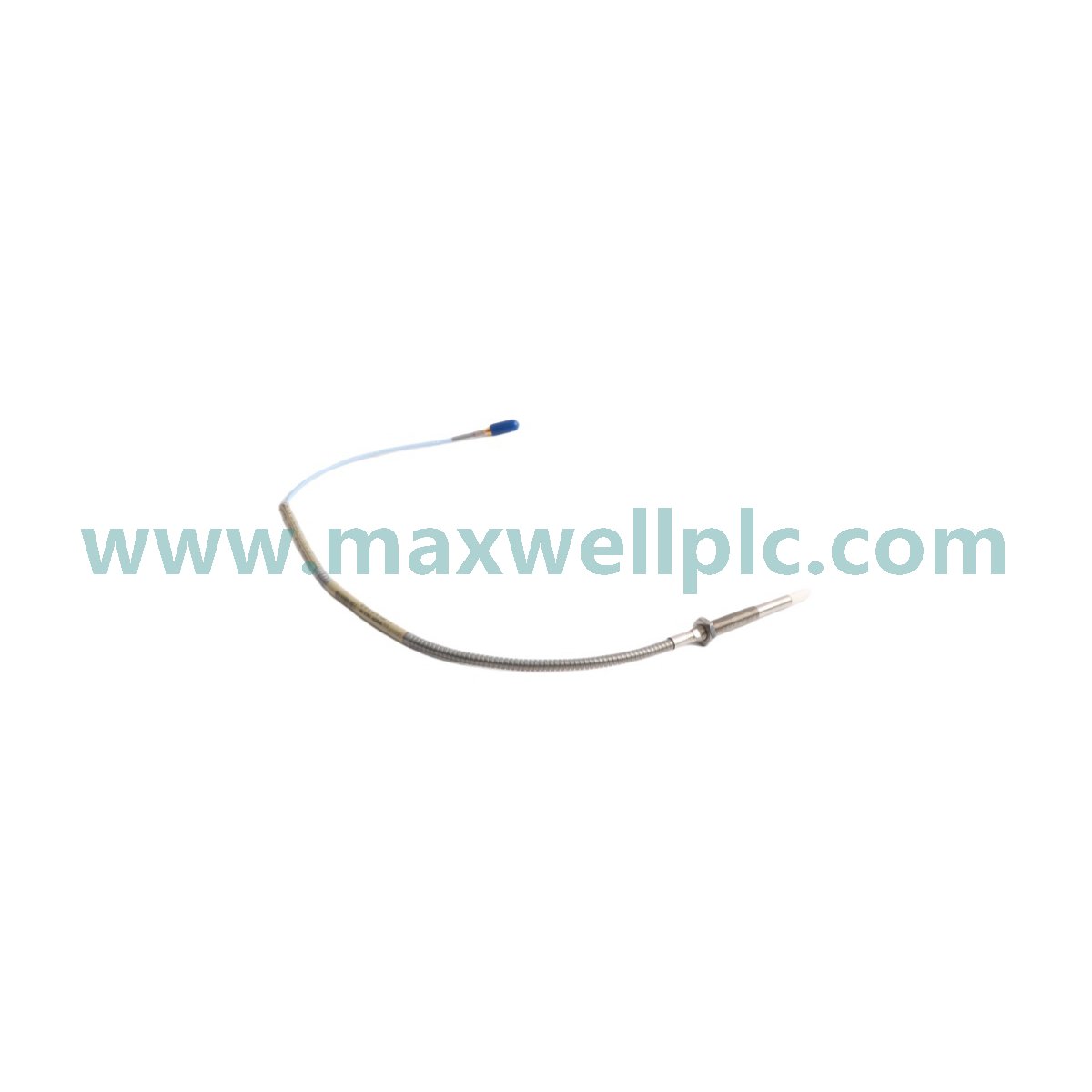

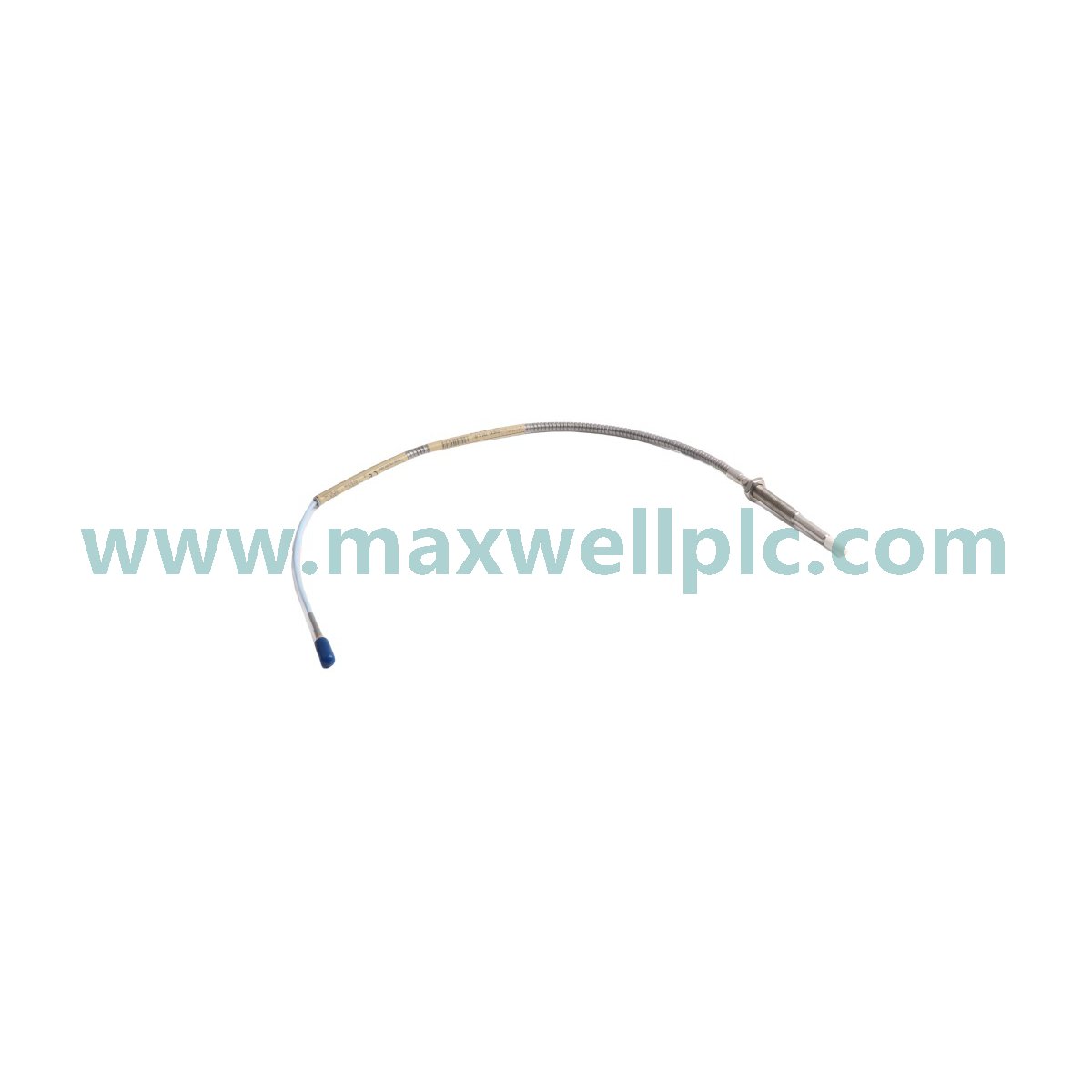

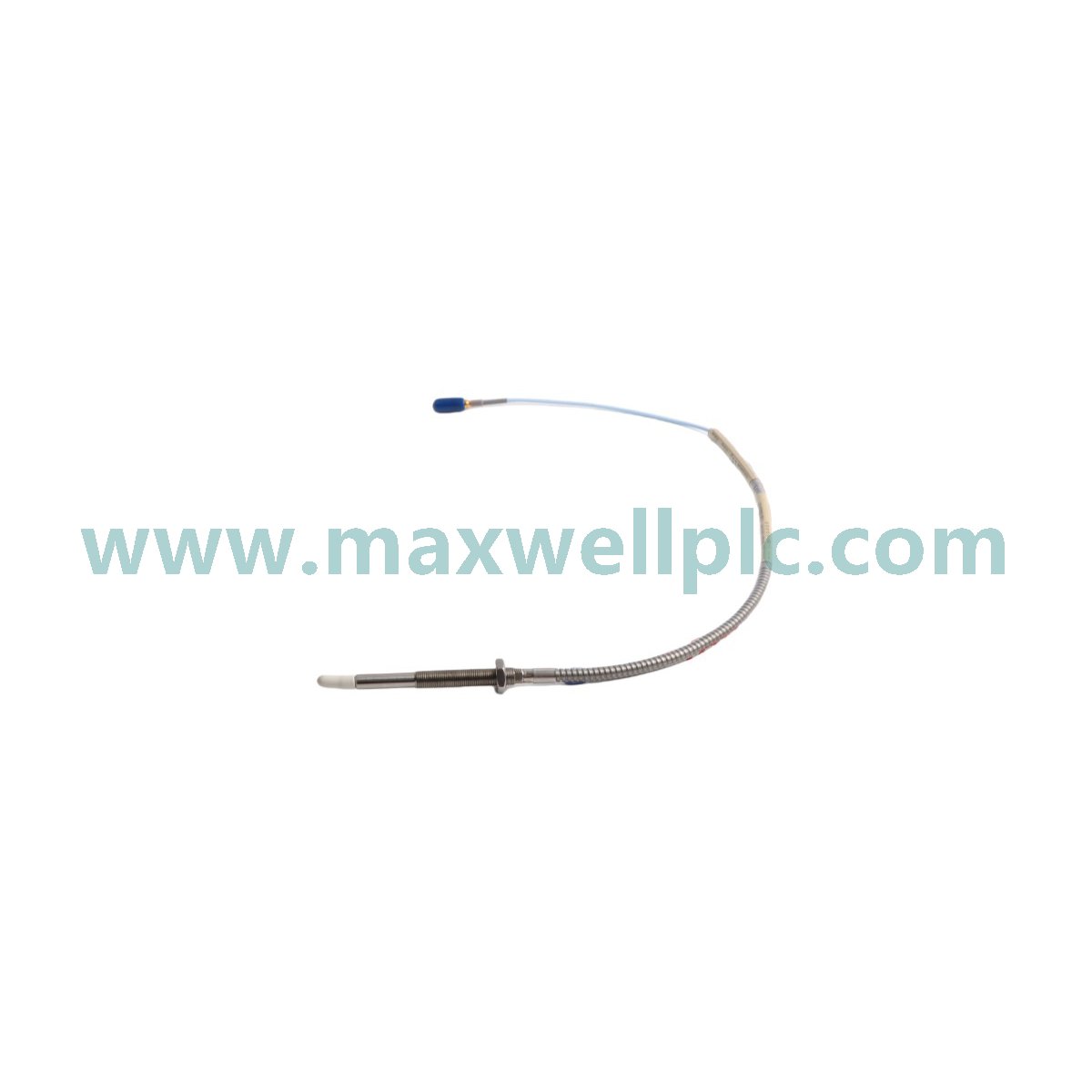

Configured for non-contact displacement measurement in TSI platforms, the Bently Nevada 330910-03-09-05-02-05 (330910-03-09-05-02-05 NSv Proximity Probe) provides direct physical and electrical execution of gap-to-voltage signal conversion for rotating machinery.

Model Identification and Architecture

The 330910-03-09-05-02-05 is a specialized sensor assembly within the 3300 XL NSv proximity transducer system. It is engineered for high-frequency vibration and axial position measurement in limited-clearance mechanical housings, requiring a matched NSv-compatible Proximitor sensor to complete the signal loop.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The probe employs an eddy-current sensing coil to monitor shaft motion. To ensure data integrity, technicians must calibrate eddy-current probe scaling to convert raw gap data into accurate displacement units. Gap voltage validation targeting -10 VDC is required during setup to confirm the probe is operating within the linear measurement range. Furthermore, effective cross-talk suppression is maintained by adhering to physical spacing requirements between multiple probe installations, preventing interference that could degrade rotor dynamics signal fidelity.

Ordering Info

• 330910 NSv Proximity Probe assembly

• ClickLoc coaxial connector (factory integrated)

• Protective armor cable

• Installation hardware kit

Field Installation Guidelines

• Seat the probe within the mounting bracket and verify the initial gap distance using a feeler gauge.

• Use locking nuts to fix the probe position securely against machine vibration.

• Route the coaxial signal cable away from high-voltage AC paths to reduce signal noise.

• Verify the gap voltage at the Proximitor output using a high-impedance digital multimeter.

• Ensure the target material is clean and free of magnetic discontinuities to prevent measurement errors.

Frequently Asked Questions

• Q: Is this probe compatible with standard 8 mm XL Proximitors?

  A: No, the NSv probe requires an NSv-specific Proximitor to function correctly due to unique sensing coil properties.

• Q: How is the probe grounded?

  A: The probe body provides a ground path through the mounting bracket to the machine casing.

• Q: Can the cable length be modified?

  A: No, the system is calibrated as a matched set (Probe, Extension Cable, Proximitor); changing length impacts system accuracy.

• Q: How do I identify a damaged probe?

  A: Damage is typically indicated by an "out of range" monitor status or unstable gap voltage readings.

• Q: Does this sensor support hot-swapping?

  A: The probe itself can be disconnected if the machine is offline; follow specific rack safety protocols when handling the associated Proximitor.

• Q: Can it detect non-metallic targets?

  A: No, the measurement principle relies on eddy currents induced in a conductive target material.

• Q: What is the purpose of the ClickLoc connector?

  A: It provides a vibration-resistant, low-resistance electrical connection for the high-frequency transducer signal.

• Q: Does this probe require frequent recalibration?

  A: Periodic verification of gap voltage during machine maintenance cycles is sufficient to confirm operational health.
