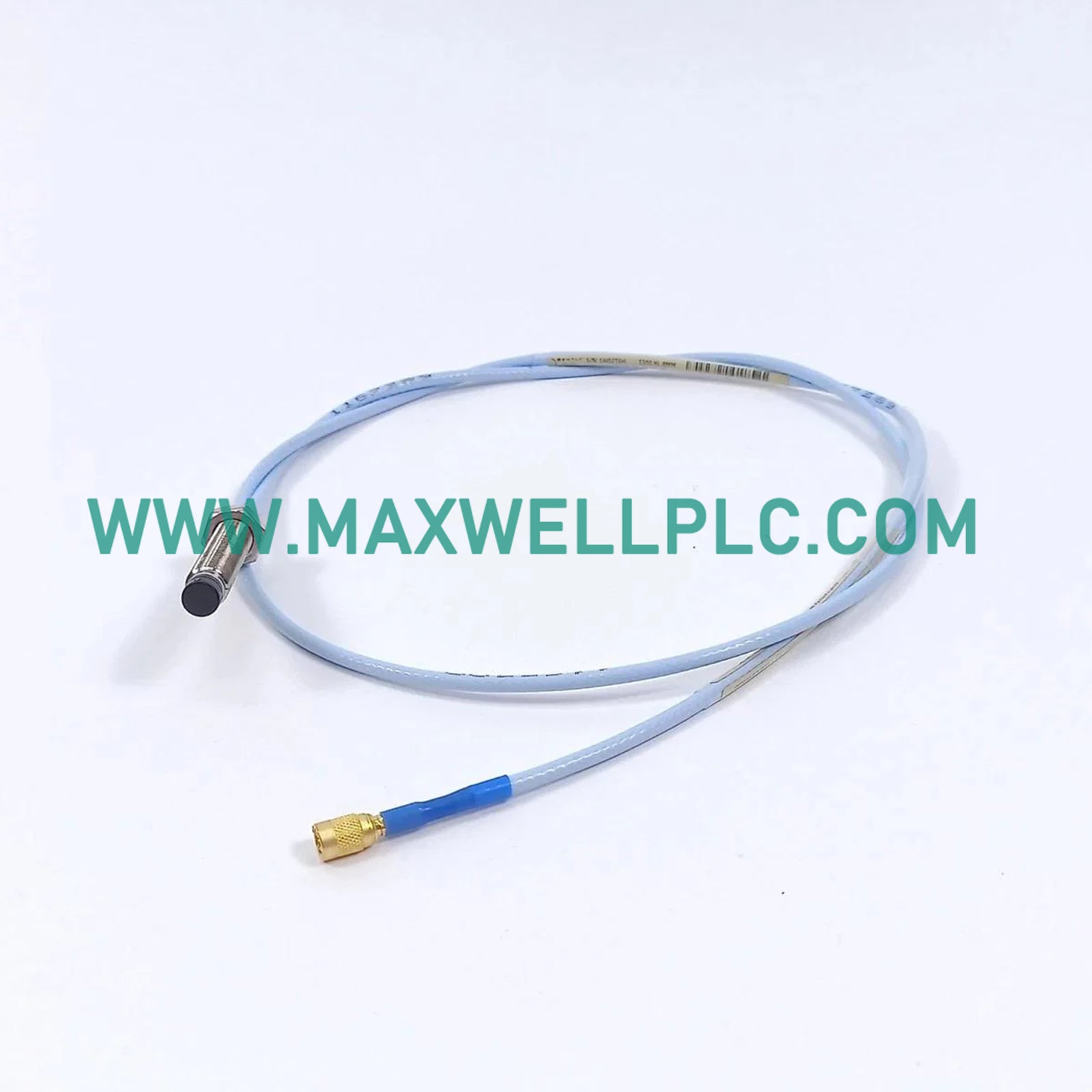

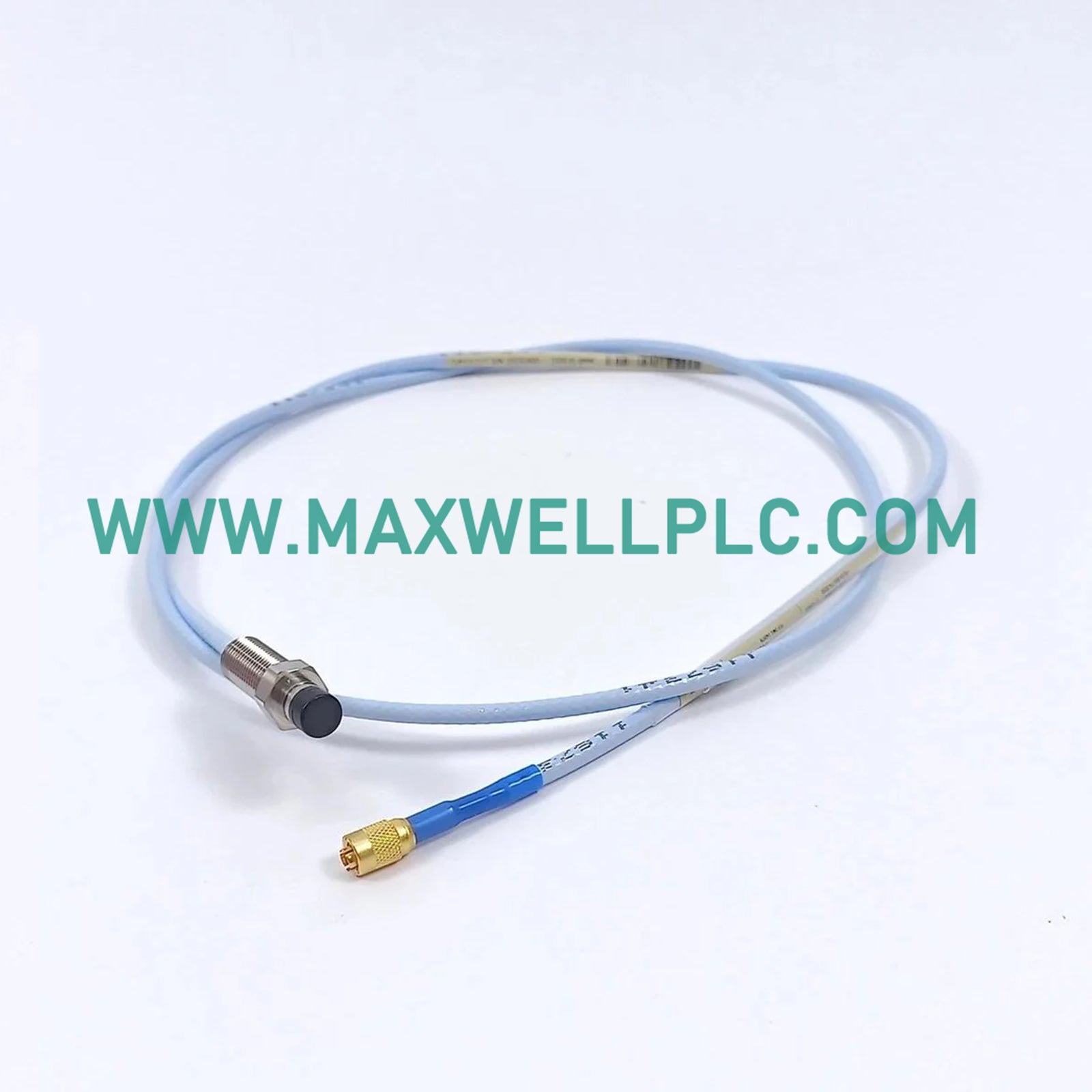

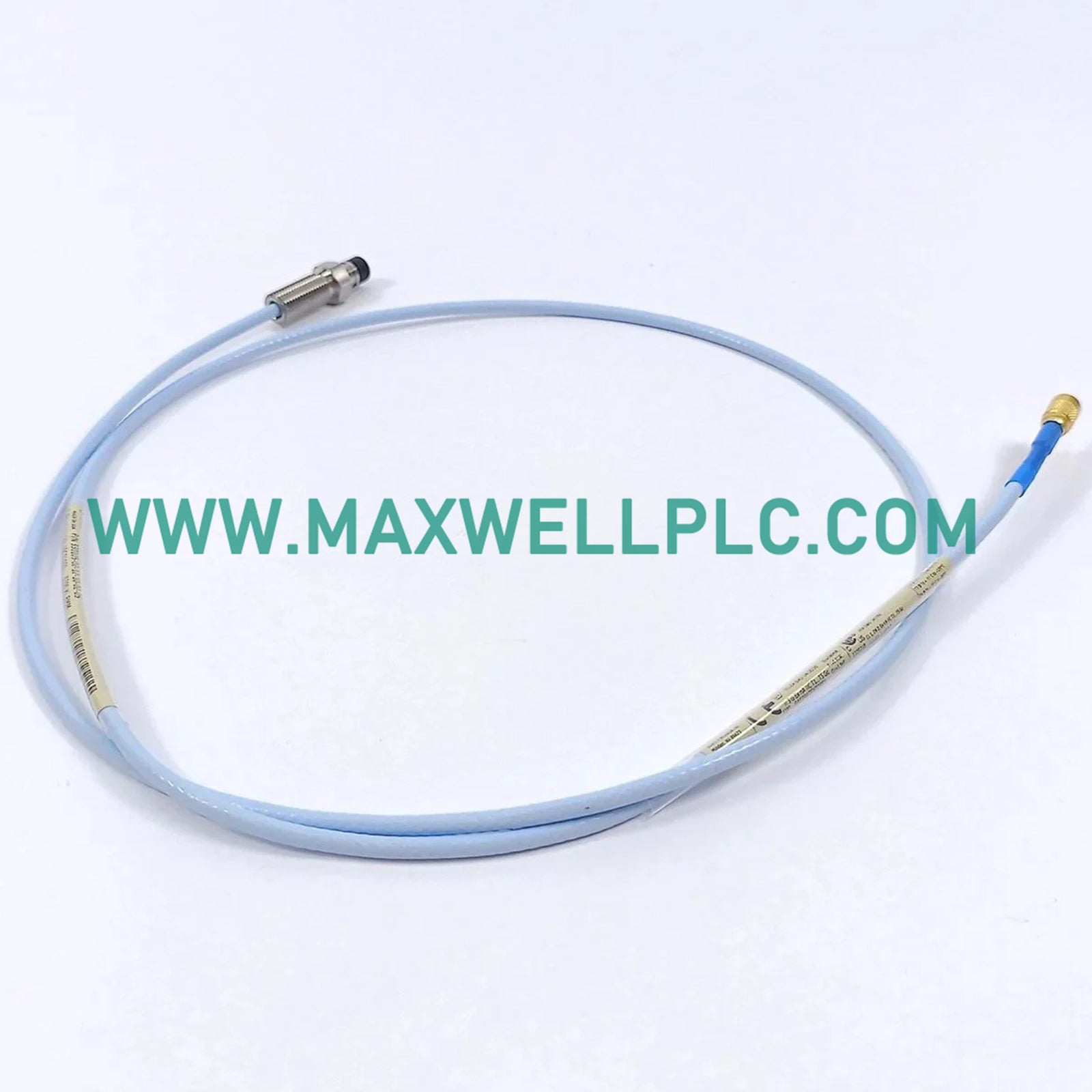

Configured for constrained physical envelopes in turbomachinery protection architectures, the Bently Nevada 330910-00-12-05-02-00 (330910-00-12-05-02-00 3300 NSv Proximity Probes) provides direct physical execution for high-frequency eddy-current sensing.

Configuration Matrix & Model Parameters

• Base Designation: 330910 (3300 NSv Armored Probe)
• Unthreaded Length: 00 (0 mm unthreaded section)
• Case Length: 12 (120 mm overall case length)
• Cable Length: 05 (0.5 meter integrated lead)
• Connector System: 02 (Miniature coaxial ClickLoc configuration)
• Approvals: 00 (Standard commercial baseline)
• Platform: Bently Nevada 3300 XL NSv

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

Accurate telemetry acquisition relies on maintaining strict eddy-current probe scaling across the 1.5 mm linear operating envelope. Maintenance personnel must execute gap voltage verification at the associated Proximitor output terminals, targeting a nominal -10 VDC setpoint (within an acceptable operational window of -8 VDC to -12 VDC) to center the dynamic shaft displacement curve. Proper rotor dynamics analysis further demands effective cross-talk suppression and continuous shield grounding to isolate low-level RF signals from ambient electromagnetic interference generated by adjacent variable-frequency drives.

Package Contents

• 1 x 330910 NSv Armored Probe Tip Assembly (M10 x 1 Thread)

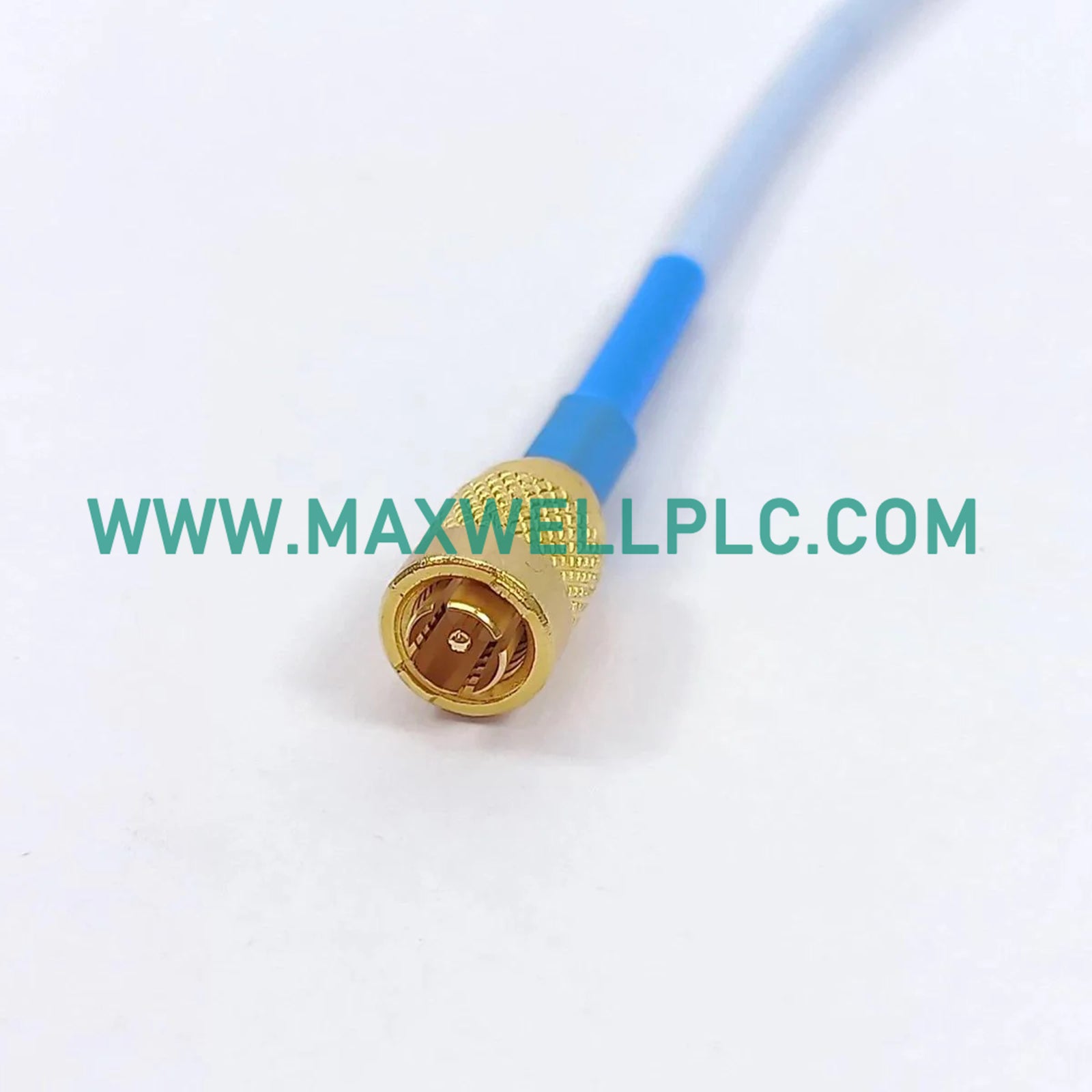

• 1 x Integrated Coaxial Cable with ClickLoc Connection
• 1 x Factory Calibration and Compliance Documentation

Installation and Cabling Guidelines

• Mechanical Preparation: Drill a 9.4 mm hole for the M10 x 1 threaded body, tapping the mounting wall to a depth between 15 mm and 30 mm.
• Torque Specifications: Secure the probe housing using a calibrated torque wrench to 11.3 N·m, strictly avoiding values exceeding 33.9 N·m to prevent body distortion.
• Air Gap Alignment: Set the initial physical gap distance to 1.0 mm (40 mils) prior to locking jam nuts in place.
• Conduit Routing: Route armored coaxial cables through dedicated metallic raceways, keeping signal paths physically segregated from high-voltage power lines.

Technical FAQ

• Why does the NSv series utilize a shorter linear range than standard 8 mm probes?

  The NSv employs specialized electromagnetic field shaping designed specifically for small targets and tight counterbores, resulting in a 1.5 mm linear span.

• Can this probe operate independently without a Proximitor sensor?

  No, it requires an external 3300 XL NSv Proximitor sensor to provide high-frequency radio-frequency excitation and convert impedance changes into voltage outputs.

• What happens if the gap voltage falls outside the -8 VDC to -12 VDC window?

  Operating outside this range risks driving the measurement circuit into non-linear regions, causing signal distortion during peak vibration events.

• Are connector protectors required for indoor installations?

  Yes, connector protectors prevent microscopic moisture accumulation and oil migration from contaminating the gold-plated ClickLoc mating surfaces.

• Is it permissible to cut or splice the integrated coaxial cable?

  No, altering cable length changes total system capacitance and invalidates factory calibration, requiring matched component replacements.

• What physical damage compromises probe performance?

  Scratches, gouges, or thermal degradation of the polyphenylene sulfide probe tip material alter the eddy-current field and corrupt output linearity.

• Does this part support live hot-swapping during machine operation?

  Live replacement is prohibited because disconnecting energized monitoring circuits induces electrical transients that trigger false machinery protection trips.

• What preventative measures minimize electrical noise pickup?

  Maintaining continuous outer shield continuity, bonding cable armor to ground at a single point, and avoiding parallel runs with high-current AC lines eliminate noise.
