Product Overview

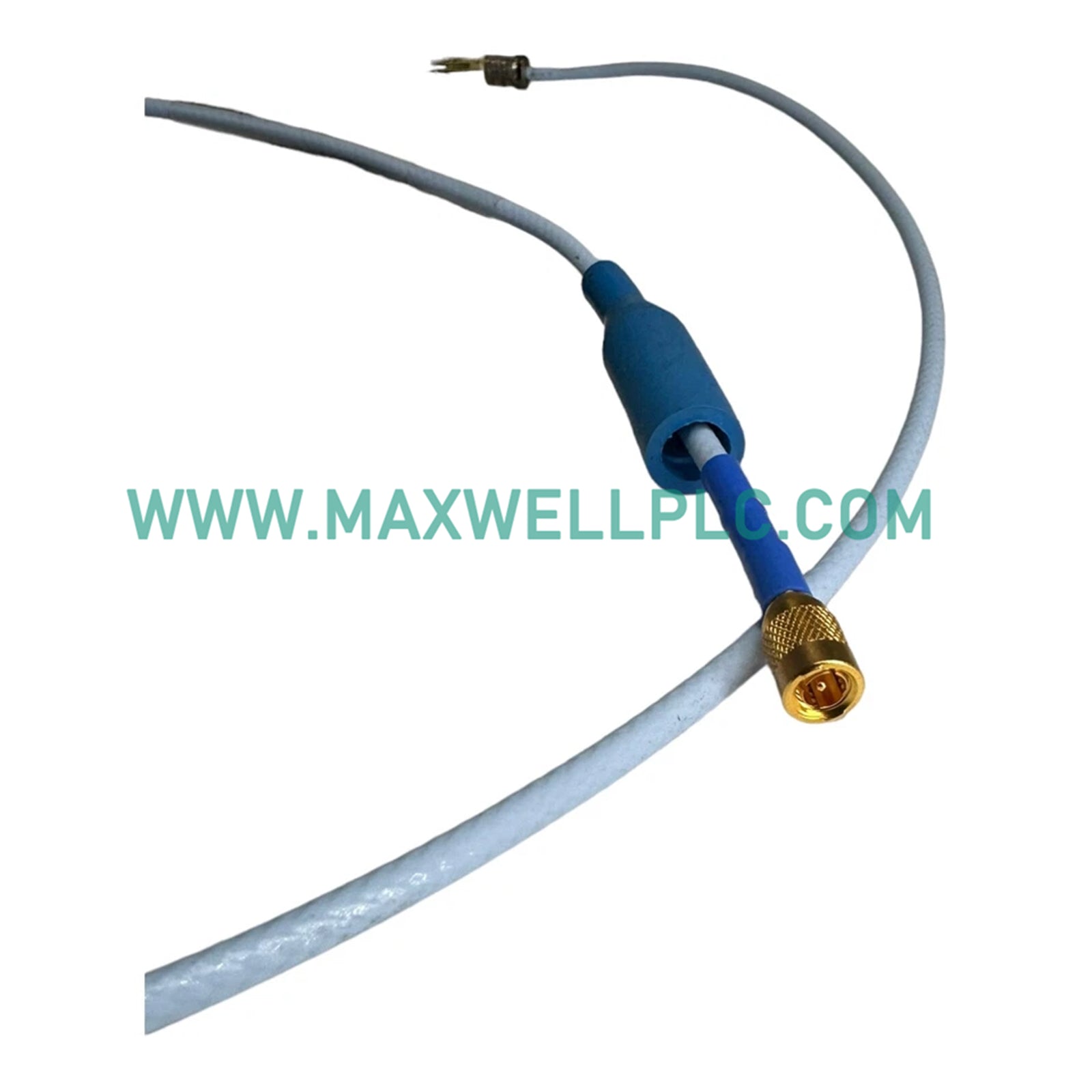

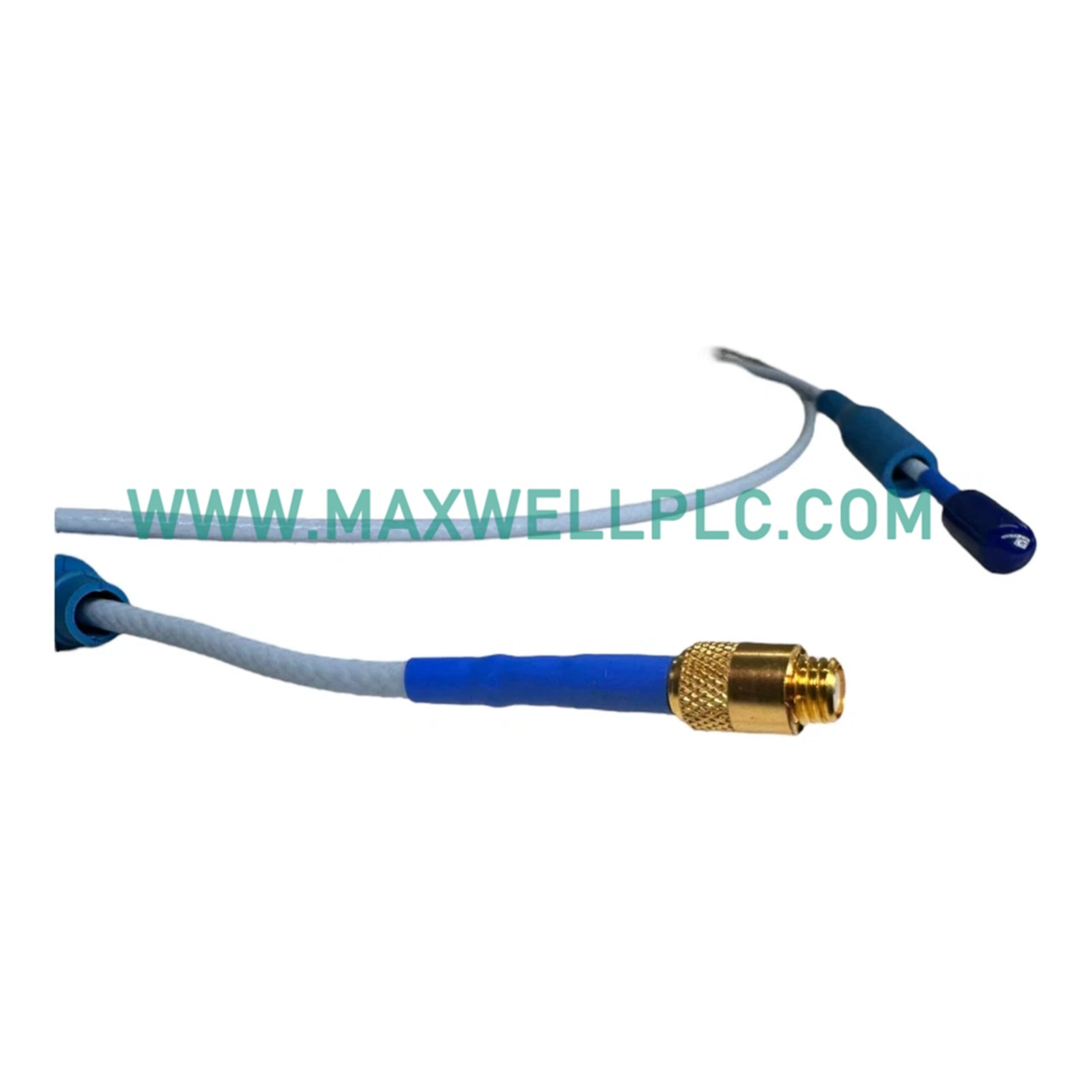

The Bently Nevada 330905-05-10-10-12-CN is a precision-engineered 3300 NSv (Near-field) Proximity Probe, specifically designed for monitoring small-diameter shafts and applications where standard-sized probes are impractical. As part of the highly reliable 3300 NSv system, this probe excels in providing non-contact vibration and position measurements. Whether you are managing small pumps, high-speed gearboxes, or precision motors, this sensor ensures accurate, real-time data capture to facilitate effective machinery protection and condition monitoring.

When you buy the 330905-05-10-10-12-CN, you are securing a genuine Bently Nevada component built to withstand industrial rigors. This specific model includes the FluidLoc® cable and the miniature ClickLoc™ coaxial connector, ensuring both durability in oily environments and ease of installation. As your dedicated 330905-05-10-10-12-CN supplier, Maxwell PLC provides not only the hardware but the assurance of quality that your mission-critical operations demand.

Key Features

• Near-Field Optimization: Designed to provide superior performance on small shafts where traditional 8 mm probes lack the necessary range or resolution.

• FluidLoc® Cable Technology: Prevents oil or process fluids from migrating through the cable, maintaining signal integrity in harsh, wet, or oily environments.

• Miniature ClickLoc™ Connector: A reliable, vibration-resistant connector that simplifies installation while ensuring secure signal connectivity.

• Compact Threading: Features M10 x 1 threads, allowing for installation in space-constrained machinery housings.

• Certified Reliability: The "CN" designation indicates the inclusion of vital agency approvals for operation in demanding international industrial zones.

Technical Specifications

Model Configuration Explanation

The 330905-05-10-10-12-CN model number provides clear technical specifications:

• 330905: The specific model designator for the 3300 NSv probe.

• 05: Threading option (M10 x 1).

• 10: 50 mm unthreaded length.

• 10: 100 mm total case length.

• 12: 1.0-meter cable length with Miniature ClickLoc™ connector and FluidLoc® cable protection.

• CN: Global agency approval designation for safe industrial deployment.

Typical Applications

• Small Rotating Machinery: Vibration and position monitoring for small-diameter shafts in high-speed centrifuges and precision motors.

• Gearbox Monitoring: Identifying gear mesh frequency and bearing wear in compact, high-speed gear assemblies.

• Process Pumps: Ensuring long-term health of pumps in petrochemical and refined fluid applications where oil leakage could compromise standard cables.

• High-Speed Spindles: Monitoring precision tooling and CNC-related rotating components.

System Compatibility

This probe is optimized for the Bently Nevada 3300 NSv Proximitor Sensor. It is not designed for direct replacement of standard 8 mm XL probes due to its unique near-field characteristics. When installing, ensure your 3300 NSv system is configured correctly to match the specific electrical parameters of the 330905 series to maintain full system accuracy and linearity.

Installation Guidelines

1. Alignment: Use the M10 x 1 threads to mount the probe carefully into the target housing. Ensure it is secured with the provided jam nut to prevent drift from high-frequency vibration.

2. Gap Check: NSv probes have different gap requirements than standard probes. Refer to the system documentation to confirm the correct gap voltage (typically -9V DC).

3. Cable Routing: Use the FluidLoc® property to your advantage by ensuring the cable end is properly sealed. Route cables away from high-power electromagnetic sources to minimize interference.

4. Connector Mating: The ClickLoc™ connector requires a firm push-and-click motion. Ensure no moisture is present in the connector during assembly.

Product Advantages

Choosing genuine Bently Nevada parts is the single best way to ensure the long-term reliability of your TSI systems. The 330905 NSv series is unmatched in its ability to provide accurate readings on small shafts. By working with a professional 330905-05-10-10-12-CN supplier like Maxwell PLC, you receive components that are not only authentic but have also been handled by experts with 30 years of experience in the automation industry, ensuring they meet factory specs upon delivery.

Ordering Information

We maintain the 330905-05-10-10-12-CN in stock to help you avoid operational downtime. For a competitive 330905-05-10-10-12-CN price or to place an order for genuine Bently Nevada parts, please contact our sales team today. We specialize in sourcing hard-to-find industrial automation spare parts with worldwide expedited shipping.

Logistics and Shipping

To protect the precision electronics within the 330905 probe, every unit is prepared with professional anti-static industrial packaging. We utilize reinforced, impact-resistant containers to ensure that your sensor remains calibrated and damage-free during international transit. We manage the logistics chain from our warehouse to your site, ensuring your mission-critical parts arrive safely.

Why Choose Maxwell PLC

At Maxwell PLC, we leverage over 30 years of hands-on experience in the assembly, repair, and maintenance of industrial automation equipment. We maintain close, direct relationships with major manufacturers, ensuring that the parts you receive are "factory fresh" and fully compatible. Before shipping any module or sensor, we conduct a rigorous pre-shipment inspection. We can provide testing reports and calibration verification upon request, giving you the confidence that your system will be up and running as soon as the part is installed.

Frequently Asked Questions

• Are these probes 100% genuine?

  Yes, we specialize in providing authentic Bently Nevada parts, sourced through reliable factory channels.

• Can I use this for an 8mm standard probe application?

  No, the 330905 is an NSv (Near-field) probe. It is electrically and physically different from standard 8mm probes.

• What is the lead time if the item is in stock?

  We offer same-day or next-day shipping for all in-stock inventory items.

• Does this include the connector?

  Yes, the model includes the Miniature ClickLoc™ coaxial connector as specified in the configuration.

• Can you provide a certificate of origin?

  Yes, we provide all necessary documentation including certificates of origin and compliance.

• Is the FluidLoc® cable really waterproof?

  It is designed to prevent the migration of oil and process fluids, which significantly improves lifespan in oily environments.

• What if the probe arrives and doesn't match my current setup?

  Our technical team can help verify your part number match before shipment to prevent compatibility issues.

• Do you offer volume discounts?

  Yes, we provide tailored pricing for bulk orders or facility-wide maintenance projects.

• Can you test the probe before shipment?

  Yes, we perform pre-shipment checks and can provide testing reports upon request.

• Do you ship to offshore platforms?

  Yes, we have extensive experience managing logistics for offshore and remote industrial sites globally.
