Product Overview

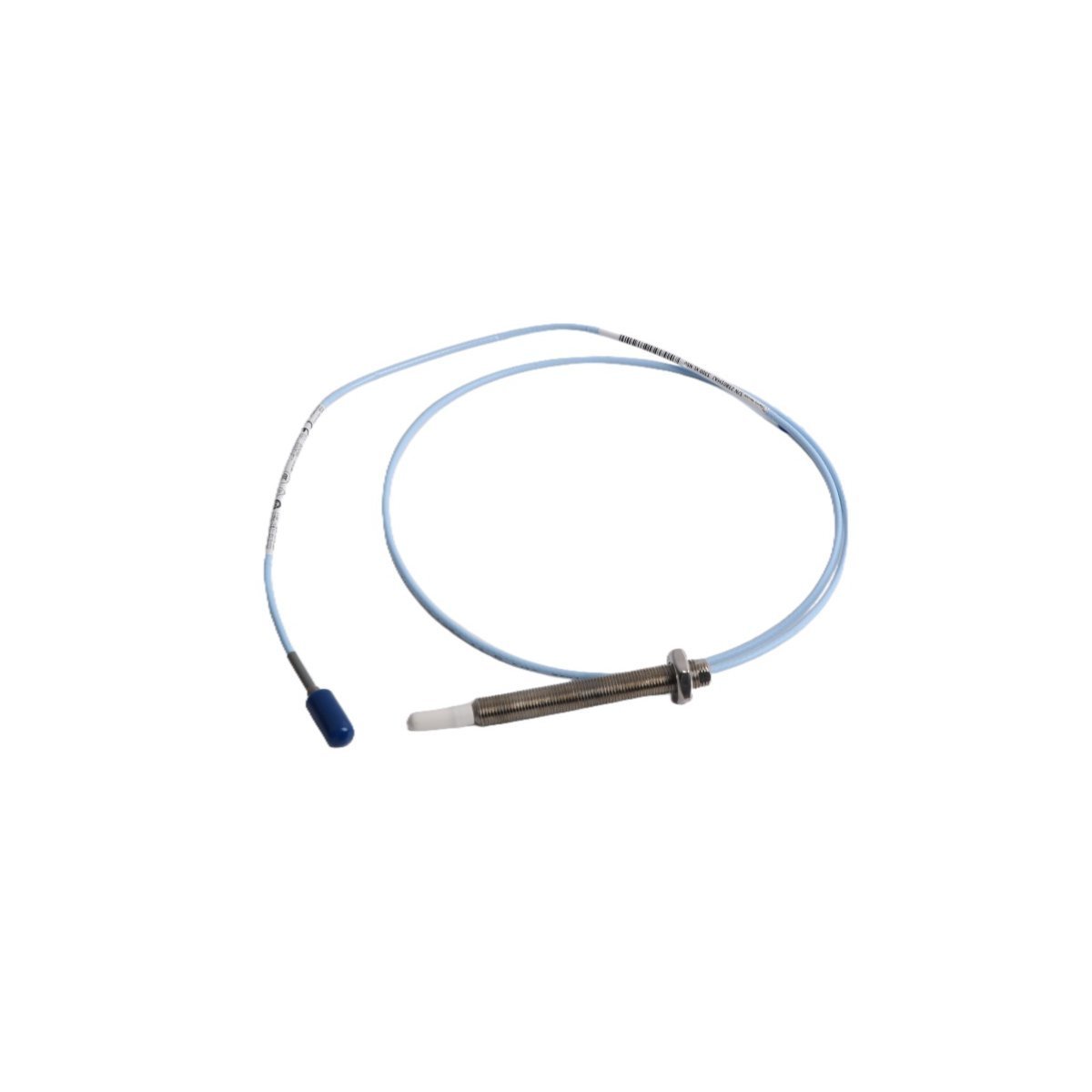

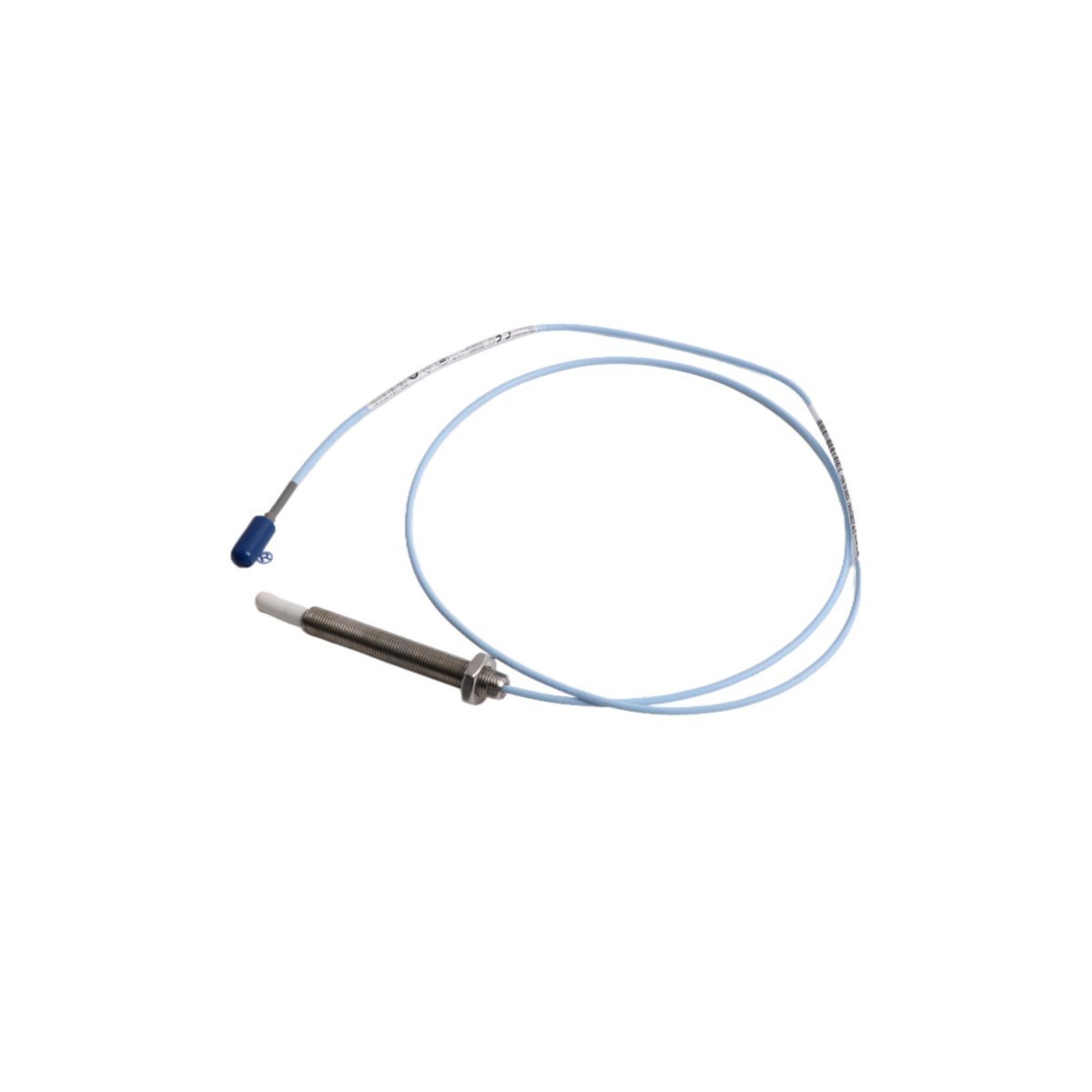

The Bently Nevada 330905-00-08-10-01-00 is a 3300 NSv eddy-current proximity probe designed for non-contact measurement of relative shaft displacement in rotating machinery monitoring systems. The NSv probe family is commonly selected when mounting space is limited or when measurement geometry requires improved side-view performance and reliable readings on smaller target areas.

This probe is intended to be used as part of a complete NSv transducer channel. For correct scaling and linear behavior, it must be paired with the appropriate NSv extension cable and matching Proximitor sensor. In retrofit work, replacing the probe, cable, and Proximitor together is standard practice to maintain calibration integrity and ensure compatibility with the monitoring system.

Important correction to common listing errors

• This product is a proximity probe and does not provide a direct 4–20 mA output. Current-loop outputs require a separate transmitter or monitoring module designed for 4–20 mA signaling.

Hardware Parameters

• Model / Order Number: 330905-00-08-10-01-00

• Product Range: 3300 Proximity Transducer System

• Probe Family: 3300 NSv

• Sensing Principle: Eddy-current, non-contact displacement

• Thread Type: M10x1 (metric)

• Probe Case Length (listing data): 15 mm

• Integrated Cable Length: 1.0 m

• Connector Type: Miniature coaxial ClickLoc

• Connector Protection: Connector protector included (as configured)

• Design Focus: Compact installation, improved chemical resistance versus earlier generations (application dependent)

• Condition: Brand New

• Availability: In Stock

• Country of Origin: USA

• Net Weight: 0.06 kg

• Dimensions: 1.8 x 1.6 x 123 cm

• HS Code: 8537101190

• MOQ: 1

• Lifecycle Status: Active

Integration notes

• Final measurement performance depends on target material, probe gap, mounting stiffness, and using the correct matched NSv Proximitor and extension cable.

• Mechanical and electrical interchangeability with legacy configurations is application-dependent; verify total system length and connector style before replacement.

Industrial Applications

Typical assets monitored

• Centrifugal compressors and process gas trains

• Steam and gas turbines

• Pumps, motors, and gear-driven rotating equipment where proximity probes are specified
