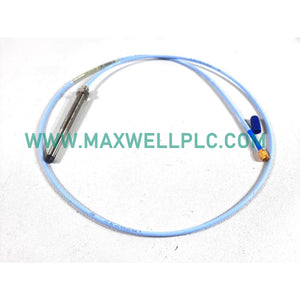

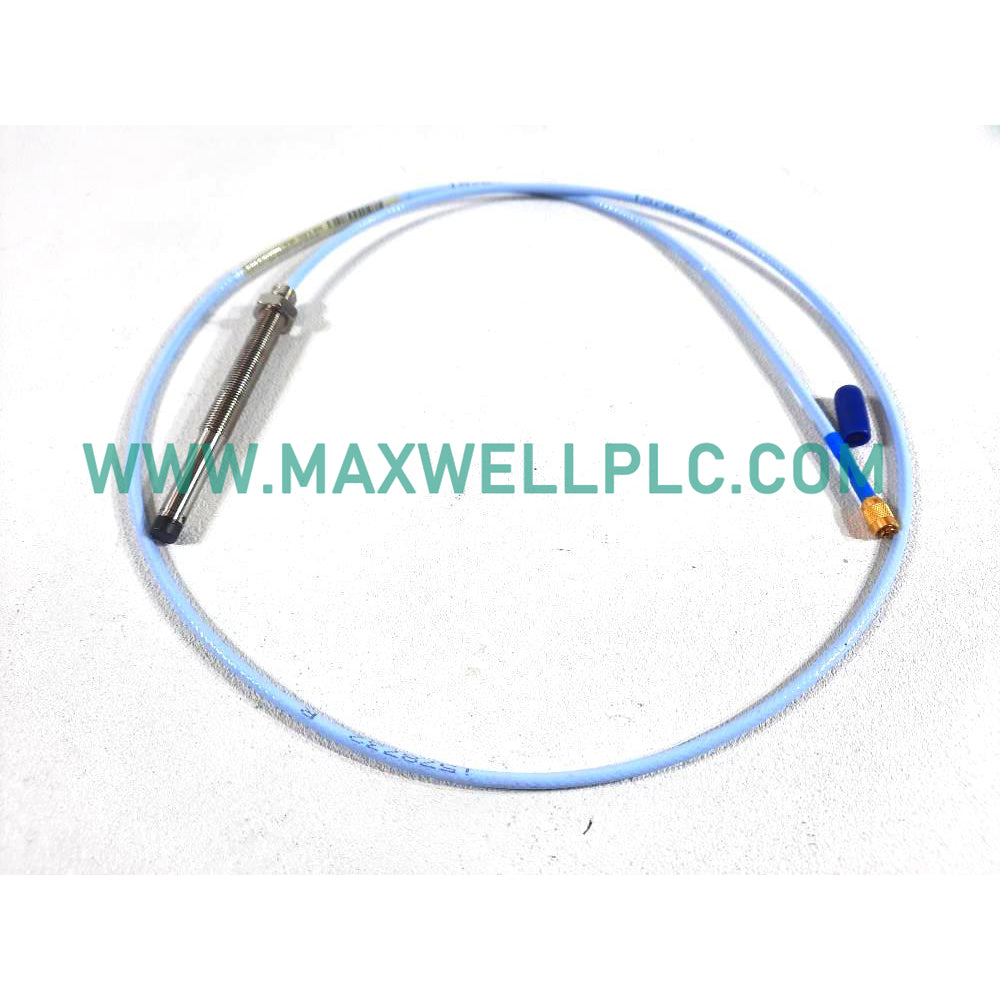

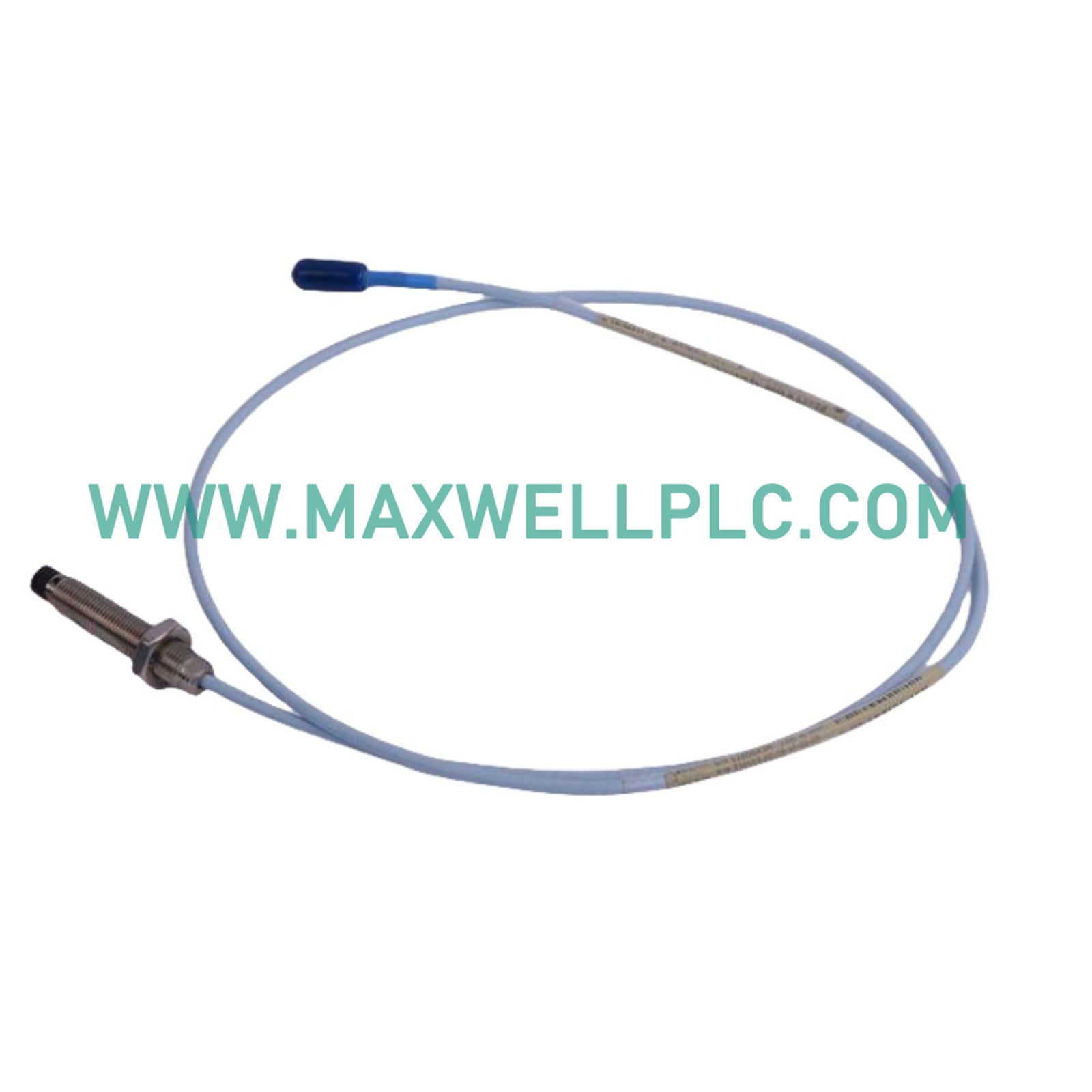

The Bently Nevada 330905-00-07-10-12-CN serves as the primary 330905 Proximity Probes utilized to execute physical displacement tracking and micro-gap shaft vibration detection across 3300 System platforms.

Model Suffix Option Matrix

• 330905: Base 3300 NSv proximity probe configuration with M10X1 metric thread and unarmored cable profile.

• 00: 0 mm minimum unthreaded length mechanical specification.

• 07: 70 mm minimum overall case length physical dimension.

• 10: 1.0 meter (39 inches) nominal total cable length.

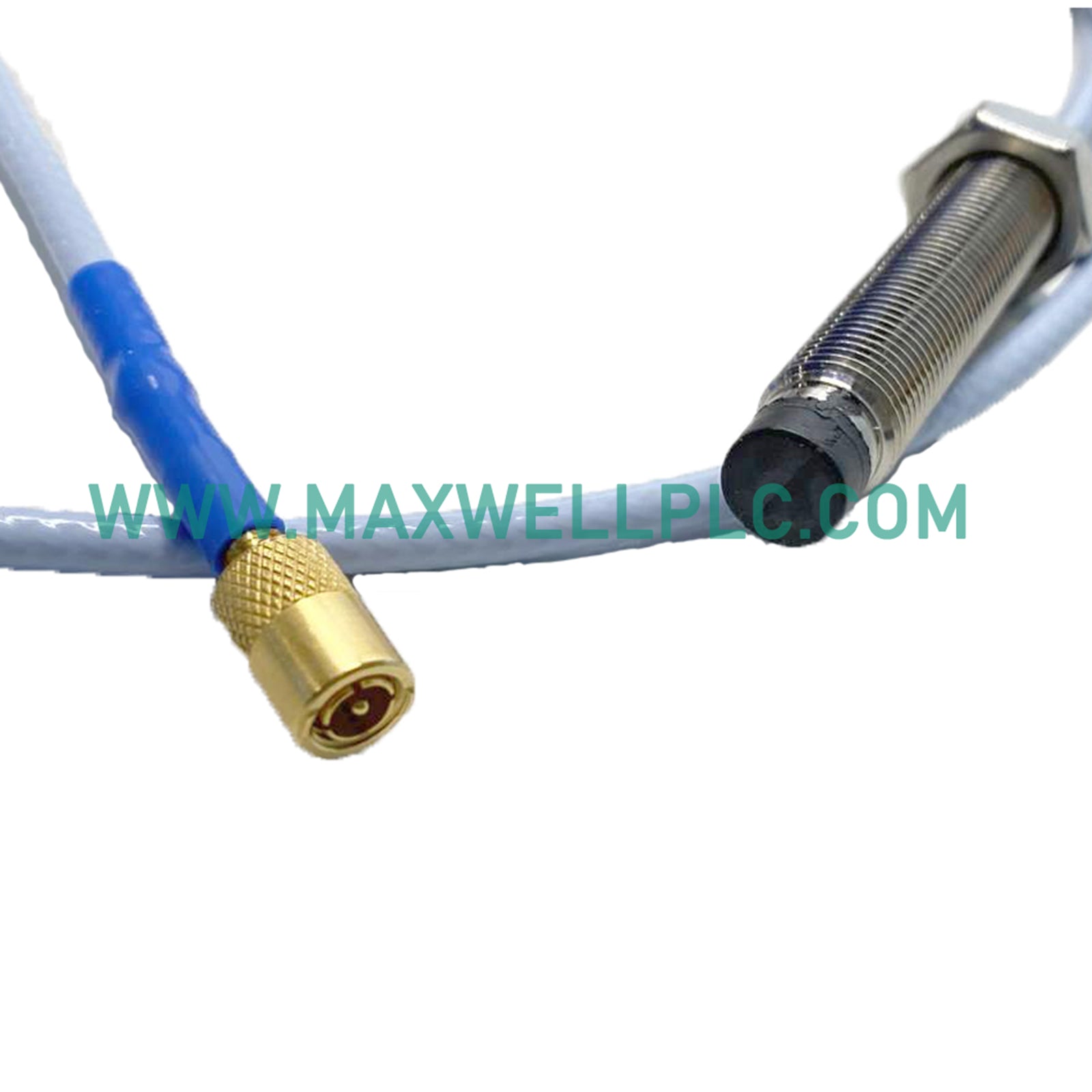

• 12: Integrated miniature coaxial ClickLoc connector and fluid-sealed FluidLoc cable architecture.

• CN: Region-specific standard designation variant identifier.

Technical Parameters Table

Transducer Conditioning and Signal Calibration

The physical interface operates under specialized eddy-current probe scaling metrics optimized for tight mounting spaces and small target profiles. Setting the physical mounting position requires checking the gap voltage validation (-10 VDC targets) within the Proximitor loop before recording dynamic machinery shifts. This internal tuning tracks high-frequency rotor dynamics with accuracy, while the specialized FluidLoc cable configuration blocks process liquids from creeping into the core element, preserving cross-talk suppression paths across close-proximity sensor clusters.

Package Manifest

• 1 Bently Nevada 330905-00-07-10-12-CN Proximity Probe

• 1 ClickLoc Interface Protection Sleeve

Field Assembly and Mechanical Routing Guidelines

Threaded Casing Insertion

• Thread the M10X1 probe body manually into the machined casing port, tracking structural clearances across the 70 mm case length.

• Tighten the primary locknut using calibrated torque limits to protect the internal unarmored coaxial junction from shearing forces.

Coaxial Routing and Lock Engagement

• Connect the miniature coaxial ClickLoc connector directly to the matching extension cable terminal until the lock snaps shut.

• Route the FluidLoc cable along dedicated metal trays to isolate the dynamic signal from surrounding high-current power conduits.

Technical Engineering FAQ

• Does this specific 3300 NSv probe support toolless hot-swapping while the monitor channel is active?

  No, hot-swap maneuvers are completely restricted; isolate the external loop excitation power before uncoupling or connecting the coaxial line.

• What physical parameters dictate the structural shape of the 00-07 suffix configuration?

  The 00-07 options specify a 0 mm unthreaded section combined with a 70 mm total machined case length on an M10X1 thread pattern.

• How does the internal FluidLoc cable shield the system from fluid intrusion?

  The FluidLoc design features internal physical blocks that seal the core wires, preventing oils or coolants from leaking through the cable jacket.

• What total hardware weight and dimension metrics apply to shipment manifests?

  The unboxed probe has a net mass profile of 0.14 kg inside standard package space parameters measuring 20.3 x 22 x 3.5 cm.

• Why must engineers track gap voltage validation (-10 VDC targets) during mechanical positioning?

  The -10 VDC point aligns the probe tip at the exact center of its linear range, ensuring balanced negative and positive vibration signal capture.

• Does this specific unarmored part number configuration feature stainless steel protective armor?

  No, this suffix string defines an unarmored cable variant, requiring external conduit runs if mechanical routing risks are present.

• What standard factory tolerance limits restrict the nominal 1.0 meter total length option?

  The 1.0 meter total cable length adheres to standard factory bounds of +0.25 meters maximum and -0.10 meters minimum variance.

• How do closely grouped M10 proximity probes preserve signal integrity against structural cross-talk?

  The integrated outer shielding layer links directly to system ground at the Proximitor casing, enforcing cross-talk suppression between channels.
