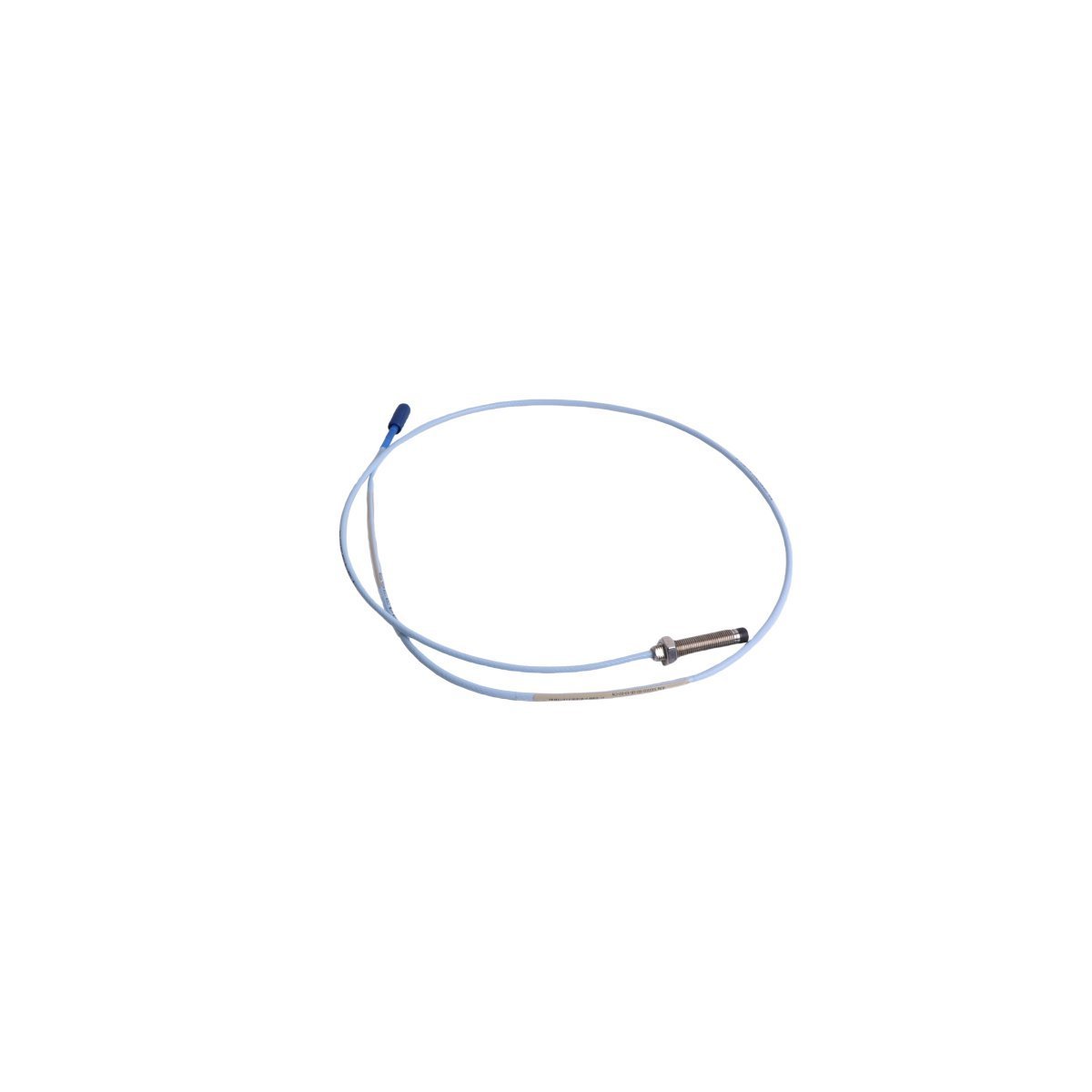

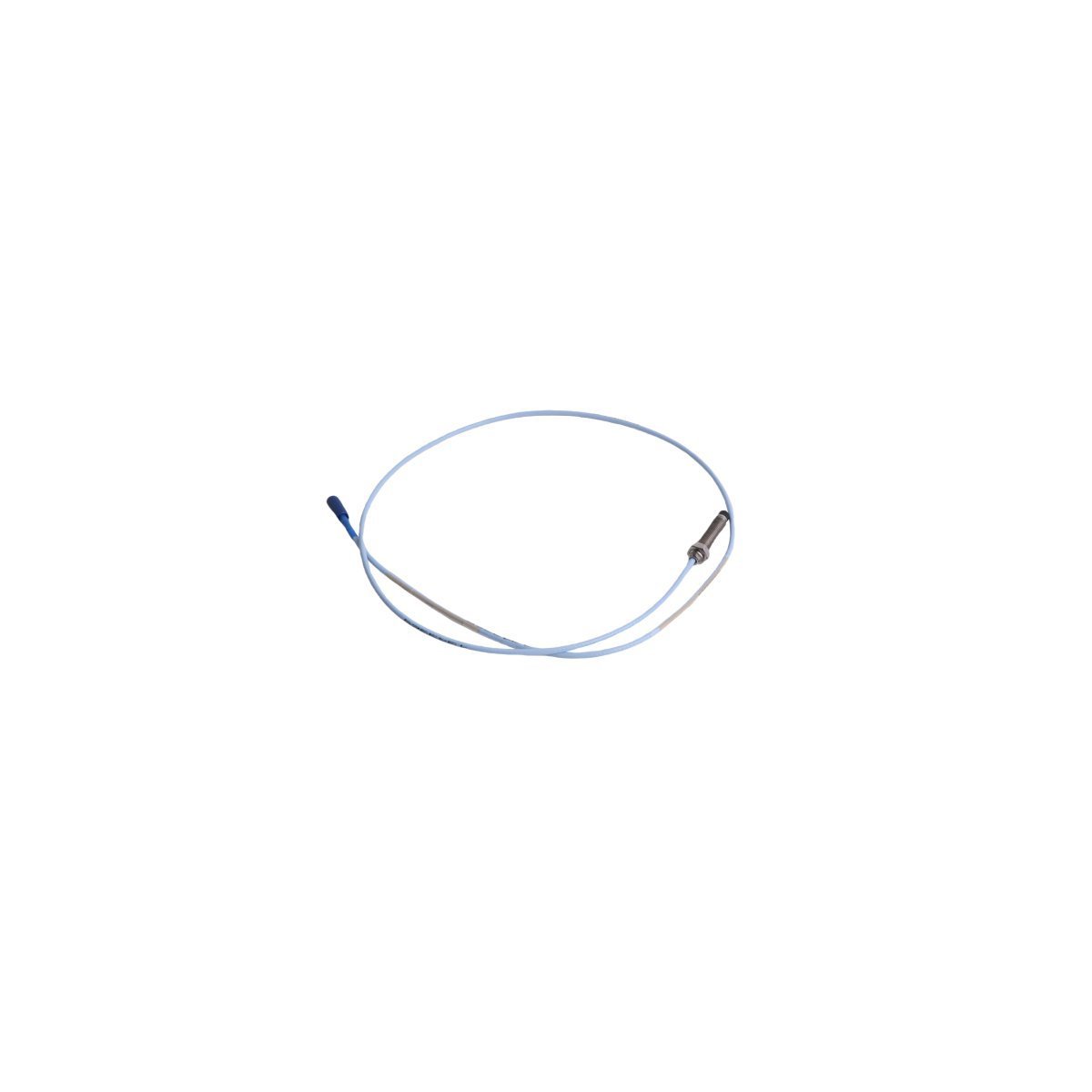

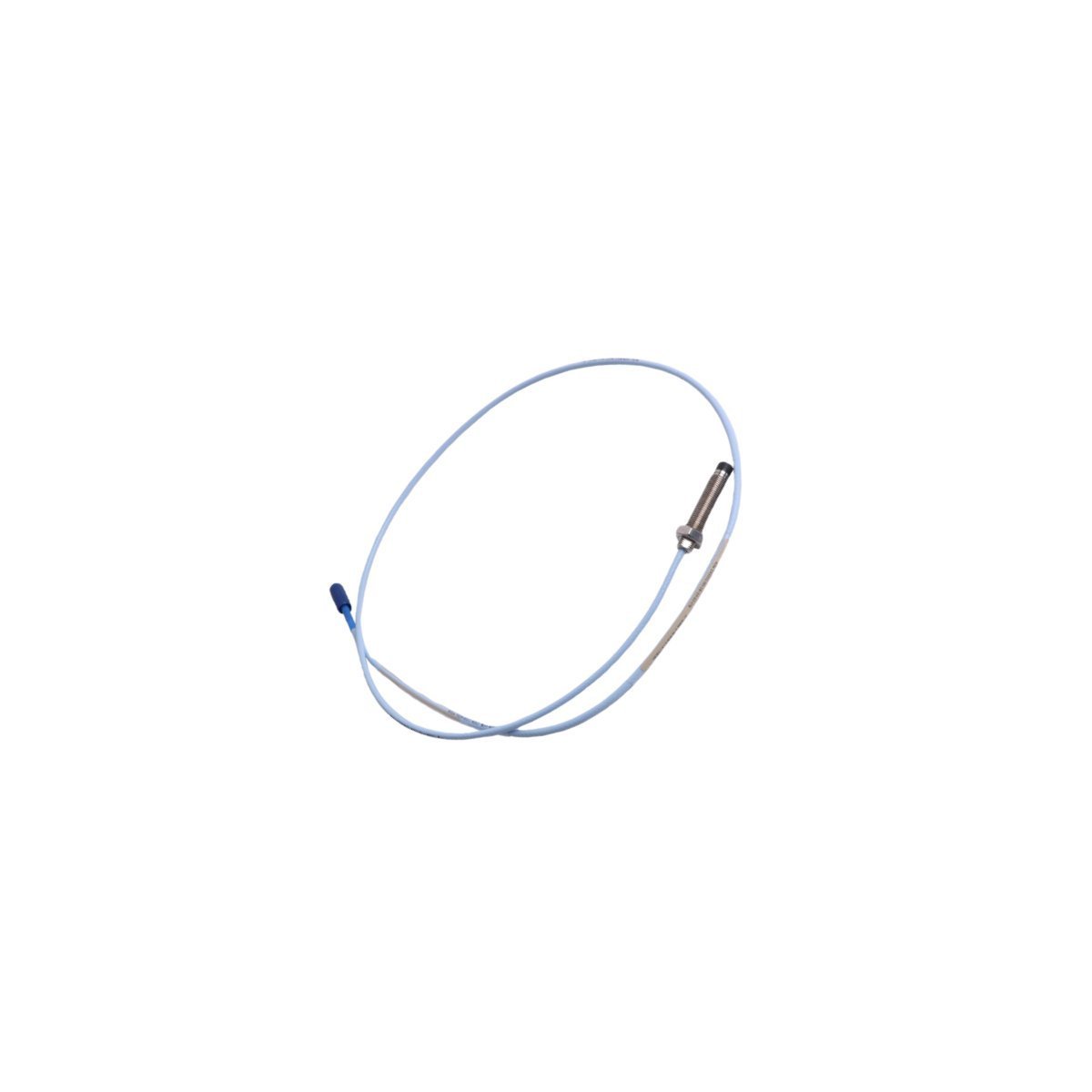

The Bently Nevada 330905-00-05-05-02-CN, also cataloged as the 330905 Proximity Probe, operates as a dedicated hardware component for contactless eddy-current displacement measurements within 3500 Machinery Protection Systems platforms. Designed specifically for tight installation spaces and small target diameters, this transducer converts radial or axial proximity variations into proportional electrical metrics via a high-frequency eddy-current sensor circuit.

Model Parameter Coding

• 330905: 3300 NSv Proximity Probe, 3/8-24 UNF thread, without armor.

• -00: Unthreaded length option of 0.0 inches.

• -05: Overall case length option of 0.5 inches.

• -05: Total length option of 0.5 meter (1.6 feet).

• -02: Miniature coaxial Click-Loc connector with fluid-resistant connector boot.

• -CN: Approvals option designating Chinese National Standards certification for hazardous environments.

Device Parameters

Eddy-Current Scaling and Target Constraints

The component relies on specialized eddy-current probe scaling tuned for targets smaller than standard 8 mm probe systems. When setting up the mechanical gap loops, technicians must perform gap voltage validation to anchor the baseline target output at -10 VDC, matching the core of the linear calibration scale. This baseline calibration is necessary to properly isolate high-frequency rotor dynamics, tracking rapid movements without signal distortion. The mechanical layout incorporates integrated insulation matrices to provide cross-talk suppression when multiple NSv sensors are deployed in close physical proximity on small-scale bearing blocks.

Package List

• 1 x Bently Nevada 330905-00-05-05-02-CN Proximity Probe

• 2 x Mounting locknuts (3/8-24 UNF thread profile)

• 1 x Silicone coaxial interface protection boot

• 1 x Calibration and compliance certificate

Mechanical Mounting and Wiring Directives

• Thread Mounting Depth

  Ensure the receiving port matches the 3/8-24 UNF thread specifications. Manually thread the probe into the bracketry, confirming a minimum engagement depth of 5 full threads to prevent axial movement caused by structural machine vibrations.

• Shielding Ground Isolation

  The outer coaxial cable shield layer must remain completely isolated from any local conduits, intermediate junction boxes, or machine frame contacts. Direct grounding must happen solely at the monitor rack terminal interface.

• Physical Routing Constraints

  Avoid forcing the coaxial probe cable or extension lead into a bend radius tighter than 25.4 mm. Exceeding this physical limit can fracture the inner conductor element and degrade the calibration metrics of the circuit.

Technical Engineering FAQ

• What is the primary baseline gap voltage required during the physical commissioning of the NSv probe?

  The target is -10 VDC, which corresponds to the physical midpoint of the calibrated linear displacement spectrum of the transducer loop.

• Can this passive NSv sensor be directly wired to an ordinary analog input module on a standard PLC?

  No. The passive probe requires an intermediate 3300 NSv Proximitor Sensor to supply the high-frequency drive frequency and modulate the raw return signal.

• What operational risk occurs if the probe coaxial cabling is routed next to high-voltage AC lines?

  Electromagnetic noise will inject into the loop, corrupting the data. Keep cables isolated in dedicated conduit paths to preserve cross-talk suppression.

• Is it acceptable to cut or splice the miniature coaxial cable to shorten a field run?

  No. Modifying the physical length alters the tuned electrical length of the loop, which invalidates the scale factor and corrupts system calibration.

• How does fluid contamination inside the Click-Loc connector impact sensor output?

  Moisture alters the loop impedance, generating false voltage readings or triggering a sensor fault state at the monitor rack. Always use the silicone boot.

• How is electrical isolation verified between the probe casing and the machine housing?

  Use a multimeter to measure the resistance between the outer Click-Loc connector shell and the machine frame. The reading must exceed 50 megohms.

• What target diameter limitation applies to the NSv series eddy-current probe scaling?

  The NSv series is calibrated for smaller target areas, allowing accurate measurement on shafts or targets down to 5.1 mm in diameter.

• Is the unarmored version of the NSv probe resilient against continuous submersion in hot mineral oil?

  Yes, the materials used in the probe tip assembly and cable jacket are rated to withstand continuous exposure to standard industrial lubricating fluids.
