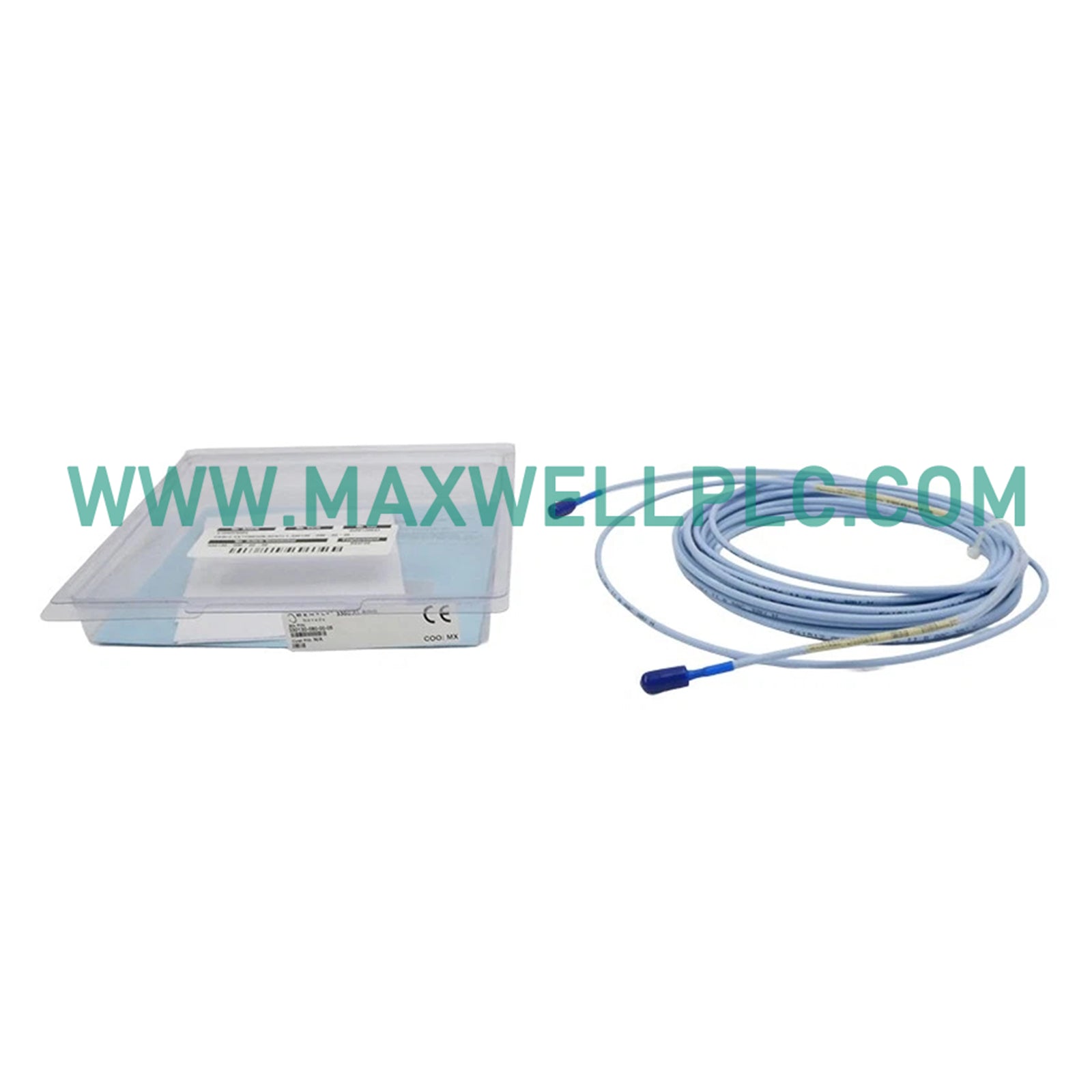

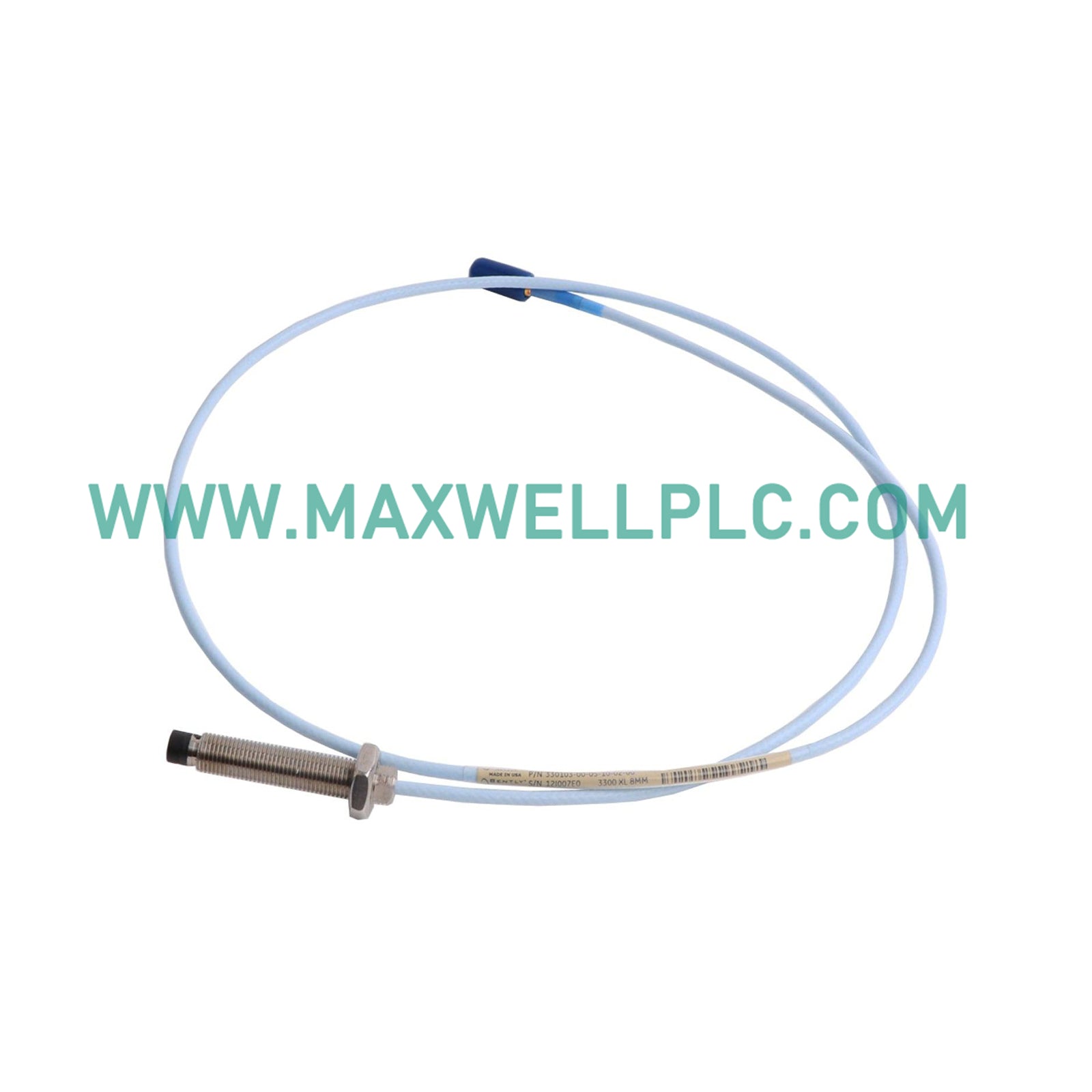

The Bently Nevada 330904-01-14-05-02-00, also cataloged as the 330904-01-14-05-02-00 Proximity Probes, operates as a dedicated hardware component for non-contacting vibration and position measurement within rotating machinery monitoring systems.

Part Number Breakdown & Configuration Matrix

• Base Model Designation: 330904 (3300 XL Proximity Transducer)
• Option 01: Threaded Length Option
• Option 14: Overall Case Length Option
• Option 05: Connector Option
• Option 02: Agency Approval Option
• Option 00: Mounting Option
• Series Architecture: Bently Nevada 3300 XL

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

Proper operation of the transducer system relies on accurate eddy-current probe scaling to ensure linear response across the measurement range. Field technicians must perform gap voltage validation during initial setup, targeting a nominal -10 VDC operational setpoint to position the shaft centerline correctly within the linear range of the characteristic curve. Rotor dynamics analysis depends on precise signal transmission, requiring rigorous cross-talk suppression techniques and proper grounding to eliminate electromagnetic interference between adjacent probe channels in high-speed turbomachinery monitoring frameworks.

Ordering Information

• 1 x 330904 Proximity Probe Tip Assembly
• 1 x Integrated Coaxial Cable with ClickLock Connector
• 1 x Factory Calibration and Test Data Sheet

Mechanical Installation and Cabling Guidelines

• Probe Mounting: Thread the probe into the mounting bracket or machine casing, utilizing proper NPT thread engagement depth (typically 5 full threads) to ensure structural stability.
• Clearance Maintenance: Ensure adequate physical clearance around the probe tip to prevent unintended target interferences or edge effects during radial vibration monitoring.
• Shielded Cabling: Route extension cables through dedicated metallic conduit, keeping signal lines isolated from high-voltage power wiring to prevent induced noise.
• Connector Protection: Secure all coaxial connections using insulated boots to protect against moisture ingress and oil contamination in harsh industrial environments.

Frequently Asked Questions

• What is the primary function of the 3300 XL proximity system?

  The system measures static and dynamic radial vibration, axial position, and speed on rotating machinery shafts across industrial applications.

• Why is gap voltage validation critical during setup?

  Targeting a -10 VDC gap voltage ensures the probe operates in the linear region of its voltage-versus-distance response curve for accurate readings.

• Can the extension cable length be altered in the field?

  No, total system length (probe, cable, and proximitor) is factory-calibrated and must match the system electrical specifications to maintain calibration accuracy.

• How does eddy-current scaling affect measurement accuracy?

  Accurate scaling guarantees that the output voltage accurately reflects physical displacement in mils or micrometers without scaling distortion.

• What precautions prevent signal cross-talk between probes?

  Maintaining proper physical separation distance between adjacent probe tips and using grounded conduit eliminates electromagnetic coupling.

• Is the probe tip rated for high-temperature environments?

  Yes, the probe tip withstands operational temperatures up to +177 deg C, making it suitable for heavy industrial turbine applications.

• What causes erratic spikes in the proximity monitor output?

  Erratic spikes are typically caused by mechanical runout, surface scratches on the shaft, loose mounting brackets, or poor cable shielding.

• Does this transducer support live hot-swapping?

  Probes and sensors can be replaced during maintenance outages, but live hot-swapping is not recommended due to potential transient alarms on machinery monitors.
