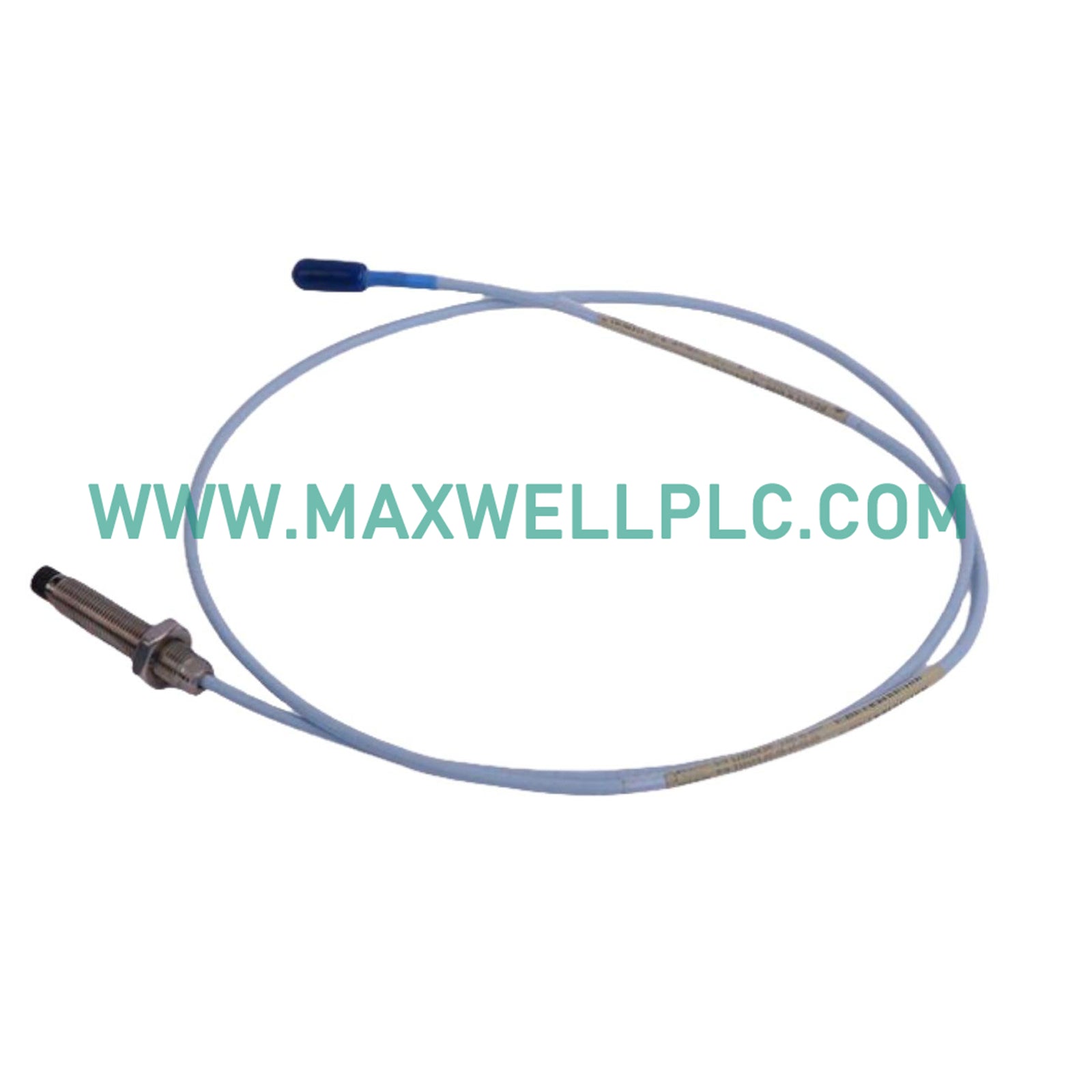

The Bently Nevada 330903-00-06-05-02-CN, also cataloged as the 330903-00-06-05-02-CN Proximity Probes, operates as a dedicated hardware component for high-frequency non-contact eddy-current measurement within restricted spatial architectures.

Suffix Breakdown and Architecture Matrix

• Base Model: 330903 (3300 NSv Unarmored Probe)
• Unthreaded Length: 00 (0 mm unthreaded portion)
• Case Length: 06 (60 mm overall case length)
• Cable Length: 05 (0.5 meter / 20 in integrated lead)
• Connector Type: 02 (Miniature coaxial ClickLoc configuration)
• Agency Approval: CN (Multiple Approvals)
• System Architecture: Bently Nevada 3300 XL NSv

Technical Specifications Matrix

Rotor Dynamics and Gap Voltage Validation

Accurate telemetry acquisition relies on maintaining strict eddy-current probe scaling across the 1.5 mm linear operating envelope. Maintenance personnel must execute gap voltage verification at the associated Proximitor output terminals, targeting a nominal -10 VDC setpoint (within an acceptable operational window of -8 VDC to -12 VDC) to center the dynamic shaft displacement curve. Proper rotor dynamics analysis further demands effective cross-talk suppression and continuous shield grounding to isolate low-level RF signals from ambient electromagnetic interference generated by adjacent variable-frequency drives.

Ordering Info

• 1 x 330903 NSv Unarmored Probe Tip Assembly (M8x1 Thread)
• 1 x Integrated Coaxial Cable with ClickLoc Connection
• 1 x Factory Calibration and Compliance Documentation

Field Installation Guidelines

• Hole Preparation: Drill and tap the machinery casing for an M8x1 threaded body, maintaining strict perpendicularity to the monitored shaft surface.
• Torque Specifications: Secure the probe housing using a calibrated torque wrench to the recommended 5.1 N·m, strictly avoiding values exceeding the 7.3 N·m limit.
• Air Gap Alignment: Set the initial physical gap distance to 1.0 mm (40 mils) prior to locking structural mounting hardware in place.
• Conduit Routing: Route coaxial cables through dedicated metallic raceways, keeping signal paths physically segregated from high-voltage power lines.

Frequently Asked Questions

• Why does the NSv series utilize a shorter linear range than standard 8 mm probes?

  The NSv employs specialized electromagnetic field shaping designed specifically for small targets and tight counterbores, resulting in a 1.5 mm linear span.

• Can this probe operate independently without a Proximitor sensor?

  No, it requires an external 3300 XL NSv Proximitor sensor to provide high-frequency radio-frequency excitation and convert impedance changes into voltage outputs.

• What happens if the gap voltage falls outside the -8 VDC to -12 VDC window?

  Operating outside this range risks driving the measurement circuit into non-linear regions, causing signal distortion during peak vibration events.

• Are connector protectors required for indoor installations?

  Yes, connector protectors prevent microscopic moisture accumulation and oil migration from contaminating the gold-plated ClickLoc mating surfaces.

• Is it permissible to cut or splice the integrated coaxial cable?

  No, altering cable length changes total system capacitance and invalidates factory calibration, requiring matched component replacements.

• What physical damage compromises probe performance?

  Scratches, gouges, or thermal degradation of the polyphenylene sulfide probe tip material alter the eddy-current field and corrupt output linearity.

• Does this part support live hot-swapping during machine operation?

  Live replacement is prohibited because disconnecting energized monitoring circuits induces electrical transients that trigger false machinery protection trips.

• What preventative measures minimize electrical noise pickup?

  Maintaining continuous outer shield continuity, bonding cable shielding to ground at a single point, and avoiding parallel runs with high-current AC lines eliminate noise.
