Product Overview

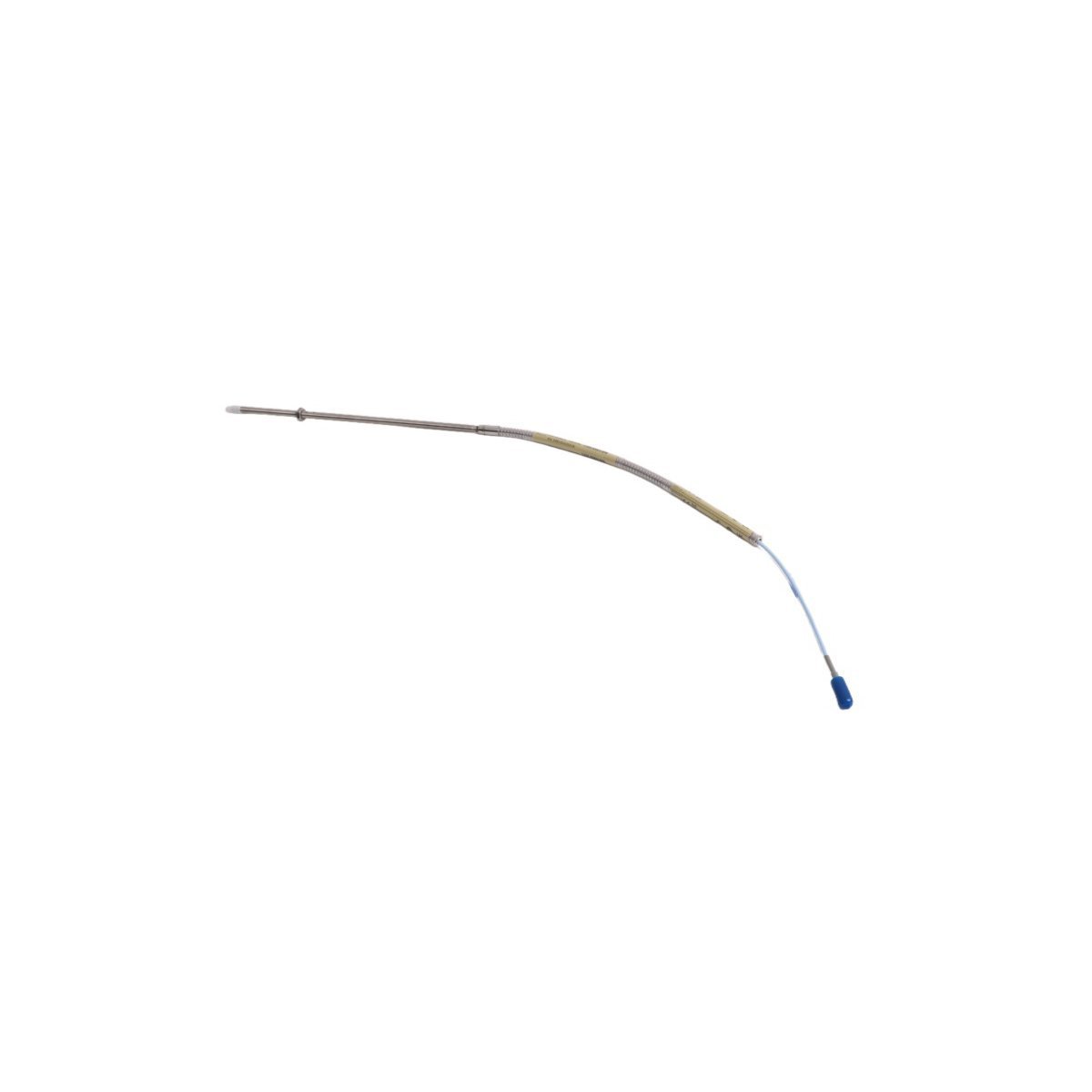

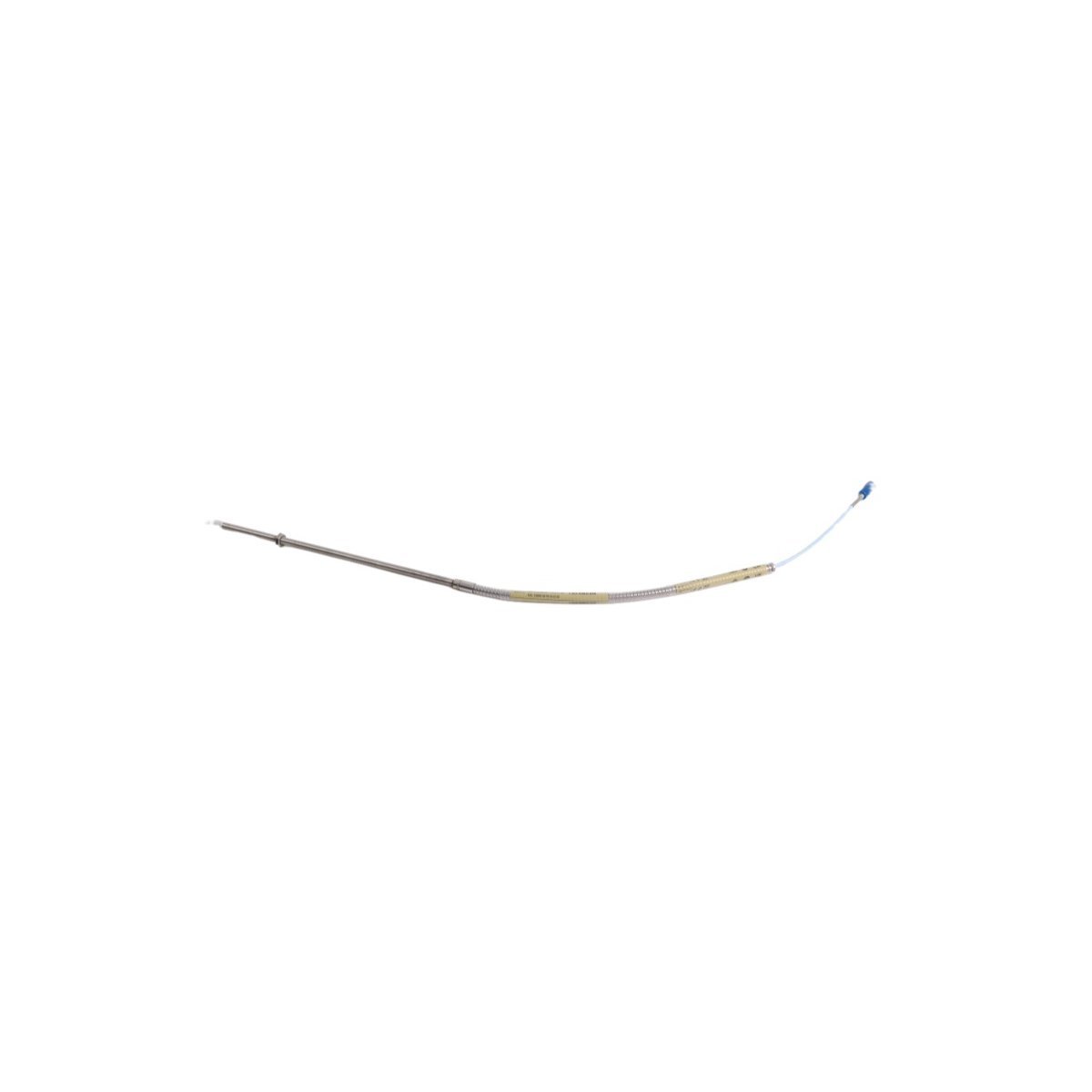

The Bently Nevada 330902-00-95-10-02-00 is a high-precision non-contacting displacement sensor belonging to the 3300 NSv (Narrow Side View) Proximity Transducer System. This specific probe model is engineered for critical machinery protection where mounting space is restricted or where small shaft diameters prevent the use of standard 8mm probes. It delivers reliable vibration and position data by measuring the gap between the probe tip and the conductive target material.

Equipped with advanced RFI/EMI shielding, this probe ensures signal stability in electromagnetically noisy industrial environments. The hardware features a robust armored cable and gold-plated ClickLoc connectors, which provide a secure, vibration-resistant mechanical link between the probe and the extension cable. The 3300 NSv series is particularly effective for monitoring centrifugal compressors, pumps, and other high-speed rotating equipment within a Turbine Supervisory Instrumentation (TSI) framework.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)

• Model Number: 330902-00-95-10-02-00

• System Series: 3300 NSv Proximity Transducer System

• Thread Type: 1/4-28 UNF (English Thread)

• Cable Length: 1.0 Meter (3.3 feet)

• Armor Option: Included (Stainless steel flexible armor)

• Connector Type: Miniature Coaxial Click-Lok (Gold-plated)

• Probe Tip Diameter: 5 mm (NSv profile)

• Mounting Configuration: Fixed bolt or bracket mount

• Weight: 0.06 kg

• Origin: United States

Key Performance Characteristics

• Precision Displacement Sensing: Designed for small targets and tight clearance areas where standard eddy current probes cannot fit.

• Mechanical Integrity: Utilizes TipLoc molding to bond the probe tip to the body and CableLoc technology to withstand up to 220 N (50 lb) of pull force.

• Environmental Protection: The armored construction guards the lead-in cable against mechanical abrasion and fluid exposure; connector protectors are recommended for high-moisture environments.

• Standard Compliance: Meets CE requirements for electromagnetic compatibility without requiring specialized isolation mounting.

• Ease of Maintenance: Features tool-free installation compatibility when paired with 3300 NSv Proximitor sensors and SpringLoc terminals.
