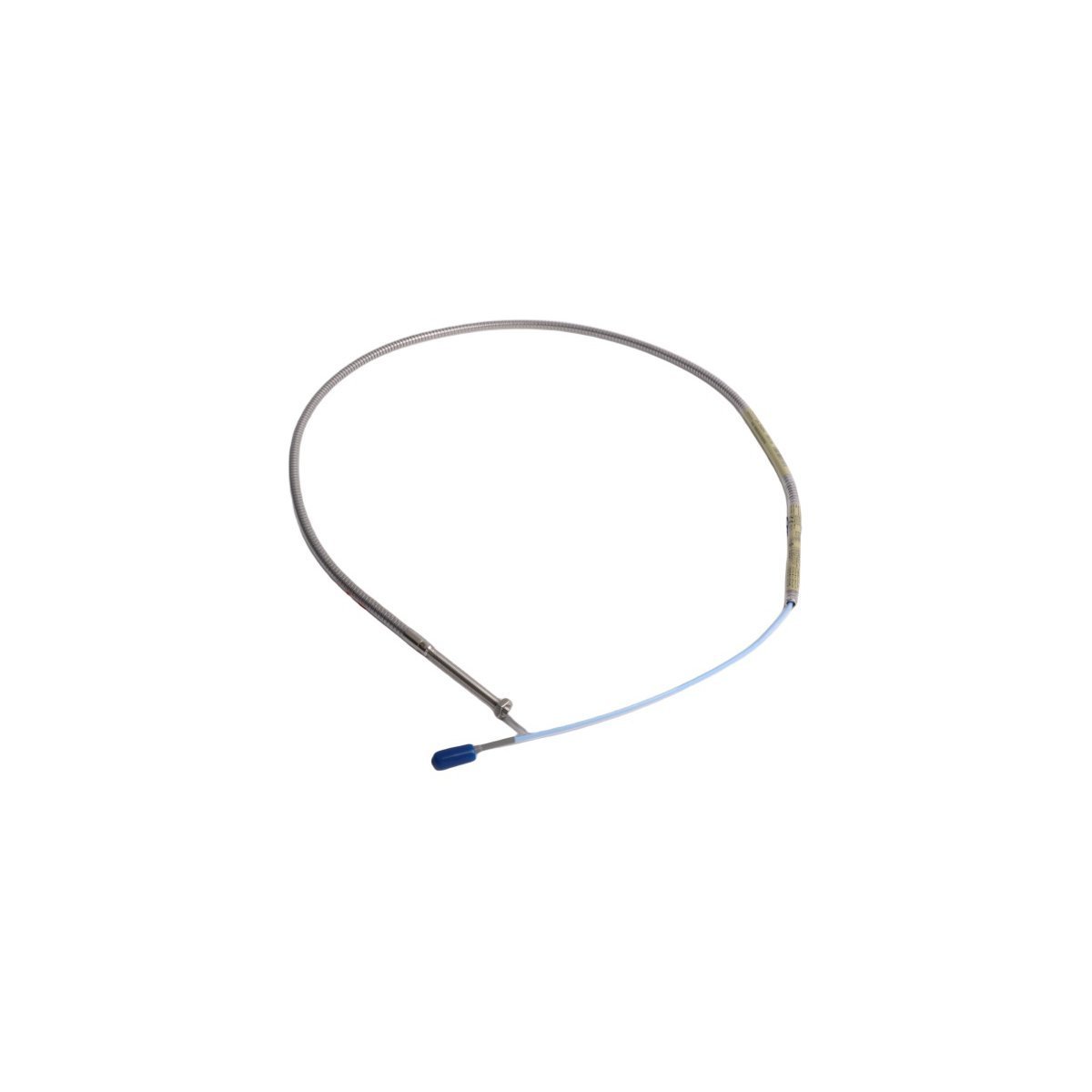

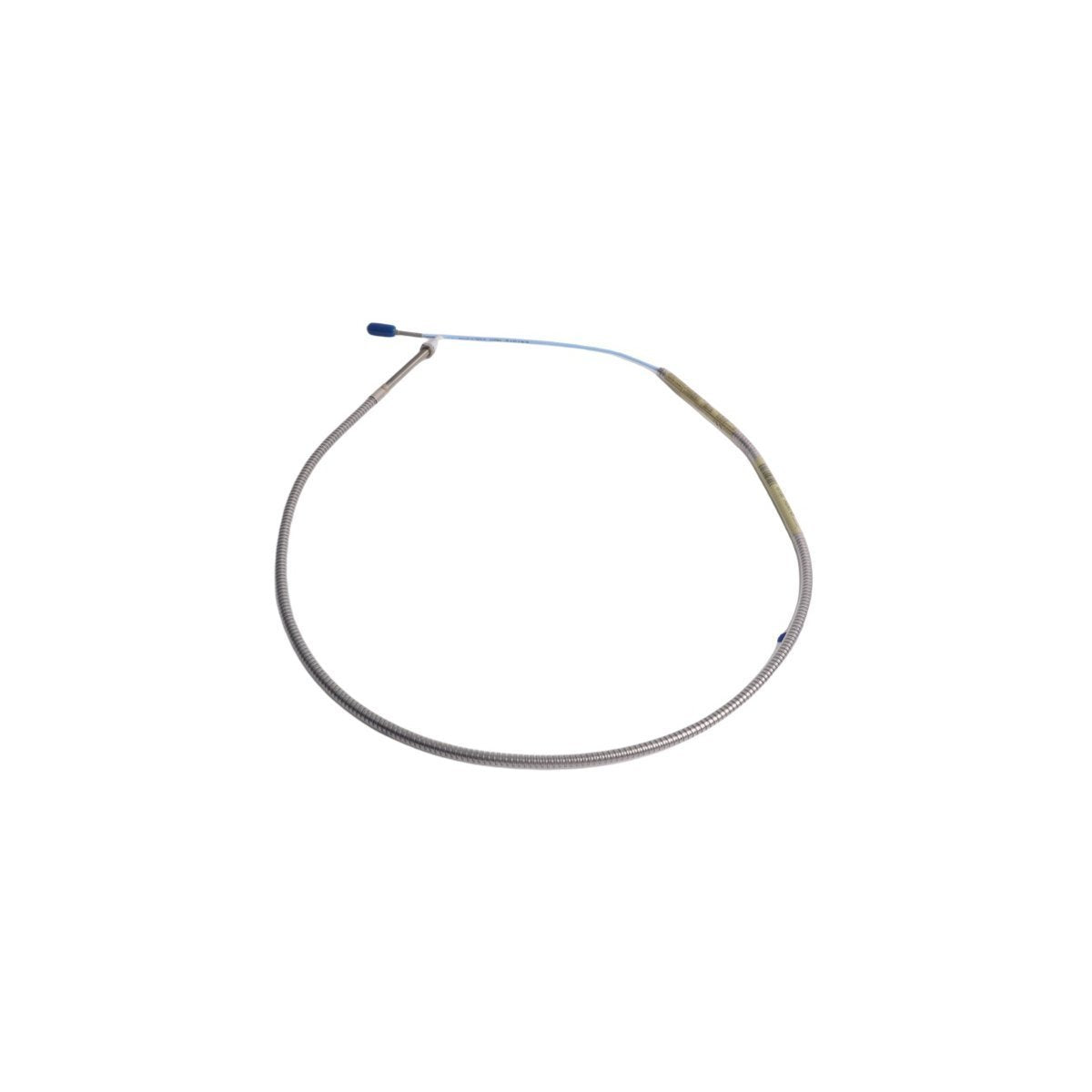

Configured for non-contact displacement and shaft position measurements in tight mechanical envelopes, the Bently Nevada 330902-00-25-10-02-05 (330902 Proximity Sensor) provides direct physical/electrical execution. This eddy-current transducer assembly monitors radial vibration, axial thrust position, and tachometer reference points on rotating machinery where target dimensions or structural clearances are constrained.

Suffix Array Interpretation

• 330902: Base 3300 NSv Proximity Probe, 3/8-24 UNF thread, smooth nose.

• -00: Unthreaded length option (0.0 inches).

• -25: Overall case length option (2.5 inches).

• -10: Total length option (1.0 meter).

• -02: Miniature coaxial connector with miniature male connector type.

• -05: Fluid leakage resistance option with specialized fluoroelastomer cable sleeve.

Parameter Matrix

Eddy-Current Target Interaction and Calibration

The 330902-00-25-10-02-05 probe transmits a high-frequency radio frequency (RF) field generated by its internal coil tip into adjacent target structures. Proper eddy-current probe scaling requires tight impedance matching with the 3300 NSv Proximitor Sensor electronics. Correct mechanical positioning must be confirmed through gap voltage validation (-10 VDC targets representing the mid-point of the linear sensing curve). Variations in the target material chemistry disrupt rotor dynamics data accuracy; therefore, the RF field must interact strictly with standard AISI 4140 steel unless a custom material calibration is performed on the driver module to prevent cross-talk suppression failures and signal clipping under extreme shaft runout conditions.

Technical Clarifications

Q: What are the physical differences in application between the 3300 NSv probe and a standard 3300 XL 5mm probe?

A: The 3300 NSv probe features a smaller tip diameter designed specifically for targets narrower than standard 5mm probes, such as small-diameter shafts or counterbores. It exhibits a steeper calibration curve across its compact linear range to resolve signals on reduced target surfaces without edge-effect distortion.

Q: How does loop length matching impact the electrical output of this transducer configuration?

A: The probe option dictates a 1.0-meter integrated system length. It must be paired with a matching 4.0-meter extension cable to complete a 5.0-meter system configuration. Mixing total system lengths (e.g., matching a 1.0-meter probe with an 8.0-meter cable) alters the baseline capacitance, causing severe scale factor drift and invalidating the 7.87 V/mm output standard.

Q: Can the sub-miniature coaxial connector tolerate exposure to lubricating oils inside machine housings?

A: The connector options specified by suffix -02 require dry, clean environments. While the -05 cable sleeve protects the core insulation from oil absorption, the internal pin interface must be protected inside a sealed junction box or isolated with chemical-resistant heat-shrink tubing to prevent oil tracking from shorting the RF signal.

Mechanical Installation Protocol

Drill and tap mounting holes perpendicular to the shaft centerline within 0.5 degrees to avoid cross-axis sensitivity errors. When running probe leads through conduits, maintain a minimum bend radius of 25.4 mm (1.0 inch) to prevent internal micro-fractures in the coaxial core. The sensor head requires a minimum physical clearance of 7.6 mm (0.30 inches) around the tip perimeter to prevent accidental side-viewing interference from adjacent structural walls. Ensure the coaxial outer shield is electrically isolated from the machine casing and terminated exclusively at the Proximitor housing ground point.

Procurement Package Content

• 1 x Bently Nevada 330902-00-25-10-02-05 Proximity Probe

• 1 x Coaxial Connector Protection Sleeve

• 2 x 3/8-24 UNF Jam Nuts

• 1 x Material Compliance Record

Dispatch and Transport Standards

Estimated transit duration: 2-7 days when payment finish, routed via expedited international carriers including DHL/FEDEX/UPS. All proximity components are shipped inside static-shielded, heat-sealed bags utilizing heavy-duty anti-static industrial packaging. Internal stabilization cells protect the sensitive eddy-current tip geometry from structural deformation or magnetic fields during transit.
