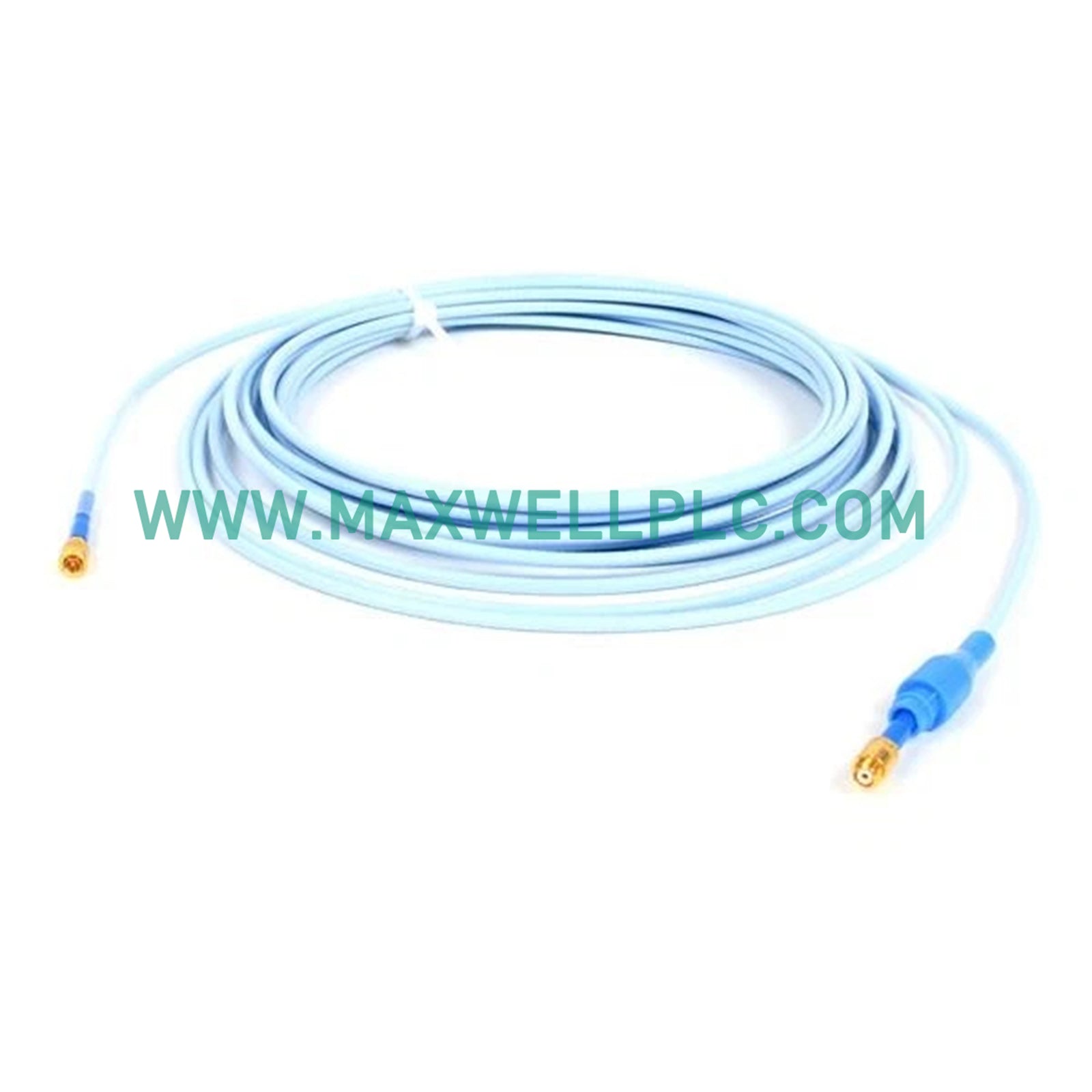

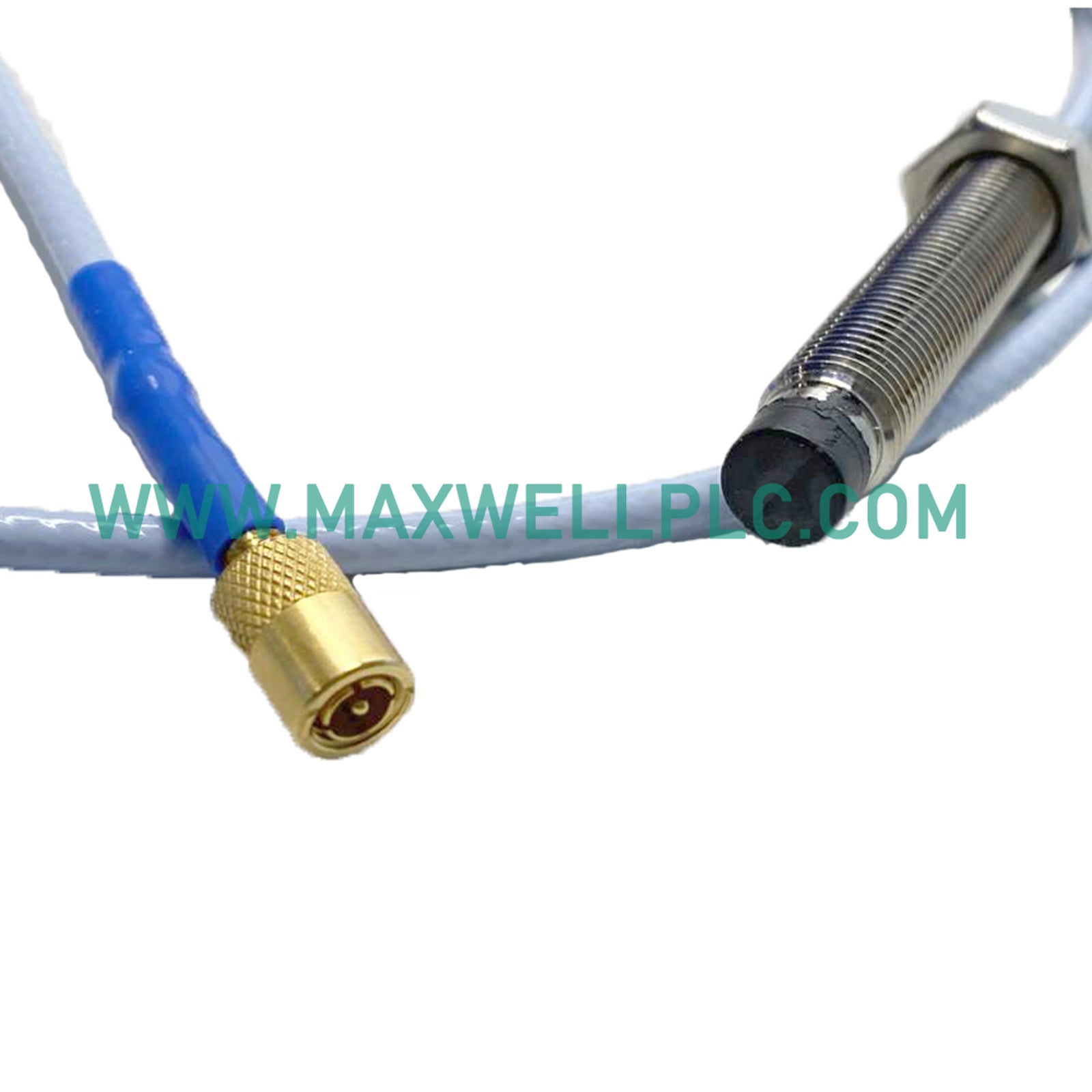

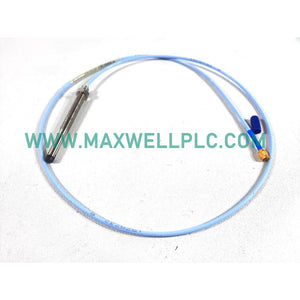

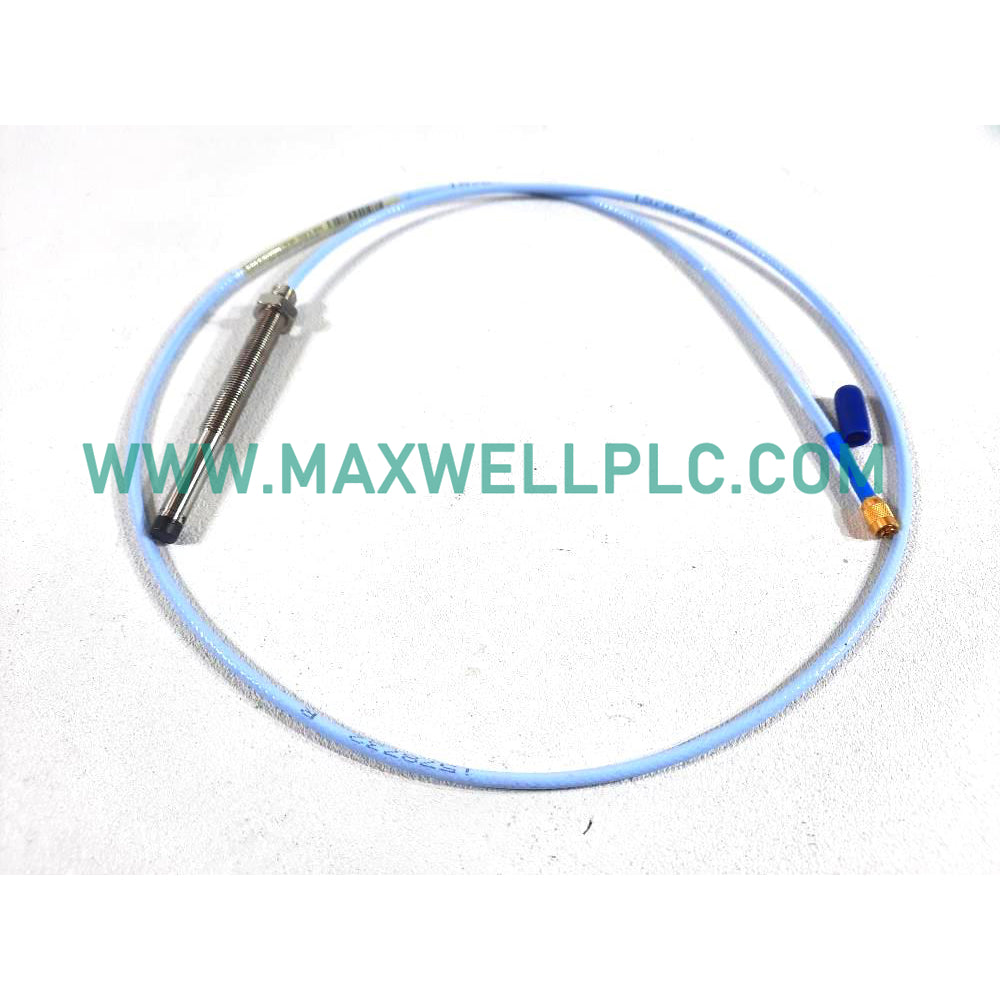

Engineered for precision displacement sensing within confined mechanical spaces where standard probes fail to fit, the Bently Nevada 330901-00-15-05-02-00 (330901-00-15-05-02-00 3300 NSv Proximity Probes) delivers high-frequency eddy-current telemetry for shaft vibration and position monitoring.

Part Matrix & Model Construction

• Base Configuration: 330901 (3300 NSv Unarmored Probe Assembly, 1/4-28 UNF Thread)
• Unthreaded Barrel: 00 (0.0 in unthreaded length beneath the probe tip)
• Case Length Designation: 15 (1.5 in overall threaded case length)
• Integral Lead Length: 05 (0.5 meter / 20 in attached coaxial cable)
• Connector Type: 02 (Miniature coaxial ClickLoc connector with standard cable)
• Approval Option: 00 (Standard non-hazardous rating, not required)
• Platform Family: Bently Nevada 3300 XL NSv Transducer System

Technical Data Specifications

Rotor Dynamics & Electrical Tuning Parameters

Achieving valid machinery diagnostics with the 330901 system requires precise calibration of the static gap voltage. Field engineers must adjust the mechanical mounting depth until the Proximitor sensor output registers a nominal -10 VDC baseline, maintaining an operational band between -8 VDC and -12 VDC. Because the NSv coil design scales specifically for small target surfaces or reduced side-view clearances, maintenance protocols must also enforce rigorous coaxial shielding and single-point chassis grounding to suppress radio-frequency interference from variable-speed drives.

Contents Included in Shipment

• 1 x 330901 NSv Unarmored Probe Assembly (1/4-28 UNF Thread)
• 1 x 0.5 m Attached Coaxial Cable with ClickLoc Terminal
• 1 x Factory Calibration and Conformance Sheet

Mechanical Installation & Alignment Instructions

• Hole Preparation: Drill and tap the machinery casing using a 1/4-28 UNF tap, ensuring the mounting spot faces dead-center and stays square to the rotor shaft.
• Torque Limits: Secure the threaded probe body with calibrated wrenches, applying moderate torque to prevent crushing the internal dielectric core.
• Cold Gap Setting: Position the probe tip to achieve a baseline 1.0 mm (40 mil) physical gap using a depth micrometer before locking down retention nuts.
• Cable Management: Route the short 0.5-meter coaxial lead away from high-power AC motor leads, securing it inside a dedicated metallic instrumentation tray.

Technical FAQ

• Why does the NSv probe feature a shorter linear range than standard 8 mm models?

  The specialized electromagnetic tip geometry is tuned specifically for narrow counterbores and small-diameter shafts, yielding a condensed 1.5 mm linear operating span.

• Can this unit function without a matched Proximitor sensor?

  No, it requires an external 3300 XL NSv Proximitor unit to supply the high-frequency radio carrier signal and process impedance shifts into usable voltage.

• What occurs if the static gap voltage drifts outside the -8 VDC to -12 VDC window?

  Operating outside this linear band forces the internal circuitry toward saturation or cutoff, resulting in clipped vibration waveforms and distorted peak-to-peak data.

• Are connector protectors necessary for short internal cable runs?

  Yes, installing a protector over the ClickLoc mating joint prevents microscopic oil or moisture ingress from degrading the gold-plated signal path.

• Is it permissible to shorten or splice the 0.5-meter integral cable?

  No, altering factory cable length changes total circuit capacitance, invalidating system calibration and throwing off vibration amplitude accuracy.

• What physical conditions ruin the probe tip integrity?

  Deep gouges, severe scratching, or chemical breakdown of the polyphenylene sulfide tip material distort the magnetic field and ruin signal linearity.

• Does disconnecting the probe while running cause machinery trips?

  Unplugging energized sensor loops during active operation can inject transient voltage spikes that trigger false protection system shutdowns.

• How should multiple probes be oriented around a radial bearing?

  Space X and Y probes 90 degrees apart while maintaining at least 23 mm of physical separation between probe tips to eliminate cross-channel magnetic coupling.
