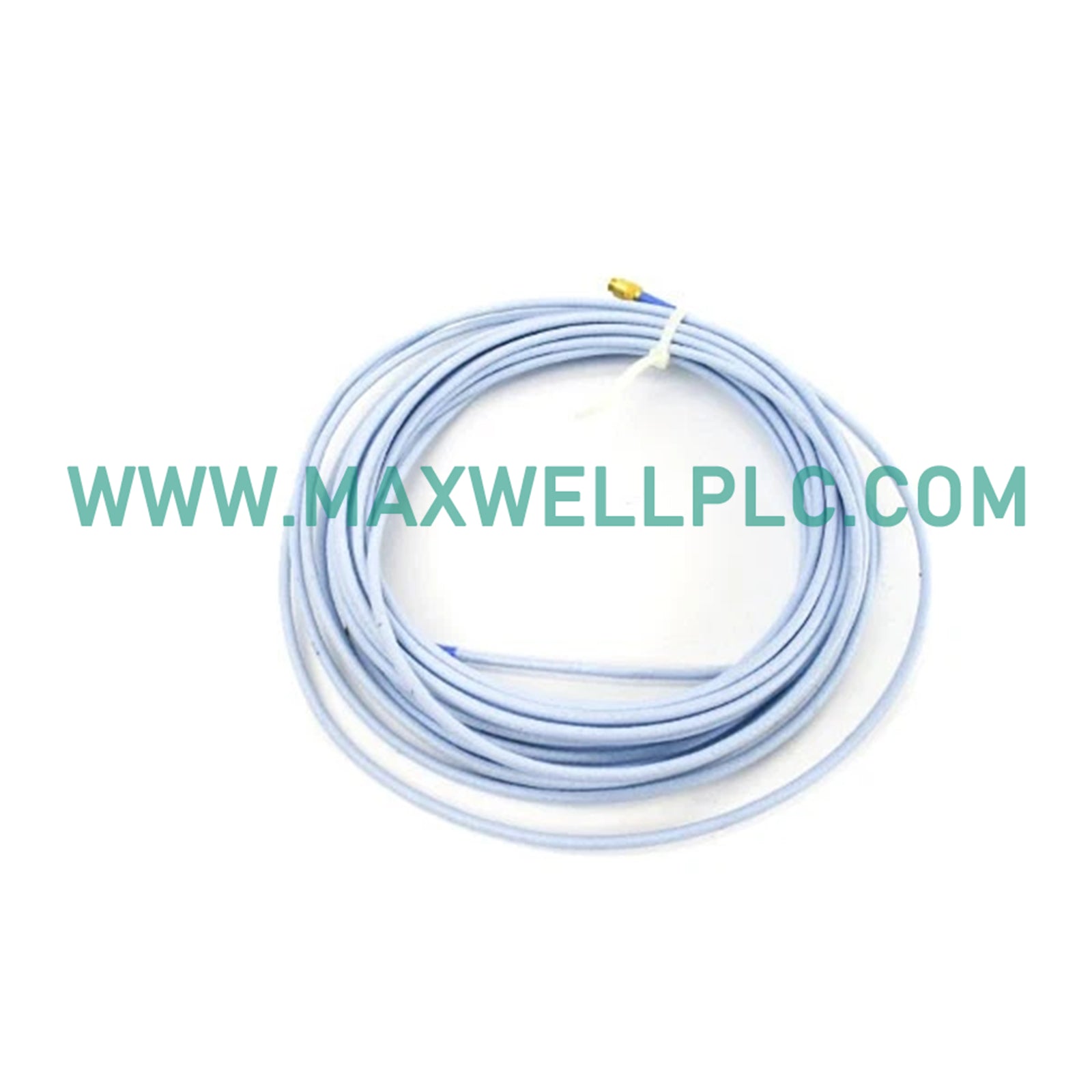

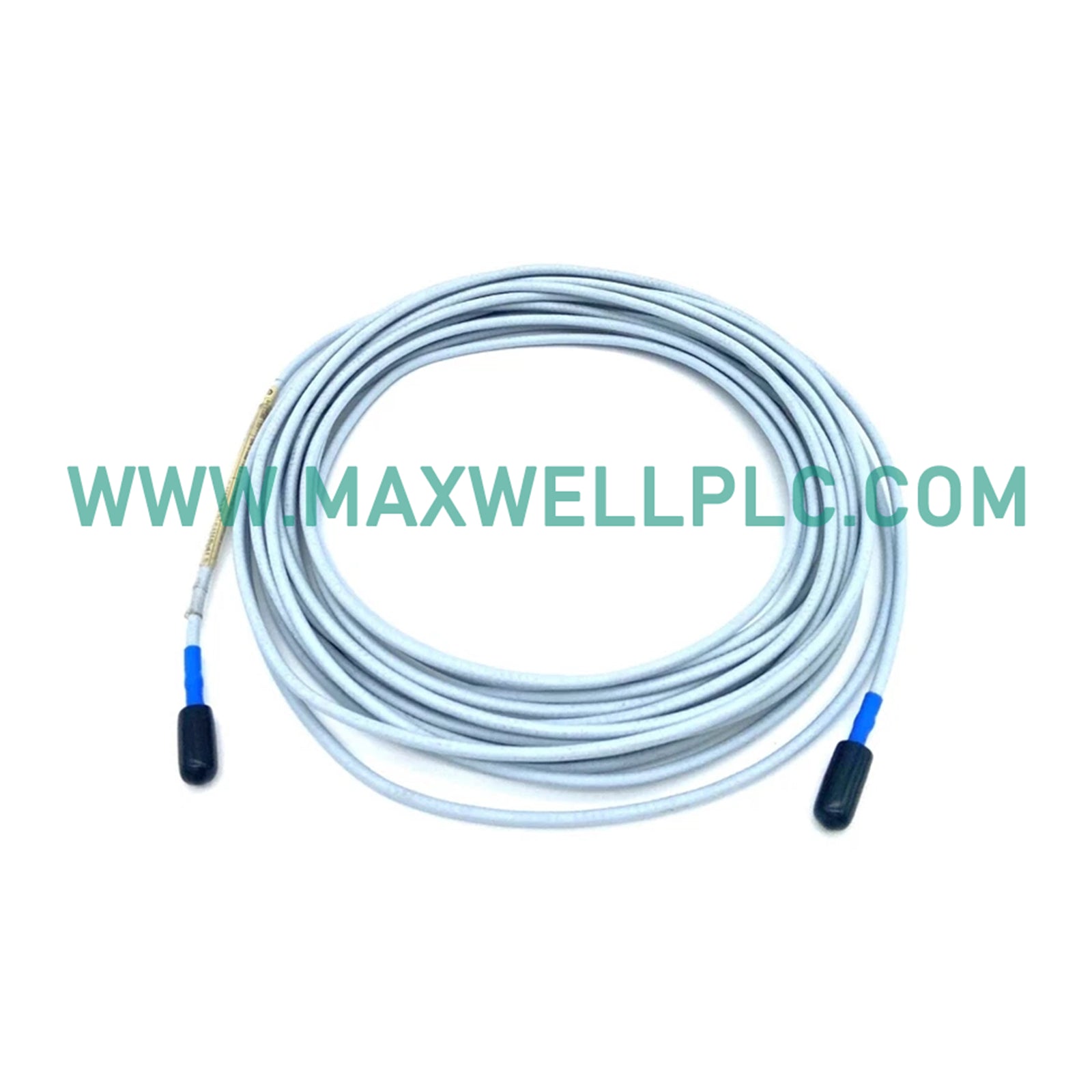

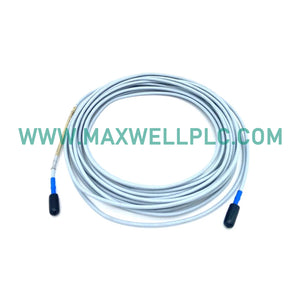

The Bently Nevada 330901-00-12-05-02-05 serves as the primary 330901 Proximity Probe utilized to execute non-contacting shaft displacement and vibration measurements across 3300 XL NSv platforms.

Variant Configuration and Option Codes

• 330901: 3300 NSv proximity probe base nomenclature, featuring a 1/4-28 UNF thread geometry.
• 00: Designates a 0.0 in unthreaded length configuration along the main sleeve body.
• 12: Specifies a 1.2 in overall case length parameter layout.
• 05: Establishes a total integrated hardware length of 0.5 meter (20 in).
• 02: Equips a gold-plated brass miniature coaxial ClickLoc connector on standard unarmored cable.
• 05: Grants multiple agency approval certifications for hazardous environment operations.

Physical and Performance Parameters

Eddy-Current Probe Scaling and Cross-Talk Suppression

The 3300 XL NSv transducer assembly employs specialized eddy-current probe scaling matrices engineered for reduced side-view envelopes and small mechanical target surfaces. This localized magnetic profile enhances resolution in compact spaces while providing cross-talk suppression during multi-axis rotor dynamics checks, making it a direct upgrade pathway for legacy 3300 RAM or 3000-series 190 transducer system layouts.

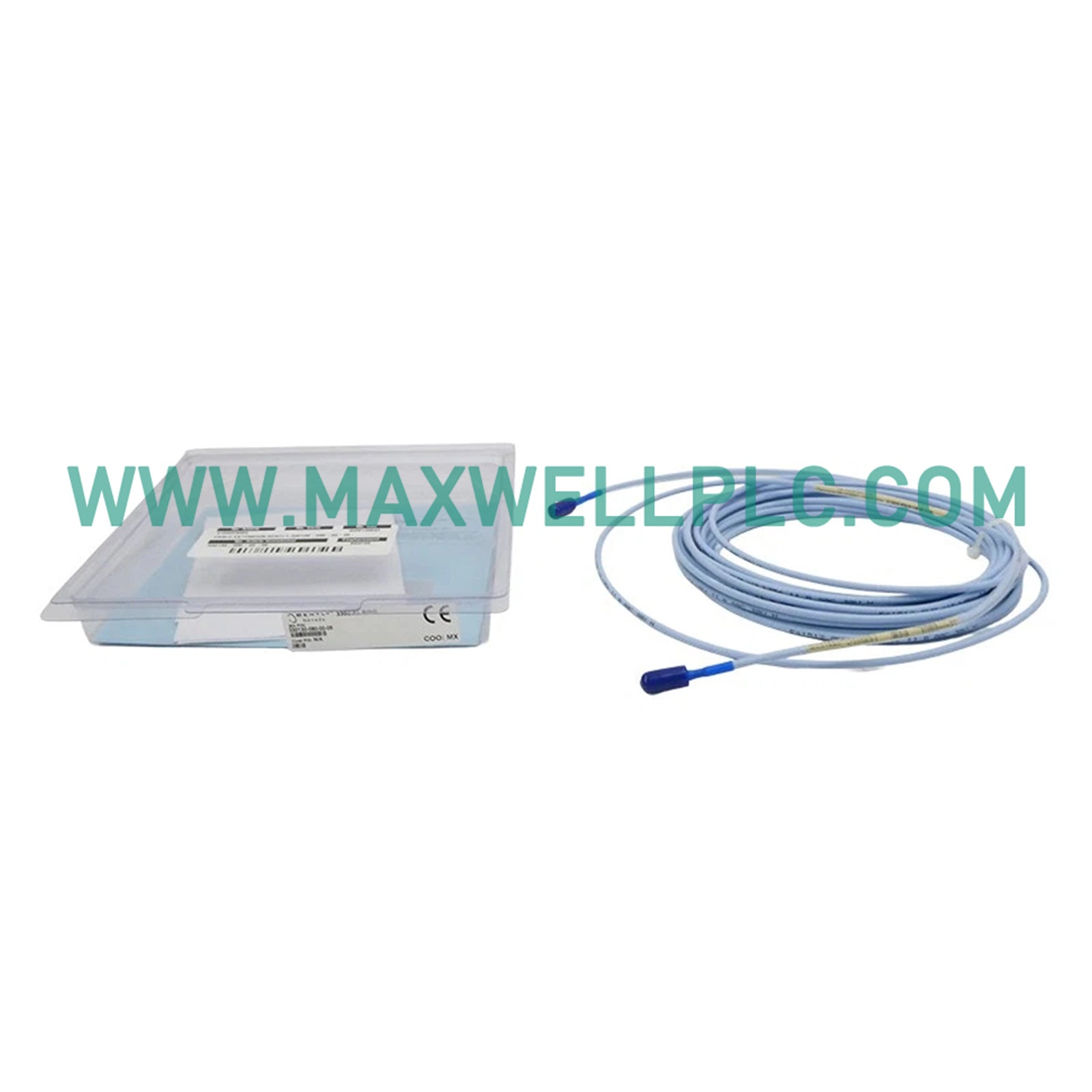

Hardware Shipping Inventory

• 1 x 330901-00-12-05-02-05 3300 NSv Proximity Probe
• 1 x Coaxial Terminal Interface Protective Cap

Field Mounting and Mechanical Limits

• Torque and Mechanical Engagement
  • Advance the 1/4-28 UNF threaded barrel manually. Tighten to a recommended installation torque of 5.1 N m (45 in lb). Do not exceed the absolute limit of 7.3 N m (65 in lb).
  • Maintain a minimum of 5 full thread engagements within the mounting assembly to prevent loosening under high vibration.
• Counterbore and Separation Clearances
  • Enforce a minimum counterbore diameter of 13 mm (0.5 in). A counterbore down to 9.5 mm is permissible but may shift the scale factor.
  • Maintain a minimum probe separation distance of 23 mm (0.9 in) for radial vibration or 25 mm (1.0 in) for axial arrangements to prevent signal distortion.

Engineering Technical FAQ

• What standard gap voltage validation value is required during static instrumentation setups?

  The proximity signal processing path requires a nominal gap voltage validation setting of -10 VDC at the physical center of the linear calibration band.

• Can this specific 0.5 meter probe connect directly to standard 3300 XL 8 mm Proximitor modules?

  No, the 3300 NSv loop utilizes unique internal tuning parameters and requires a matching 3300 XL NSv Proximitor component to function.

• How does the integrated CableLoc design impact the mechanical structural integrity of the assembly?

  The CableLoc mechanism attaches the cable to the probe tip, supplying up to 220 N (50 lb) of continuous pull strength.

• What functional problem develops if liquid bypasses the unshielded ClickLoc connector interface?

  Moisture inside the terminal alters coaxial impedance, degrading the eddy-current probe scaling accuracy and generating false signals.

• What is the primary advantage of the factory patented TipLoc molding method?

  The TipLoc molding establishes a robust structural bond between the polymer tip and the metal barrel, preventing detachment.

• Does this 1.2 in case option provide adjustable depth positioning when mounted inside thick brackets?

  The 0.0 in unthreaded configuration means the full 1.2 in case is threaded, enabling fine position adjustments inside thin brackets.

• Can this hardware replace a legacy 3000-series 190 transducer loop without replacing the extension cables?

  No, upgrading from a 3000-series system requires replacing the legacy probe, extension cable, and Proximitor with dedicated NSv components.

• How should the outer coaxial signal line be managed to prevent localized electrical ground loop noise?

  Install a dedicated connector protector sleeve over the probe-to-extension cable junction to prevent ground contact with the machine.
