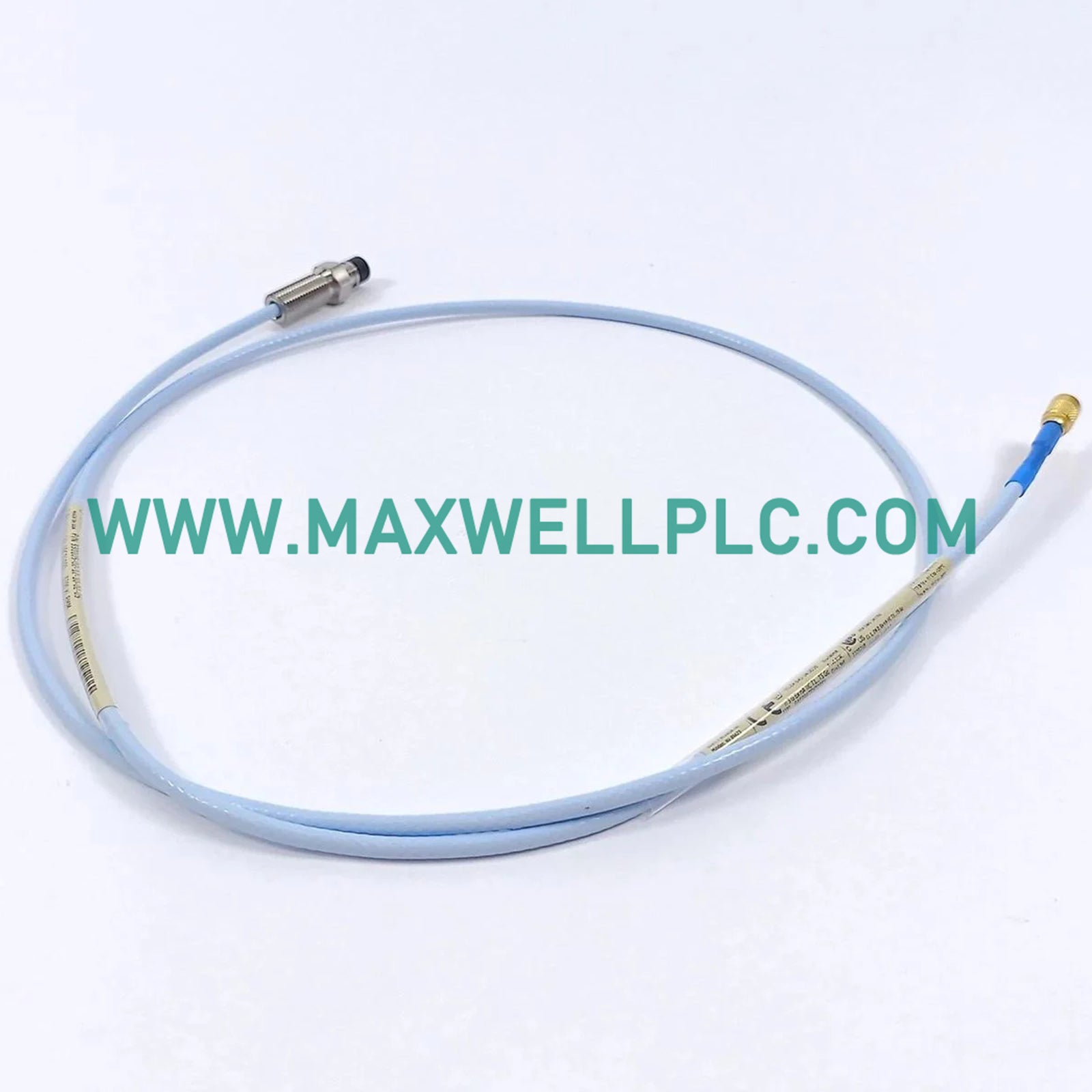

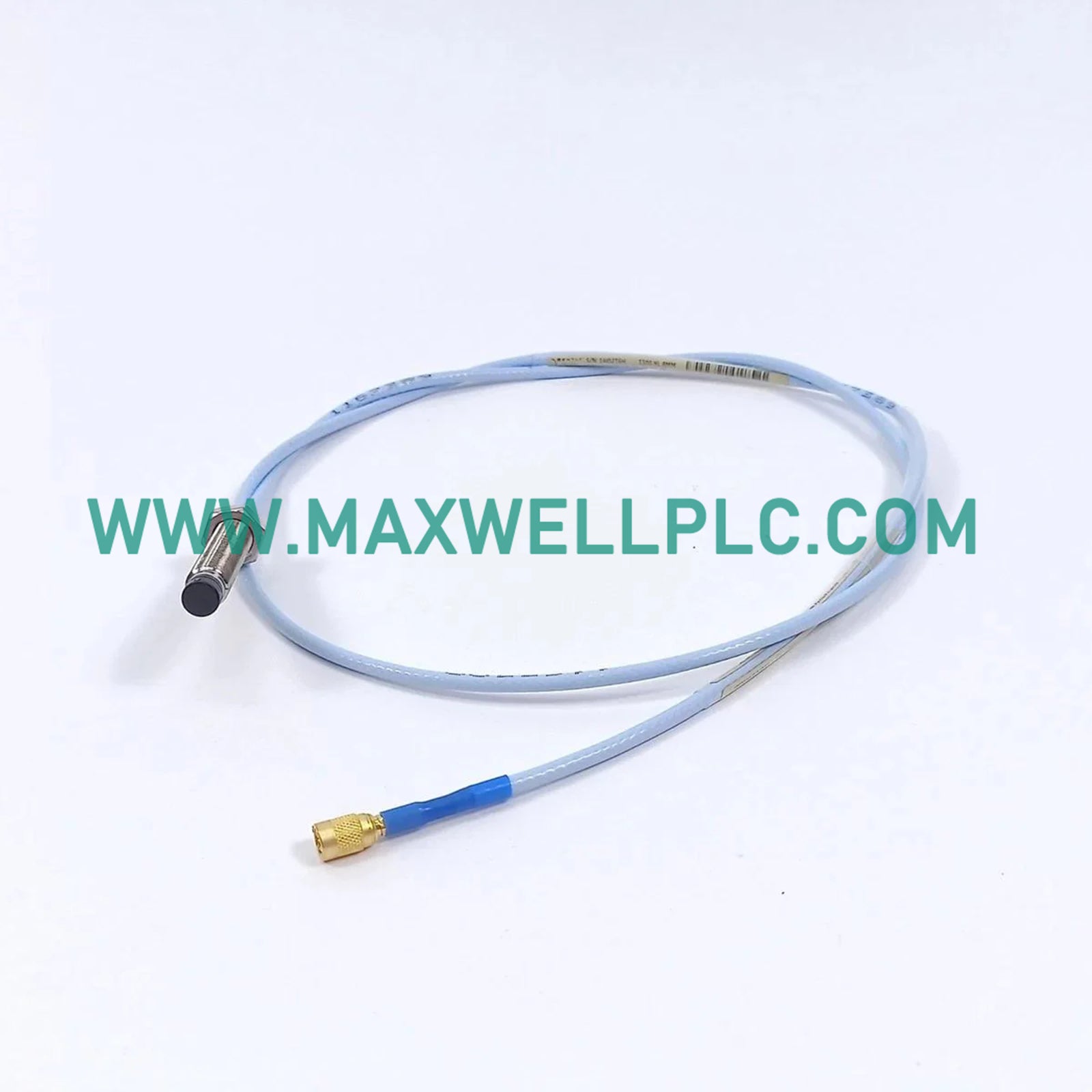

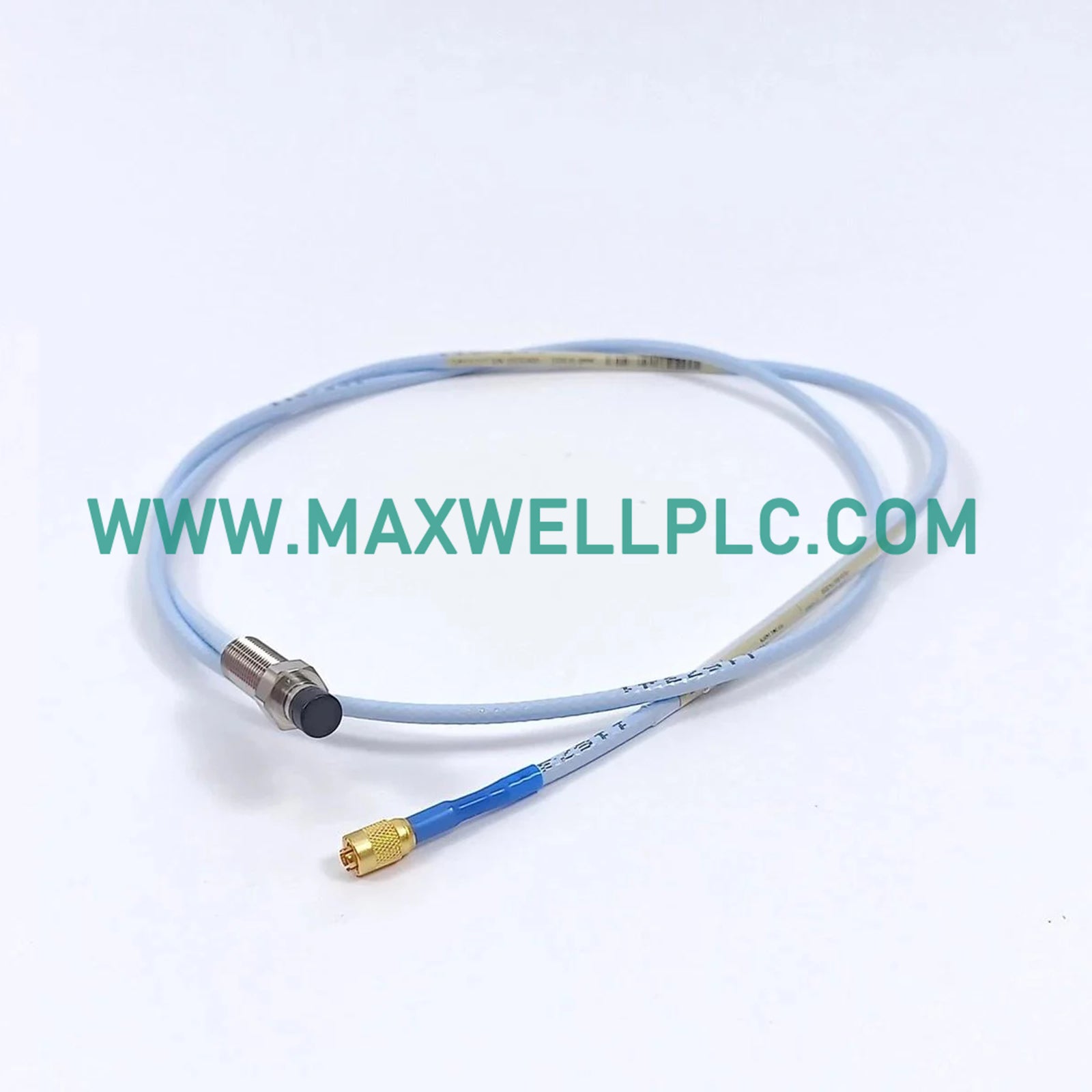

Engineered for strict clearance constraints, the Bently Nevada 330901-00-08-10-02-CN (330901-00-08-10-02-CN 3300 NSv Proximity Probes) executes high-frequency eddy-current signal generation for low-clearance machinery telemetry.

Component Identification and Suffix Breakdown

• Base Model: 330901 (3300 NSv Unarmored Probe)
• Unthreaded Option: 00 (0.0 in unthreaded body portion)
• Case Length Option: 08 (0.8 in total threaded case length)
• Cable Length Option: 10 (1.0 meter integral lead)

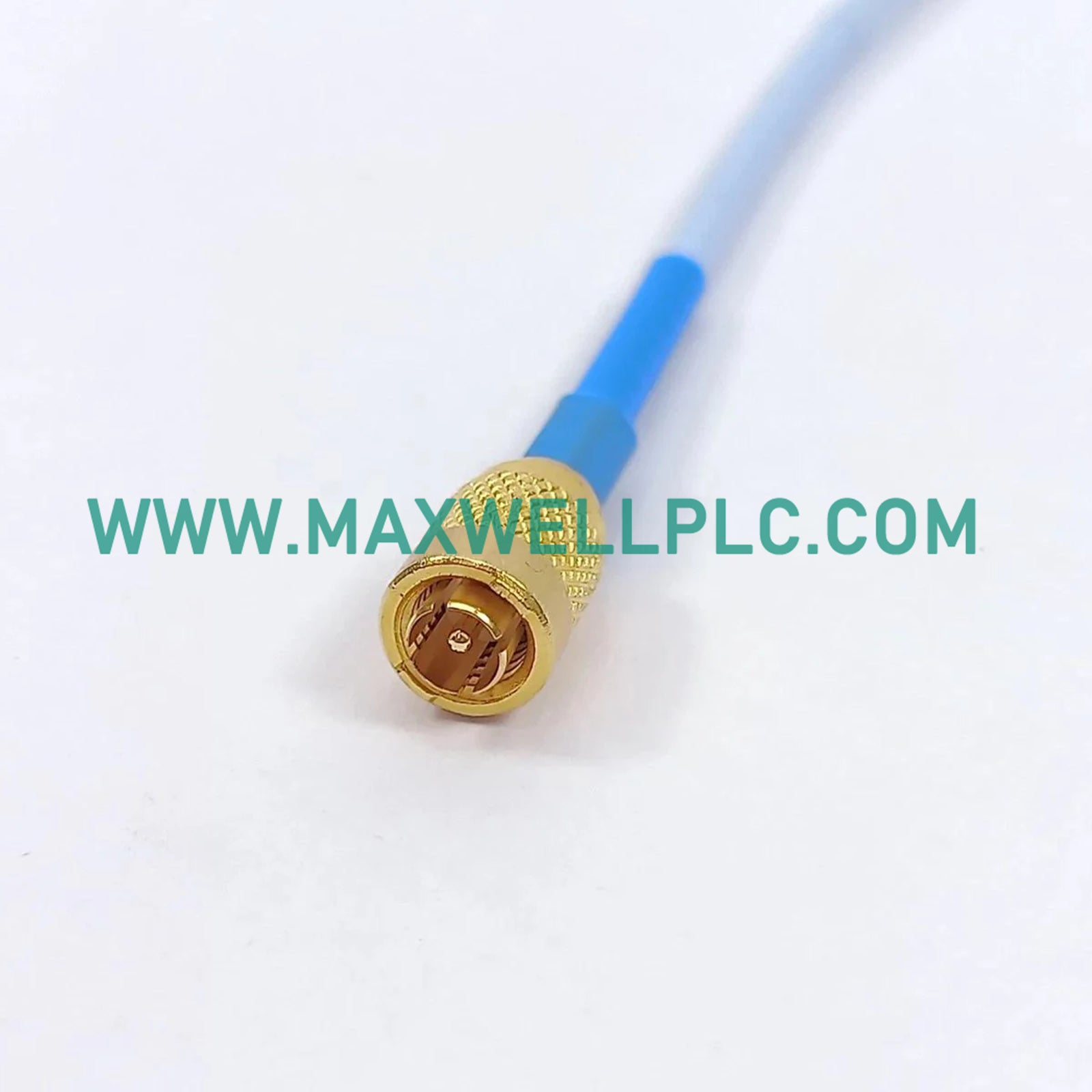

• Connector Type: 02 (Miniature coaxial ClickLoc configuration)
• Approvals: CN (Multiple regional certifications)
• Platform: Bently Nevada 3300 XL NSv

Technical Specifications Matrix

Rotor Dynamics and Gap Voltage Validation

Maintaining signal integrity in high-speed rotating assemblies requires precise eddy-current probe scaling and strict adherence to shaft centerline parameters. Technicians must measure DC voltage across the Proximitor output terminals, adjusting physical placement until the static gap voltage rests at a nominal -10 VDC (within an operational window of -1 VDC to -13 VDC). Proper execution of cross-talk suppression and continuous braided shield grounding prevents electromagnetic interference from corrupting shaft vibration waveforms during transient machine states.

Package Contents

• 1 x 330901 NSv Unarmored Transducer Tip (1/4-28 UNF thread)
• 1 x 1.0 m Coaxial Cable with ClickLoc Termination
• 1 x Product Documentation Packet

Field Installation Parameters

• Thread Preparation: Tap mounting holes for 1/4-28 UNF threads, maintaining exact perpendicularity to the monitored shaft surface.
• Torque Limits: Hand-tighten the probe body, then apply calibrated torque wrench settings per standard Bently Nevada hardware tolerances without crushing internal dielectrics.
• Initial Gap Positioning: Set the cold mechanical gap to 1.0 mm (40 mils), ensuring the linear range begins approximately 0.25 mm from the target face.
• Routing Isolation: Keep signal leads separate from high-capacity motor power lines to mitigate inductive pickup.

Technical FAQ

• Why does the NSv design feature a restricted linear measurement range?

  The specialized tip geometry is optimized for small targets and tight counterbores, yielding a focused 1.5 mm linear span.

• Can this probe function without an external Proximitor sensor?

  No, the passive probe tip requires the radio frequency oscillator circuitry inside the matched Proximitor module to generate displacement data.

• What causes signal drift during steady-state machine operation?

  Thermal expansion of the machinery casing, changes in shaft metallurgy, or loose mechanical locking nuts typically induce observable voltage drift.

• Are connector modifications permitted during field routing?

  No, altering the integral coaxial cable length modifies total circuit capacitance and destroys factory calibration accuracy.

• How do connector protectors affect signal reliability?

  They seal gold-plated ClickLoc joints against moisture and oil ingress, preventing high-impedance electrical leakage paths.

• Is hot-swapping allowed on powered monitoring channels?

  Disconnecting live circuits generates voltage spikes that can trip emergency shutdown relays or damage sensitive input channels.

• What defines acceptable target geometry for this model?

  It is engineered for shafts smaller than 51 mm or flat surfaces under 15 mm where standard 8 mm probes experience side-view interference.

• How should shield wires be terminated?

  Shields must terminate at a single designated instrument ground point to create a Faraday cage effect against external noise sources.
