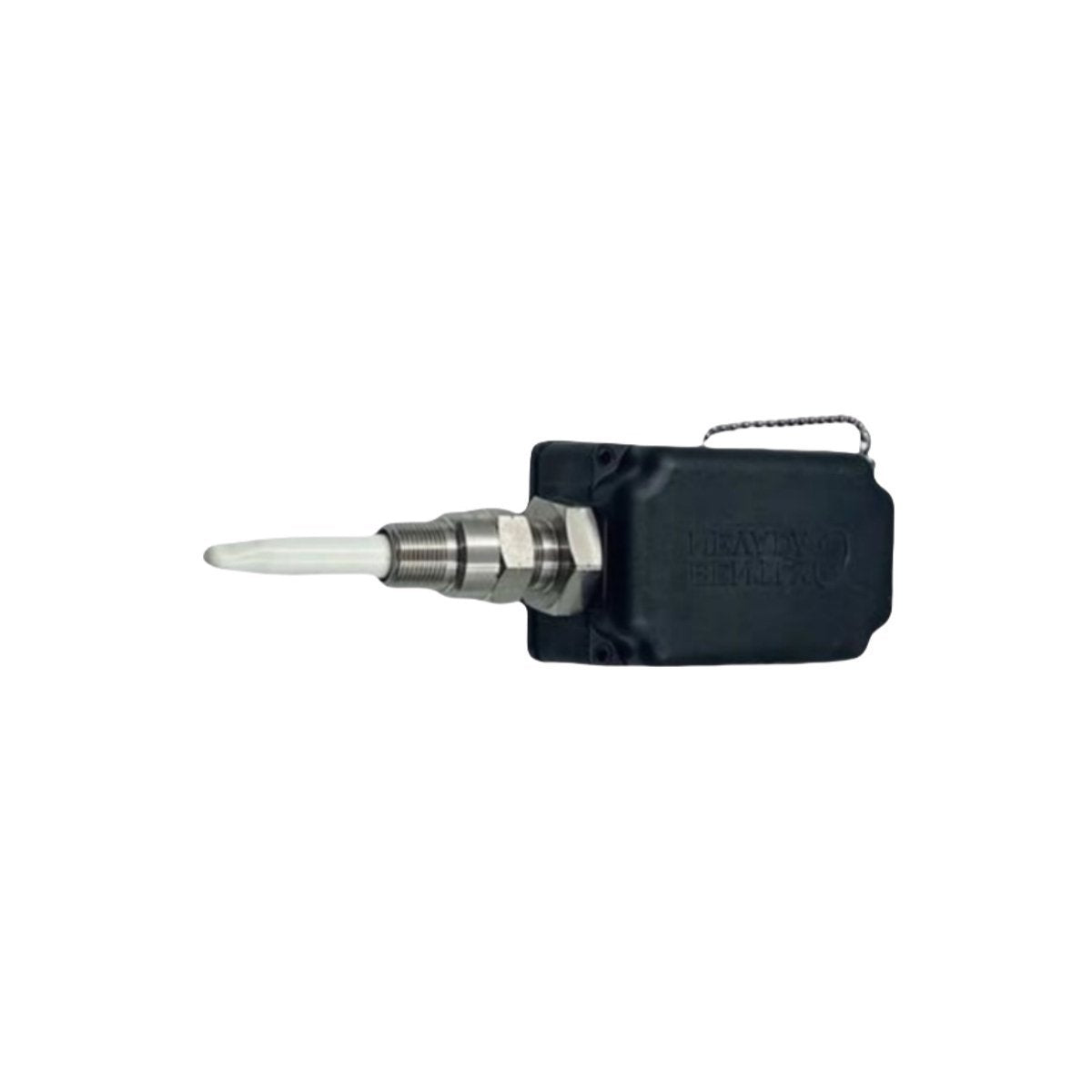

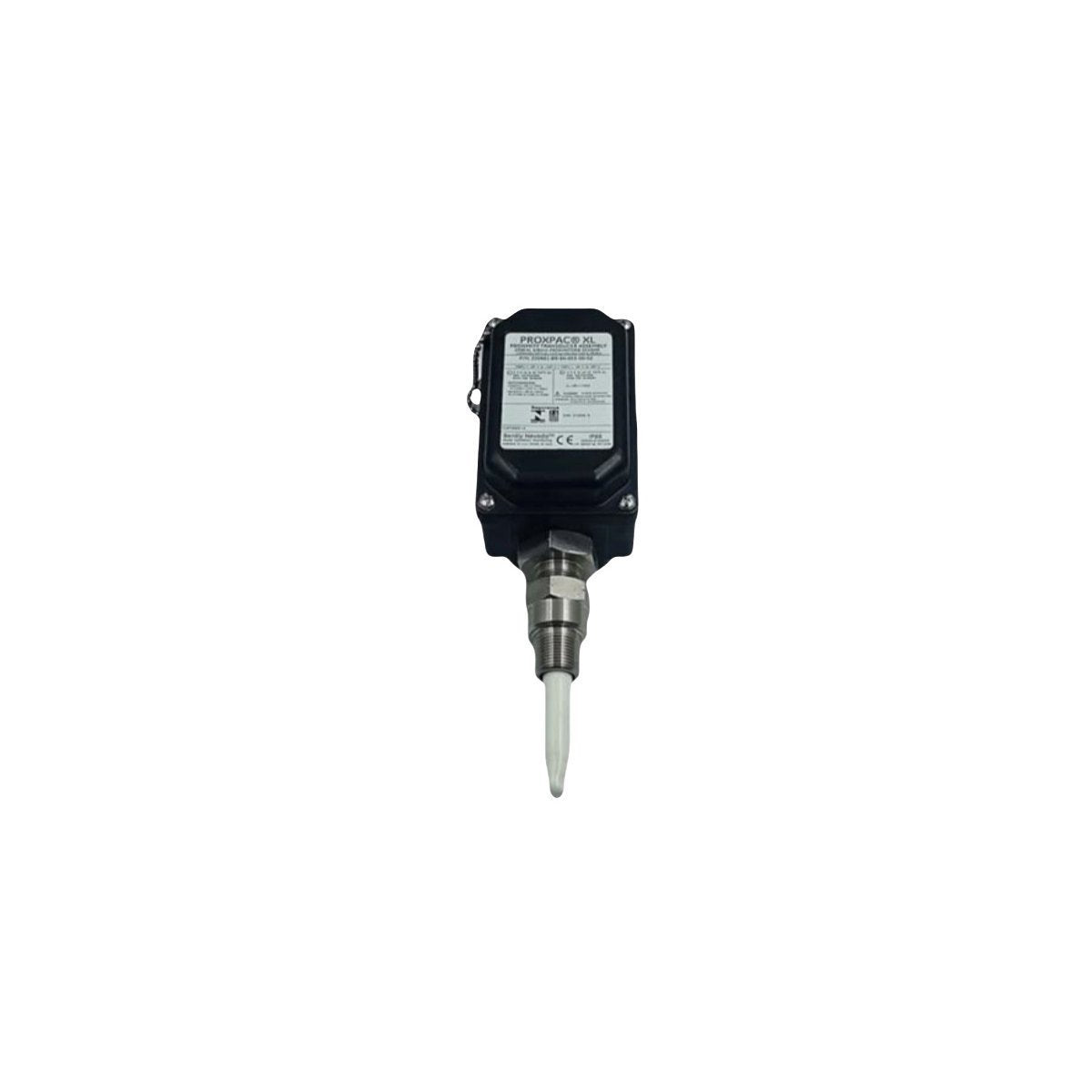

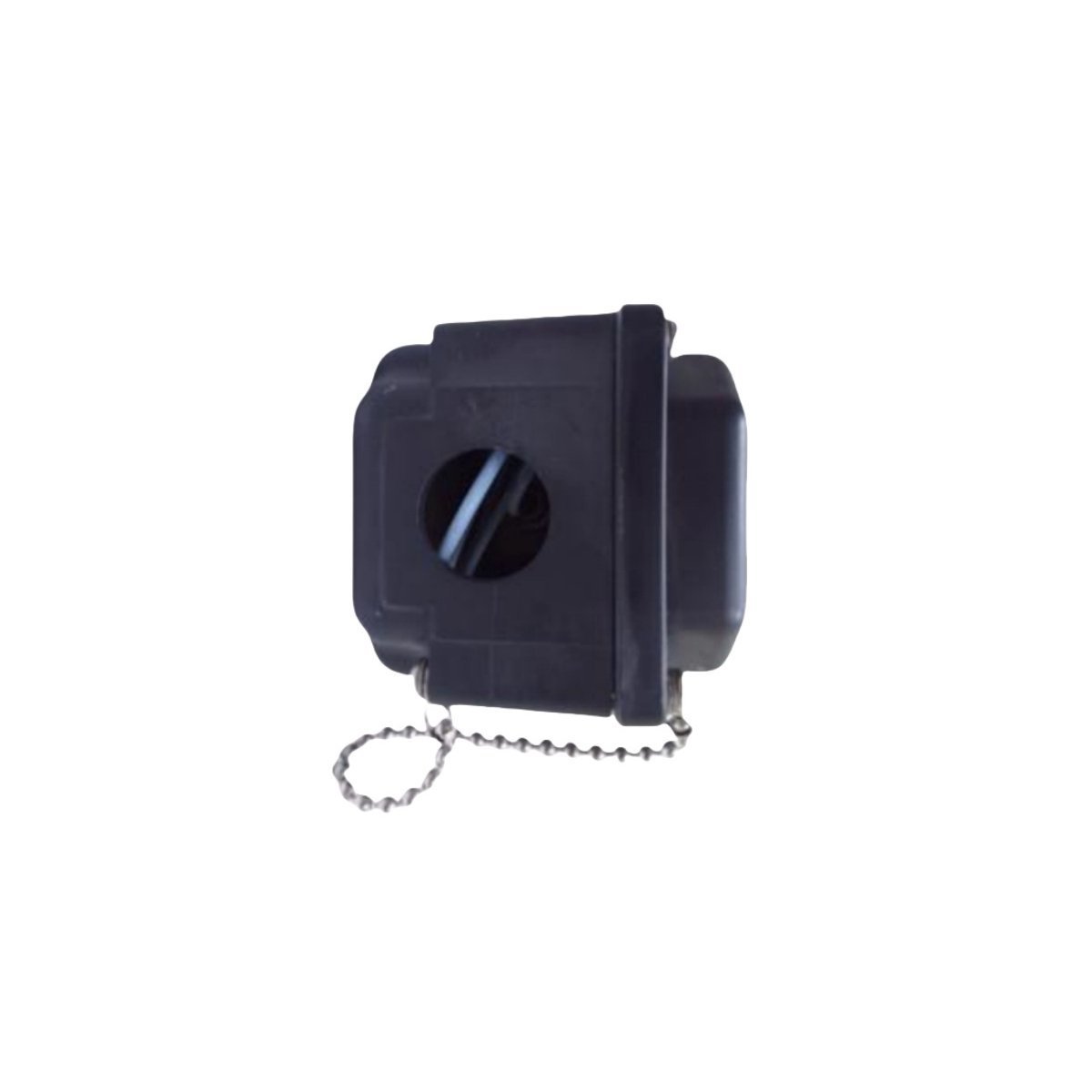

Configured for non-contacting vibration and position monitoring in industrial rotating machinery, the Bently Nevada 330881-28-04-034-06-02 (330881 PROXPAC XL Proximity Transducer) provides direct physical signal execution via an integrated 8 mm eddy-current probe assembly.

Model Configuration Matrix

The part number defines specific mechanical and interface parameters:

• 330881: PROXPAC XL transducer assembly

• 28: Housing material and configuration

• 04: Standoff adapter option

• 034: Probe length (34 mm)

• 06: Agency approval and certification

• 02: Interface and connector configuration

Hardware Specifications

Mechanical Monitoring and Signal Validation

System precision is maintained through rigorous eddy-current probe scaling protocols. The 330881 unit requires gap voltage validation to ensure a nominal -10 VDC output at the center of the linear operating range. Accurate assessment of rotor dynamics requires that the probe tip remains clear of mechanical obstructions. Effective cross-talk suppression is achieved by ensuring that probe installation maintains the required spatial separation from other electromagnetic fields, preventing mutual interference during high-speed shaft displacement monitoring.

Ordering Info

• 1 x 330881-28-04-034-06-02 PROXPAC XL Transducer

• 2 x Conduit entry plugs

• 2 x Mounting washers

• 1 x Technical installation documentation

Field Installation Guidelines

• Housing Integrity: Ensure the housing is mounted to a rigid surface to prevent mechanical resonance.

• Threaded Interface: Apply specified torque to mounting nuts; avoid over-tightening to prevent housing deformation.

• Environmental Sealing: Confirm that all conduit entries are properly plugged to maintain the IP66 ingress protection rating.

• Shielding: Bond the transducer housing to the machine frame to provide a low-impedance path for signal shielding and electrostatic dissipation.

Frequently Asked Questions

• Is the probe tip replaceable? The 8 mm probe is factory-integrated and sealed within the PROXPAC XL assembly; it cannot be replaced in the field.

• What happens if the gap voltage is outside the -10 VDC target? Deviation indicates incorrect physical positioning or potential damage to the probe coil, leading to non-linear signal output.

• Can this unit be used in explosive atmospheres? Verify the specific agency approval suffix (06) against the hazardous area classification requirements.

• Does this support hot-swapping? No, power must be disconnected from the monitor rack channel before removing the transducer cable.

• How do I identify a transducer failure? A "Not OK" status on the monitor indicates an open or short circuit, requiring continuity testing of the cabling and probe.

• Is the PPS housing resistant to oil? Yes, the Polyphenylene Sulfide (PPS) material is designed for immersion in standard industrial lubricants.

• Can I adjust the cable length? The PROXPAC XL system is impedance-matched; the factory-integrated cable length must not be altered.

• What is the impact of housing resonance? Mechanical vibration of the housing itself can be detected by the probe, leading to false vibration readings.
