Product Overview

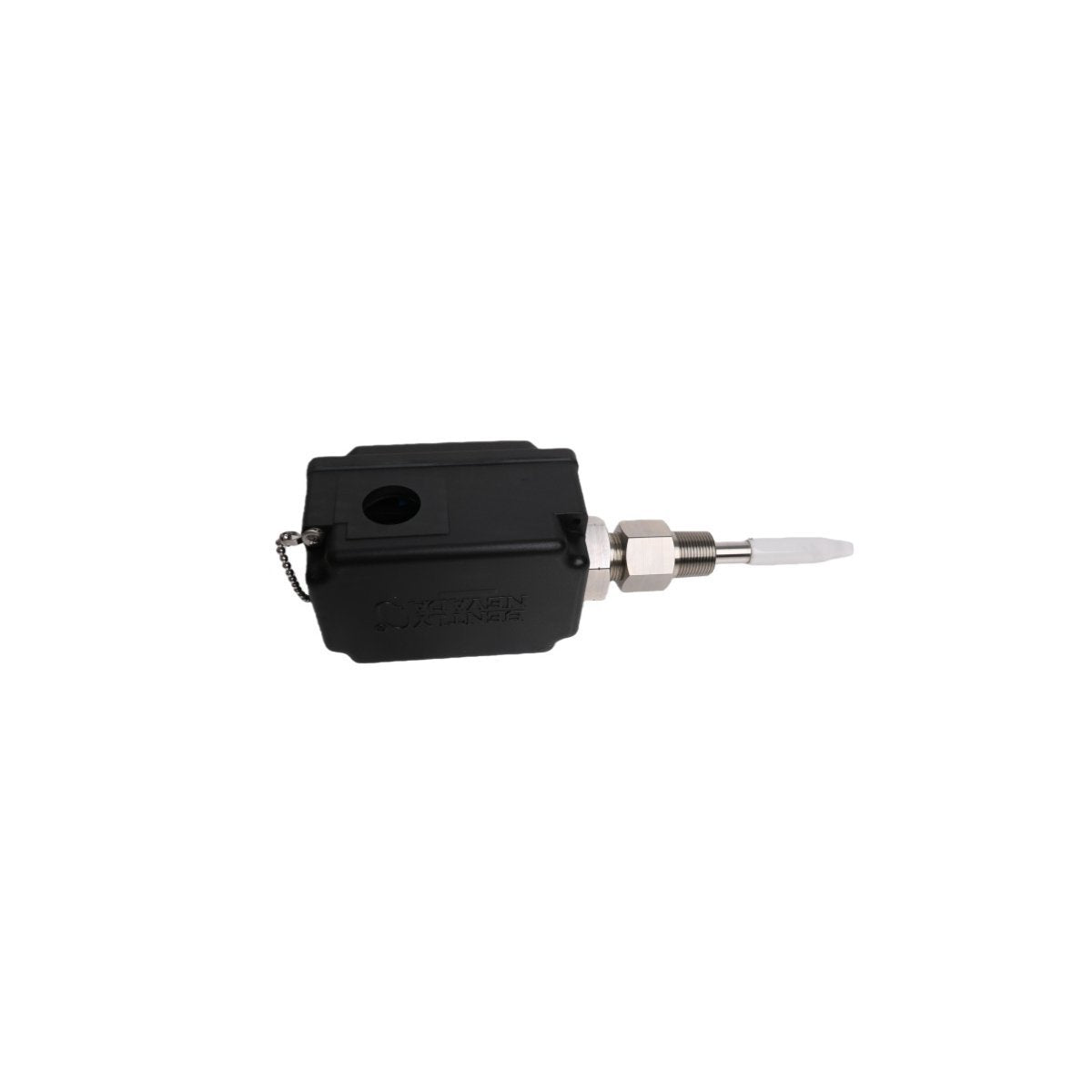

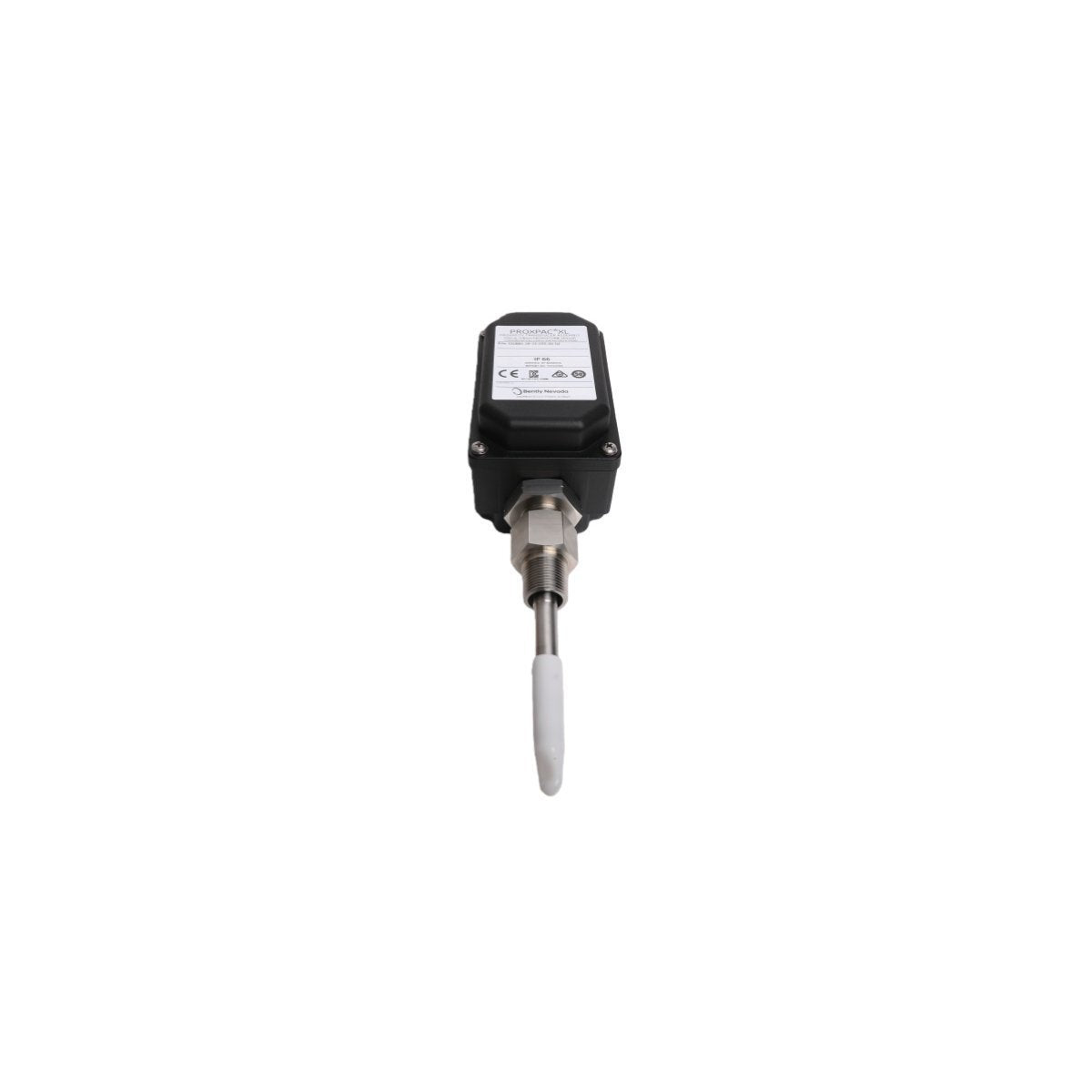

The Bently Nevada 330881-16-00-060-01-02 is an all-in-one PROXPAC XL proximity transducer assembly designed for precision machinery monitoring. This metric configuration integrates an 8mm proximity probe and a 3300 XL Proximitor sensor into a single, high-performance housing. By combining the sensor and the electronics locally, the system eliminates the requirement for separate extension cables and external driver mounting. This streamlined architecture reduces electrical interference and potential points of failure, providing a robust solution for tracking shaft vibration and position in high-stakes industrial environments.

Hardware Parameters

• Model Number 330881-16-00-060-01-02

• Sensor Type Integrated 3300 XL 8mm Proximity System

• Power Supply Requirement -17.5 Vdc to -26 Vdc

• Frequency Response Range 0 Hz to 10 kHz

• Housing Material Glass-reinforced Polyphenylene Sulfide (PPS)

• Ingress Protection Rating IP66 and Type 4X

• Enclosure Characteristics Conductive fiber-reinforced for electrostatic dissipation

• Mounting Thread Metric M16 x 1.5 (as per -16 option)

• Probe Case Length 60 mm (as per -060 option)

• Approvals Multiple international hazardous area certifications

Industrial Applications

The PROXPAC XL 330880 series is a critical component in Turbine Supervisory Instrumentation (TSI) for the oil, gas, and power generation sectors. This integrated assembly is specifically engineered for installation on large rotating equipment such as steam turbines, centrifugal compressors, and industrial gearboxes. Because the PPS housing is impervious to many corrosive chemicals and moisture, it is the ideal choice for cooling towers and offshore applications. It enables the early detection of mechanical pathologies, including rotor unbalance, shaft misalignment, and bearing wear, by providing high-fidelity vibration data directly to the plant's control system or 3500 Series monitor.
