Product Overview

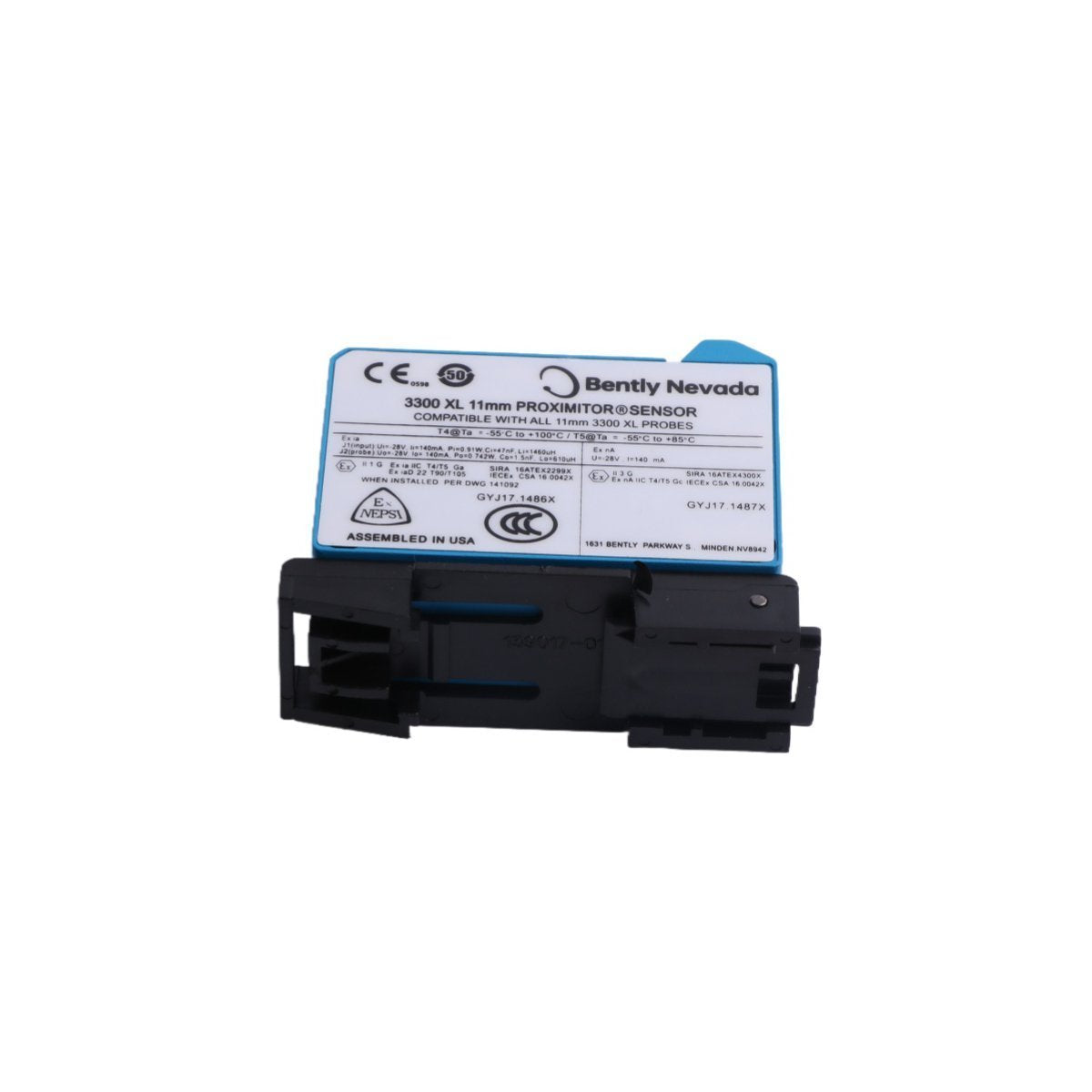

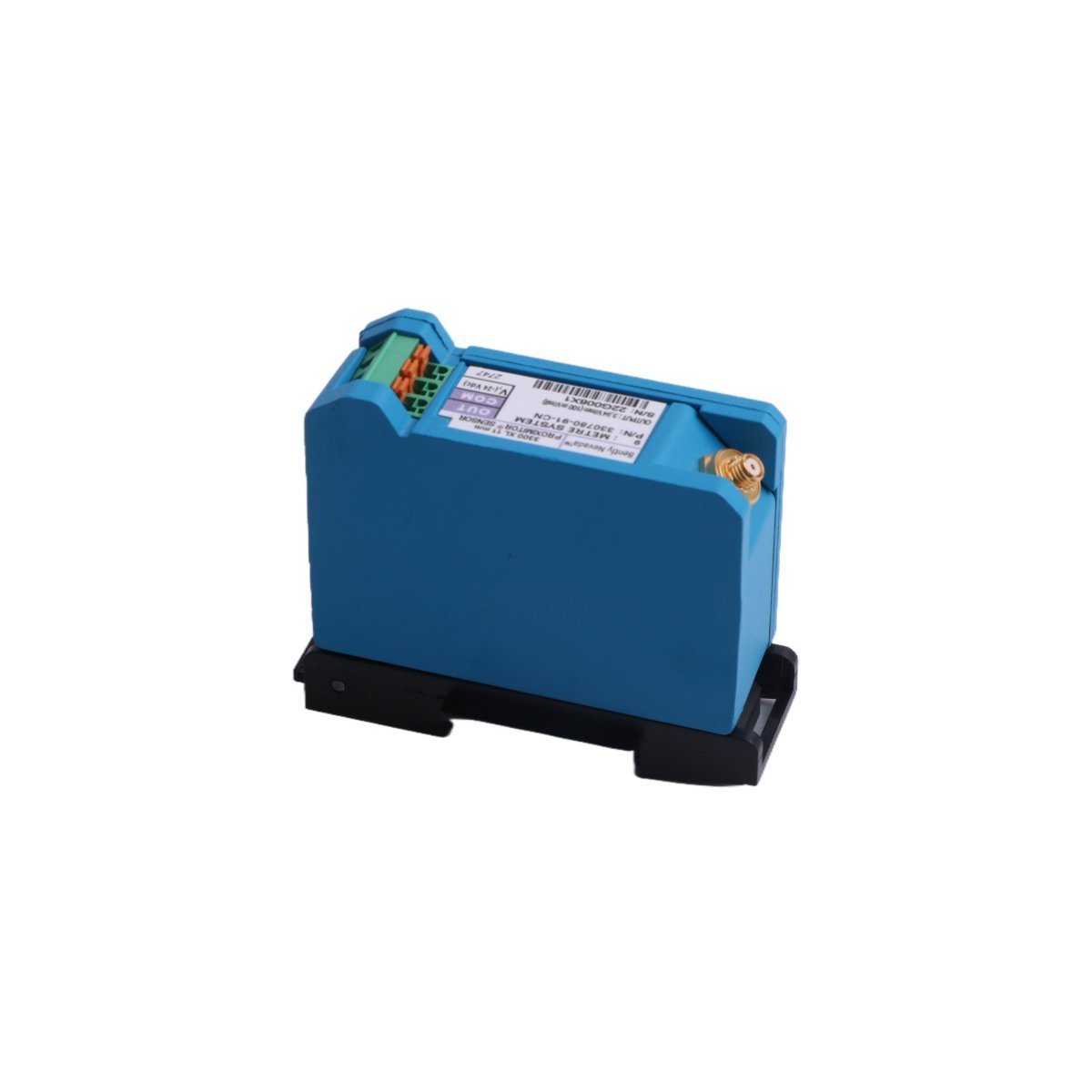

The 330780-91-CN is a specialized signal conditioning module from the Bently Nevada 3300 XL 11 mm Proximity Transducer System. This Proximitor sensor is engineered to provide an extended linear measurement range compared to standard 8 mm systems, making it the primary choice for monitoring axial thrust position and radial vibration on large-scale rotating machinery. By converting the eddy current signal from a non-contacting probe into a linear voltage output, it facilitates the early detection of mechanical faults. This specific model is factory-calibrated for a 9.0-meter total system length, offering the necessary reach for complex installations on large turbines and generators where the monitoring rack is located at a significant distance from the sensor point.

Technical Specifications and Electrical Performance

The 330780-91-CN is designed for high-fidelity data acquisition within Turbine Supervisory Instrumentation (TSI) frameworks:

• Linear Range: Provides an expanded 4.0 mm (160 mil) measurement window, nearly double the capacity of standard proximity systems.

• Scale Factor: Delivers a nominal Average Scale Factor (ASF) of 3.94 V/mm (100 mV/mil).

• System Length: Calibrated for a 9.0-meter (29.5 ft) total loop (91 option).

• Power Supply: Operates between -17.5 Vdc and -26 Vdc (barrier-free) or -23 Vdc to -26 Vdc (with barriers).

• Current Consumption: High-efficiency design with a maximum draw of 12 mA.

• Accuracy: Maintains output stability within 2 mV per volt of input fluctuation.

• Environmental Tolerance: Operational from -35°C to +85°C, ensuring reliability in extreme industrial climates.

Engineering Design and Field Integration

Built to withstand the rigorous conditions of power plants and manufacturing facilities, the 330780-91-CN features:

• Robust Material Construction: The sensor housing is manufactured from durable A380 aluminum, providing excellent corrosion resistance and mechanical protection.

• Flexible Mounting: The compact, slim-profile housing supports high-density 35 mm DIN-rail mounting or traditional bulkhead installation.

• Simplified Field Wiring: Equipped with SpringLoc terminal strips, allowing for tool-free and vibration-resistant electrical connections that prevent signal loss due to mechanical loosening.

• Electrical Isolation: Features an integrated mounting base that eliminates the need for separate isolator plates, streamlining the installation process and reducing costs.

• CN Compliance: Specifically marked for regional regulatory compliance and certified for use in mission-critical monitoring environments.

Industrial Applications

The 11 mm Proximitor 330780-91-CN is essential for protecting capital-intensive rotating assets, including:

• Large Steam & Gas Turbines: Tracking axial displacement and thermal expansion where standard sensors lack the necessary measurement range.

• Hydroelectric Generators: Monitoring radial shaft motion and centerline position on massive vertical and horizontal units.

• Centrifugal Pumps and Compressors: Early identification of rotor imbalance, misalignment, and bearing degradation.

• Condition Monitoring Systems: Direct interface with Bently Nevada 3500 series protection racks for real-time asset analytics and automated machinery trips.
