Product Overview

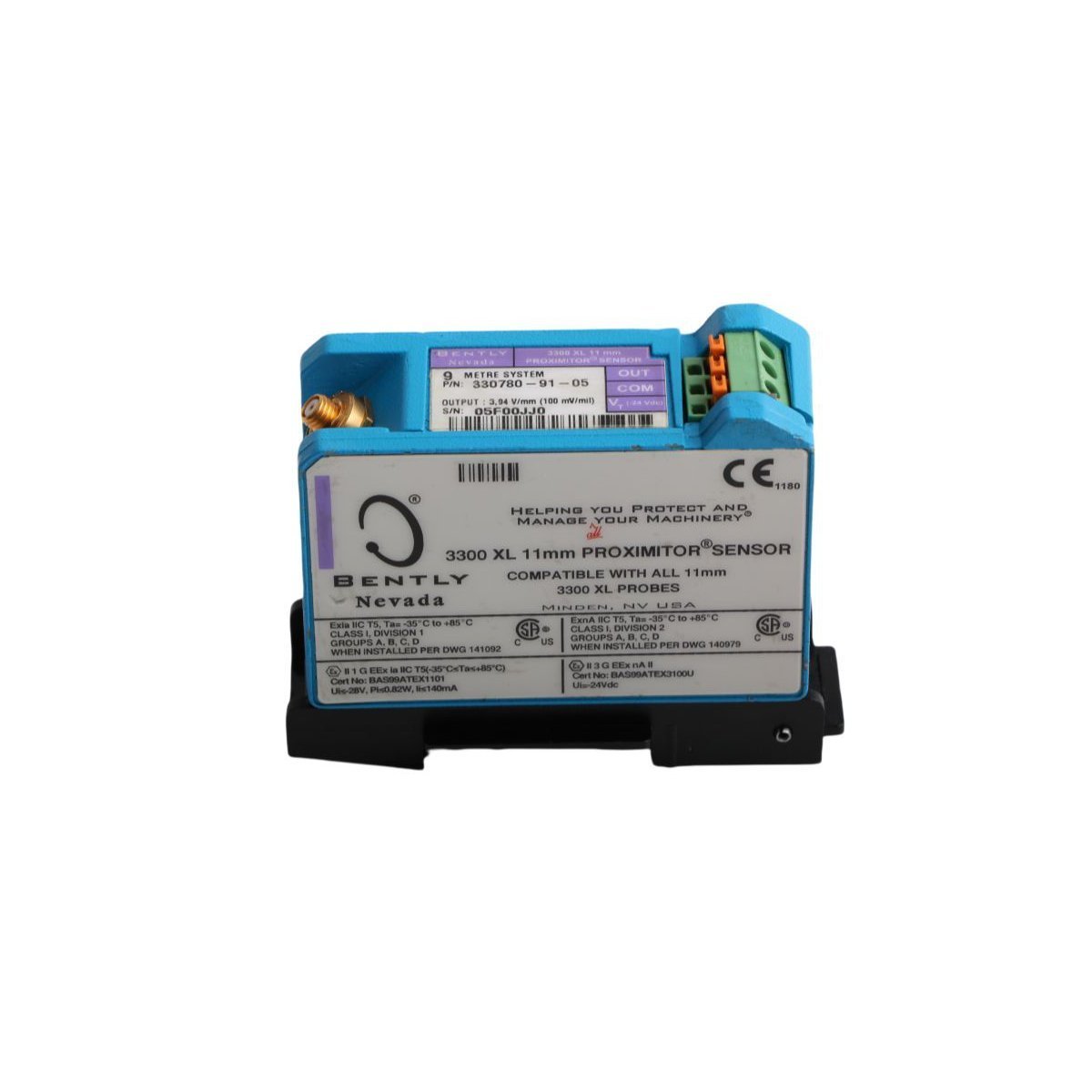

The 330780-91-05 is a sophisticated signal conditioning module that serves as the core of the Bently Nevada 3300 XL 11 mm Proximity Transducer System. This Proximitor sensor is specifically engineered to provide a significantly larger linear measurement range than standard 8 mm systems, making it the industry-standard solution for monitoring axial thrust position and radial vibration on large-scale rotating assets. Calibrated for a 9.0-meter total system length, this unit allows for extended cable runs between the machinery and the monitoring rack while maintaining high-fidelity signal conversion. It translates the distance between an 11 mm probe tip and a conductive target into a linear voltage output, providing critical data for early fault detection and automated machinery protection.

Technical Performance and Signal Integrity

The 330780-91-05 is designed to deliver precision diagnostics in the most demanding industrial environments:

• Extended Linear Range: Features a 4.0 mm (160 mil) linear measurement window, nearly doubling the capacity of standard proximity systems.

• System Calibration: Factory-tuned for a 9.0-meter (approx. 29.5 feet) total loop length (91 option), ensuring accuracy when paired with matching 9m probes and extension cables.

• Scale Factor: Delivers a nominal average scale factor of 3.94 V/mm (100 mV/mil) for precise signal resolution.

• Advanced Shielding: Superior RFI/EMI immunity exceeds European CE standards, protecting the measurement signal from distortion caused by nearby high-frequency industrial noise.

• Hazardous Area Certification: The -05 suffix indicates multi-agency approvals (ATEX, IECEx, and CSA), permitting safe installation in explosive or high-risk atmospheres.

Mechanical Design and Installation Features

Engineered for cabinet space efficiency and long-term reliability, the 330780-91-05 incorporates several structural advantages:

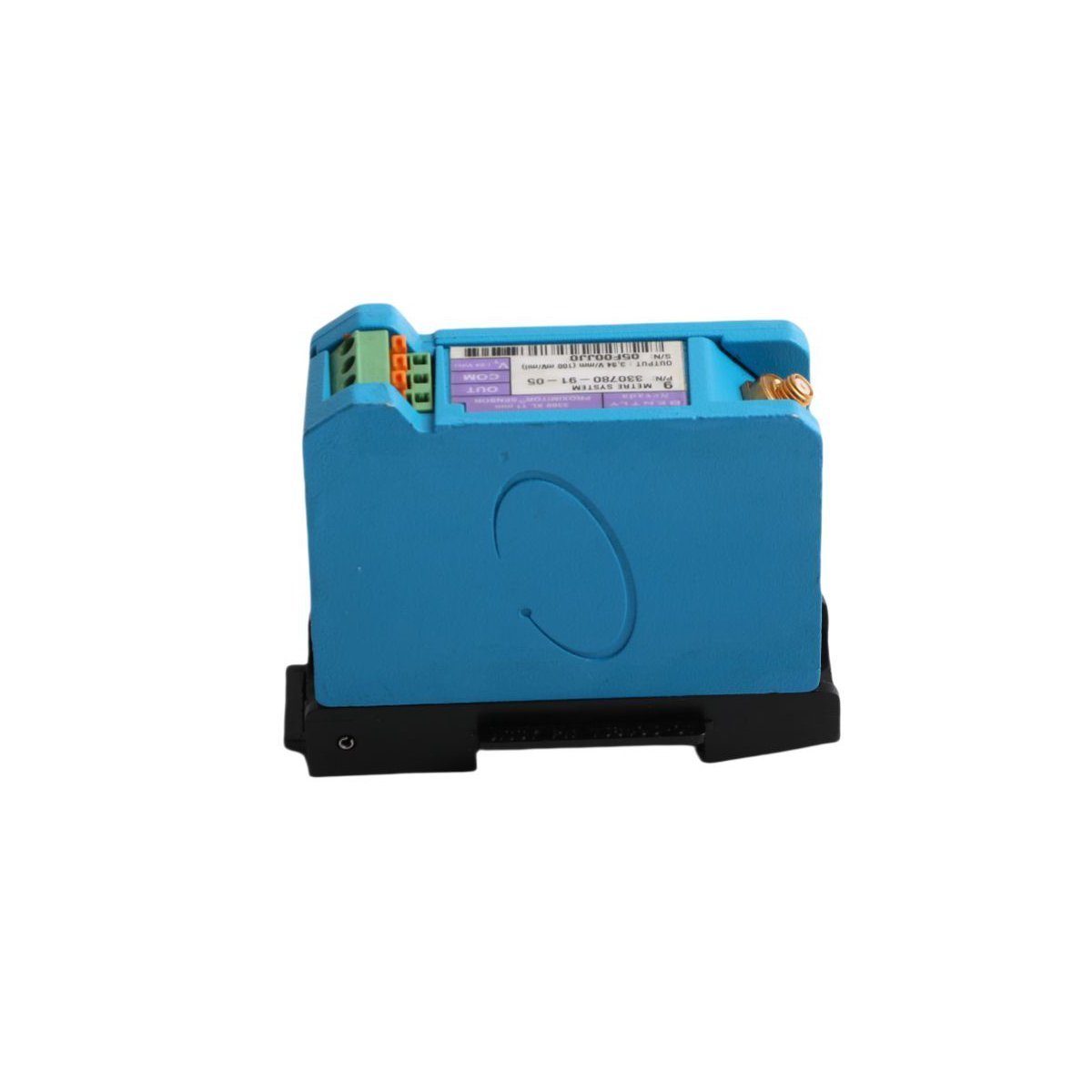

• High-Density Mounting: The slim-profile housing (8.7 x 3.4 x 7 cm) is compatible with 35 mm DIN-rail systems or traditional bulkhead panel mounts.

• SpringLoc Terminal Strips: Features tool-free, vibration-resistant wiring terminals that simplify field connections and eliminate the risk of wire loosening over time.

• Electrical Isolation: The integrated mounting base provides inherent isolation from the rail or panel, removing the need for separate isolator plates.

• Legacy Compatibility: While a modern 3300 XL component, it is designed to replace and upgrade older 7200-series 11 mm transducer systems with improved noise rejection and mechanical durability.

Primary Industrial Applications

As a vital component of Turbine Supervisory Instrumentation (TSI), this 11 mm Proximitor is utilized for:

• Large Rotating Assets: Monitoring axial displacement on large steam and gas turbines where significant thermal expansion is expected.

• Hydroelectric Units: Tracking radial shaft motion and centerline position on large-diameter vertical or horizontal generators.

• High-Power Centrifugal Pumps: Detecting rotor imbalance, misalignment, and thrust bearing degradation to prevent catastrophic failure.

• Predictive Maintenance: Seamlessly integrating with Bently Nevada 3500 series machinery protection racks for real-time asset health management.
