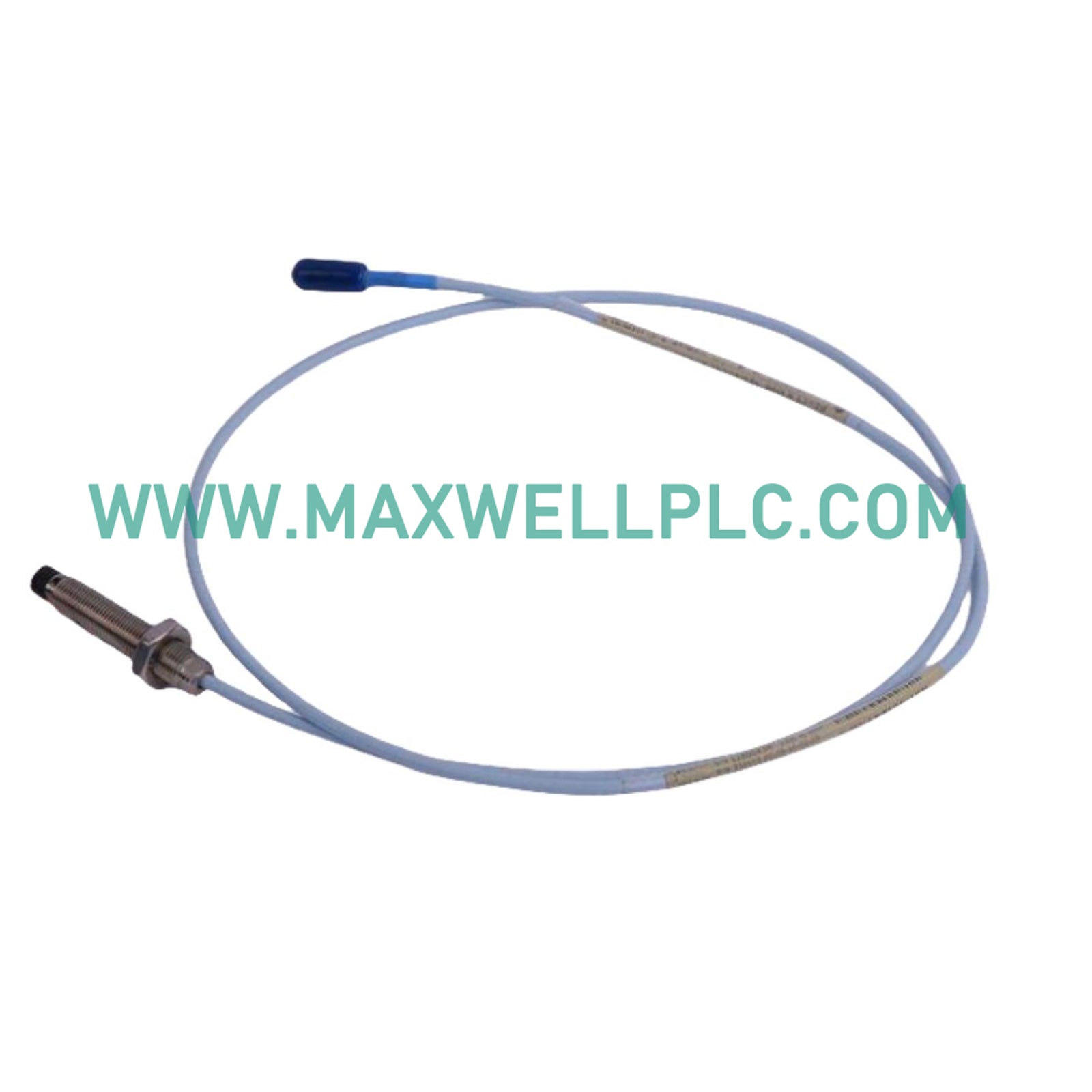

The Bently Nevada 330709-000-070-10-02-00, also cataloged as the 330709 3300 XL 11 mm Probe proximity probe, operates as a displacement sensing transducer for eddy-current based vibration and position measurement within Bently Nevada 3300 XL monitoring architectures. The probe converts target shaft surface proximity variation into analog gap voltage signals transmitted through a coaxial ClickLoc interface for downstream conditioning modules. Mechanical thread engagement (M16 x 1.5) defines mounting geometry, while linear sensing behavior is referenced against calibrated gap voltage scaling used for rotor dynamic displacement reconstruction.

Probe Configuration Matrix

• 330709: 3300 XL 11 mm proximity probe family

• 000-070: 70 mm minimum probe length configuration

• 10: 1.0 m coaxial cable length

• 02: Miniature coaxial ClickLoc connector type

• 00: No additional accessory requirement

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Behavior

The probe operates using eddy-current field interaction between the probe tip and conductive shaft surface. Output sensitivity is proportional to target distance variation within calibrated linear range, typically referenced against gap voltage scaling behavior near negative voltage bias regions (around -10 VDC system calibration reference in compatible monitoring systems). Signal integrity depends on controlled impedance transmission along the coaxial path, with shielding continuity required to prevent phase distortion and amplitude drift in high-frequency rotor displacement measurement.

Ordering info

• 1 x 330709-000-070-10-02-00 11 mm proximity probe

• 1 x integrated 1.0 m coaxial cable assembly

• 1 x M16 x 1.5 threaded probe body assembly

• 1 x ClickLoc connector termination (factory mounted)

Field Installation Guidelines

Mechanical Mounting

• Install using M16 x 1.5 threaded interface only

• Maintain defined minimum insertion length of 70 mm

Electrical Connection

• Ensure ClickLoc connector is fully seated before system power-up

• Maintain continuous shield grounding along signal path

Cable Routing

• Avoid sharp bends below minimum cable radius

• Keep separation from high-voltage conductors

Calibration Considerations

• Verify probe gap calibration against reference target prior to commissioning

• Confirm linear response within system-defined measurement window

Frequently Structured Technical Queries

• What measurement principle is used?
  Eddy-current displacement sensing converts gap variation into proportional voltage output.

• Is the probe internally powered?
  No internal excitation; operates as passive sensor requiring external driver module.

• What connector type is used?
  Miniature coaxial ClickLoc connector designed for low-loss signal transmission.

• What is the function of the 70 mm specification?
  It defines minimum mechanical probe length requirement for correct installation geometry.

• Can cable length be modified?
  No field modification is supported; factory-defined 1.0 m length must be retained.

• How is shielding implemented?
  Coaxial structure provides continuous shielding for EMI reduction along signal path.

• What is the thread standard?
  M16 x 1.5 metric thread for mechanical fixation.

• What system does it integrate with?
  Designed for integration with Bently Nevada 3300 XL proximity measurement chains.
