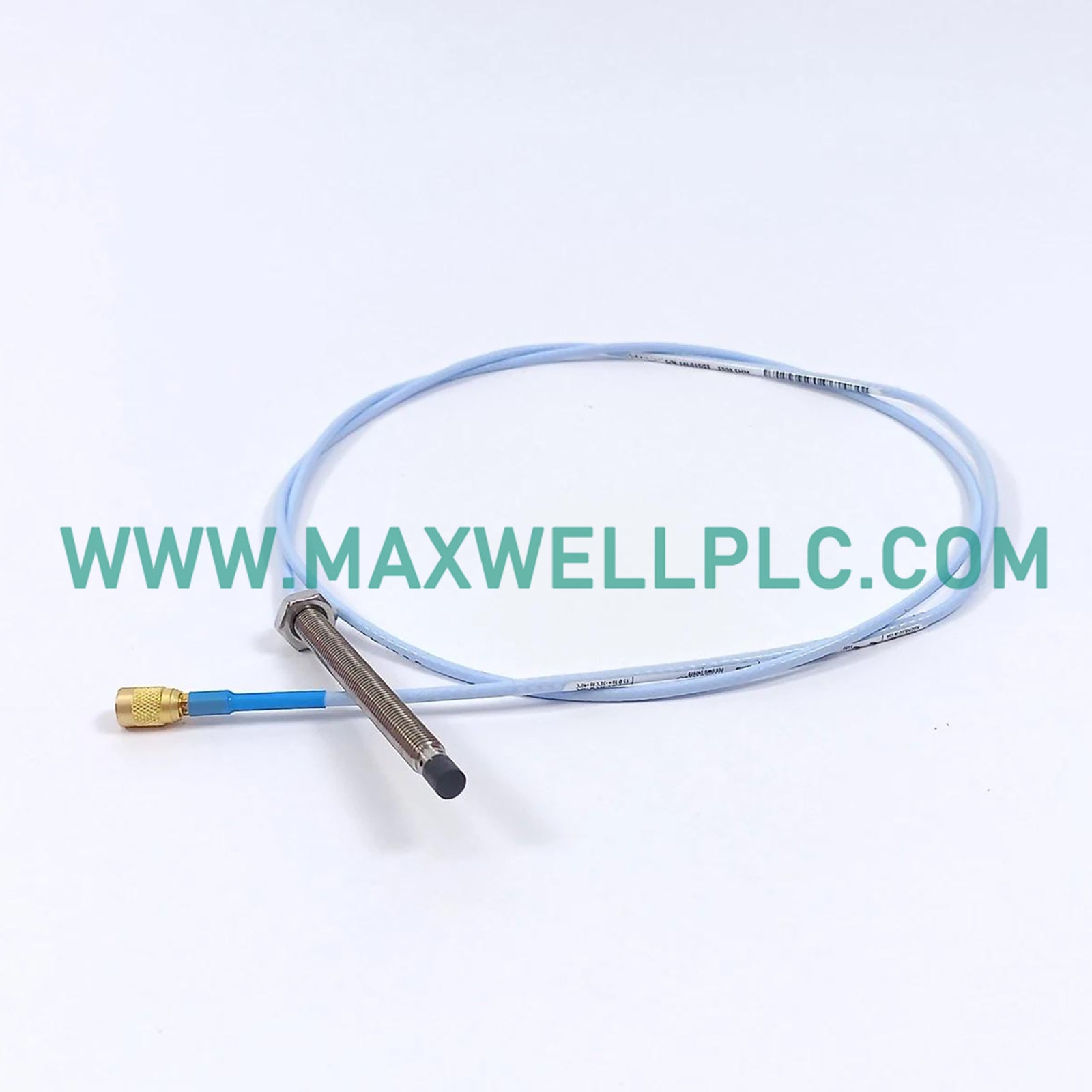

The Bently Nevada 330703-000-040-10-02-05 serves as the primary 330703 Proximity Probes utilized to execute non-contacting displacement and static position tracking across 3300 XL 11mm Series platforms. The hardware detects eddy-current field variations relative to a conductive target surface, transforming physical proximity data into calibrated RF signal variations for machinery protection loops.

Option Matrix Code Breakdown

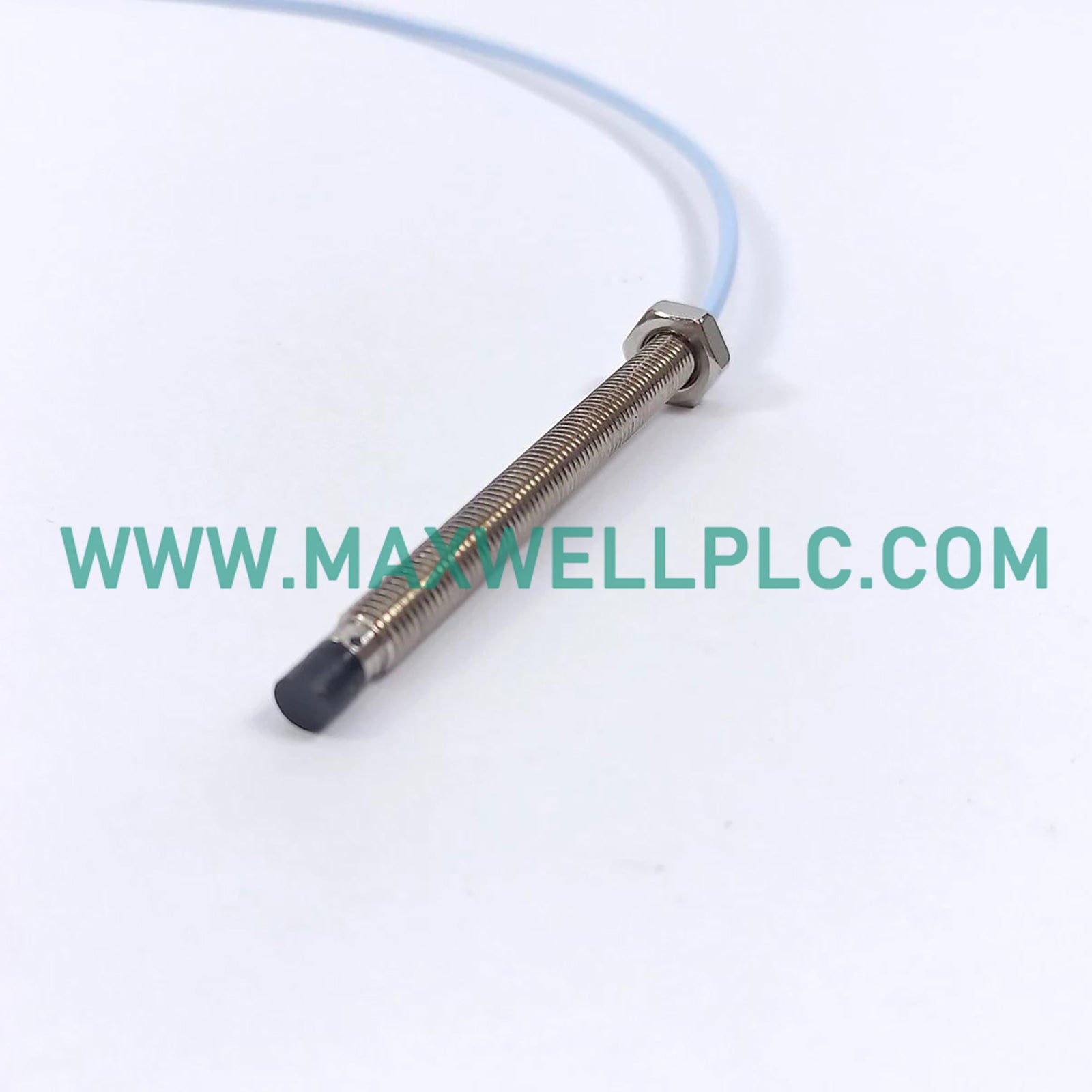

• 330703: 3300 XL 11 mm Proximity Probe base configuration with M14 x 1.5 metric thread profile, supplied without flexible outer armor.
• -000: Unthreaded Length Option indicating 0 mm of non-threaded case space.
• -040: Overall Case Length Option establishing a 40 mm mechanical body span.
• -10: Total Length Option defining a 1.0 meter (3.3 feet) integral connection cable length.

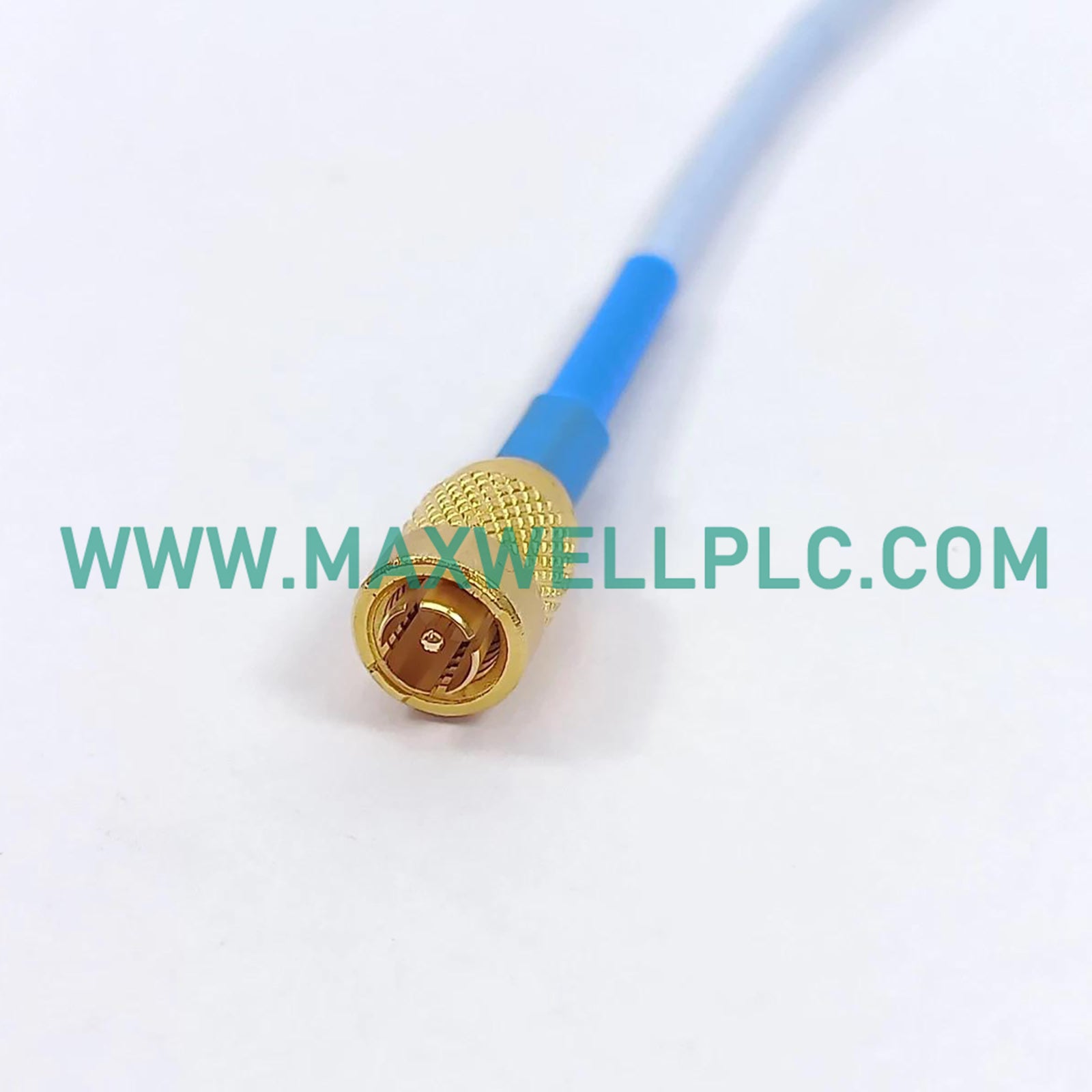

• -02: Connector and Cable-Type Option utilizing a miniature coaxial ClickLoc connector matched with standard cable construction.
• -05: Agency Approval Option certifying global compliance under Multiple Approvals frameworks.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330703-000-040-10-02-05 relies on precise eddy-current probe scaling matrices within the matched Proximitor sensor assembly to output a standard 3.94 V/mm (100 mV/mil) scale factor. Static installation verification requires monitoring the gap voltage validation parameters until the probe tip settles into the optimum -10 VDC target midpoint zone. This stabilization limits cross-talk suppression failures across orthogonal X/Y pairs, preventing high-frequency noise interference from distorting dynamic rotor dynamics wave logs during transient thermal expansion events.

Shipping Box Contents

• 1 x Bently Nevada 330703-000-040-10-02-05 Proximity Probe Assembly
• 2 x Lock Washers for Metric M14 Thread Mounting
• 1 x Miniature Coaxial Connector Protective Terminal Cap

Mechanical Mounting and Wiring Guidelines

• Thread Torque Control

  Thread the M14 probe housing into the mounting bracket or casing interface, using a torque wrench to ensure the installation stays within manufacturer limits to prevent case deformation.

• ClickLoc Joint Cleanliness

  Verify the miniature coaxial ClickLoc interlocking interfaces remain completely clear of oil, water, and particulate matter before twisting the barrel ring into its locked position.

• Bending Radius Constraints

  Maintain a minimum internal bending radius of 25.4 mm (1.0 inch) along the standard 1.0-meter integral extension line to safeguard internal physical conductor shielding from stress fractures.

• Terminal Box Protection

  Route the flexible connection line into an isolated, weather-sealed field junction housing to protect the coaxial connector junctions from industrial fluid ingress.

Frequently Asked Questions

• Can the ClickLoc connector joint on this 1.0-meter probe lead be hot-swapped while the Proximitor loop is fully powered?

  Yes, but doing so will instantly open the input channel loop, triggering a transient fault state and immediate invalidation of the associated gap voltage logic.

• What occurs if the total cable system distance does not match the standard 5-meter or 9-meter calibration profiles?

  Exceeding or dropping below designated length matching specifications alters loop capacitance, which completely disrupts the eddy-current probe scaling and results in measurement drift.

• How does an operator verify whether the probe tip has reached the proper physical installation gap depth?

  Connect a digital multimeter to the Proximitor monitor test ports and adjust the depth until the DC voltage settles at the standard -10 VDC target value.

• What type of surface preparation is required on the target shaft area to prevent measurement phase error logs?

  The target track must be machined to mirror finishes, ensuring low electrical runout values to prevent cross-talk suppression artifacts from altering rotor dynamics calculations.

• Is this specific option version compatible with direct installation inside high-pressure fluid environments?

  No, unarmored probes with zero unthreaded length option require a protective mechanical sleeve or thermowell assembly if placed into areas with high fluid flow or high pressures.

• Why does this assembly specify an unarmored configuration instead of standard stainless steel flexible armor?

  The unarmored layout reduces physical cable outer diameter profiles, allowing simple routing through tight internal machine passages and narrow external conduit entries.

• What baseline indicator points out that the internal coaxial core wire has suffered an electrical break?

  The primary monitoring chassis will turn off the front channel OK LED indicator and output an out-of-bounds low limit signal below -1 VDC.

• Can this M14 metric threaded probe module be mounted in a standard imperial thread bracket structure?

  No, attempting to cross-thread the metric M14 body into an imperial clearance hole will destroy the precision case threading and ruin the sensor assembly geometry.
