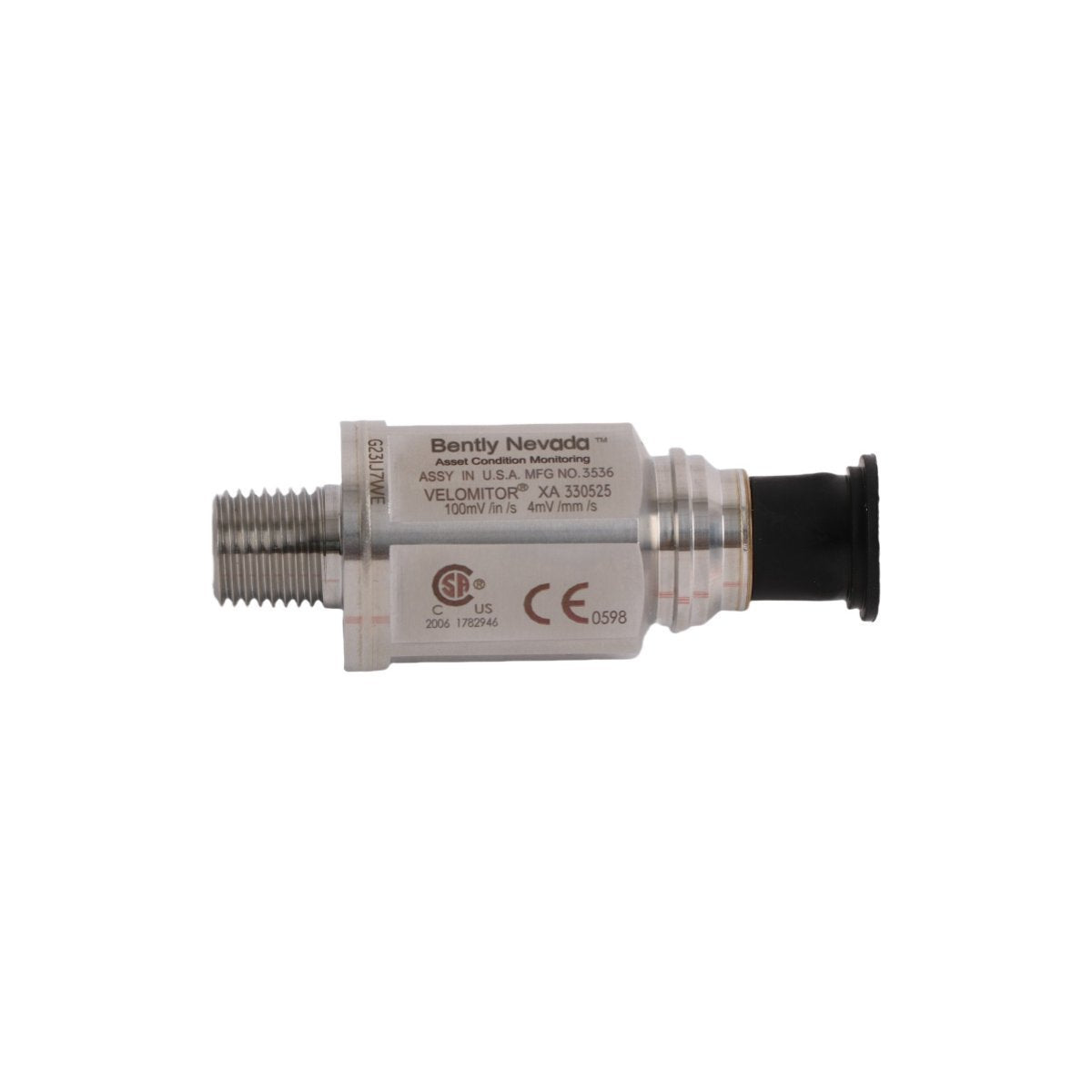

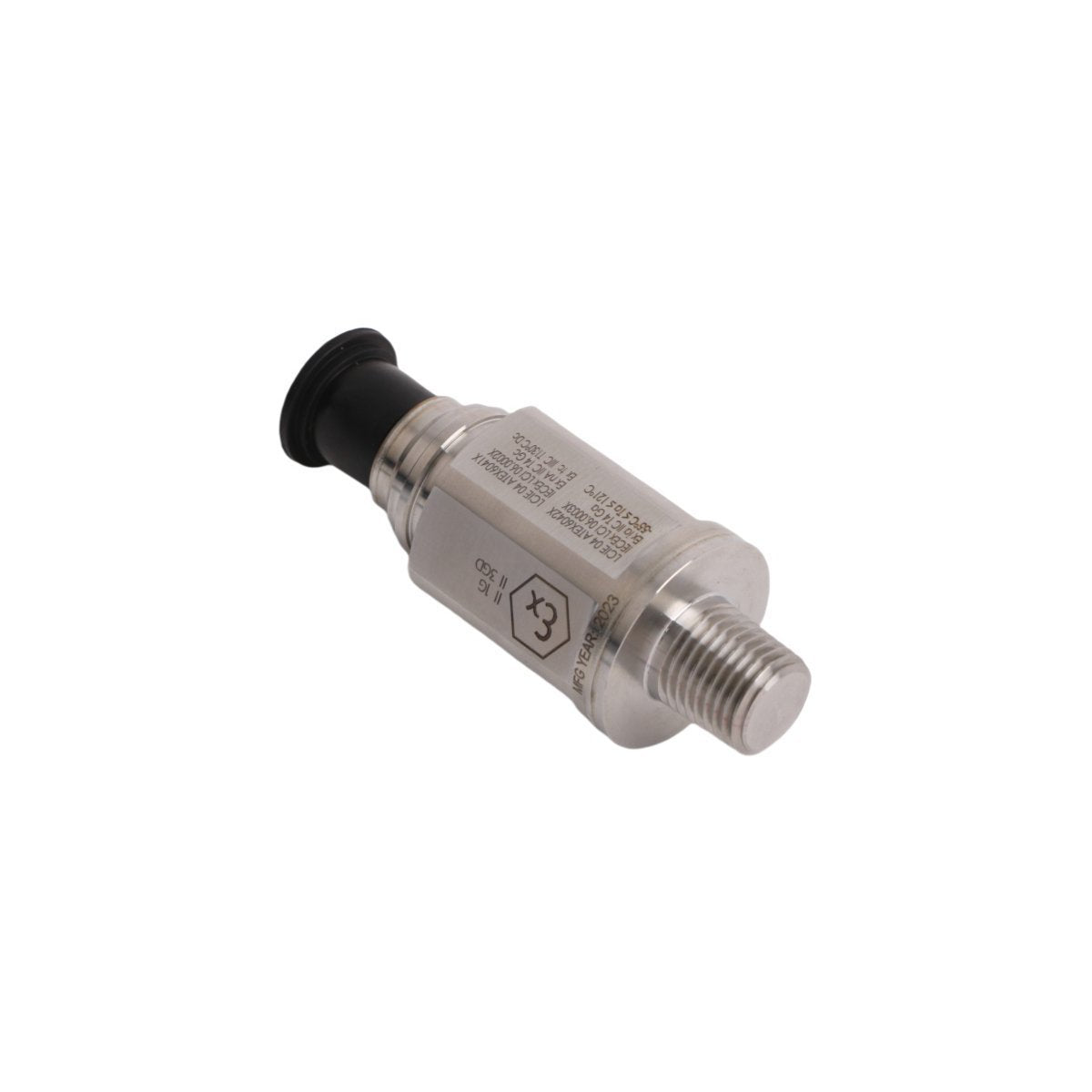

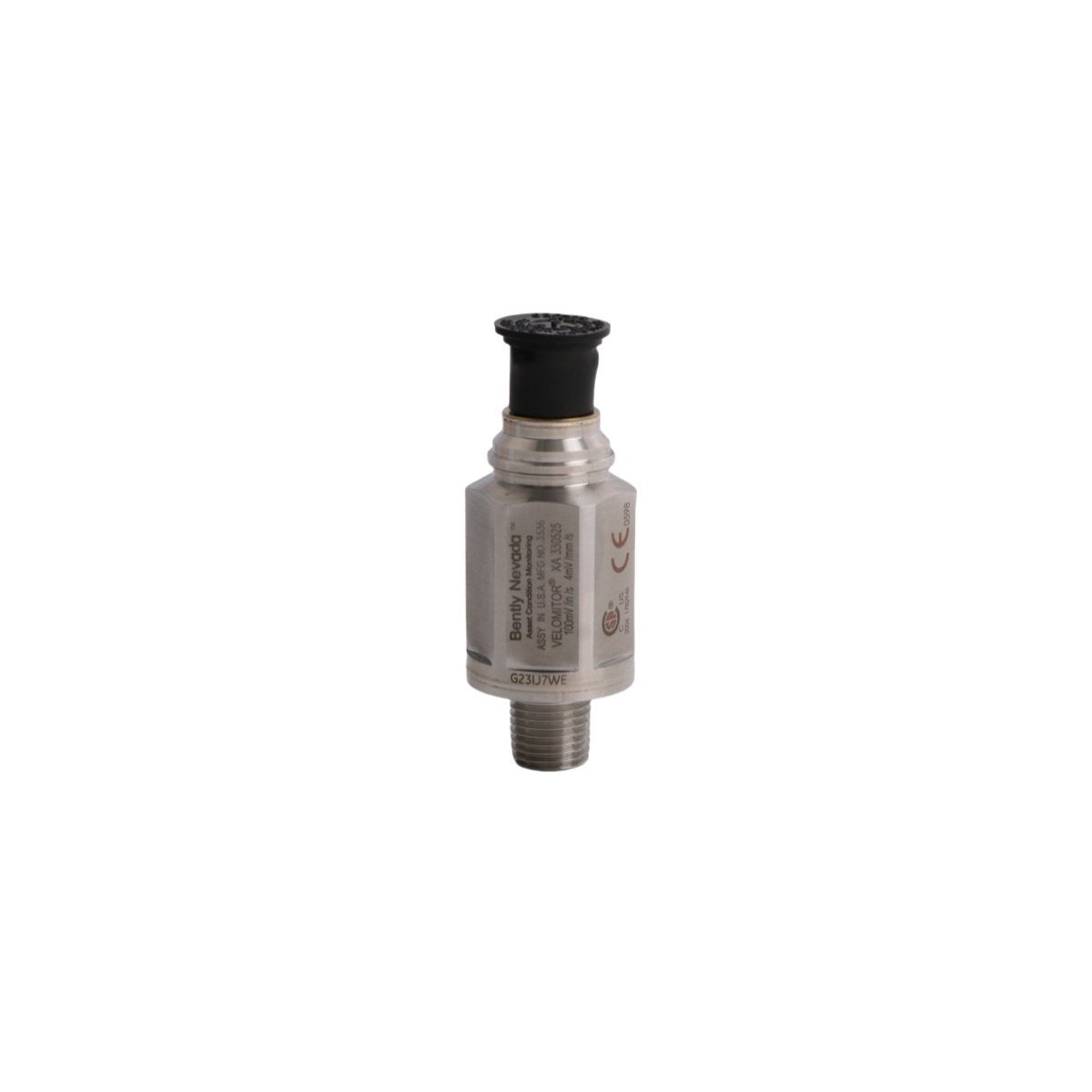

The Bently Nevada 330525-02 serves as the primary 330525 Piezo-velocity Sensor utilized to execute absolute casing vibration velocity measurements across 3500 Machinery Protection Systems platforms. The hardware integrates internal piezoelectric crystal arrays and solid-state instrumentation amplifiers housed in a rugged enclosure to output a continuous low-impedance AC voltage signal directly proportional to structural machinery casing velocity vectors.

Suffix Array Breakdown

• 02 (Mounting Thread Option): M8 x 1.25 threaded mounting stud adapter component

Transducer System Specifications

Casing Vibration Integration and Rotor Dynamics Context

While eddy-current probe scaling tracks relative path variations for internal shaft monitoring, this piezoelectric hardware measures absolute structural acceleration and integrates it internally into velocity targets. It tracks parameters linked to casing structural health and casing-to-rotor dynamics loops. The internally isolated circuitry produces a steady DC bias voltage loop to verify system continuity and cross-talk suppression. This layout isolates external electrical path noise, preventing high-frequency ground loop currents or stray magnetic field interference from distorting adjacent transducer readings or overlapping control cards.

Procurement Package Content

• One (1) integrated Bently Nevada 330525 Velomitor XA sensor base with an M8 x 1.25 threaded stud adapter.

• Factory sheet containing original calibration verification loop data.

• Interconnecting Mil-C-5015 cabling kits and auxiliary terminal rack monitors are excluded from this standard bundle.

Freight Packing and Dispatch Logistics

• System Processing Window: Consignments are packed for warehouse dispatch within 2-7 days when payment finish confirmation is logged.

• Express Delivery Carriers: Shipments route via premium international priority transit networks including DHL, FEDEX, or UPS.

• Electrostatic Defect Protection: Components travel individual-sealed inside rugged anti-static industrial packaging to maintain absolute structural isolation and eliminate latent static breakdown risk during transport.

Field Installation Guidelines

• Mounting Pad Tolerance: Machine the casing structural pad until it matches a flatness profile of 0.8 micrometers Ra. Apply a light, uniform coat of industrial silicone grease or acoustic coupling paste to the mounting threads before torquing.

• Thread Engagement and Torque: Manually engage the M8 x 1.25 threaded stud into the prepared machinery recess, then use a calibrated torque wrench to lock the sensor body down to a maximum limit of 4.5 N-m (40 in-lb). Do not over-torque to avoid permanent degradation of the internal piezoelectric crystal stack.

• Shield Grounding Topology: Secure the 2-pin Mil-C-5015 mating cable collar firmly to achieve a hermetic environmental seal. Route the twisted-pair cable assembly inside grounded metal conduit paths, landing the outer drain shield wire exclusively at the monitor instrument rack ground terminal to ensure complete cross-talk suppression.

Frequently Asked Questions

Q: How is loop health monitored when the machinery monitor lacks a gap voltage validation target?

A: The transducer maintains a steady internal DC bias voltage verification cycle over the 2-wire interface. Under static, non-fault operating conditions, the loop exhibits a constant bias voltage between 10 VDC and 14 VDC. Values tracking outside this window alert the monitoring system to an open field wire or a crushed cable short circuit.

Q: Can this sensor undergo field adjustment to alter its nominal scale factor sensitivity?

A: No. The internal piezoelectric integration matrix is permanently laser-welded and sealed hermetically at the factory. No adjustments can be executed in the field; sensors that shift outside the nominal 3.94 mV/mm/s tolerance range during loop testing must be replaced.

Q: Does mounting the hardware on an ungrounded bearing housing disrupt signal stability?

A: No. The internal sensing elements and integrated amplifier circuitry are entirely isolated from the stainless-steel outer casing. This electrical separation blocks local ground loop noise and ensures continuous cross-talk suppression.
